2019 Hinckley 40' _{(12.19 m)} PB40

Vessel Walk Thru Hull and Deck

Construction: Hinckley TriGuard Epoxy Construction – Aramid fiber/E-glass outerskin with Corecell M Foam for core. Carbon fiber for inner skin infused and post-cured with epoxy resin using Seaman Composite Resin Infusion Molding Process (SCRIMP).

Deck Features:

Teak decking throughout the cockpit, pilothouse and OPTIONAL EXTENDED SWIM PLATFORM with white seam caulking and SEMCO CLEARTONE finish. Heavy-duty fiberglass swim platform has stainless steel brackets and half round, and a stainless-steel telescoping 3-step swim ladder.

Awlgripped Petrol Blue topsides accented by Double Cream boot stripe and contrasting Light Cream gelcoat house and side decks.

Micron CSC black bottom paint.

Three white trailblazer waterproof lights mounted underwater on transom.

Large forward anchor locker with additional fender storage, remote windlass and collapsible boat hook.

Two stainless steel Hinckley bow chocks on fiberglass molded rub rail.

Four 12” stainless steel (2) bow and (2) stern cleats. Mid-deck cleats are stainless steel pop up models

Tapered teak high gloss toe rail with rounded Hinckley profile.

Varnished teak exterior handrails.

Port and starboard hull ports.

Fenders are easily located in the forward anchor locker, aft deck hatch or self-deploying mid-ship via the easily assessable deck compartments located mid ship. All fenders are easily fastened by Wichard clips and stainless steel D rings. An optional stainless steel Bo Peep boarding handle NEW 2026, has two receiver sockets located along the aft decks port and starboard it is stored along the inside port gunnel.

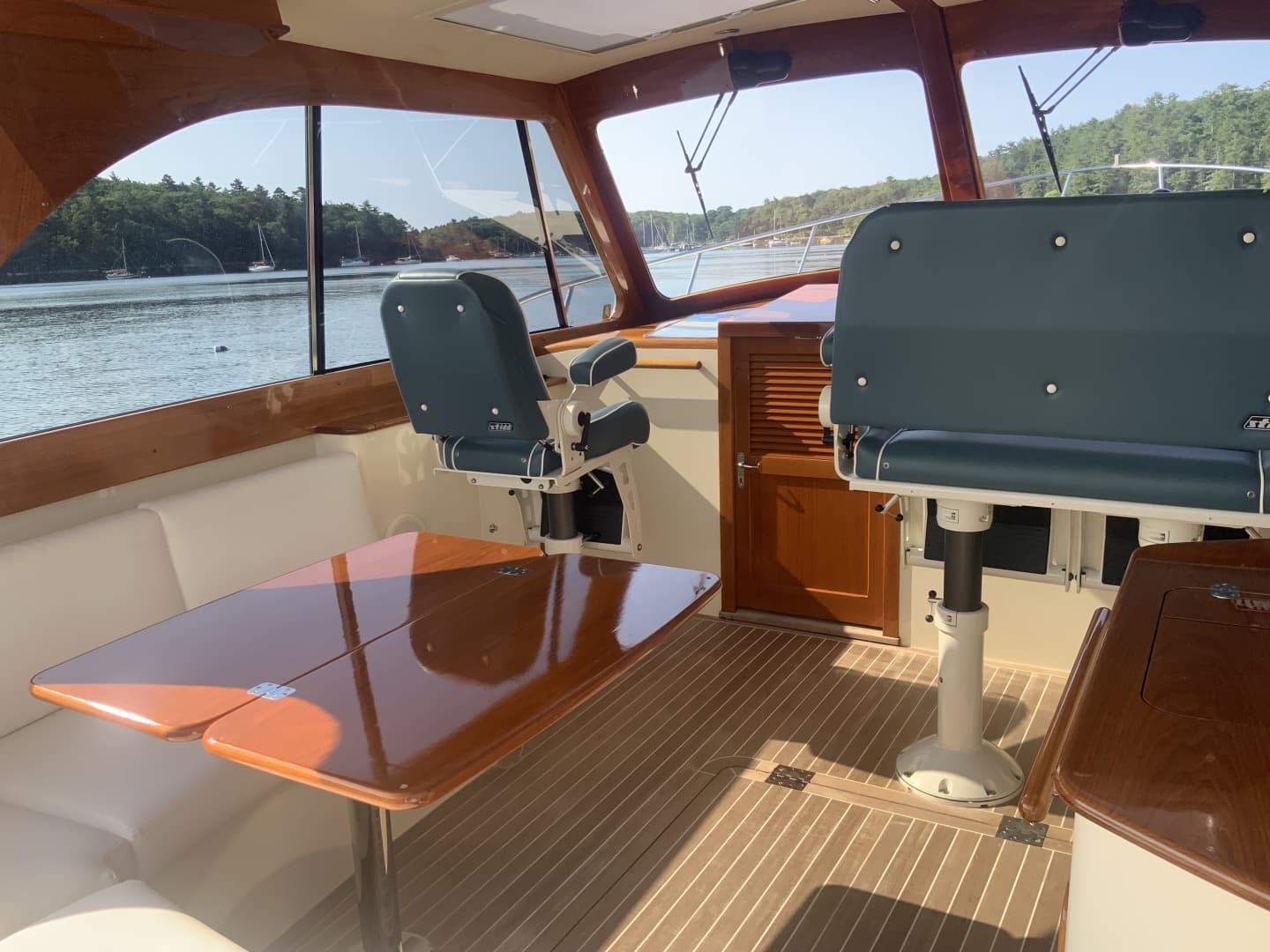

Pilothouse and Aft Cockpit Features

Courtesy lighting along footwell.

Two overhead large self-dogging power stainless steel hatches providing excellent ventilation include Oceanair covers and screens.

Two optional Marine Air 12000 BTU reverse cycle air conditioning units are dedicated to the Pilothouse and have independent thermostatic controls located outboard each helm seat port and starboard.

Forward are two large fixed frameless tempered windscreens with intermittent washer and wiper controls located at helm providing excellent visibility.

Five dimmable LED lights located overhead in the insulated white headliner with a teak grab handle running centerline.

Double Stidd helm seat in Ultraleather Promessa Stone Blue with Promessa Ermine Piping

A single matching Stidd seat is located to port for the co-pilot.

Port and starboard large power sliding windows provide additional ventilation and light and also have snap-in Ivory Stamoid covers for interior privacy or sun protection when not underway.

L-settee cushions in Ultraleather Promessa Ermine.

The teak salon table is thoughtfully designed with an integrated stainless steel grab handle, and folds outward to double its size when needed. The pedestal is polished stainless steel.

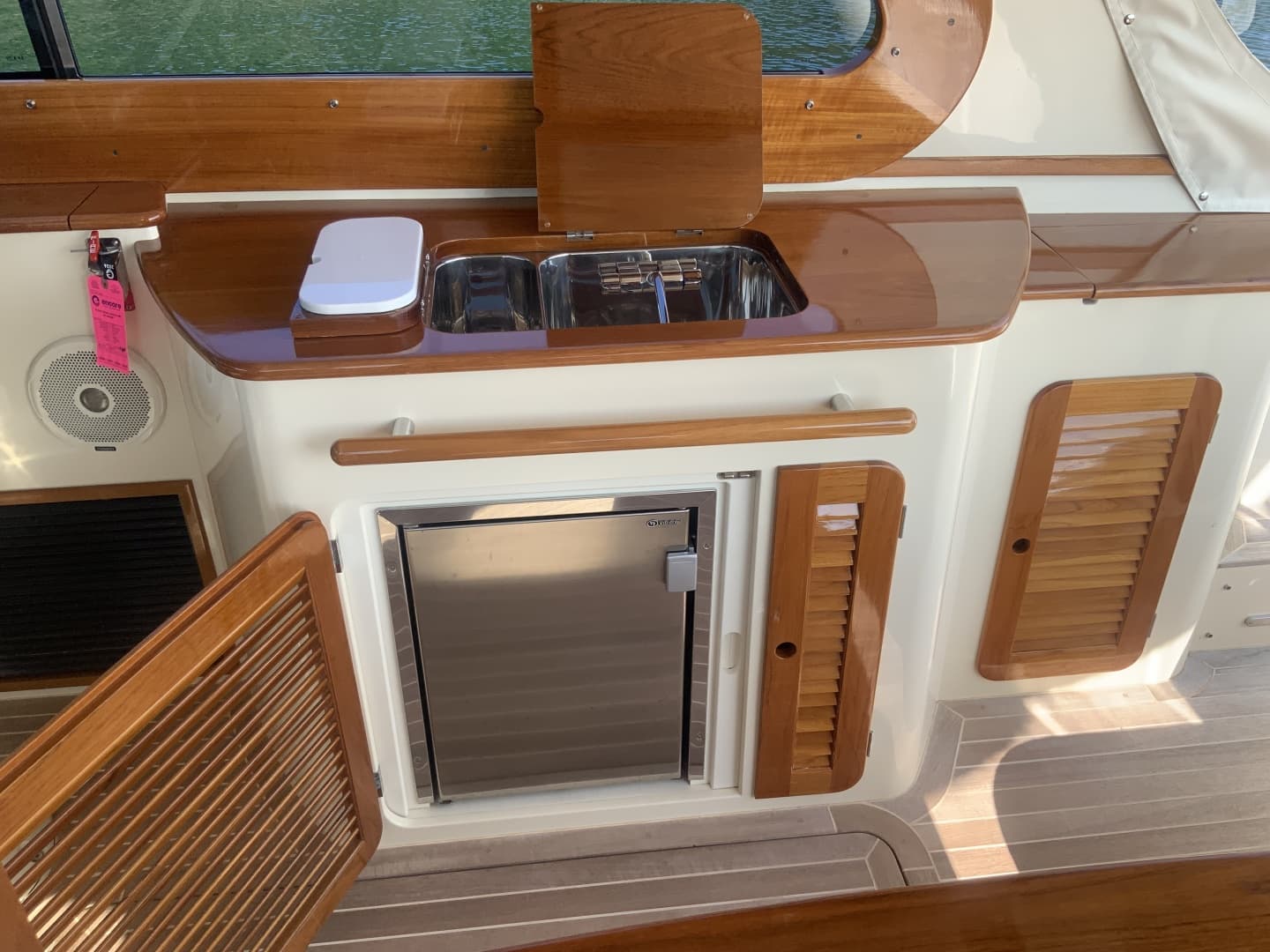

An amenity cabinet is to starboard with stainless sink, beverage center, refrigeration below and has a teak counter top with louvered doors for storage for bottle and glassware. Additional storage is located in the pilothouse deck hatch.

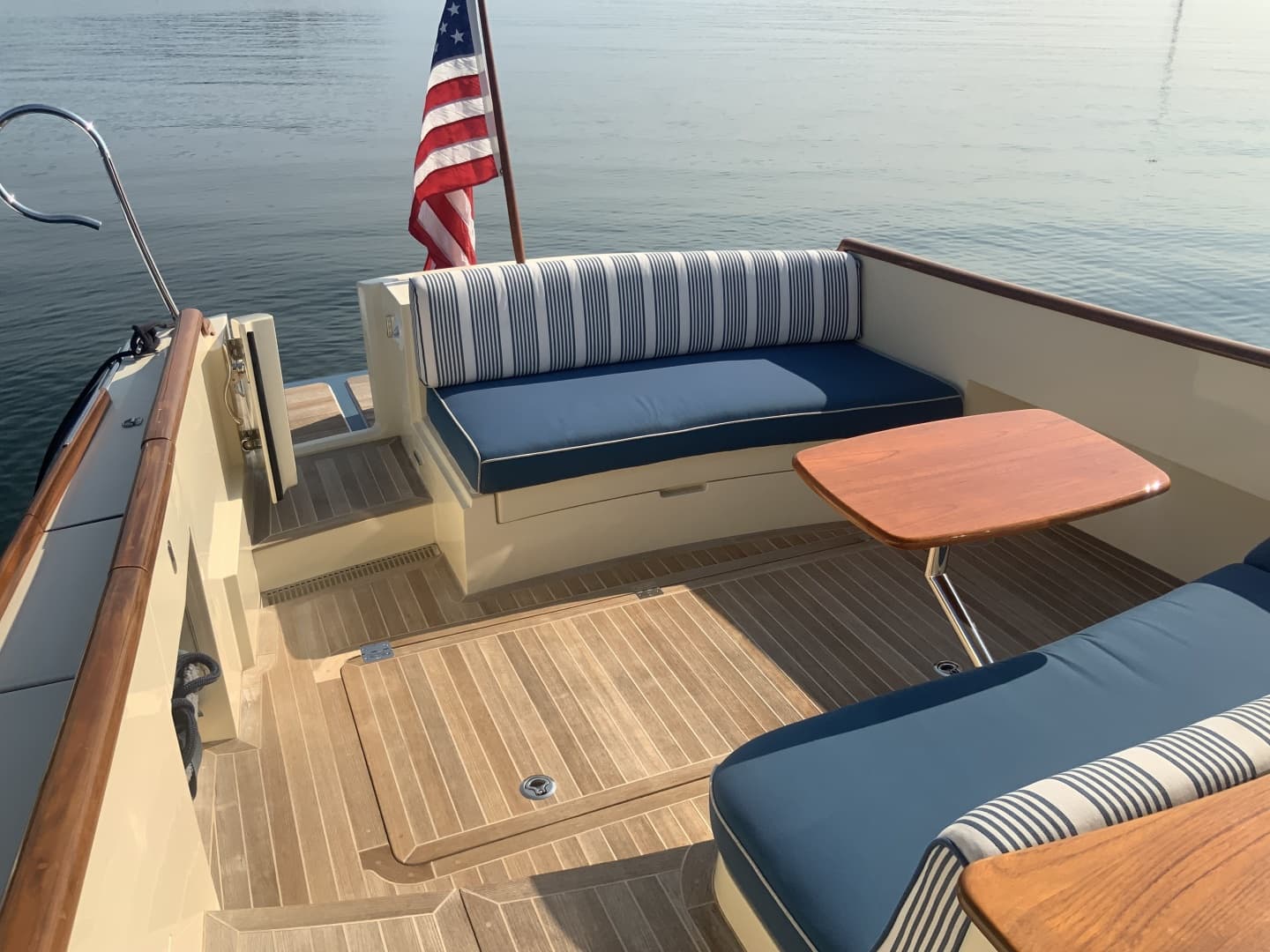

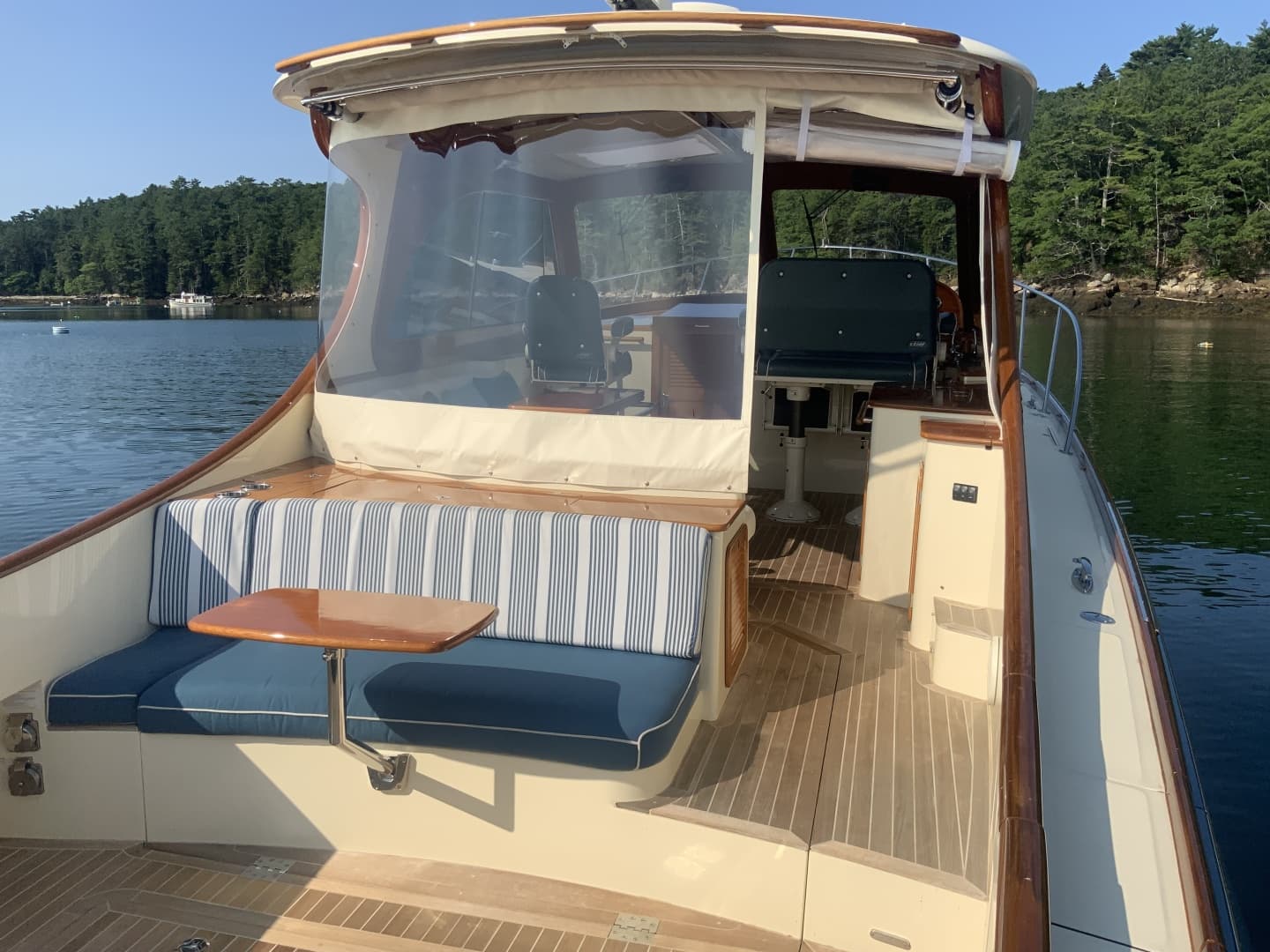

The deep aft cockpit has spacious seating fore and aft. Backrests in Perennials “I Love Stripes Lagoon” with Sailcloth “Dragonfly” piping. Seats in Perennials Sailcloth “Dragonfly” with Sunbrella “Natural” piping.

Optional retractable Sureshade in Sunbrella “Parchment” shields the cockpit from the sun or inclement weather.

Removable high gloss cocktail table in the aft cockpit.

Ice chest with an adjacent champagne bucket with lid on the shelf behind the rear facing benchseat.

Additional storage is located between the forward facing settee in the pilothouse and aft facing bench in the aft cockpit.

A trash receptacle is located inside of the louvered teak endcap door.

The Engine box is hinged at the rear facing aft settee. An electric lift provides easy access to the engine compartment.

A Large centerline deck hatch with fender and line storage also provides access to the generator.

Fresh water wash down shower with hot and cold mixer is located just inside the transom door.

Two stainless steel combination rod holder / cup holders are located on the aft side decks.

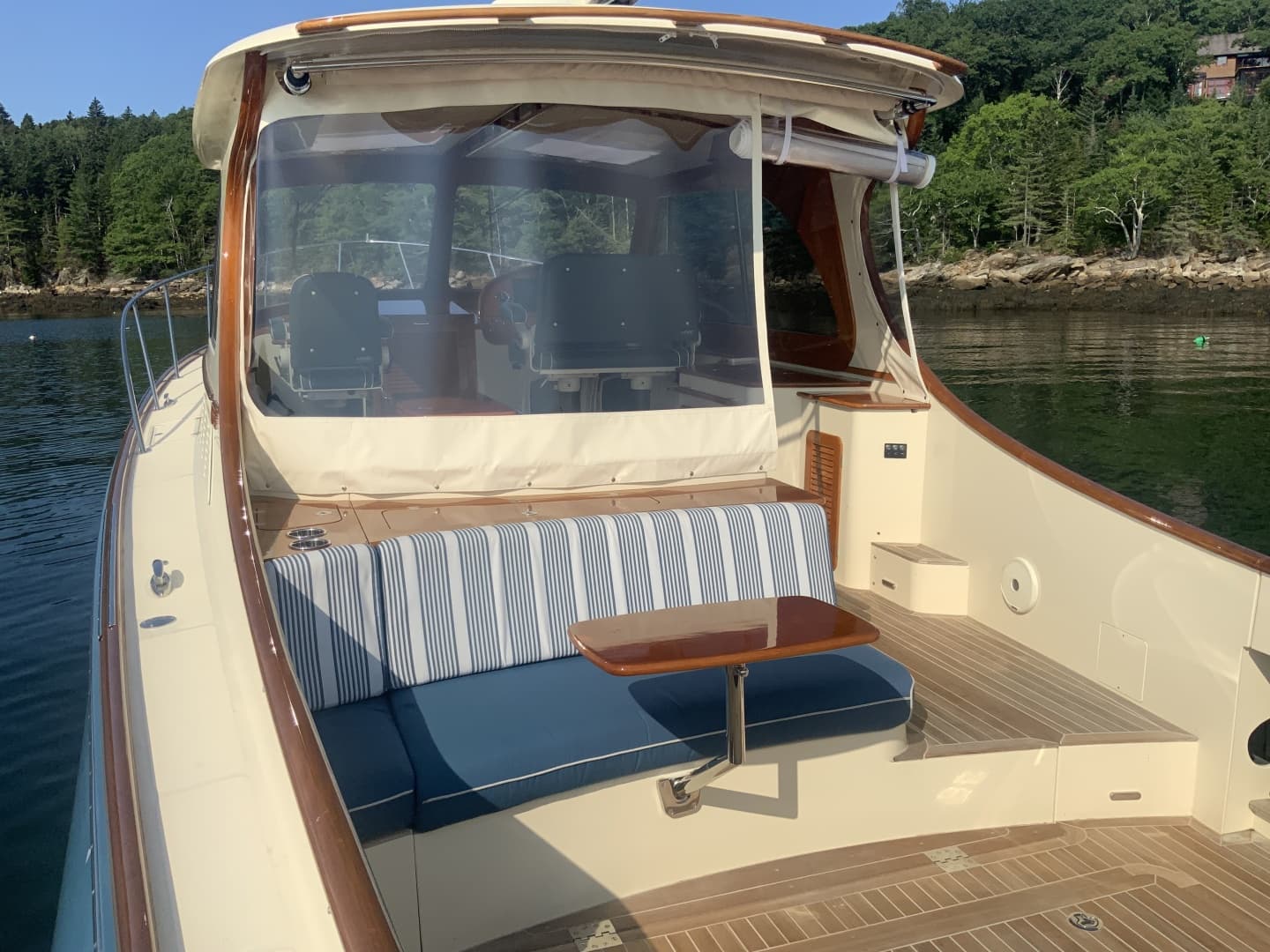

At here is a three piece Ivory Stamoid /Eisenglass enclosure NEW IN 2026, for the pilothouse when needed.

The Aft cockpit cover is Stamoid Ivory which attaches to the pilothouse top and fastens along the upper edge of transom coaming. It is well ventilated and has zippered access at the transom door.

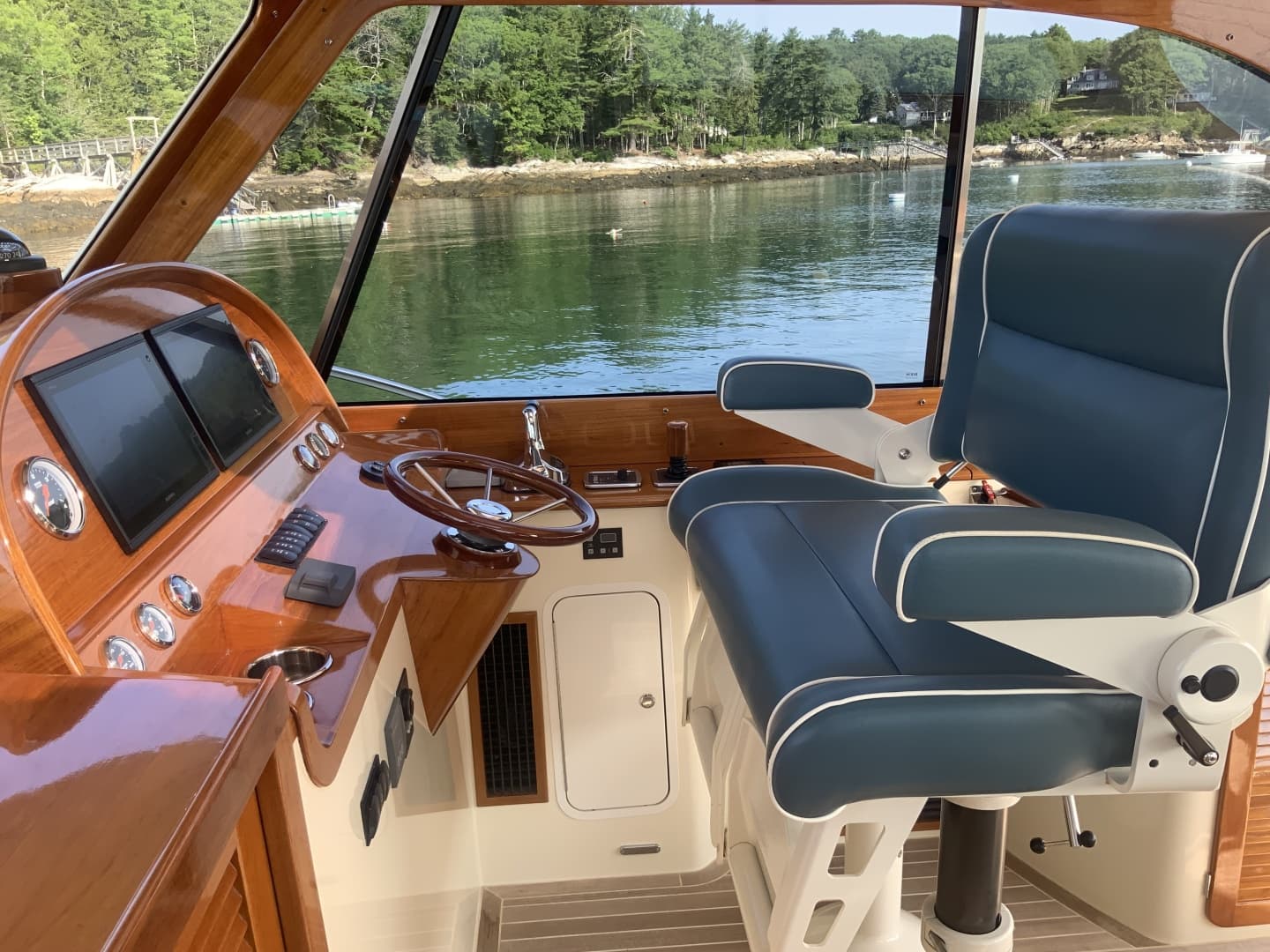

Helm Station Features

Hinckley JetStick III control system located just forward of the starboard armrest.

Jetstick III’s Electronic steering dynamically adjusts tension and sensitivity to optimize helm feel at all speeds.

Military specification sensors paired with GPS provide superior vessel handling in tight quarters while improving Hover Lock and Heading Hold features.

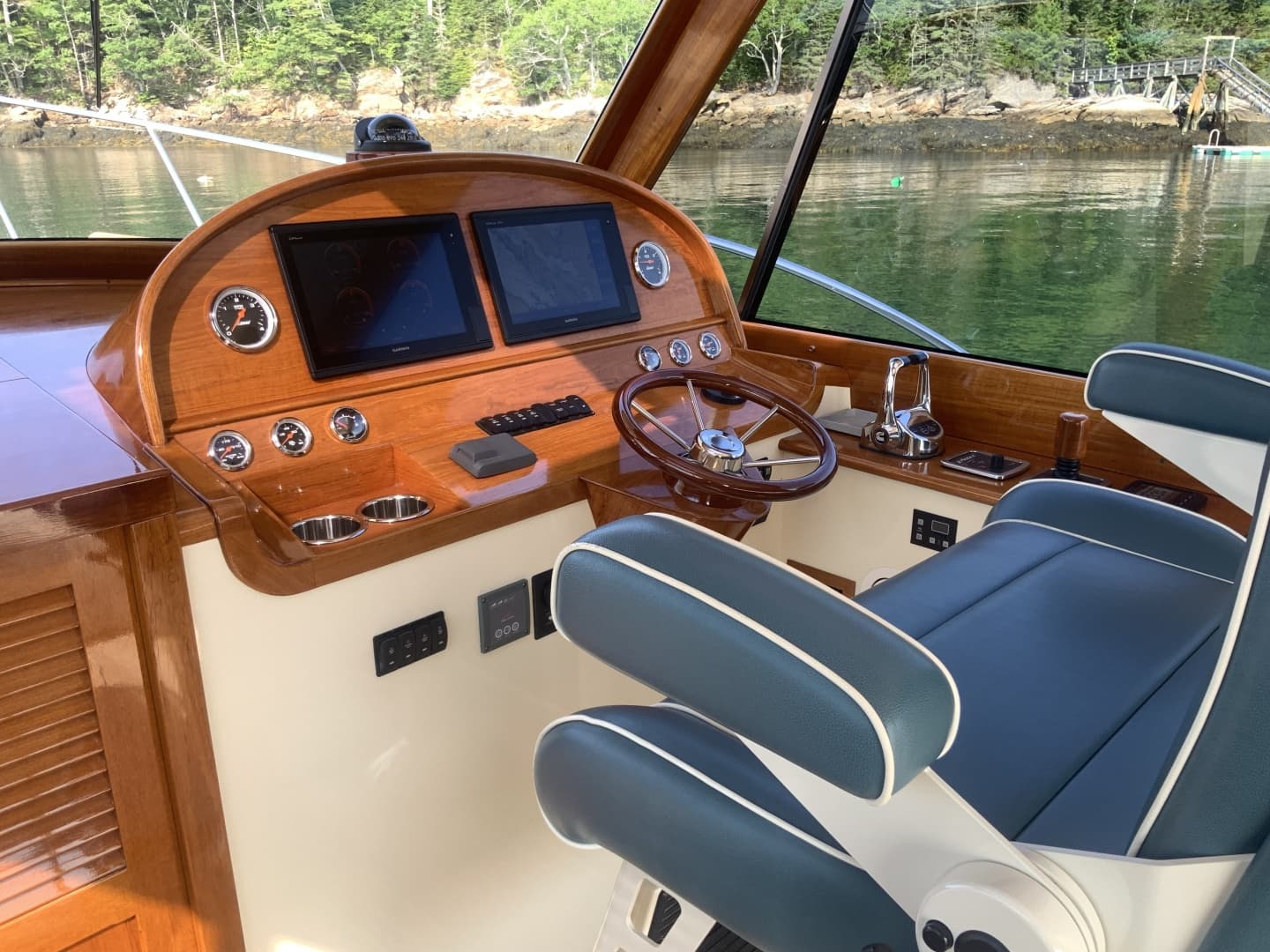

The helm pod is located front and center and beautifully rounded and finished in high gloss teak.

The pod contains twin plotters, engine multifunction gauges, analog fuel/ temperature / electrical outputs, and a Danforth Constellation high-speed Compass.

The dash contains additional switching for power hatches, windows and lighting controls.

A USB charging station and two cup holders are purposefully placed within reach of helm.

Controls for the ACR remote spot light and Intermittent/self-parking wiper controls are also close at hand. A twin-engine binnacle is located along the starboard shelf.

The Autopilot is located just aft of the Jetstick III control system.

The 14” Alpa leader stainless steel wheel is finished with a gloss varnished teak rim.

Helm Navigation Electronics

Two Garmin GPS Map7612 Multifunction touch screen displays with depth reading Dual frequency 1kw traditional sonar.

Garmin 4kw 24” GMR X HD Raydome

Garmin autopilot

Standard Horizon Explorer ram GX1600B VHF with Ram Mic

Entertainment Electronics

Fusion MS-UD 755 AM/FM stereo with USB connection and Bluetooth connectivity. Remote mounted at helm with Garmin integrations

(2) Fusion 6 inch speakers for interior

(2) Fusion 7 inch speakers in the pilothouse

(2) Fusion 7 inch speakers in the cockpit

Accommodations Below

Access to the cabin is through a locking high gloss teak louvered pilothouse door.

The entry steps with courtesy lighting are raw teak and lead to a high gloss teak and tulipwood cabin sole.

The interior is finished in satin varnished cherry.

The light cream sound absorbent headliner overhead has dimmable low voltage lighting overhead.

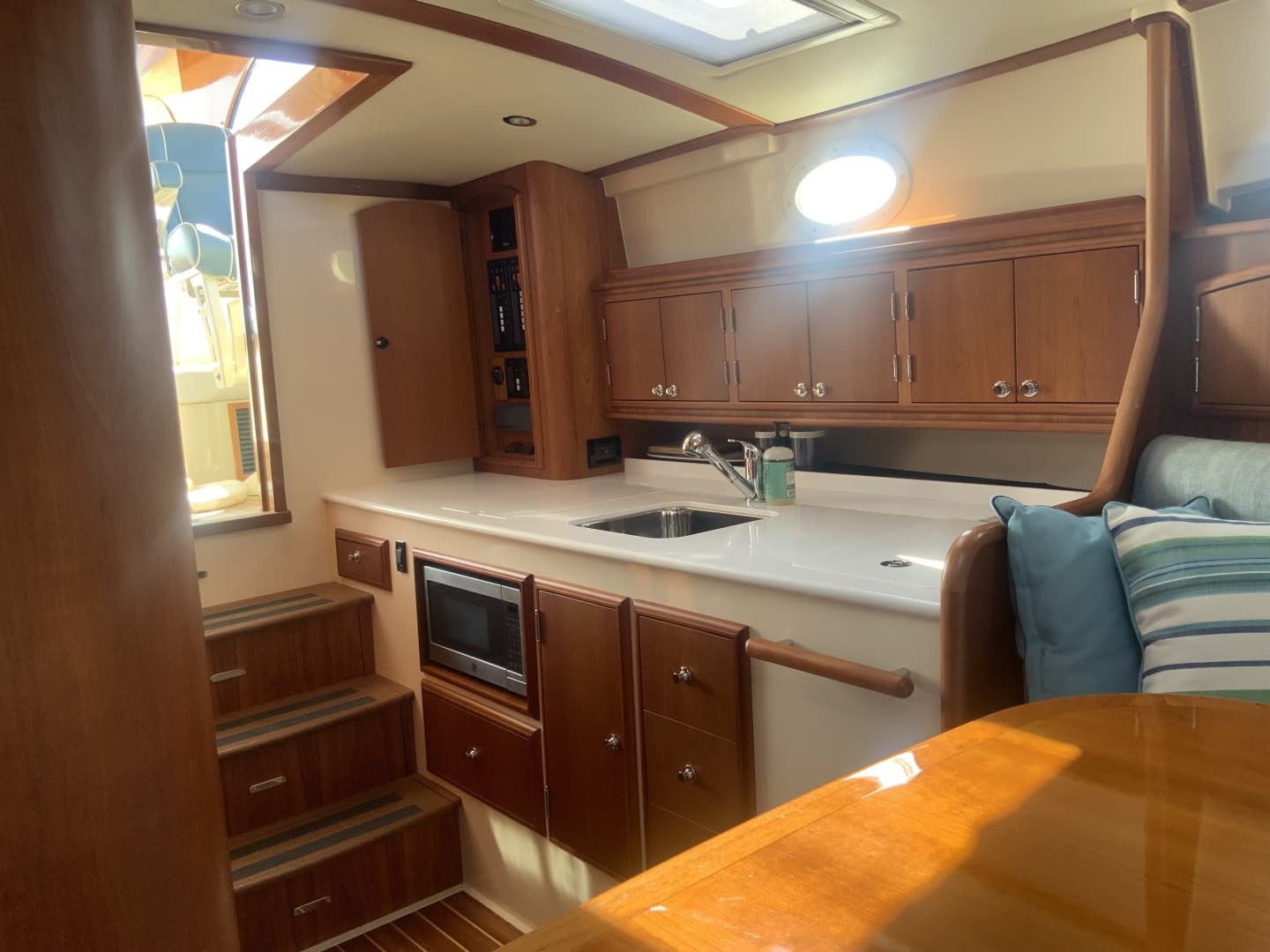

The GALLEY, located to Port has a cabinet housing the C-Zone switching battery breakers.

12V lighting is provided underneath the lockers illuminating the counter.

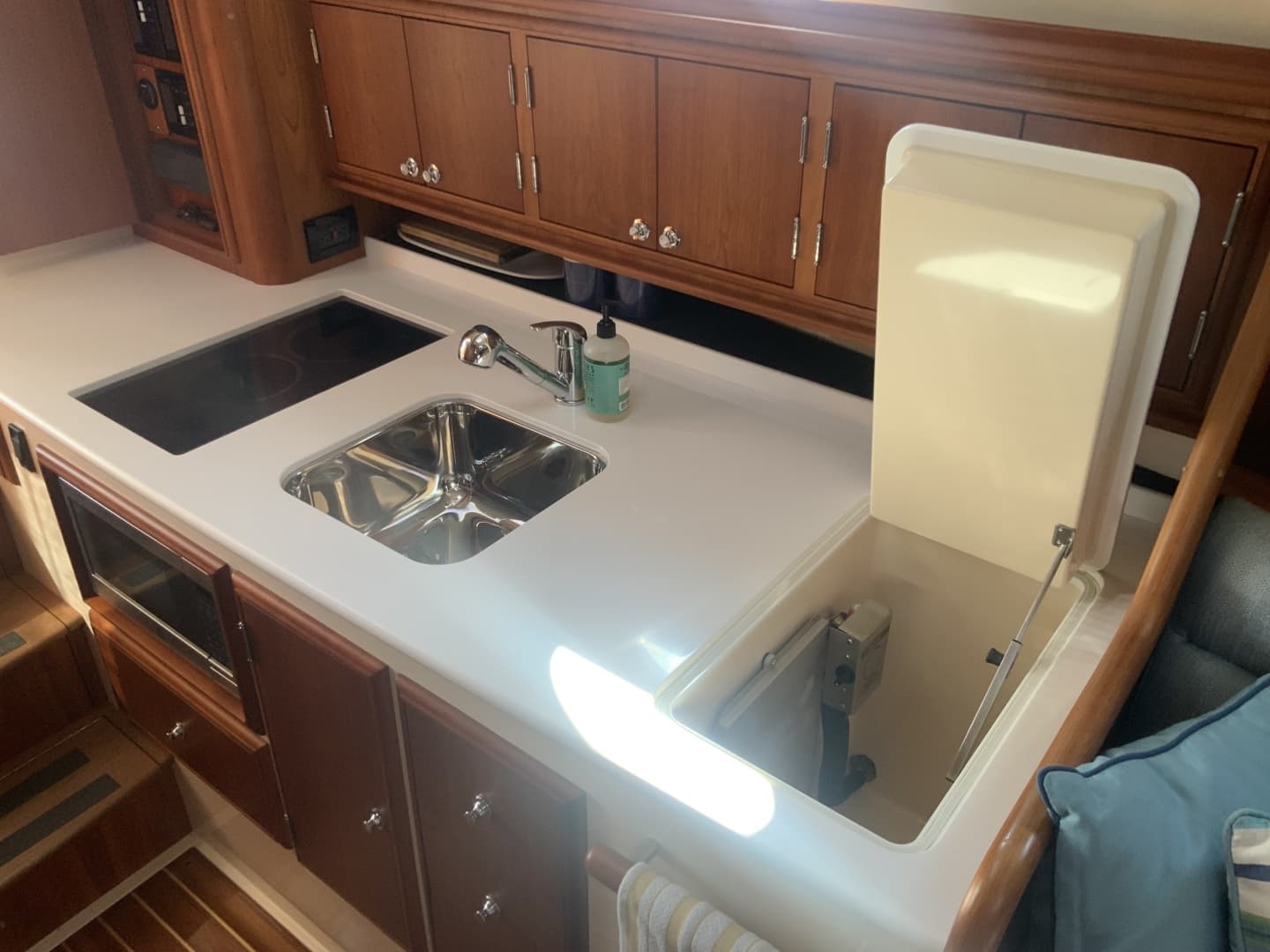

The Modern White Corian countertop has a under mounted stainless steel sink with hot/cold Grohe faucet.

Kenon two burner electric cooktop.

Microwave oven

Top loading 12V refrigerator with thermostatically controlled cold plate.

Matching Corian covers for the sink and stove when not in use.

A contemporary wooden handrail is provided below the counter forward of the sink.

110 volt GFI outlet mounted at aft bulkhead.

There are five LED bulkhead lights controlled individually at fixtures.

Slide out trash receptacle located in cabinet below.

Five dovetailed cherry/maple drawers with satin finish.

There is locker sheer located above the galley counter top as well as a deep shelf behind.

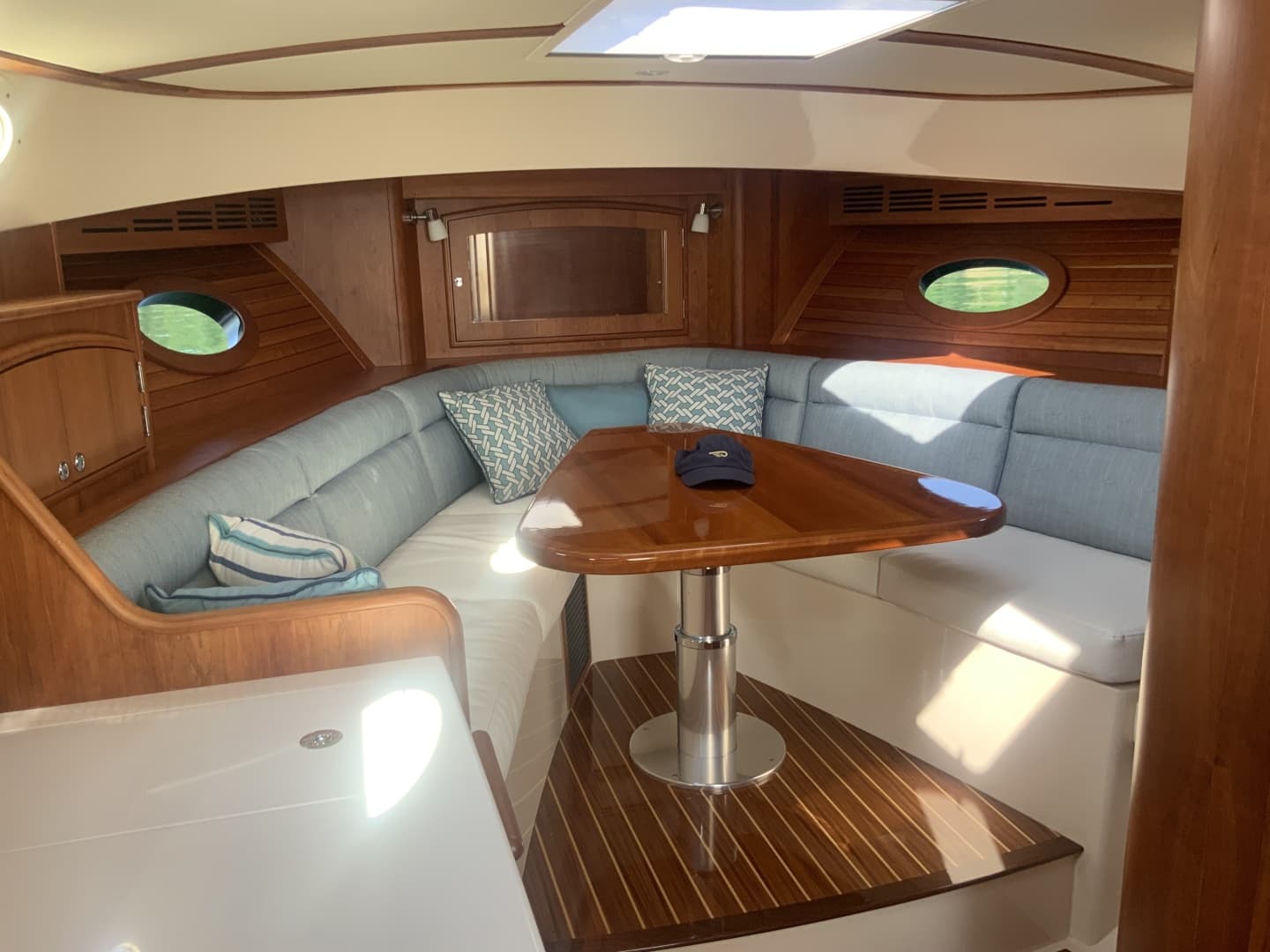

Forward is the V- berth/convertible settee with Duralee Marine backrests and Ultraleather Promessa Ermine seats. Easily converts to a CALIFORNIA QUEEN berth via the stainless steel electric pedestal.

The outside walls of V-berth are finished tastefully with satin-varnished cherry battens with sheer lockers located above.

A cedar lined hanging locker is located starboard forward of the Head.

A dedicated Marine reverse cycle 12000 BTU air conditioning unit can be run off shore power or the generator.

Three opening overhead stainless steel hatches with Oceanair , and three oval powder coated portals providie additional light for the cabin house.

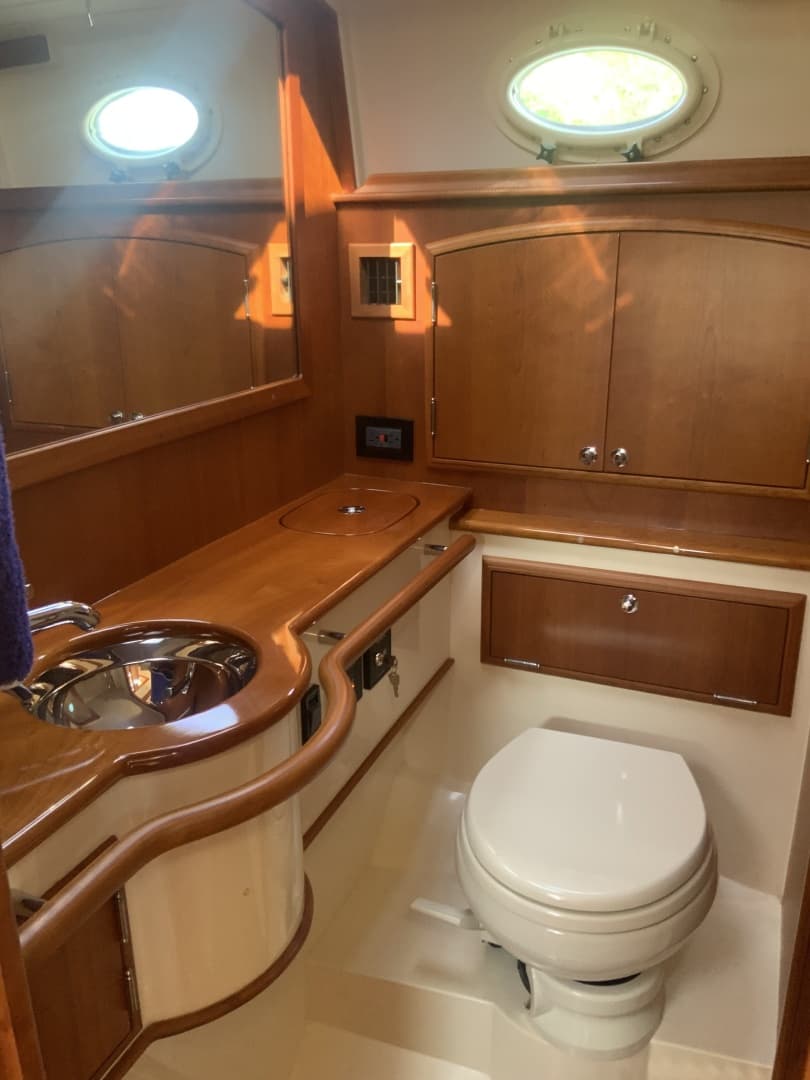

Head Compartment

The head is located starboard and is accessed through a lockable satin inset paneled cherry door with eyebrow top.

Hooks are provided on the back of the door for towels.

The ceiling is finished in moisture compatible gelcoat white beadboard with dimmable low voltage lighting.

A large high gloss cherry countertop is forward running port to starboard with cherry trimmed mirror above.

The counter contains an under mounted polished stainless steel sink with hot/cold water and a top load trash receptacle with cherry lid.

A 110V outlet is provided

Under the counter is louvered storage compartment. An opening stainless steel hatch with Oceanair Skyscreen is located overhead,

Additionally there is screened port light mounted outboard on the cabin house providing both light an ventilation.

A Sealand Vacu-flush marine head is plumbed to a holding tank.

An optional Y valve for overboard discharge new in 2026.

The shower is located aft and separated by a Plexiglass partition and swing door.

A moisture resistant sheer locker is located above the shower seat. The shower seat itself has additional dry storage below.

A stainless steel towel rack is mounted on the aft bulkhead of the shower stall

Plumbing

Hot and cold pressure water.

80-gallon polyethylene water tank with flush mount vent on hull side and remote gauge.

10-gallon stainless steel hot water tank. Heated either via shore power or [engine 2026]

35-gallon polyethylene integrated holding tank with flush mount vent on hull side and pump out fitting on deck.

12-volt DC automatic shower sump pump

Three 1500 GPH, 12-volt bilge pumps with safety float switches and high water alarm.

Manual bilge pump mounted in cockpit locker

Marelon ball valve seacocks below water line

Sound Reduction

Engine room is insulated with Mylar faced acoustic foam.

There is Extensive gasketing for bridge deck and opening hatches to engine room and bilges.

Custom fiberglass water cooled exhaust silencers baffled, insulated and drained.

Sound absorbent material overhead in Pilothouse and cabin.

Safety and Additional Equipment

Polished stainless steel 22# anchor with 25’ of stainless steel chain and 150’ rode.

The windlass can be operated from the helm station or a handheld remote

Automatic fire extinguisher system for engine compartment with automatic shut-down.

Three 2-1/2 lb. dry chemical fire extinguishers

USCG approved flare kit

12-volt Kahlenberg air horn with switch on dash

Six adult, two child type I PFDs and one Type IV throwable PFDs

Numerous dock lines and fenders

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
