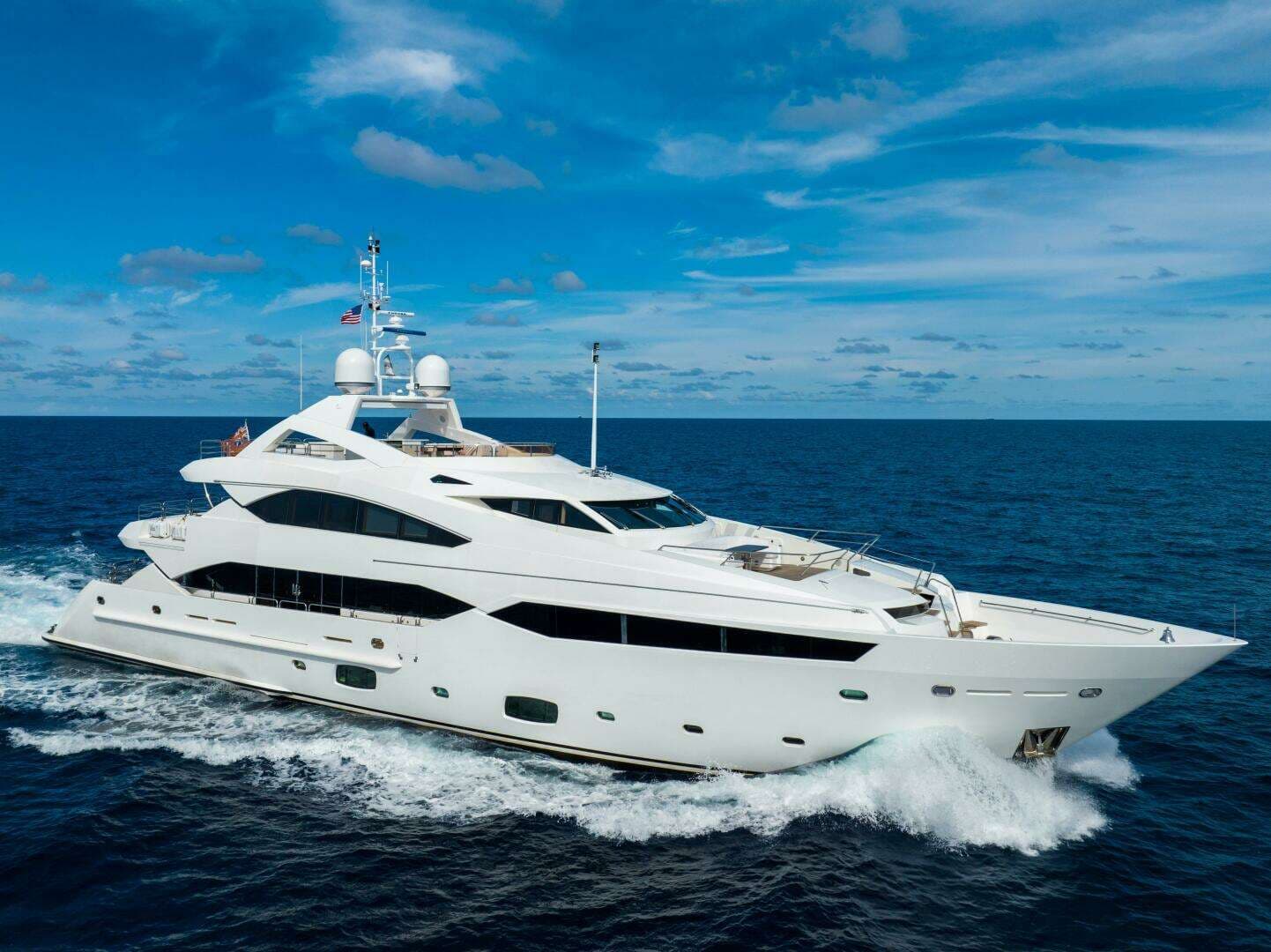

ABOUT TIME

1. CONSTRUCTION

Fiberglass hull and superstructure with teak decks

2. DIMENSIONS

2.1 General

Length Overall (L.O.A.): 131.29 feet (40.02 meters)

Length at Waterline (L.W.L.): 101.08 feet (30.81 meters)

Beam (molded): 26.57 feet ( 8.10 meters)

Draft (loaded): 8.92 feet ( 2.72 meters)

Tonnage: 338 gross

Displacement: 286,000 lbs.

2.2 Capacities

Fuel Capacity: 8,430 US Gallons (31,910 liters)

Water Capacity: 1,307 US Gallons ( 4,950 liters)

Lube Oil: 77 US Gallons ( 291 liters)

Waste Oil: 77 US Gallons ( 291 liters)

2.3 Speed Consumption per hour RPM

Cruising: 12.0 knots 100 US Gallons /hr 1,400

3. MACHINERY

3.1 Main Engines

Engine Type:

• (2) MTU 12V 4000 M93 diesels @ 3,140 Hp each

Drive:

• Direct drive

Propellers:

• 5-blade, Nibral, with stainless steel shafts

Transmission:

• ZF 2650 A

Ratio:

• 3.286:1 A

3.2 Generators & Electricity

Output:

• 70 kW/ 230/400V / 1,500 RPM @ 50 Hz

Generators:

• (2) Kohler 70EFOZD generators @ 1,500 rpm

Shore Power:

• (2) 480V three phase 100 amp
• Atlas shorepower SPA II, SPA 90F

Batteries:

• (8) 12V, centerline forward engine room
• (6) 12V 8D, below port lazarette sole
• (6) 12V, bridge foredeck lockers
• 40 AMP mastervolt - 24V charger
• 80 AMP mastervolt - 24V charger
• (2) 22.5 AMP Newmar in doghouse – 24V charger

Inverter/Filter:

• Visicomm Sinewave harmonic filter

3.3 Air Conditioning

Type:

• MarinAir tempered water system with (4) chillers

Output:

• 480,000 BTU’s

3.4 Other Machinery

Watermakers:

• (2) 1400 GPD reported, HRO, Seafari

Hot water heater:

• (2) electric calorifier’s with (3) elements each

Trim Tabs:

• Stainless steel double ram 39” X 31”

Stabilizers:

• ABT Trac model #400, hydraulic, at anchor with 28 Square ft Fins and underway

Bow Thruster:

• (2) ABT Trac hydraulic 5-blade propellers in 20” Tube

Stern Thruster

• (2) ABT Trac Hydraulic 5-blade propellers in 16” Tube

Steering System:

• (2) Hydrive station hydraulic + emergency station

Fuel Separator & Filtration:

• (2) Separ bowls in-line with bowl on engines

4. COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

SATcom:

• KVH V7 Mini V-SAT Broadband

Telephone System:

• KVH

VHF:

• Furuno
• SIMRAD HS 100
• SIMRAD HS 100 in crew mess & emergency steering station

Cellular Phone System:

• Panasonic Hybrid system

Sat Terminal:

• Sailor Inmarsat-C Terminal

4.2 Navigation Systems

Radar:

• (2) Furuno 96 Mile (X & S band)

Magnetic Compass:

• 4” Ritchie

Auto Pilot:

• Simrad AP50

Depth Sounder:

• Furuno FI50

GPS:

• Furuno GP-150 & GP-39

AIS:

• Furuno FA-150

Ships Computer:

• (2) Vasari and Nav computer with Nobeltec

Laser Plotter:

• Navnet and Time Zero

Wind/Speed Log:

• In GPS and Chart plottters & Sperry display

Navtex:

• Furuno NX-700

Sonar:

• Furuno FE 700 drop down

4.3 Entertainment System:

a. Video Equipment

TV’s:

• Samsung TV, Apple TV in salon
• Samsung TV, Apple TV, Bose DVD in master stateroom, Roku
• Sony TV’s on powered lifts, Apple TV with Bose DVD in aft staterooms, Roku
• Sony TV’s, Apple TV with Bose DVD’s in forward staterooms, Roku
• Samsung TV with Alpine DVD player in crew mess, Roku
• Samsung TV on powered lift, Apple TV, Bose DVD in sky lounge, Roku

b. Audio Equipment

Stereo’s:

• Alpine AM/FM/DVD players in crew mess, galley & pilot house
• Marantz AV receiver in salon
• Bose AV receivers in lower guest staterooms and Samsung sound bar in master stateroom
• RJI remotes & Ipad controllers

5. GALLEY & LAUNDRY EQUIPMENT

5.1 Main Galley Equipment

Cooking Equipment:

• (2) convection Miele ovens
• Six burner Hafele, single burner grille; new stove top June 2024
• (1) Microwave oven – Miele
• Miele vent hood with lights

Refrigeration/Freezer:

• (3) Sub-Zero with drawers
• (1) Sub-Zero with drawers

Dishwasher:

• (1) Miele

5.2 Crew Galley/Mess Equipment

Cooking Equipment:

• (1) microwave oven – Miele

Refrigeration/Freezer:

• (1) Miele refrigerator
• (1) Sanden freezer in garage

Other:

• (1) Miele dishwasher (crew mess)

5.3 Additional Galley Equipment

Cooking Equipment:

• Two burner electric Kenyon BBQ (sundeck)

Refrigeration/Freezer:

• (1) Sub-Zero wine chiller (service pantry)
• (1) Summit refrigerator (skylounge bar)
• (1) Miele refrigerator (skylounge pantry)
• (1) Raritan ice maker (galley service pantry)
• (1) Summit ice maker (skylounge bar)

Other:

• Dumbwaiter to sundeck

5.4 Laundry Equipment

Main Laundry Equipment

• (2) Samsung 2-piece washer and dryer (port lazarette)

6. TENDERS & TOYS

Tenders:

• 19’ Aquascan tender

Dive Gear:

• Kahlenberg – service air compressor
• Bauer Junior II – dive air compressor

Other:

• (2) Jet ski’s
• (2) Sublue underwater scooters
• (2) Wakeboards
• Water ski’s
• Snorkeling gear and diving equipment
• Big Bubba 4 person towable tube
• Fishing gear: 4 rods, 2 casting, 2 trolling, lures

7. DECK EQUIPMENT

Anchor Windlass System:

• (2) Muir VRC 8000 vertical, electrical

Anchors:

• (2) 463 lbs. stainless steel Manson

Anchor Chain:

• 451’ of 0.05’ chain

Boat Crane and Davits:

• Atlas 2000 Manual Operation davit– foredeck
• Hydraulic winch in garage & electric overhead winch – dinghy davit

Passerelle:

• Besenzoni, hydraulic

Swimming Platform:

• Powered swim platform

8. SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment

Cameras:

• (4) Cameras and FLIR Thermal Camera

8.2 Fire Fighting Equipment

Fire Control System:

• Seafire FM200 clean agent and Deluge system in engine room
• 400 Vac pump on manifold, Hatz diesel crash pump
• 400 volt pump in engine room with manifold, remote pickups
• Manual release - starboard main deck fire locker, crew area
• Shut-Downs: Vent fans, vent flaps, main engines, each generator

Fire Extinguishers:

• (11) 2.5lb, (8) 10lb dry powder, (2) 5lb, (5)10lb CO2

Alarms:

• Remote indicator: At lower helm, alarm system throughout vessel

8.3 Safety Equipment

Life Rafts:

• (4) 10-person Sea Air

Life Rings:

• (4) with floating throwing lines – (2) with strobes

EPIRBS:

• ACR battery

SART:

2024:

• New Rolla propellers
• Shafts inspected
• New cutlass bearings
• New shaft seals
• New rudder post bearings
• Hull and superstructure polished and ceramic polymer applied
• Complete bottom coat
• All running gear treated with prop speed
• New AC raw water intake system
• New raw water intake system for watermakers
• All new AC titanium chillers
• All hydraulic PTO's rebuilt
• Hydraulic stern thruster motor rebuild
• MTU engines are fully serviced (annual)
• Generators serviced (annual)
• Swim Platform hydraulic locking actuators rebuilt
• Garage door hydraulic locking pin seals replaced
• Garage door, swim platform, balcony hydraulic motors replaced
• RINA annual inspection completed
• 2024 Flow Marine titanium 40-ton chiller plant

2025:

• Main engines master service @ 3,400 hours
• New Rhodium AMCS system (state-of-the-art upgrade)
• New Deif PMS power management system
• New Kohler Generator Decision Makers
• Generators top-end rebuild & full service
• Central hydraulics rebuilt, flushed, new filter system
• Swim platform, garage door & balcony hydraulics overhauled
• Freshwater maker fully serviced
• New toolbox with complete tool set
• Two full sets of generator service spares
• Aquascan tender with Suzuki outboard serviced
• Flag & Class annual surveys completed

2026:

• 5-year RINA special class survey just completed
• All through-hull valves replaced
• New antifouling paint and Prop Speed applied
• Fuel and water tanks inspected
• Running gear and propellers measured and inspected
• Engines and generators inspected and recently serviced
• Fire pump and bilge pump replaced
• Hydraulic system completely rebuilt
