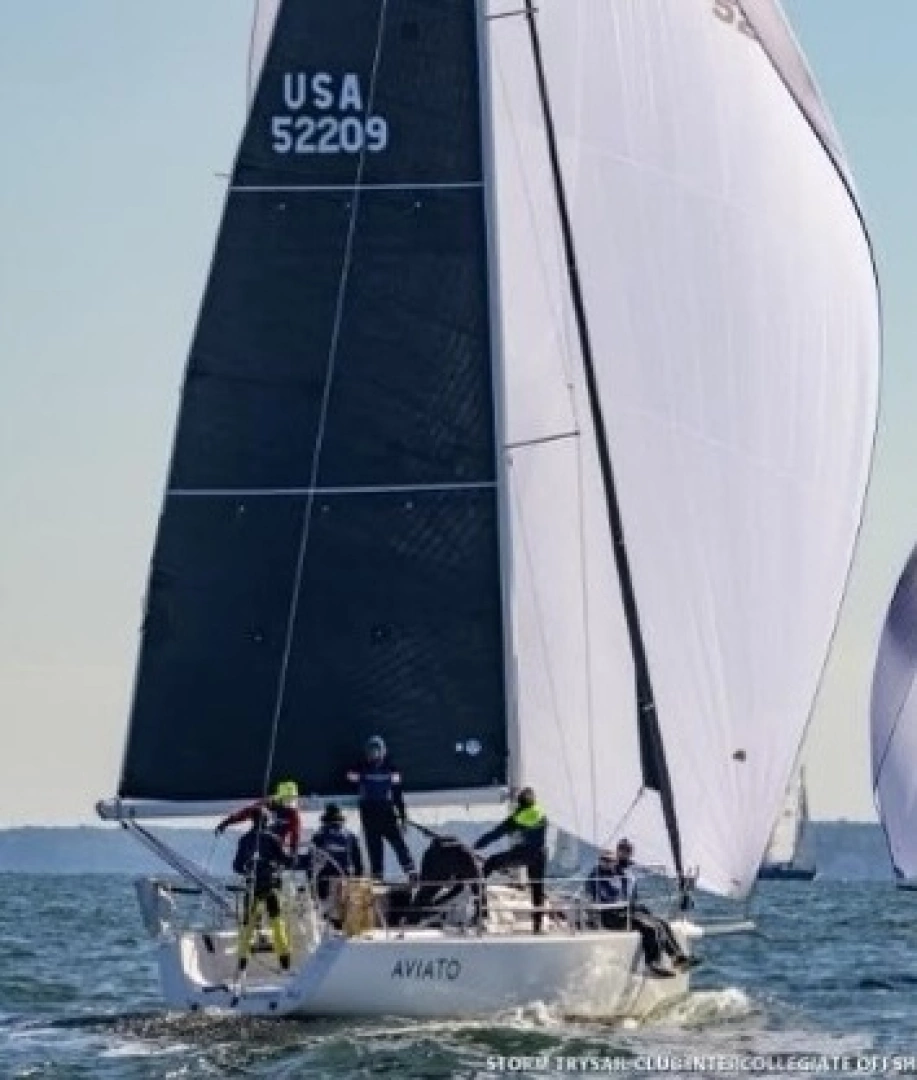

Aviato

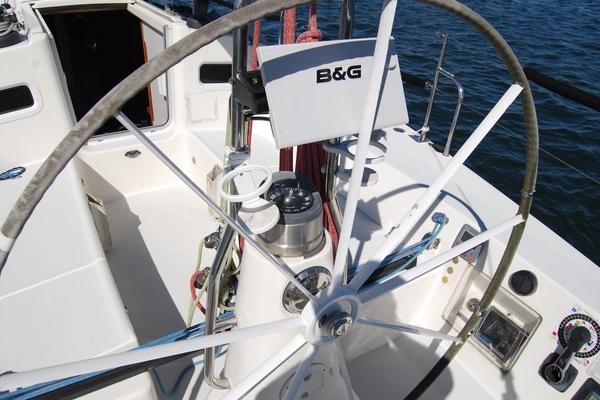

• B&G Zeus chartplotter at helm

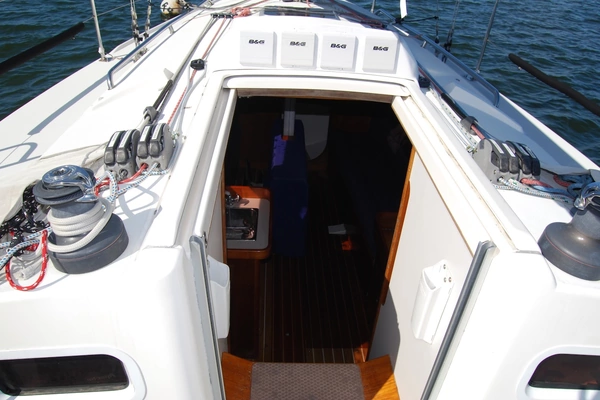

• Four B&G Triton instrument displays (2023)
• Garmin GPSMap 1020
• Garmin GNT10
• Em-Trak Class B AIS transceiver
• Raymarine ST6001 below-deck autopilot
• ICOM IC-M424G VHF radio
• Fusion stereo with interior and cockpit speakers
• Airmar depth transducer with blank (2023)
• 12V DC electrical system
• Two AGM batteries replaced (2024)
• Promariner battery charger with remote panel
• Heart Interface Link 20 battery monitor
• Shore power system with cord
• Navigation, tricolor, and interior lighting
• Fire/carbon monoxide detector replaced (2024)

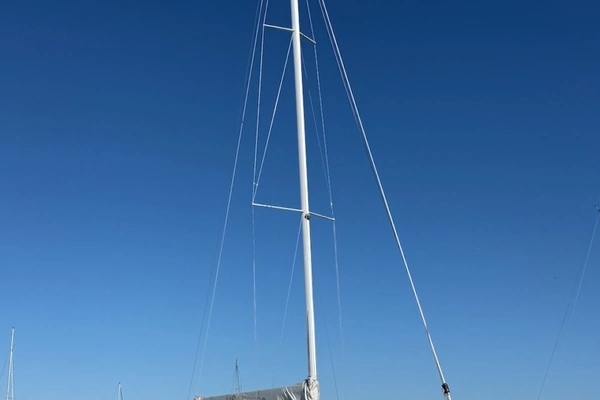

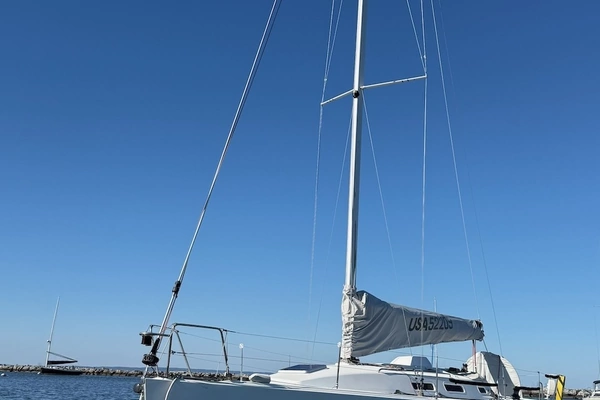

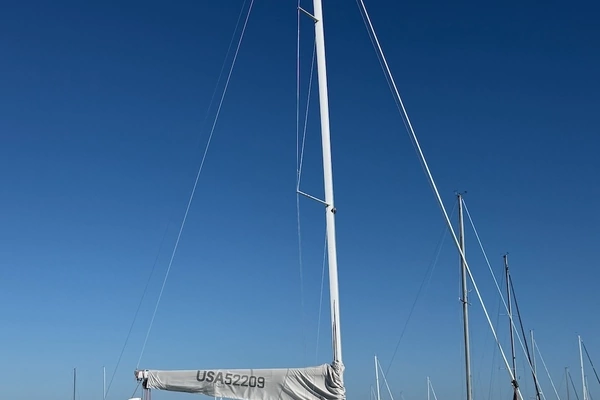

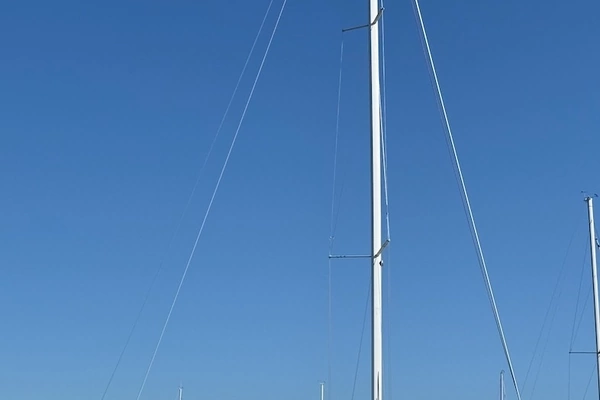

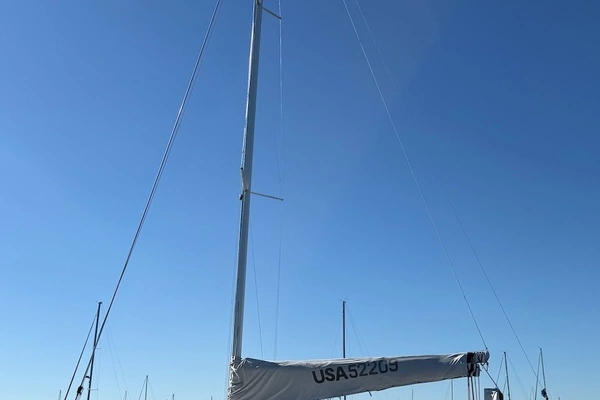

• Keel-stepped fractional aluminum mast
• Rod standing rigging, professionally inspected annually
• Retractable carbon bowsprit
• Adjustable backstay
• Boom vang

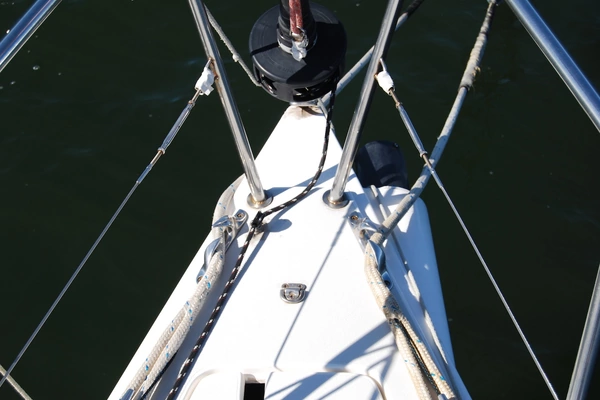

• Harken roller furling headsail system
• Harken 46 ST primary winches
• Harken 40 ST secondary winches

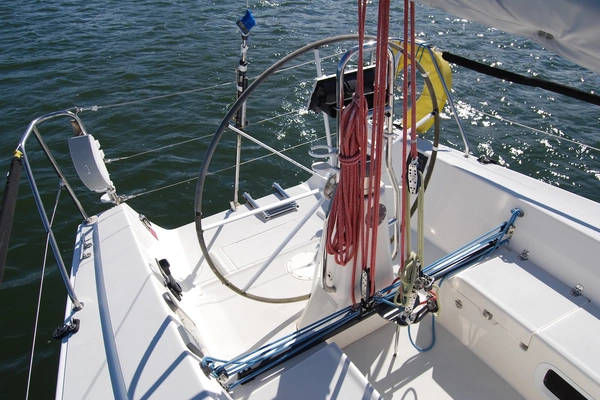

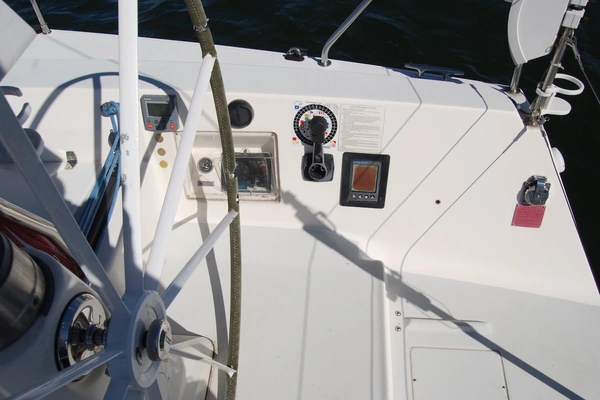

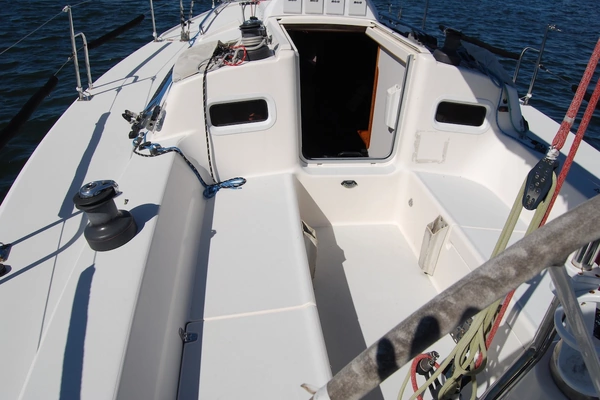

• Large wheel steering system
• Removable cockpit locker
• Outhaul upgrade (2024)
• Clutch restrictors installed (2023)
• Running rigging updated as needed
• New black lifeline cushions (2023)
• Rig retuned and Spartite installed (2023)
• WindTrak replaced (2024)

The J/109 was built by TPI using its SCRIMP resin-infusion process with Baltek end-grain balsa composite construction. Biaxial and unidirectional fiberglass reinforcement and vinylester resin in the outer hull contribute to a strong, lightweight composite structure. The standard deep-draft configuration features a lead-bulb keel and high-aspect-ratio spade rudder, providing excellent stability, responsiveness, and upwind performance.

• TPI-built SCRIMP-infused fiberglass composite hull
• Baltek balsa-cored construction
• White fiberglass hull

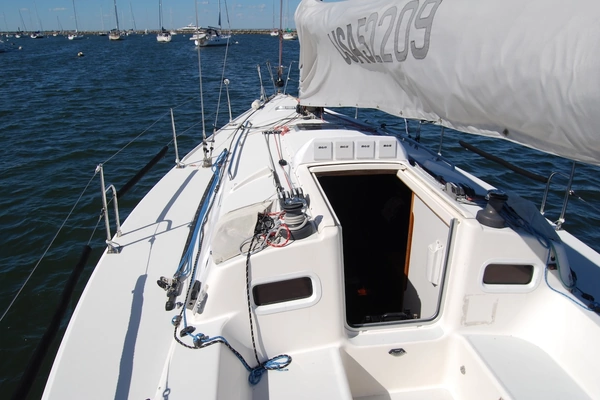

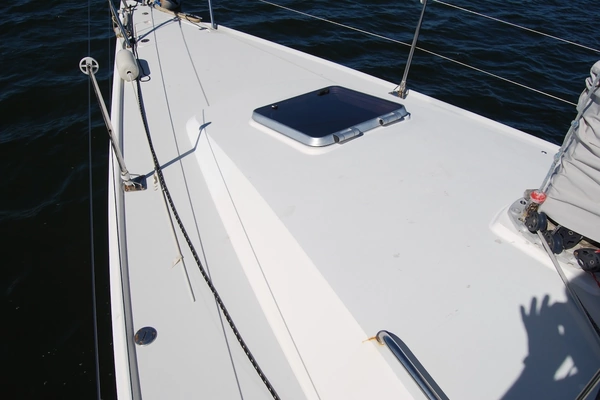

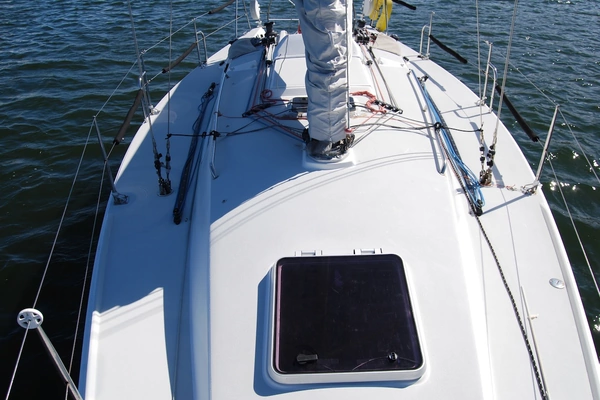

• White deck with molded non-skid
• Seven-foot deep-draft fin keel with lead bulb
• High-aspect-ratio spade rudder
• Wheel steering
• Professionally maintained, wet-sanded Baltoplate racing bottom
• Bottom cleaned regularly during the racing season
• Rudderpost boot diaphragm/seal replaced (2025)

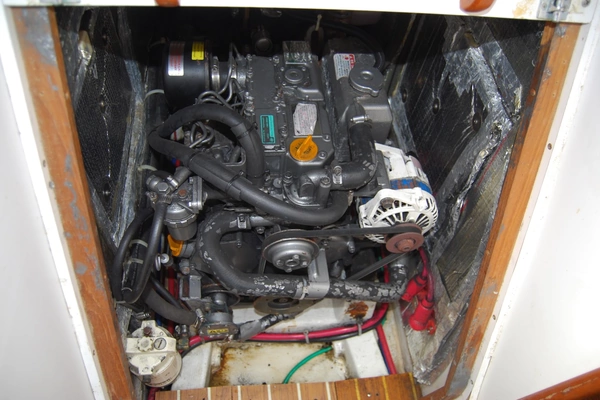

• Yanmar 3YM30 diesel, rated 28 HP
• Yanmar SD20 saildrive propulsion
• Saildrive inspected annually
• Electric and manual bilge pumps
• Rule electric bilge pump and safety float switch replaced (2024)
• Exhaust mixing elbow replaced (2020)
• Heat exchanger replaced (2020)
• Fuel tank sender replaced (2025)

Engine hours are unknown. No engine-hour records are available, and total operating hours cannot be reliably determined or estimated from the vessel's usage history. An engine survey and sea trial can help a prospective buyer assess the engine's current condition, although neither can establish its total operating hours.

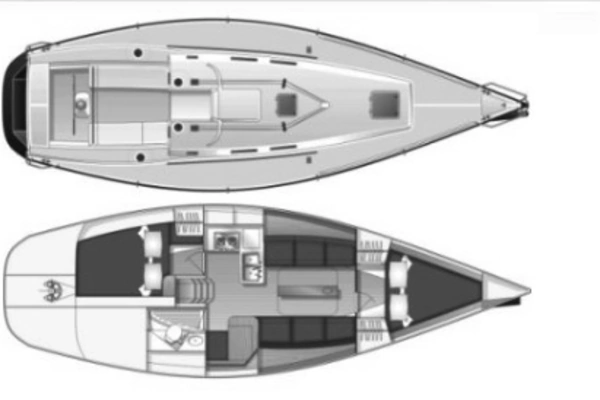

One of the J/109's greatest strengths is her ability to combine serious racing performance with comfortable cruising accommodations. The practical two-cabin layout features a forward V-berth, private aft cabin, and spacious main salon with opposing settees and a folding dining table.

The traditional wood-trimmed interior provides a warm and inviting atmosphere below deck. The L-shaped galley is conveniently located near the companionway and includes a two-burner propane stove with oven, sink, and hot and cold pressure water. A dedicated, forward-facing navigation station provides space for electronics, charts, and passage planning.

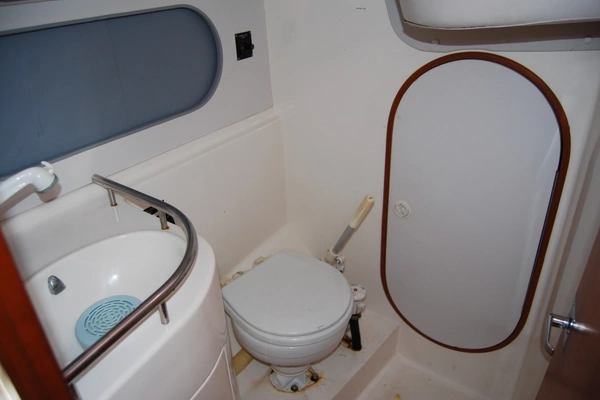

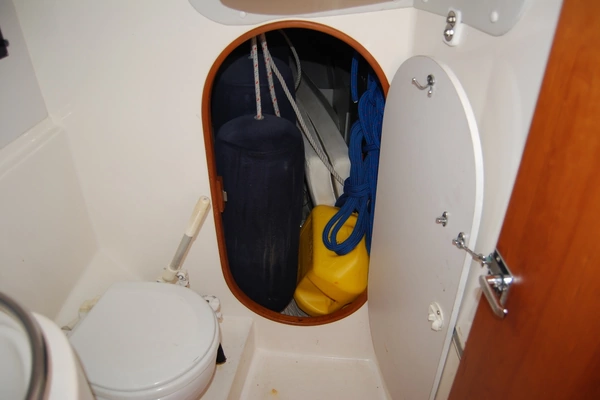

The enclosed marine head is located aft to starboard and is equipped with a holding tank and Y-valve, replaced in 2024. Storage is provided throughout the interior, including the large cockpit locker, which can be accessed from the cockpit or through the head compartment.

The combination of two private cabins, a functional galley, comfortable salon, and enclosed head makes AVIATO well suited to weekend cruising, regattas away from home, and coastal passages.

Accommodations include:

• Sleeps six

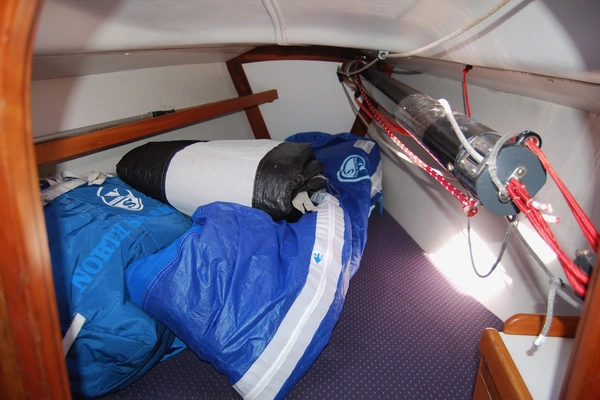

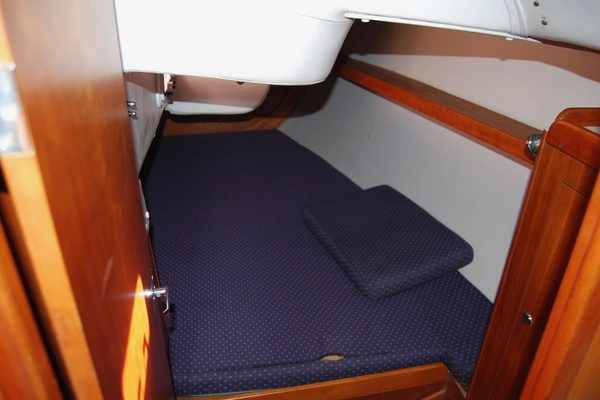

• Forward private cabin with V-berth
• Private aft cabin

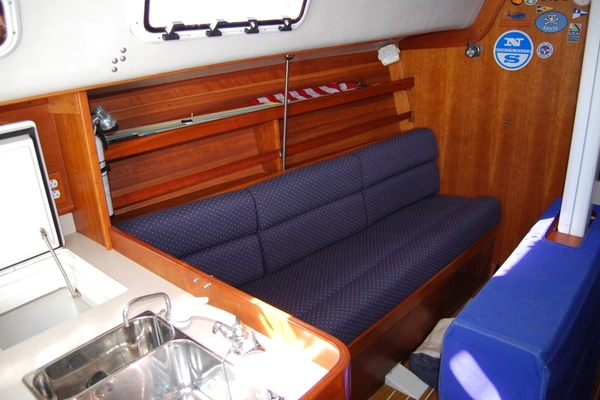

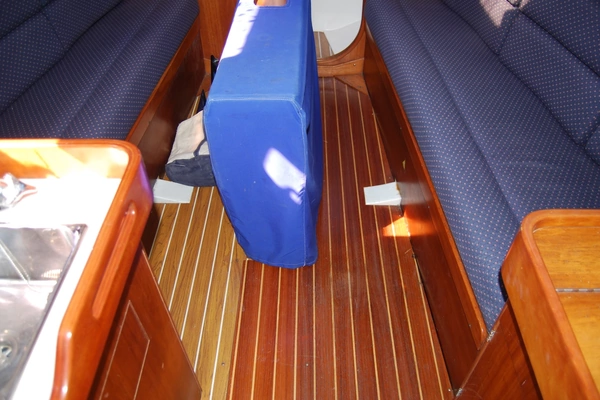

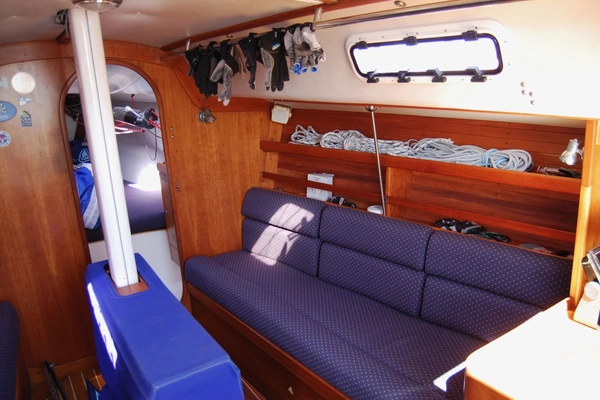

• Main salon with opposing settees and folding table
• Settees are excellent sea berths and have lee cloths

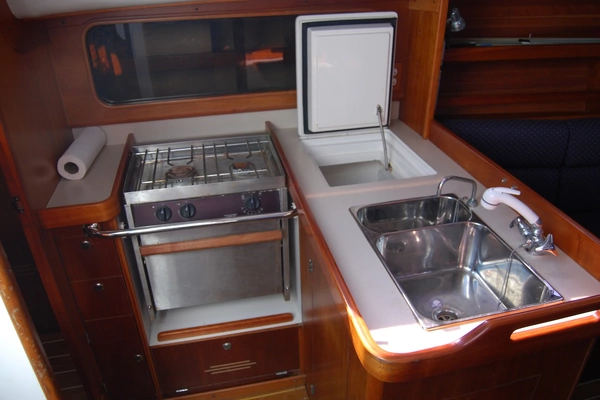

• L-shaped galley with Force 10 two-burner propane stove and oven
• Hot and cold pressure water

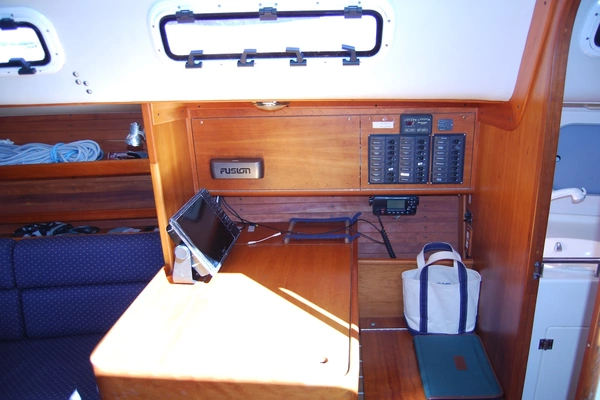

• Dedicated navigation station
• Enclosed marine head with holding tank
• Marine head Y-valve replaced (2024)
• Large cockpit storage locker with interior access

• Dodger
• Cockpit cushions
• Mainsail cover
• Removable cockpit locker
• Swim ladder
• Bosun's chair
• Racing jib sock
• Radar reflector
• Offshore safety equipment
• Six inflatable PFDs
• Jacklines and tether system
• Inflatable man-overboard device
• Backup LifeSling
• Tow line
• Oil extractor
• Diesel fuel can
• Dehumidifier

• 2025 – Rudderpost boot diaphragm/seal replaced
• 2025 – Fuel tank sender replaced
• 2024 – Marine head Y-valve replaced
• 2024 – Rule bilge pump and safety float switch replaced
• 2024 – Two AGM batteries replaced
• 2024 – WindTrak replaced
• 2024 – Fire/carbon monoxide detector replaced
• 2024 – Outhaul upgrade
• 2023 – B&G navigation and instrument upgrades
• 2023 – Airmar depth transducer replaced
• 2023 – Black lifeline cushions replaced
• 2023 – Clutch restrictors installed
• 2023 – Rig retuned and new Spartite installed
• 2020 – Exhaust mixing elbow and heat exchanger replaced

Additional ongoing maintenance includes annual professional inspections of the rod standing rigging, saildrive inspections twice annually, running rigging replacement as needed, and regular maintenance of the wet-sanded Baltoplate racing bottom.

Annual commissioning and winterization checklists are available.

The CPYB (Certified Professional Yacht Broker) designation recognizes experienced yacht brokers who have demonstrated professional competence, passed a comprehensive examination, and committed to a strict code of ethics and continuing education. For buyers, this means knowledgeable representation, transparent communication, and professional guidance throughout the purchase process, from initial inquiry and negotiations through survey, sea trial, and closing.
