Spruce1998 Freedom 40/40

Full Specifications

Accommodations;

This is the 2 stateroom layout with 2 heads and aft spacious stall shower..

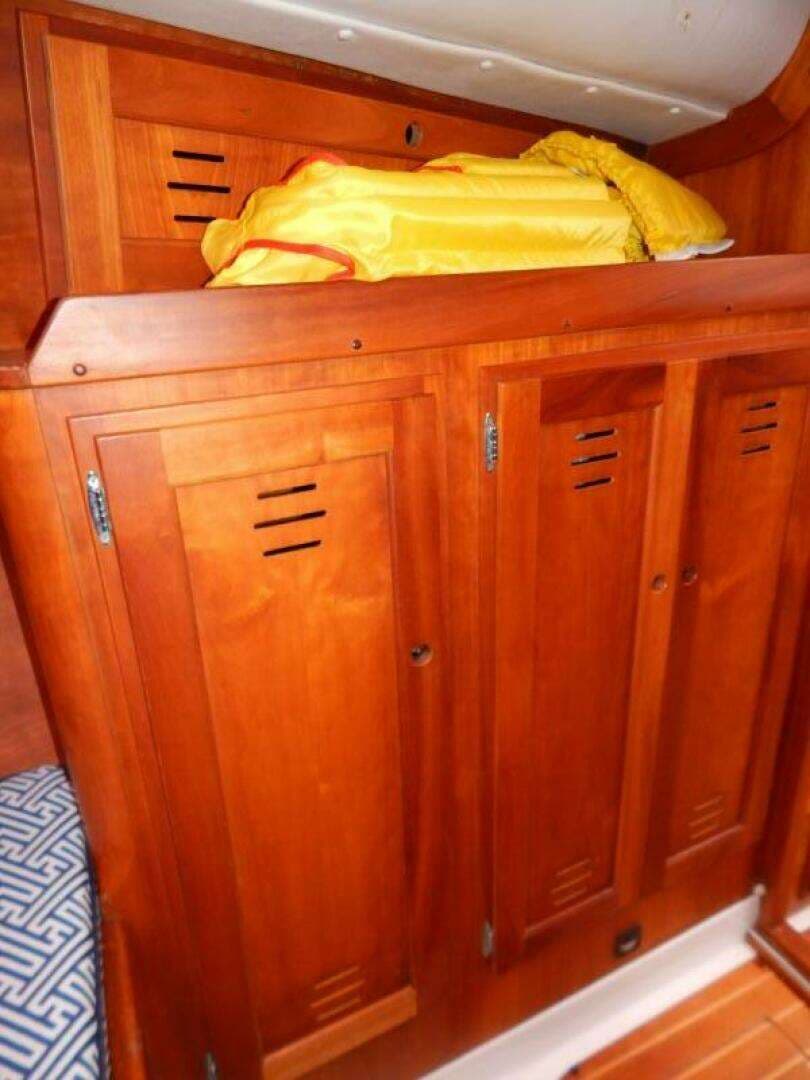

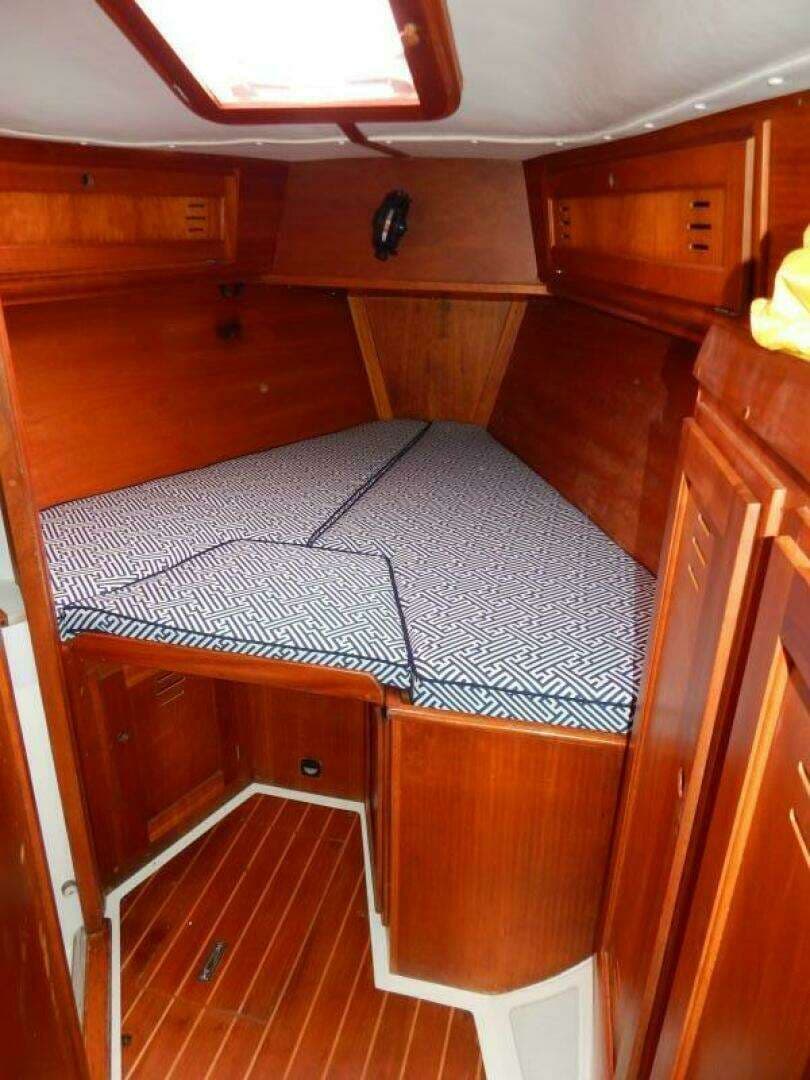

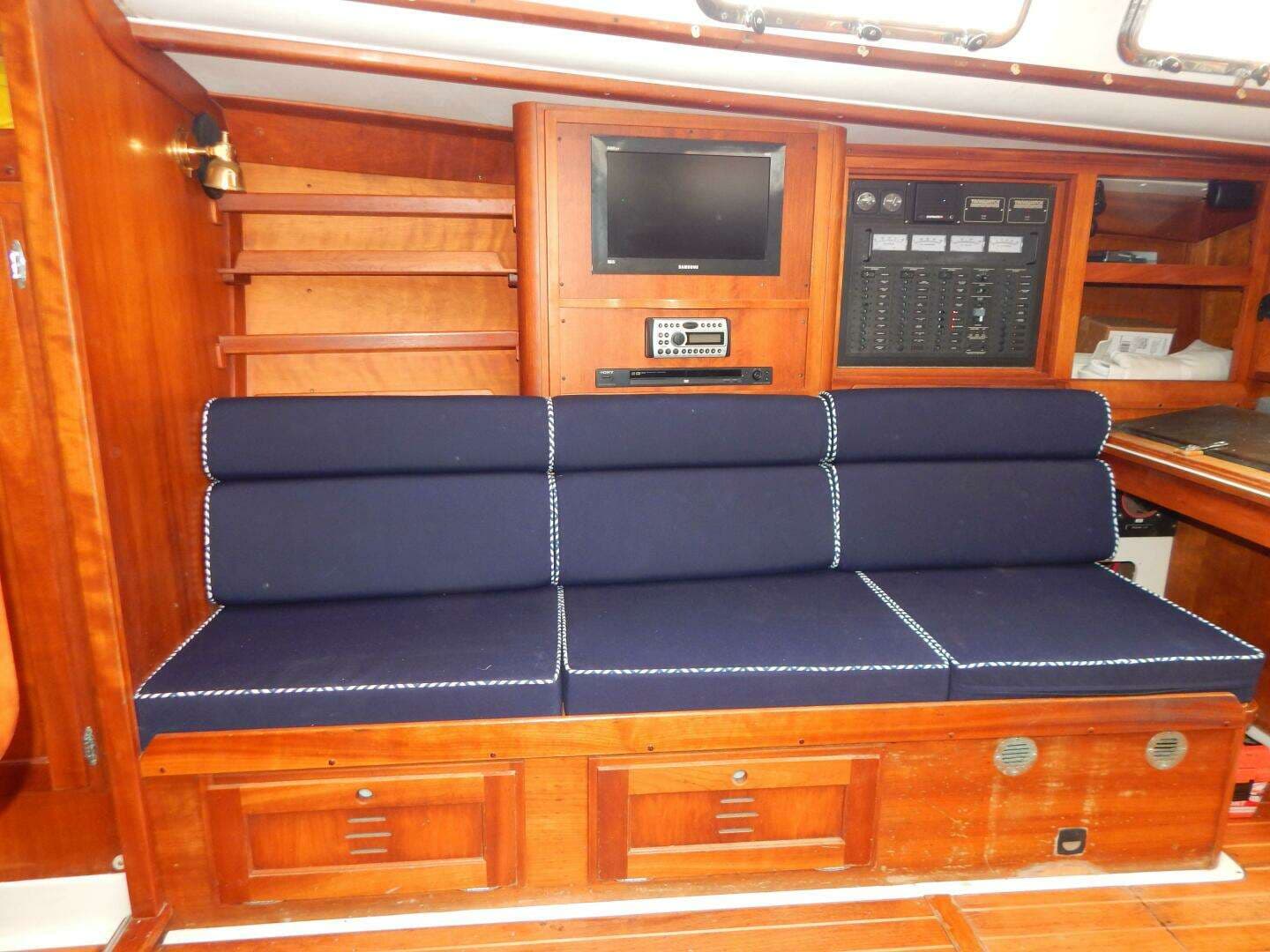

Furthest forward is the V-berth with storage outboard in cabinets, the guest head is aft to port and the hanging lockers to starboard. Next aft is the main salon with a port dinette, large dining table mounted to the bulkhead and starboard settee with navigation station. Aft to starboard is the head with ample shower stall, to port is the galley and furthest aft is the Master stateroom with a large double berth.

The interior is finished with warm teak bulkheads and joinery, teak and holly sole and white laminates.

All stainless steel opening ports 2 overhead Dorades and 2 overhead hatches provide ample ventilation, there are interior 12vdc fans to assist.

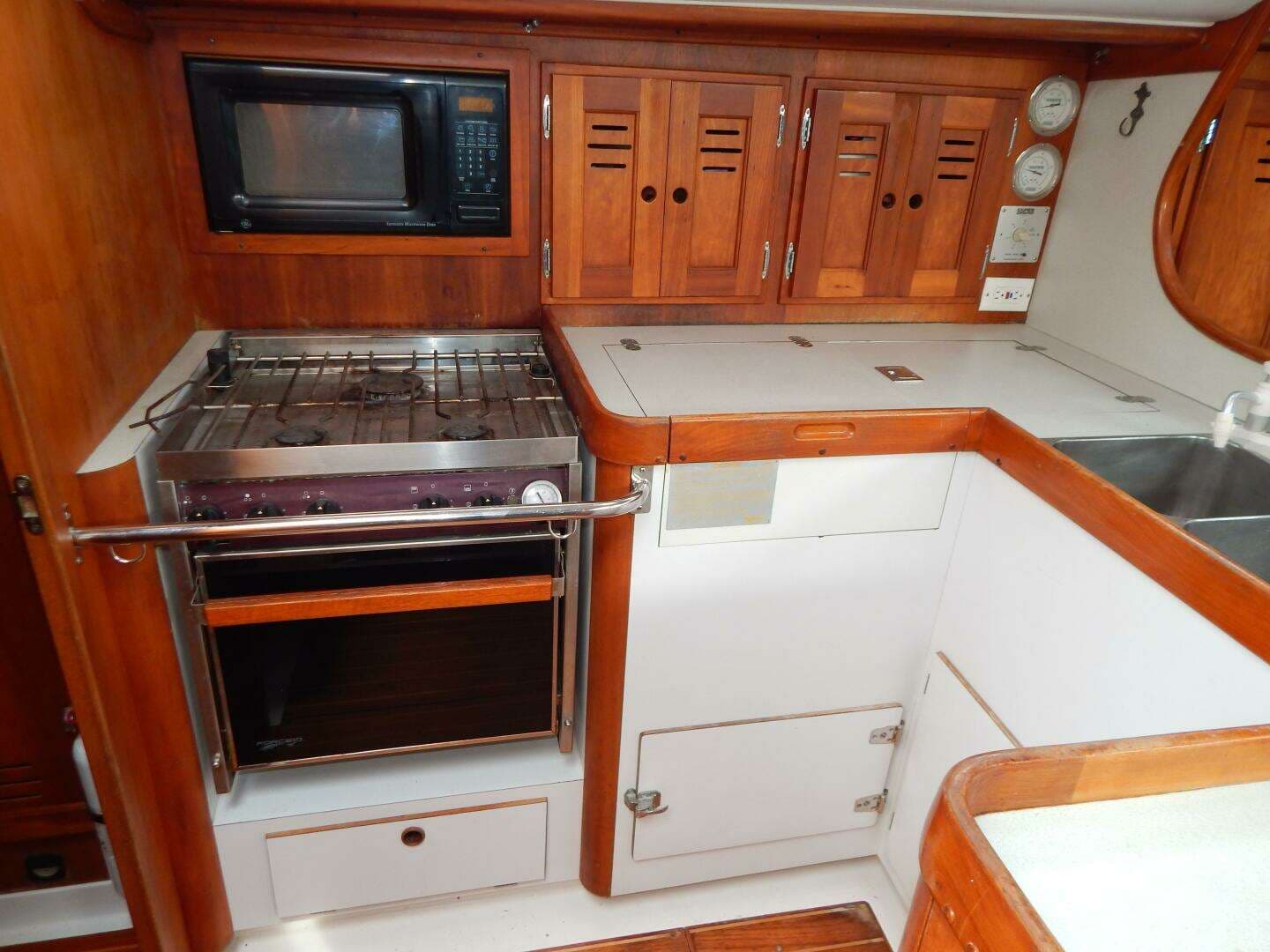

Galley and Head;

• Double stainless steel sink with hot and cold pressure water
• Force 10, 3 burner, LPG stove with oven and broiler
• GE microwave oven
• Grunert refrigerator with engine driven compressor
• Grunert freezer
• 11 gallon Kuuma 120 vac and heat exchanger plumbed water heater, 2023

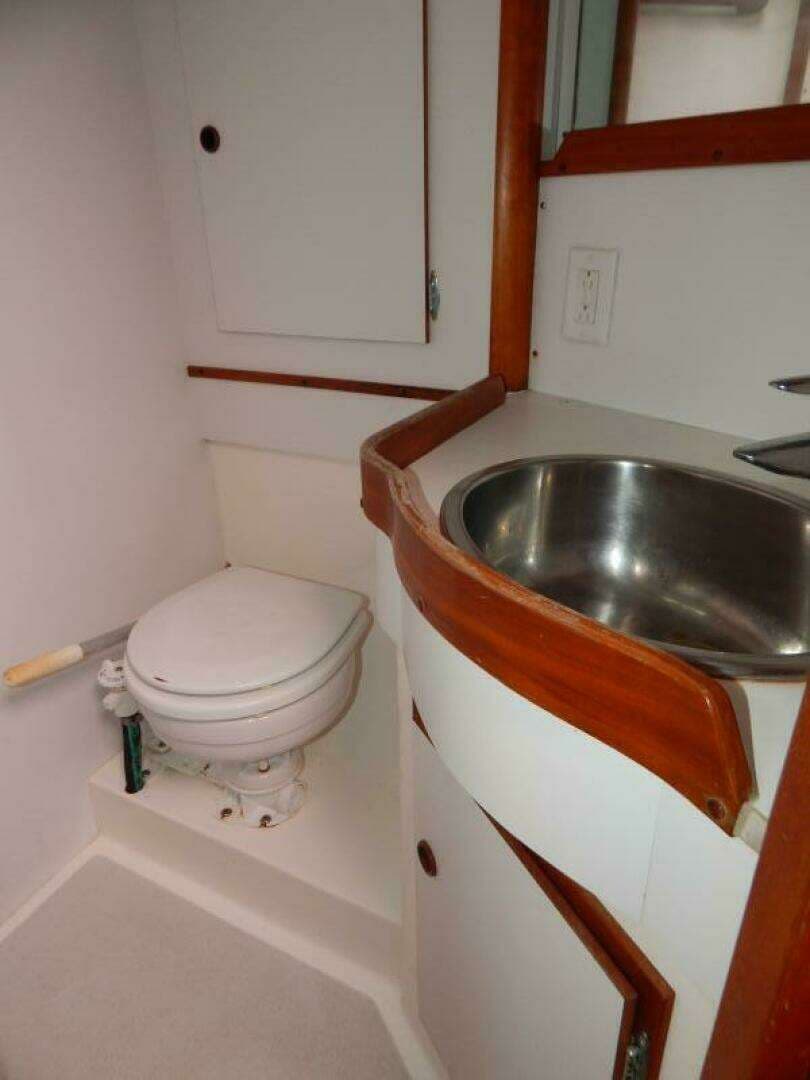

• Jabsco manual pump heads
• Stainless vanity sinks with hot and cold pressure water
• Fresh water tank level gauge
• Holding tank level gauges
• Macerator
• Separate stall shower with sump aft

Electrical;

• (3) 4D AGM House batteries and 1 AGM Start battery, 2023
• Blue Seas 1732 DC Ammeter, 2023
• 120va, 30 amp shore power connection with cords

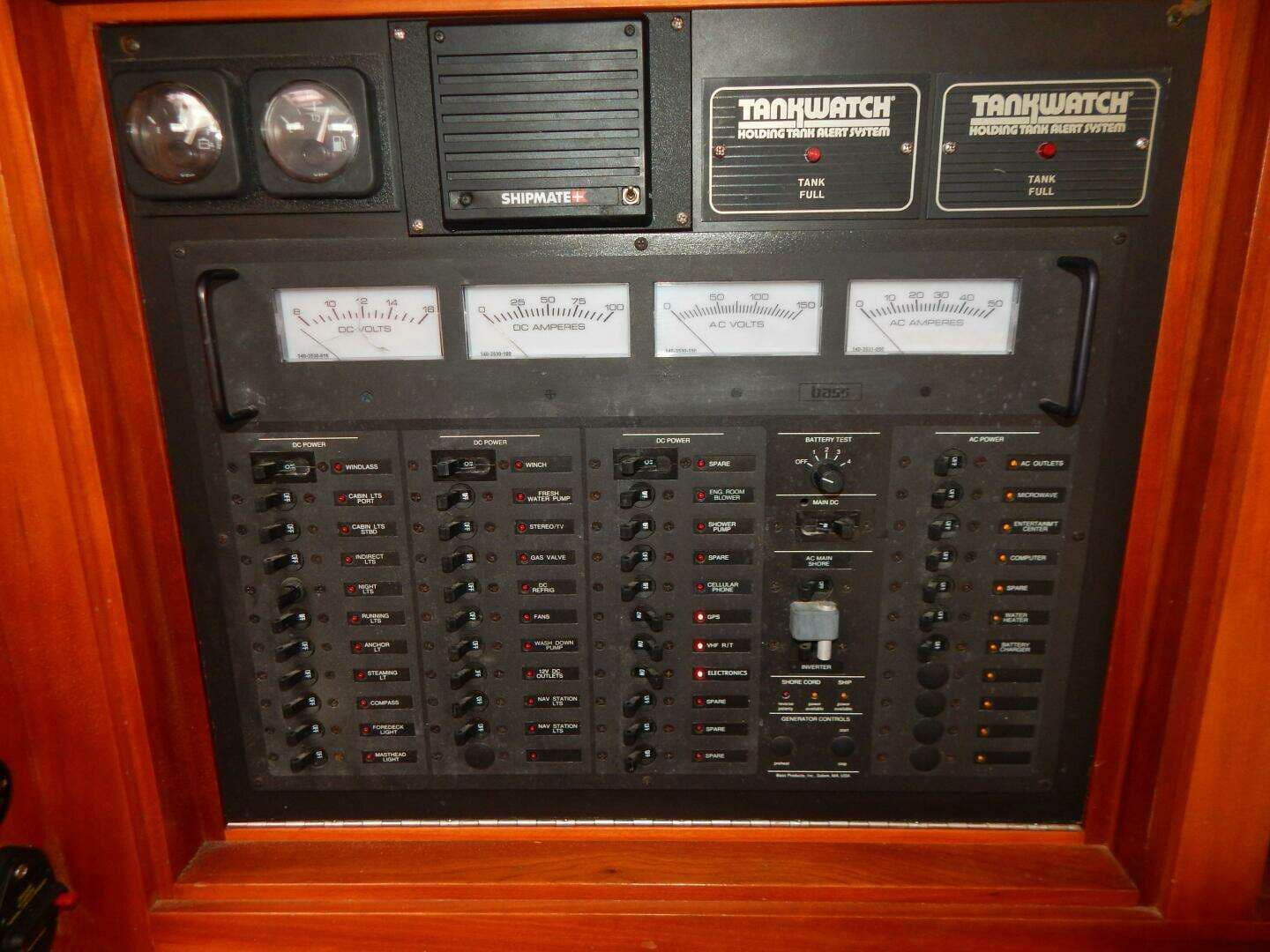

• 120vac and 12vdc circuit breaker panels
• Promariner 7200 Truepower 2000W inverter/charger, 2023
• (2) Solar panels, 2023
• (2) Victron Energy MPPT Smart Solar Controllers, 2023
• Battery isolator, 2023

Electronics and Navigation;

• NEC MFD at Nav Station
• Raymarine GPS/plotter, 2023
• Raymarine RL70C radar
• Raymarine closed array antenna on stern pole
• Northstar 951X GPS/plotter
• AIS
• Raymarine ST60 Wind instrument
• Raymarine ST60+ Speed Log
• Raymarine ST60 Depth Sounder
• (2) Raymarine ST60 Multi display
• Garmin GHS 20 VHF radio with cockpit RAM Mike
• Raymarine ST6000+ autopilot
• Ritchie binnacle compass
• Samsung flat screen TV
• Sony DVD player
• Clarion AM/FM/CD player

Deck and Hull;

• CQR 45 lb. anchor and chain
• Spare Fortress anchor
• Anchor wash down
• Muir horizontal electric windlass
• 2 Dorade boxes and vents
• Dodger and bimini
• Cockpit cushions
• Magma stern rail mount grille
• Lifesling 2 MOB system
• Edson transom engine mount
• Transom hot and cold shower
• Bottom stripped, barrier coats and ablative paint

Sails and Rigging;

• Carbon Fiber tapered free standing mast
• Spartite mast collar, 2023
• Mainsail with Mack pack and lazy jacks
• Self tending Jib
• Furlex jib roller furler
• Harken 48, 2 speed electric halyard winch on cabin top
• Harken 48, self tailing port cabin top
• 10 cabin top line clutches
• Hall rigid boom vang
• Harken jib boom traveler
• Harken mainsheet traveler
• Tides Marine Delrin mainsail track

Mechanical Systems;

• Vetus Bow Thruster, new wiring, 2023
• Manual bilge pump
• 2 auto/manual electric bilge pumps
• High water alarm
• Kanzaki KM35A2, 2.64 to 1 transmission
• Raw water sea strainers
• Racor fuel water separator
• Emergency tiller
• 3 blade Max Prop propeller
• Spurrs Line Cutters

2023 Additional Updates;

Aft holding tank replacement including all sanitation hoses

Hull delamination repair aft starboard quarter

Deck and Hull deep clean and wax

Stanchion collar replace

Boarding ladder repair

Battery wiring

Mast wiring harness

Anchor light

Windex

VHF antenna

Mast Combo light

Fuel Fill and Vent hoses replaced

Various waterline thru hulls replaced

Stern rails re-bedded

Mack Pack main handling system

Dodger

Bimini

Cockpit Cushions

Complete interior cushions

Additional Comments

Safety: Freedom's quality build process and its Lloyd's of London specification criteria far exceed most other boats in the 40' category.

The lead wing keel (5' 2" draft) allows you to enjoy the Bahamas and other challenging skinny waters and the air draft of 63' (mast height and antennas) provides ICW cruising flexibility. The carbon fiber free standing mast is a huge safety benefit. There are no chain plates to maintain or standing rigging that have to be replaced as time demands. There have never been any Freedoms that have had mast issues (with the exception of one owner who hit a bridge)..

The salon is far brighter than other sloops of similar vintage offering deck window lights flooding the living area with natural light on both sides of the center hatch. The companionway is stunning. I "forward walk" down from the cockpit like stairs without having to descend backwards. You won't find this on many boats. (Dogs love this by the way).

The walk through sugar scoop transom provides easy and safe unloading of provisions and crew from an inflatable.

Both cabin bunks (the V berth and the aft master stateroom) are large enough to accommodate all sailors and crew regardless of their height.

The "ease of use" factor is very high on the Freedom. The self tacking jib allows you to set it and forget it when underway. Just turn the wheel and tack. The jib sets itself easily.

All control lines run aft for easy management from the cockpit. There are two reef points in the mainsail providing flexibility for all conditions. The jib is on a roller furler and is controlled from the cockpit. The boat will not let you down.

There is a reason why the past president of Freedom yachts personally, has a 40/40.
