For sale
Mar Sea
1994 Johnson High Tech 56' Euro
Rock Hall, Maryland
About This Yacht
THE JOHNSON YACHTS HIGH-TECH 56 IS BUILT & DESIGNED TO MEET YOUR NEEDS IN A LUXURIOUS YACHT THAT CAN MAKE YOUR LIFE SPECTACULAR EVERY DAY!
Specification
The Numbers
- Length overall
- 56'
- Year
- 1994
- Builder
- Johnson Yachts
- Model
- High Tech 56' Euro
- Beam
- 16'
- Draft (max)
- 4' 2"
- Cabins
- 3
- Heads
- 3
- Fuel type
- Diesel
- Fuel capacity
- 500 Gallons (1,892.71 Liters)
- Fresh water
- 200 Gallons (757.08 Liters)
- Displacement
- 52000
- Hull material
- Fiberglass
- Hull shape
- Modified Vee
- Hull type
- Power
- Condition
- Used
- HIN / IMO
- HHF56012H394
Interested in her?
Send a note and a broker will come back to you.
In detail
More about this yacht
ACCOMMODATIONS & WALKTHRU

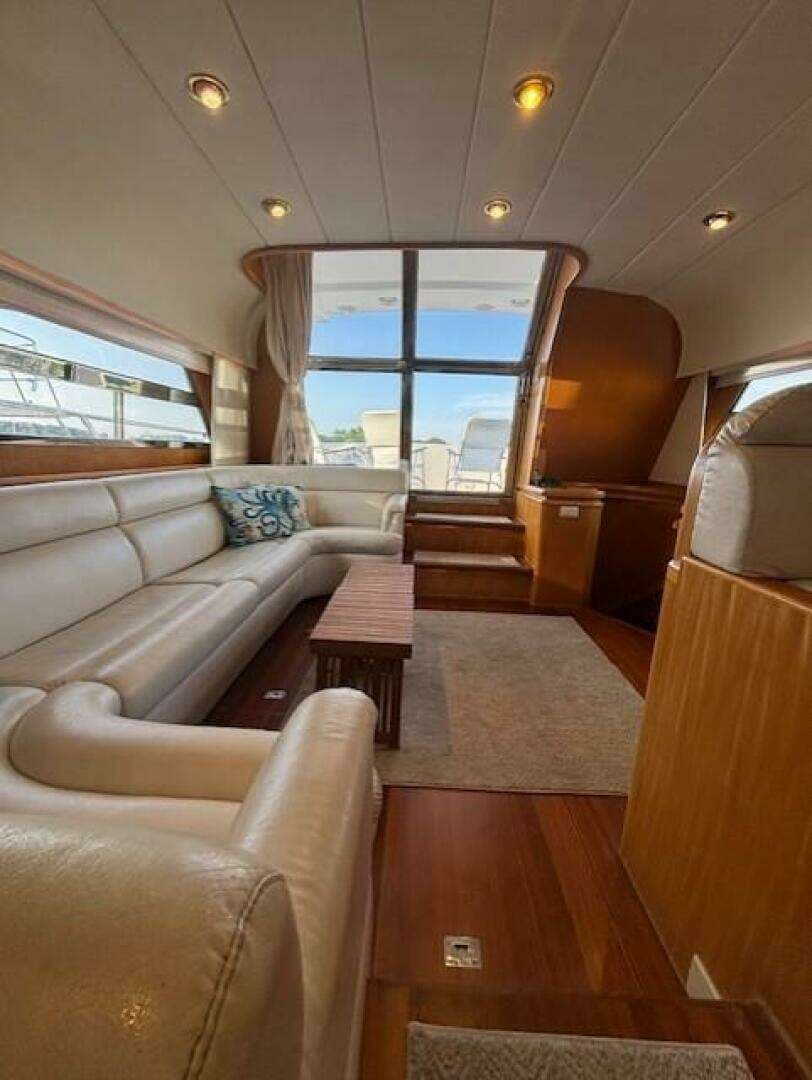

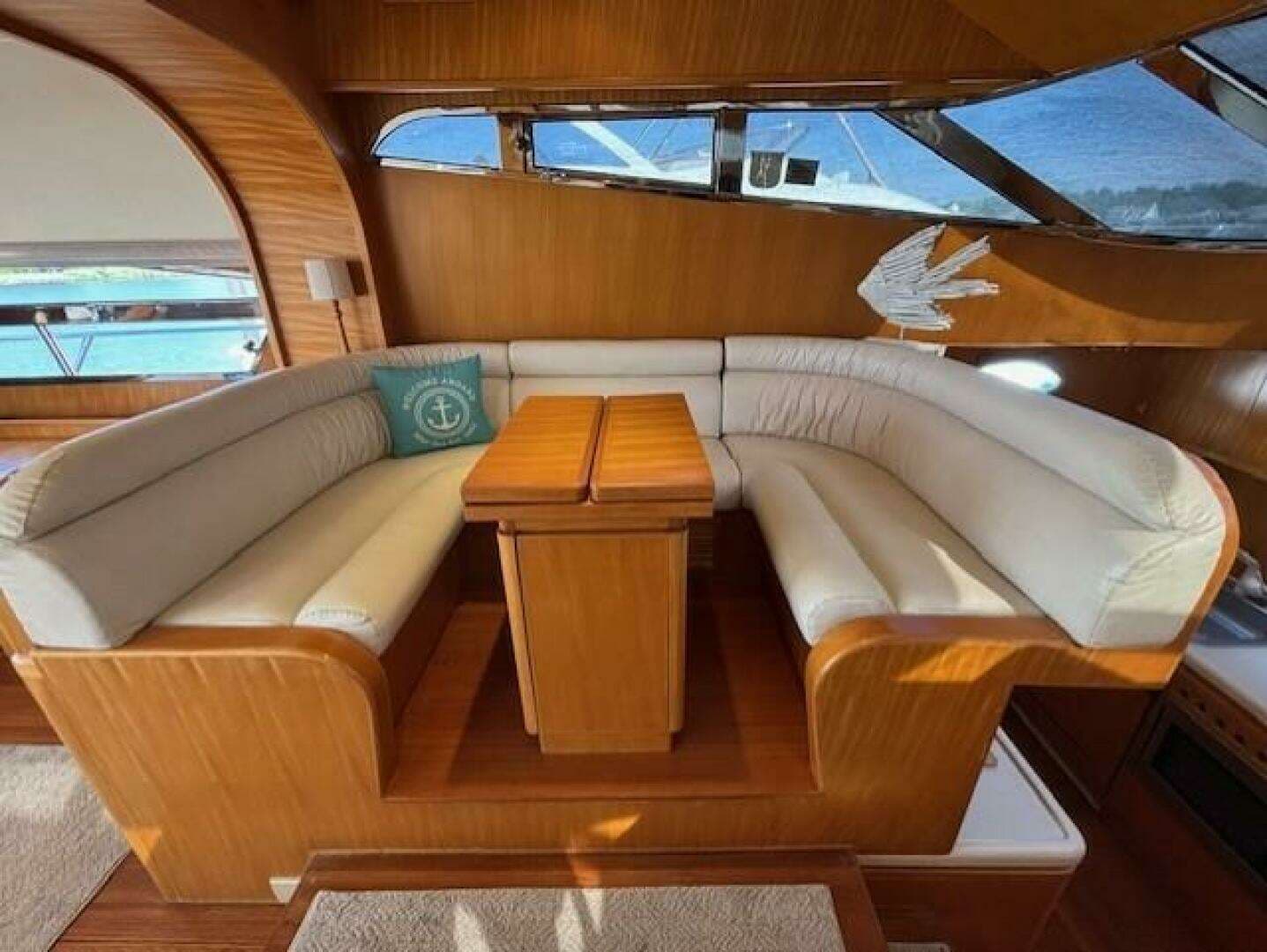

The Johnson High-Tech 56' Euro Motor Yacht has amazing, well thought out interior that perfectly serves the CRUISER and the LIVEABOARD with an efficient layout that sleeps 6 in 3 private cabins with additional room in the Saloon and in good weather on the Flybridge. The Master Stateroom is aft and entered down a magnificent spiral staircase. The Guest Berth is forward and mirrors the Master in size and features. "Mar Sea" has the storage space to support guests and crew, family and friends. The Saloon is large and comfortable with a long "U" shaped sofa. There is plenty of room for additional seating. The raised dining area nicely accommodates you and your guests. The spacious, lower, "U" shaped Galley makes entertaining easy and efficient!!!
INTERIOR EQUIPMENT
A 96000 BTU CRUISAIR-DOMETIC HVAC/AIR CONDITIONING SYSTEM remote expansion system with 2 AC seawater pumps supplying water to 4 compressors which then supply refrigerant gas to Air Handlers. The system can be run through shorepower receptacles or generator which makes it very "cool" to anchor out on a hot summer night!
3-BURNER STOVETOP
GE MICROWAVE
EXHAUST FAN OVER SINK
GE DISHWASHER
U-LINE GALLEY REFRIGERATION
SUB-ZERO GALLEY FREEZER
ADDITIONAL REFRIGERATOR ON FLYBRIDGE
SPLENDIDE 2000 COMBO WASHER/DRYER
NUTONE CENTRAL VACUUM
BROAN TRASH COMPACTOR
Electrical
The 56 Hi Tech Euro has both a Ship's 120 Volt and a Shorepower110 Volt Electrical Systems.ER
NORTHERN LIGHTS GENERATOR PX-0
2-125/250 VOLT 50AMP SHOREPOWER RECEPTACLES W/ITH BREAKERS
50' SHOREPOWER CABLE
GALVANIC ISOLATERS
HVAC/AIIR SYSTEM (SEE ACCOMMODATIONS)
12-8D GEL TYPE BATTERIES
SENTURY 12v, 60AMP BATTERY CHARGER
PROMARINER 12v, 20AMP BATTERY CHARGER
NEWMAR 24v, 50AMP BATTERY CHARGER
6- GUEST ROTARY BATTERY SWITCHES
12v ELECTRIC PANEL AT PILOTHOUSE HELM
Show more, 3 further sectionsShow less
Mechanical
MECHANICAL EQUIPMENTT
TWIN DETROIT FWC, 8-CYLINDER MODEL 8V92TA DIESELS (PORT 1139 HRS & ST11ARRBOARD 1138 HRS)
Bow Thruster 24v WITH SINGLE 3-BLADE PROP IN 12" TUBE
Trim Tabs Electro-Hydraulic 12"X54" SS
STEERING SYSTEM BY HYNAUTIC WITH Hydraulic Single Ram
SS SPADE RUDDERS 11"x27"
WATER SYSTEMS & PLUMBING
200 GALLON SS FRESHWATER TANK WITH ACCUMULATOR TANK & HEADHUNTER EXCALIBER 12v PUMP
RARITAN 20 GALLON WATER HEATER
FRESHWATER WASHDOWN
DECK SHOWER AT TRANSOM
60 GALLON WASTE TANK WITH Y VALVE
2 RULE 12V SUMP PUMPS & FLOAT SWITCHES
2-ALUMINUM 300 GALLONS EACH FUEL TANKS WITH 12V FUEL TRANSFER PUMP
REVERSO OIL TRANSFER PUMP WITH MANIFOLD
4 - RULE SUMP PUMPS SUBMERSIBLE 12v W/FLOAT SWITCHES
MANUAL BILGE PUMP IN ENGINE ROOM
AUDIO & VISUAL BILGE ALARMS AS PER ABYC
Electronics and Navigation

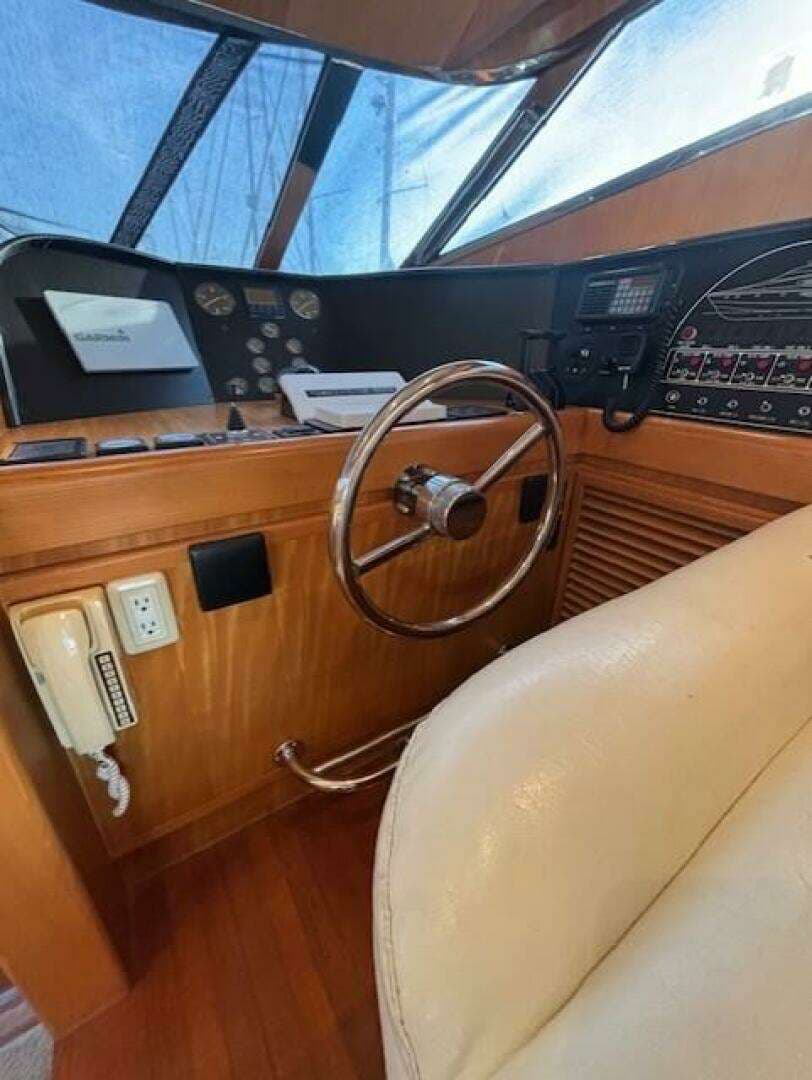

The fully equipped and Maintained Inside Helm is across from the Dining area on port. and at Flybridge Helm is centered with great 360 degree vision. In addition, there are two sets of engine controls in the cockpit: one on starboard and one on port.
UPPER STATION (FLYBRIDGE)
4" Ritchie Compass
Simrad AP20 Autopilot
Garmin GPS Map 942xs
Northstar GPS/LORAN 800
CHART PLOTTERS
GARMIN 36 MILE RADAR
AUTOHELM TRIDATA: KNOTMETER, DEPTHSOUNDER, WATER TEMPERATURE
STANDARD HORIZON VHF RADIO AND HAILER
ENGINE MONITORING GAUGES
LOWER STATION (WHEEL HOUSE)
4" Ritchie Compass
Simrad AP20 Autopilot
Garmin GPS Map 942xs
Northstar GPS/LORAN 800
CHART PLOTTERS
GARMIN 36 MILE RADAR
AUTOHELM TRIDATA: KNOTMETER, DEPTHSOUNDER, WATER TEMPERATURE
SEA VHF RADIO
ENGINE MONITORING GAUGES
ENTERTAINMENT ELECTRONICS
INTELLIAN SATELLITE SYSTEM
SAMSUNG TV/DVD/MEDIA PLAYER IN MASTER
SAMSUNG TV IN GUEST CABIN
SONY TV/DVD/MEDIA PLAYER IN SALOON
PIANOLA CASSETTE/TUNER SOUND SYSTEMS IN EACH STATEROOM
Hull & Deck Build and Equipment
Johnson Yachts and designer Bill Dixon have put together a superb PILOTHOUSE MOTOR YACHT with Modified V Planing Solid glass hull and Cored Fiberglass Decs with Non-Skid and laid Vinyl Teak
Fiberglass Bow Sprit with SS Anchor Roller Bracket
SS Bow Pulpit
SS Rubrails
Molded Fiberglas Hardtop
DECKS WERE PRIMED AND PAINTED WITH AWLGRIP TO MATCH PREVIOUSLY PAINTED TOPSIDES FROM BOW TO JUST INSIDE COCKPIT AND FROM RUB RAIL TO PAINTED AREA AROUND BRIDGE
Muir Electric, Vertical, Anchor Windlass with remote controls
Danforth polished 55 lb ANCHOR
DOCKLINES AND FENDERS
TELESCOPING SS SWIM LADDER ON GOOD SIZED SWIM PLATFORM
Machinery
- Port
- 1994 Detroit 8V92TA, 737 hp, Diesel, Direct, 1,139 hours
- Starboard
- 1994 DETROIT 8V92TA, 737 hp, Diesel, Direct, 1,138 hours
