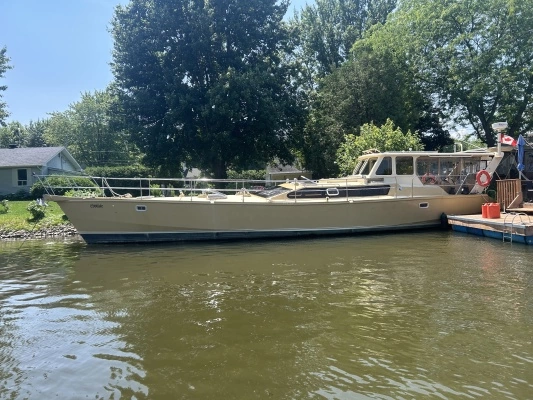

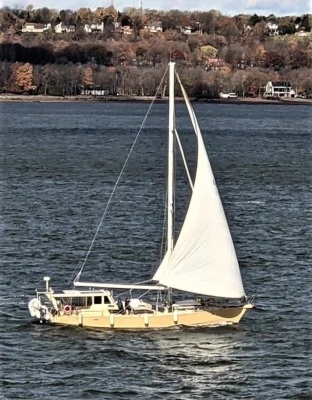

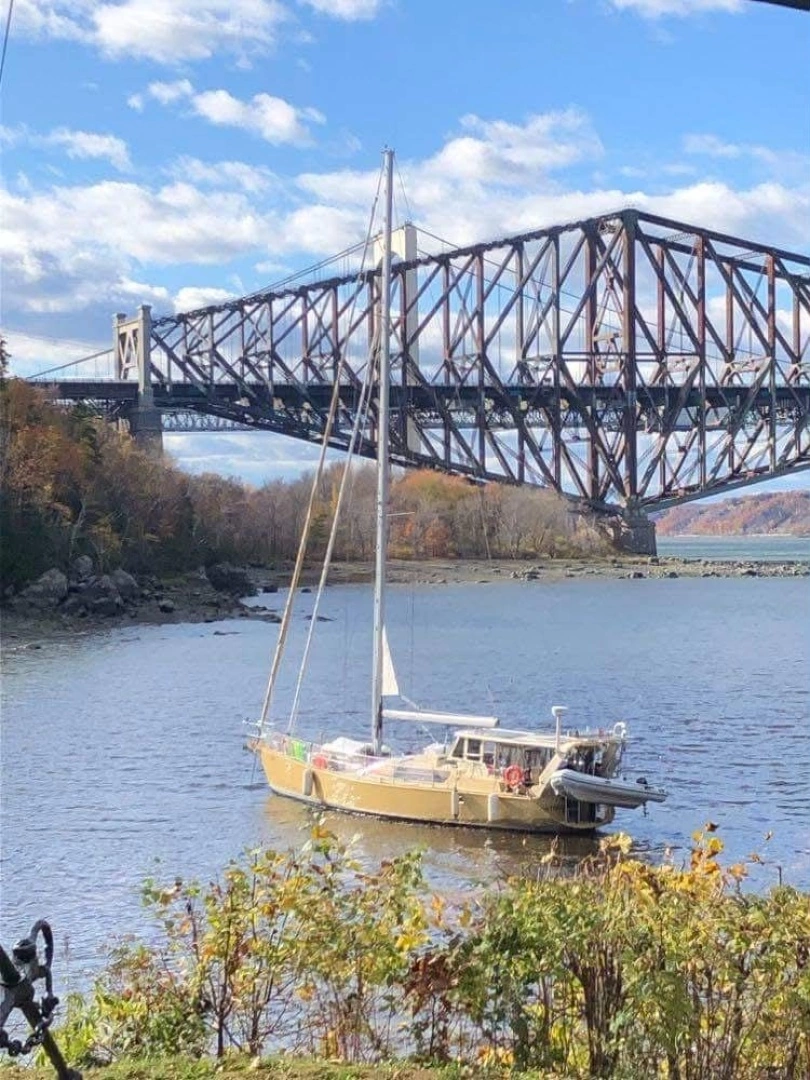

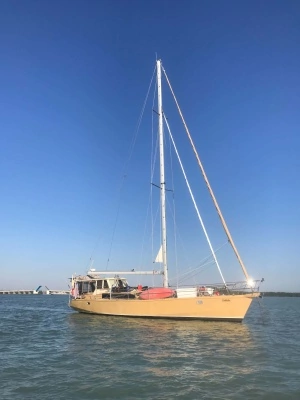

1999 Custom Angelina 59' Caroff Duflot

Dimensions LOA: 56.3 ft Beam: 14.8 ft Minimum Draft: 3.3 ft (Board Up) Bridge Clearance: 74 ft Mast Height Clearance: 74 ft Headroom: [Not Reported] Deadrise: N/A (Centerboard Sailboat) Dry Weight: 15 Tons (Displacement)

Tankage (GALLONS) Fuel: 400 Gallons total (3 separate aluminum tanks: 2x 137 gal + 1x 126 gal) Fresh Water: [Not Reported] Holding: [Not Reported]

Engine(s) Make: Yanmar Model: 4JH80 (Turbocharged & Intercooled, 4-Cylinder In-Line) Engine Type: Inboard Diesel Drive: Direct Drive (ZF Hurth Marine 30M Reduction Gear, 1.5-inch Stainless Steel Shafts) Fuel: Diesel Hours: 1,500 hours HP: 80 HP / 60 BHP each (Twin Engines)

Generator Make NA KW: NA Hours: NA

Accommodations Cabins: 4 Cabins (Master fore cabin, middle cabin, aft starboard cabin) Berths: 3+ 1 Head(s): 2Head w/ integrated shower

Electronics/Mechanical

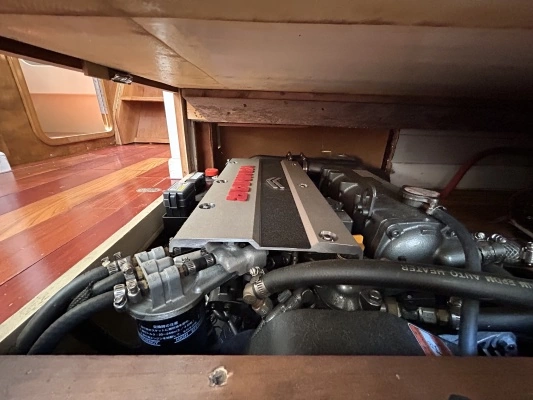

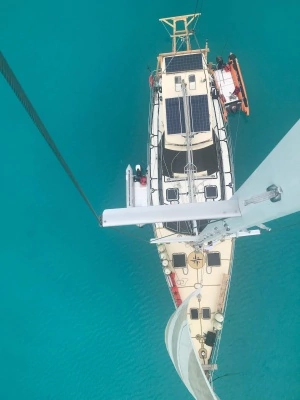

Twin Yanmar 4JH80 Power: Outfitted with twin Yanmar diesel engines showing 1,500 hours. Updated Engine Displays: Equipped with electronic motor panels featuring enhanced functions. Advanced Navigation Station: Built-in cockpit helm station with navigation chart plotter, recent Furuno autopilot with hydraulic drive pump (Kobelt HRP17-12L), and dual helm stations/wheels. Comprehensive Electrical & Alternative Power: Top-mounted Solar Panels installed on the aluminum arch structure. Upgraded Propulsion Infrastructure: Heavy-duty 2-inch stainless steel shafts, rotative PSS shaft seals, flexible couplers, nitrile cutlass bearings, and Michigan Dyna Jet 19D x 19P 3-blade bronze propellers (plus 2 old spare propellers). Custom Oil Management: Groco GHSN-13 marine 3-valve port oil change system. Single-handle Morse engine controls at side mount of helm with push neutral button. Premium fuel management: Triple separate aluminum tanks (400 Gal total) with primary Parker/Racor 1000 series water separator filters and secondary Yanmar cartridges. Complete analog/digital helm gauges for RPM, engine temperature, and oil pressure alongside full visual/audible alarms. Quadruple high-capacity bilge pumping: 2x Rule Flow 2700 GPH impeller pumps and 2x Rule Flow 1500 GPH impeller pumps with automatic/manual floats.

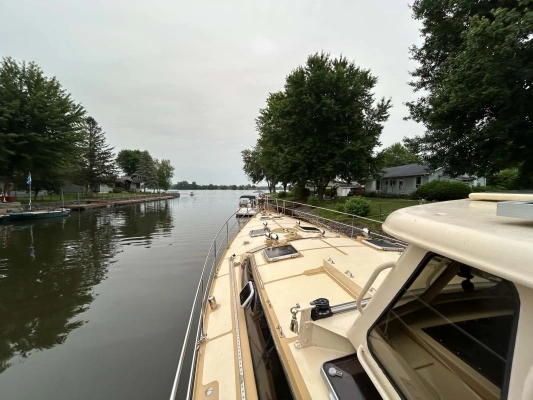

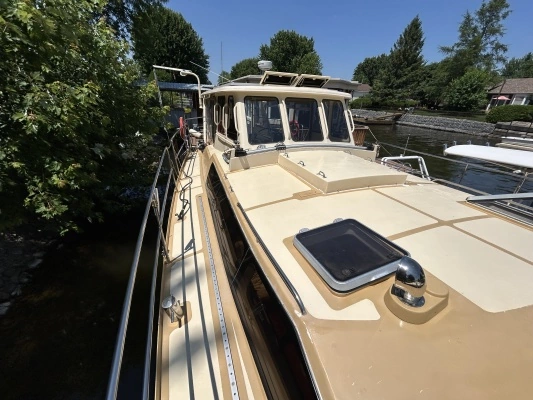

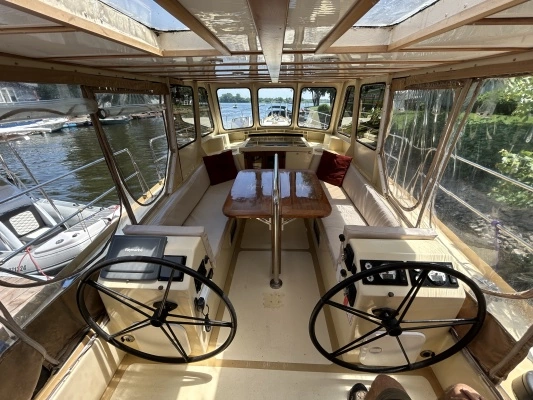

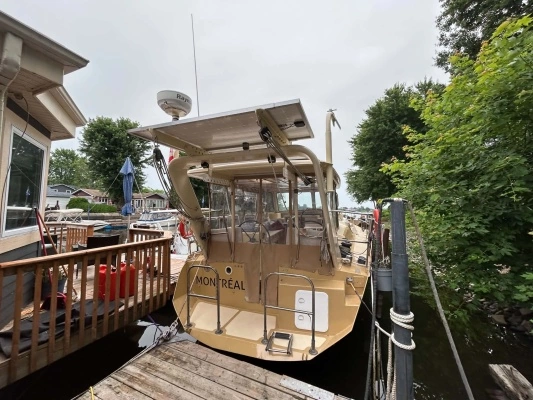

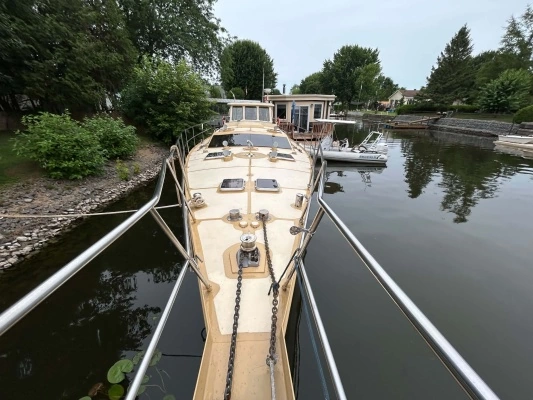

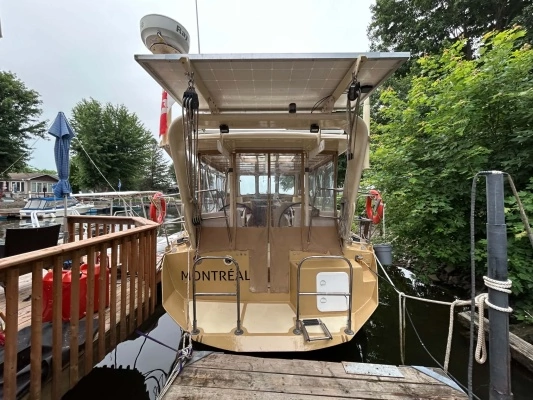

Exterior Equipment Custom Aluminum Pilot House: Rigid welded aluminum dodger and cockpit roof integrated smoothly into the arch. Premium Paint Infrastructure: Upper hull finished with high-gloss Awlgrip paint and deck/roof treated with anti-slip Awlgrip 1. Robust Ground Tackle Package: Lewmar Model 2000 24V electric windlass with manual controls, heavy-duty primary Rocna 90 lbs galvanized anchor with 300 ft of 3/8-inch BBB chain, spare Fortress 55 lbs anchor, and Cobra 55 lbs anchor with 75 ft of 3/8-inch BBB chain. Adventure & Utility Ready: Solid steel and aluminum aft arch with built-in dinghy davits, integrated outboard engine lift boom, and transom platform with twin foldable boarding ladders. Heavy-duty steel centerboard lifting/descending mechanism operated via textile cable on a dedicated winch. Built-in cockpit locker space for portable generator storage. Fully compliant, ventilated LPG storage locker containing up to three 20 lbs cylinders with an ABYC-approved low-pressure side leak test gauge and electronic shutoff breaker. Dual steel rudders treated with preventive Amerlock 400 and fitted with replaced rudder shaft bushings. Heavy-duty safety lines including a 600 ft spool of 7/8-inch Kevlar safety rope.

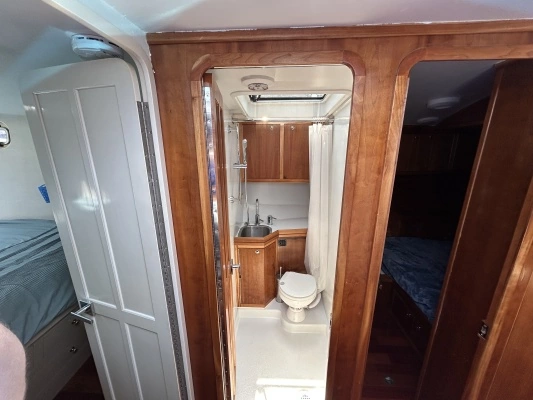

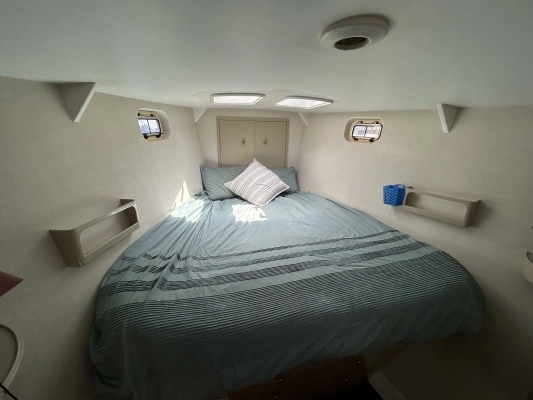

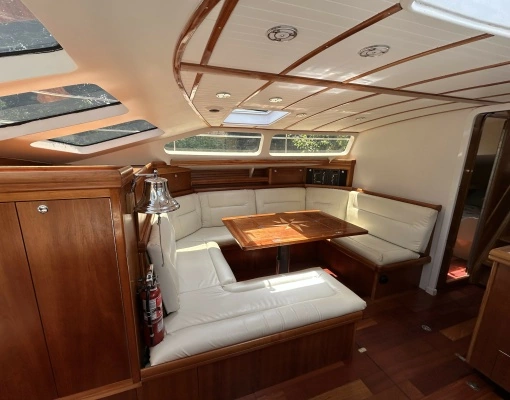

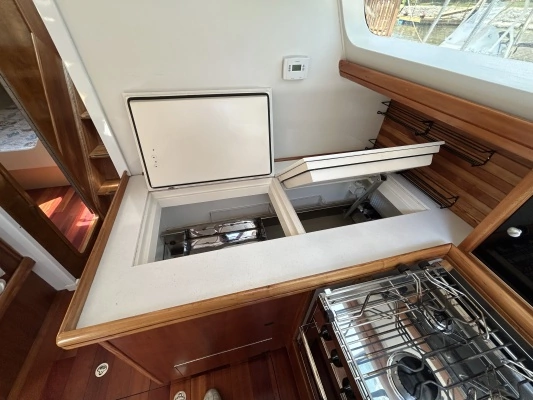

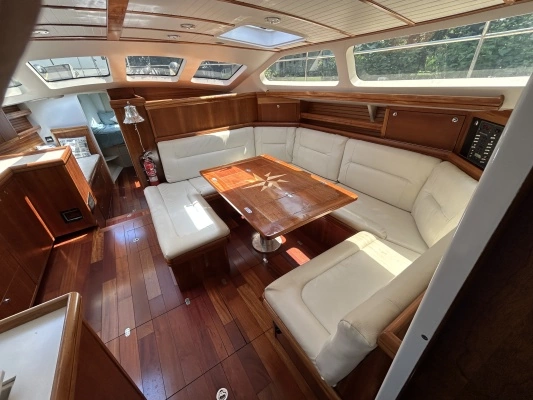

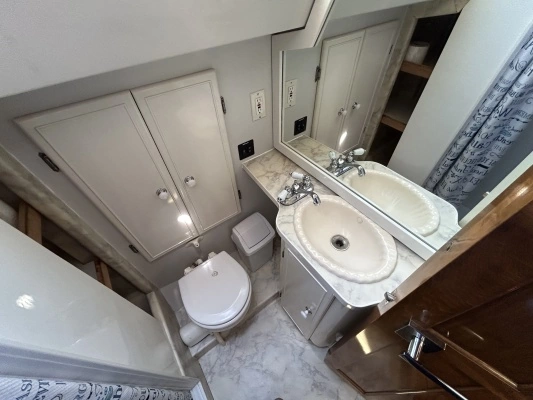

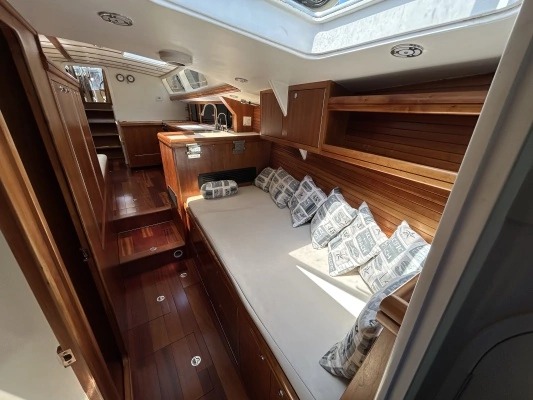

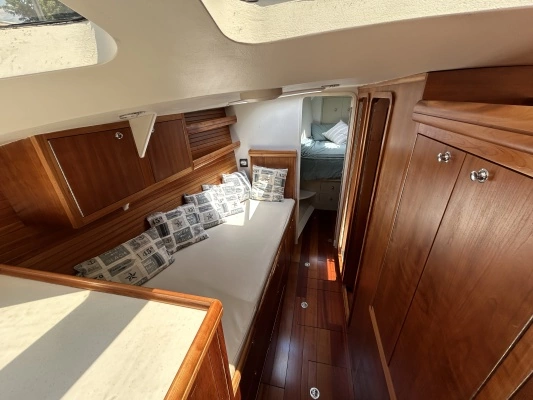

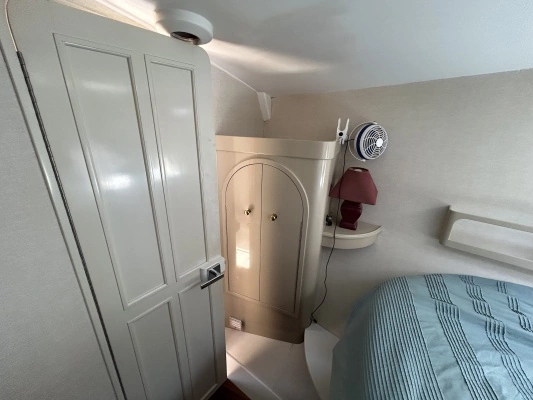

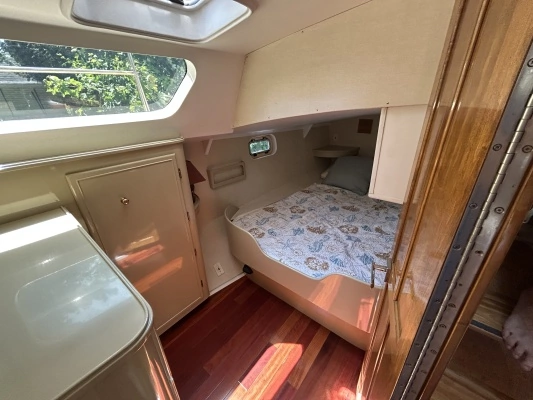

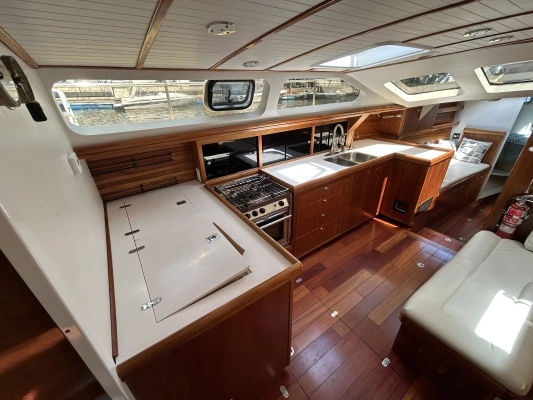

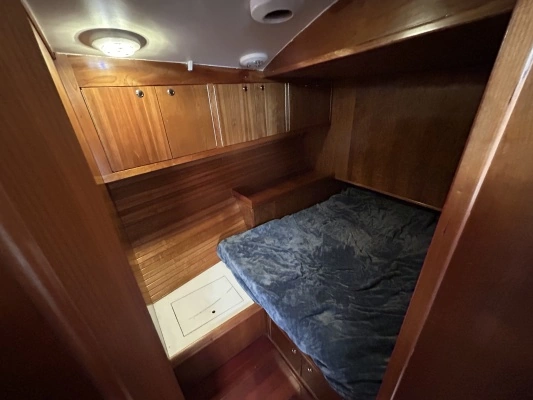

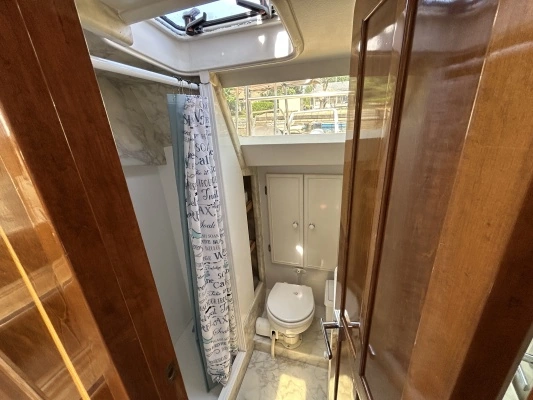

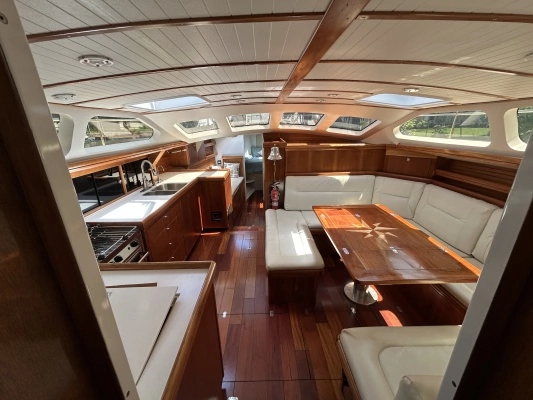

Interior Equipment Full Climate Control/Heating: Air/diesel forced heating system ducted directly into the fully enclosed cockpit and interior cabins. High-Grade Craftsmanship: Gorgeous American cherry wood interior finish, complete with highly effective thermal urethane foam insulation throughout the steel framing. Comprehensive Safety Devices: Fire fighting setup with 5 lb 5A 10-BC dry powder extinguishers, integrated smoke detectors in the main salon and aft cabin, and multiple cabin-specific CO detectors. Highly functional L-shaped galley with expansive work spaces, optimized deep storage lockers, and a dedicated stainless steel ball-valve drain system. Expansive C-shaped salon dinette paired with a generous centerline dining table. Three individual private sleeping cabins featuring double beds and integrated clothing/closet lockers. Marine head with integrated shower, dedicated sump evacuation, and Y-valve toilet discharge routing to the sanitary holding tank. Safety monitoring setup with a built-in propane gas control system and combined galley gas/CO probe alarm linked to the helm.
