For sale

DON JUAN

1983 Elliott Custom

Newport Beach, California

$1,050,000

Inquire about this yacht (954) 560-2811

1 / 18

Specification

The Numbers

Length overall: 72'
Year: 1983
Builder: Elliott
Model: Custom
Beam: 20' 6"
Draft (max): 8'
Cabins: 4
Maximum speed: 15 Knots
Cruise speed: 10 Knots
Fuel type: Diesel
Fuel capacity: 3,600 Gallons (13,626 Liters)
Fresh water: 400 Gallons (1,514 Liters)
Displacement: 170000
Hull material: Fiberglass
Hull type: Power
Condition: Used

Interested in her?

Send a note and a broker will come back to you.

Ask about this yacht (954) 560-2811

In detail

More about this yacht

Accommodations / Walkthrough

3D Tour Available.

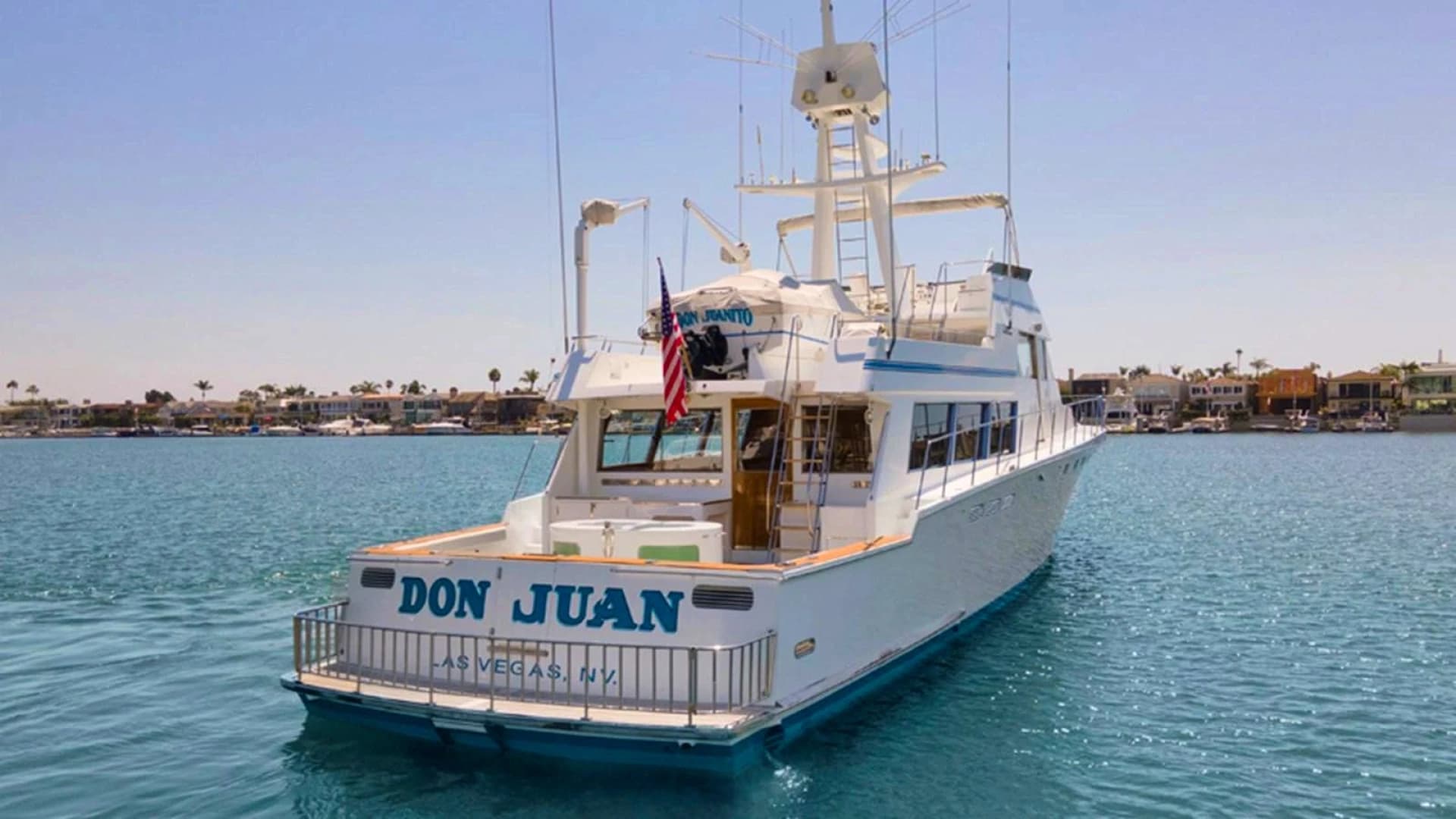

DON JUAN is truly an amazing platform built on a Buck Smith hull and was completed by Elliott Boats in 1983 as the last Elliott to ever be built. She boasts a huge fishing cockpit complete with three bait tanks; full beam refrigerated fish hold and tackle center.

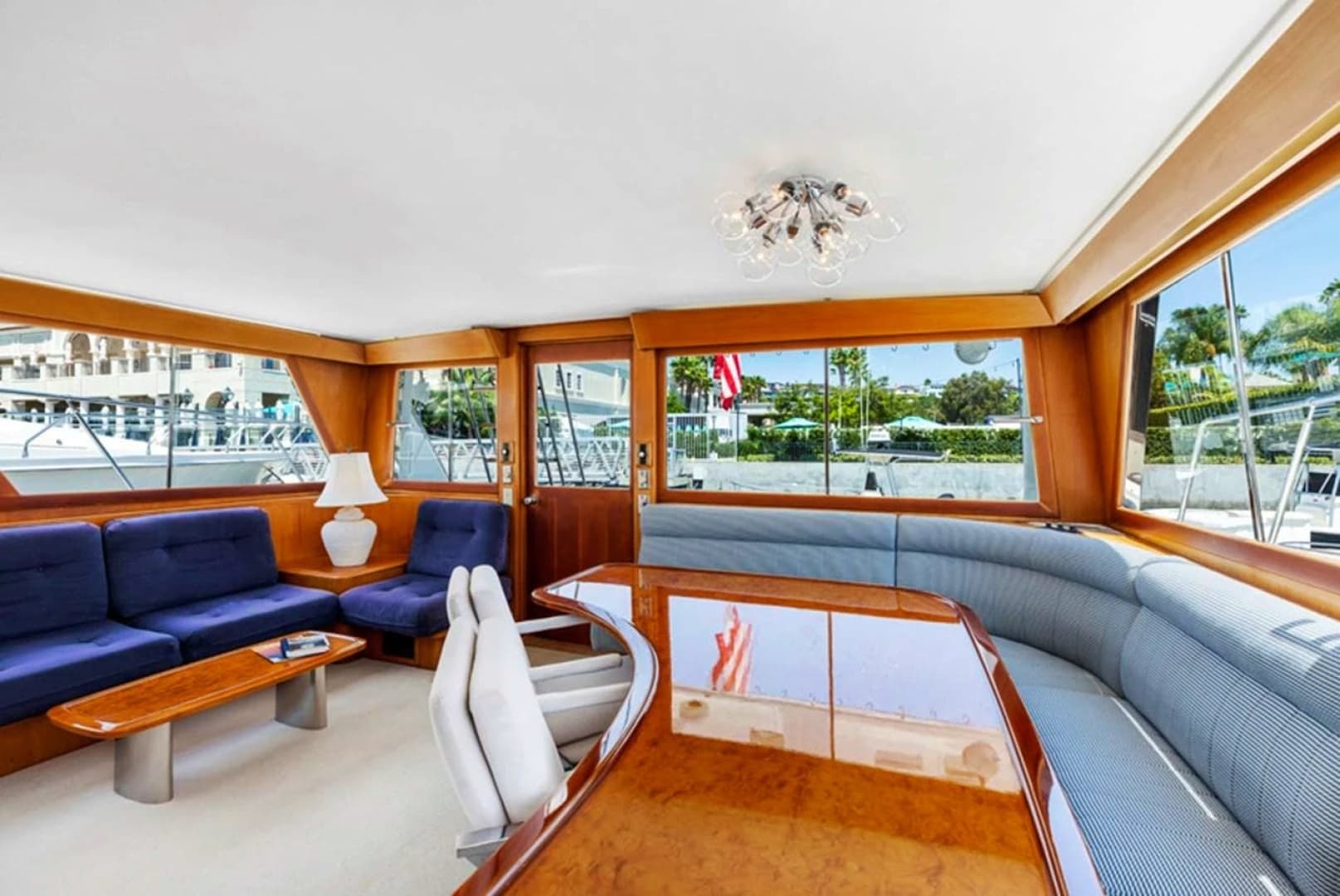

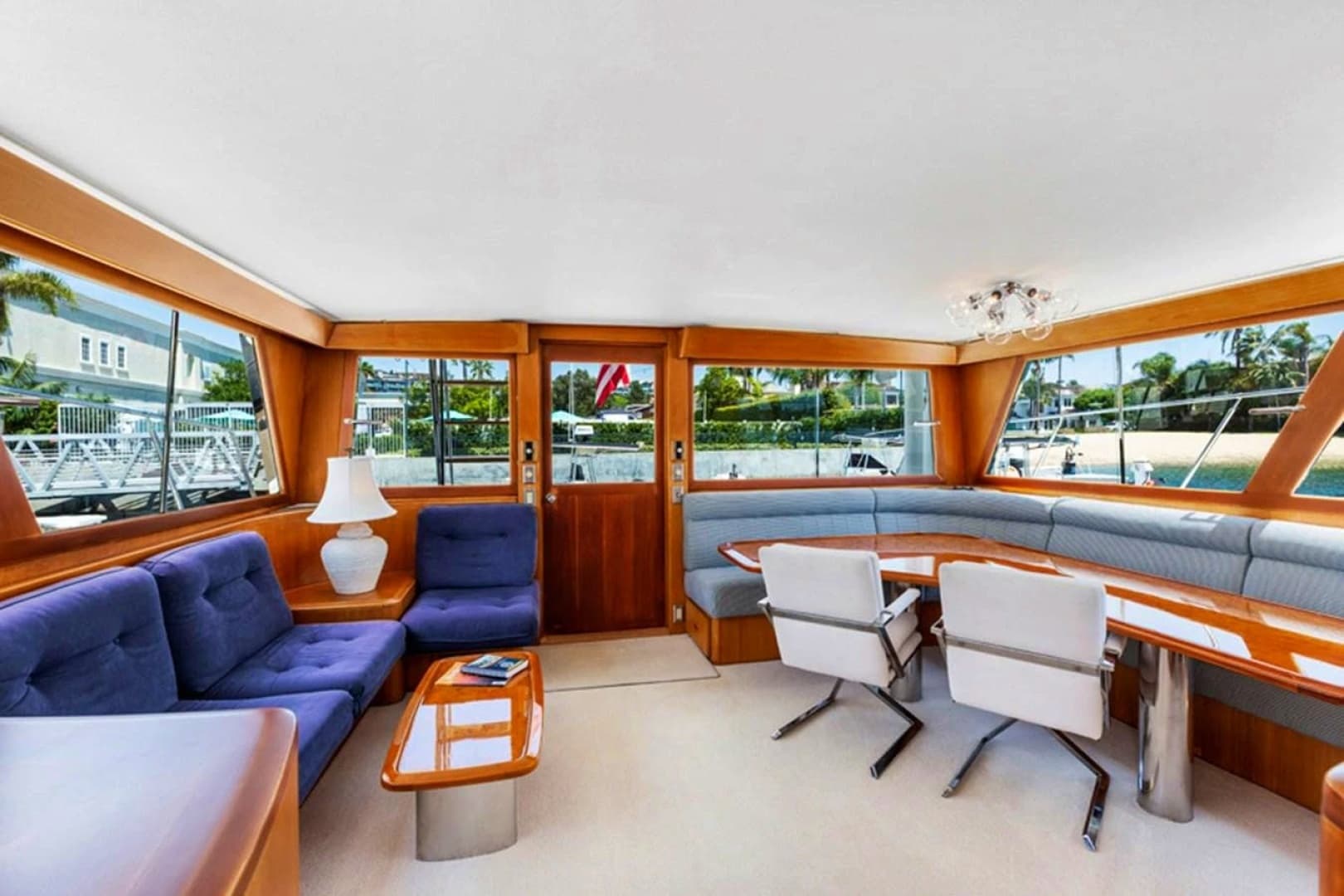

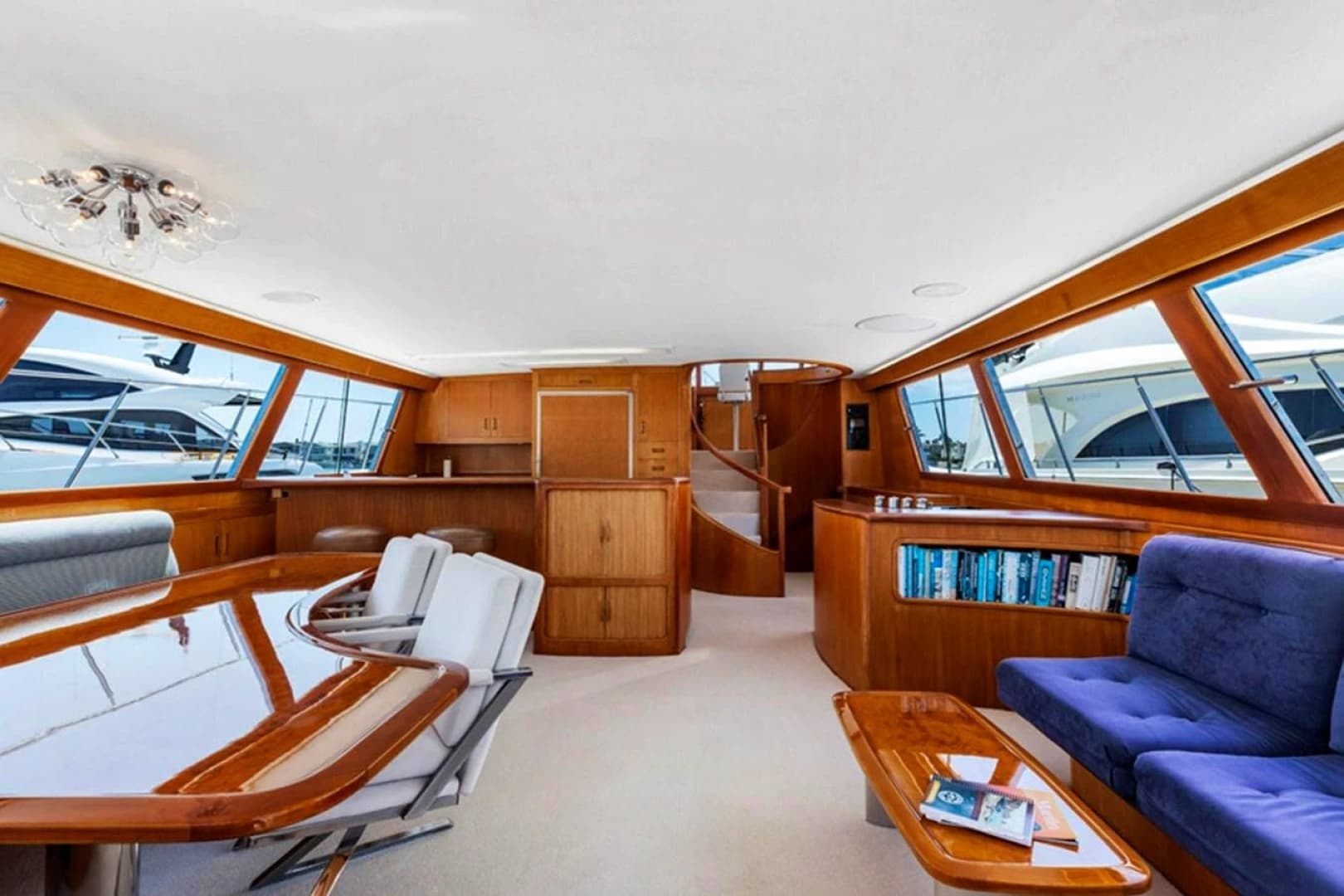

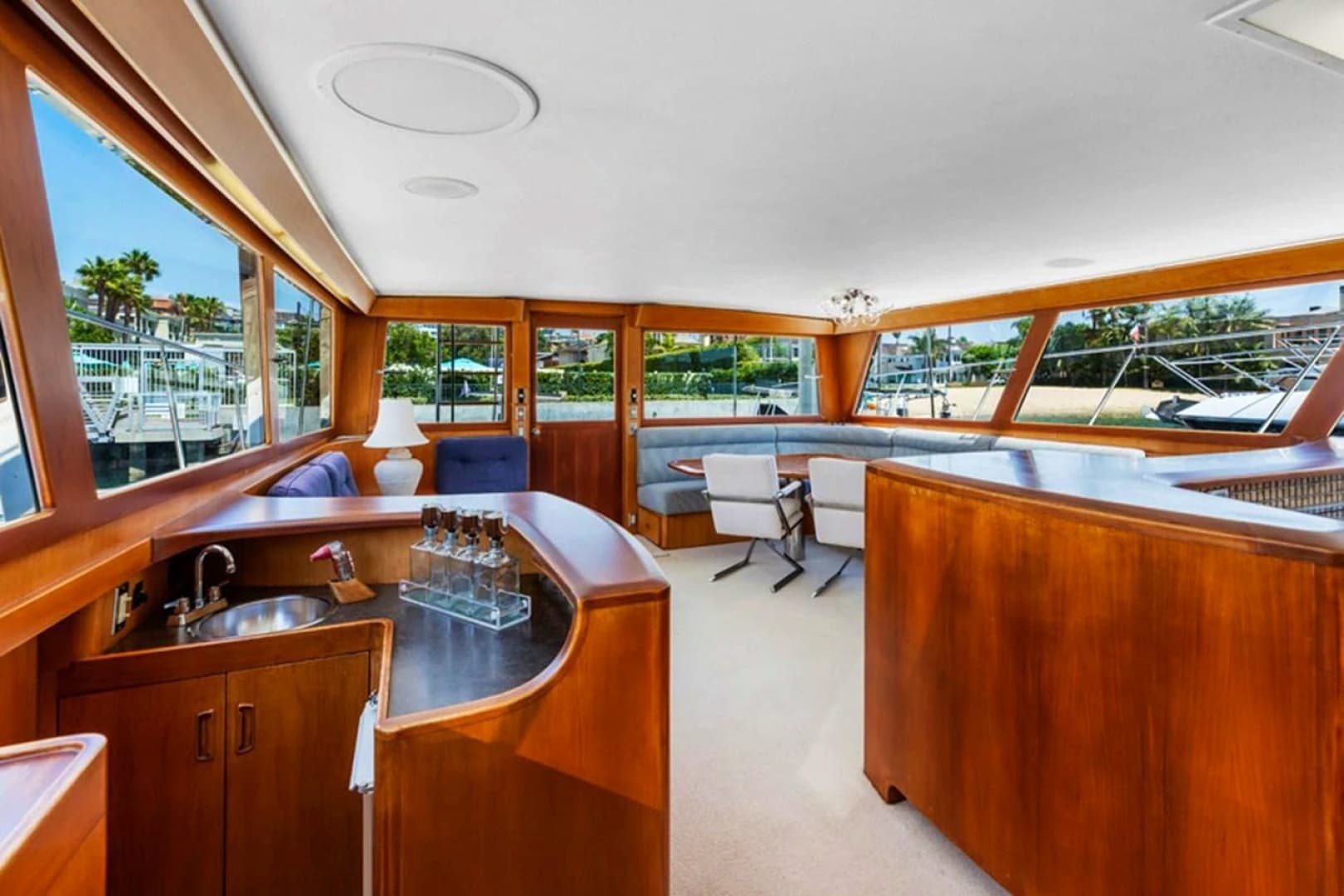

Entering the salon through a teak door, the enormous windows provide great visibility and natural light. To port is a large couch and dining table with seating for 10 adults. A small sofa and table are to starboard that transform to another bunk when needed. Moving forward is a sunk-in bar complete with an icemaker, refrigerator and soda gun. Across from the bar you will find the galley complete with large Sub-Zero refrigerator and beautifully appointed countertops with bar stools. The galley is equipped with a full array of appliances that would make any chef envious.

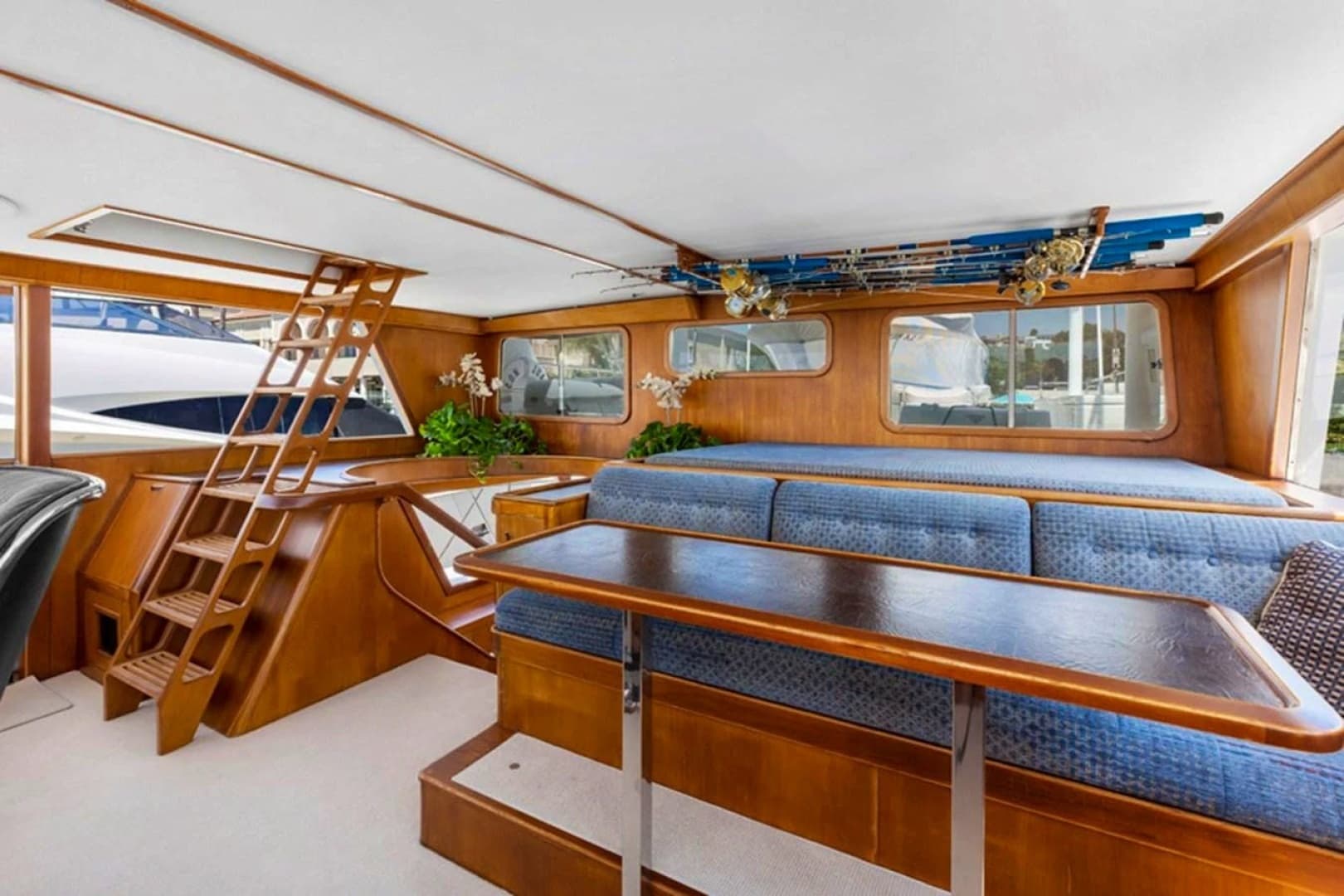

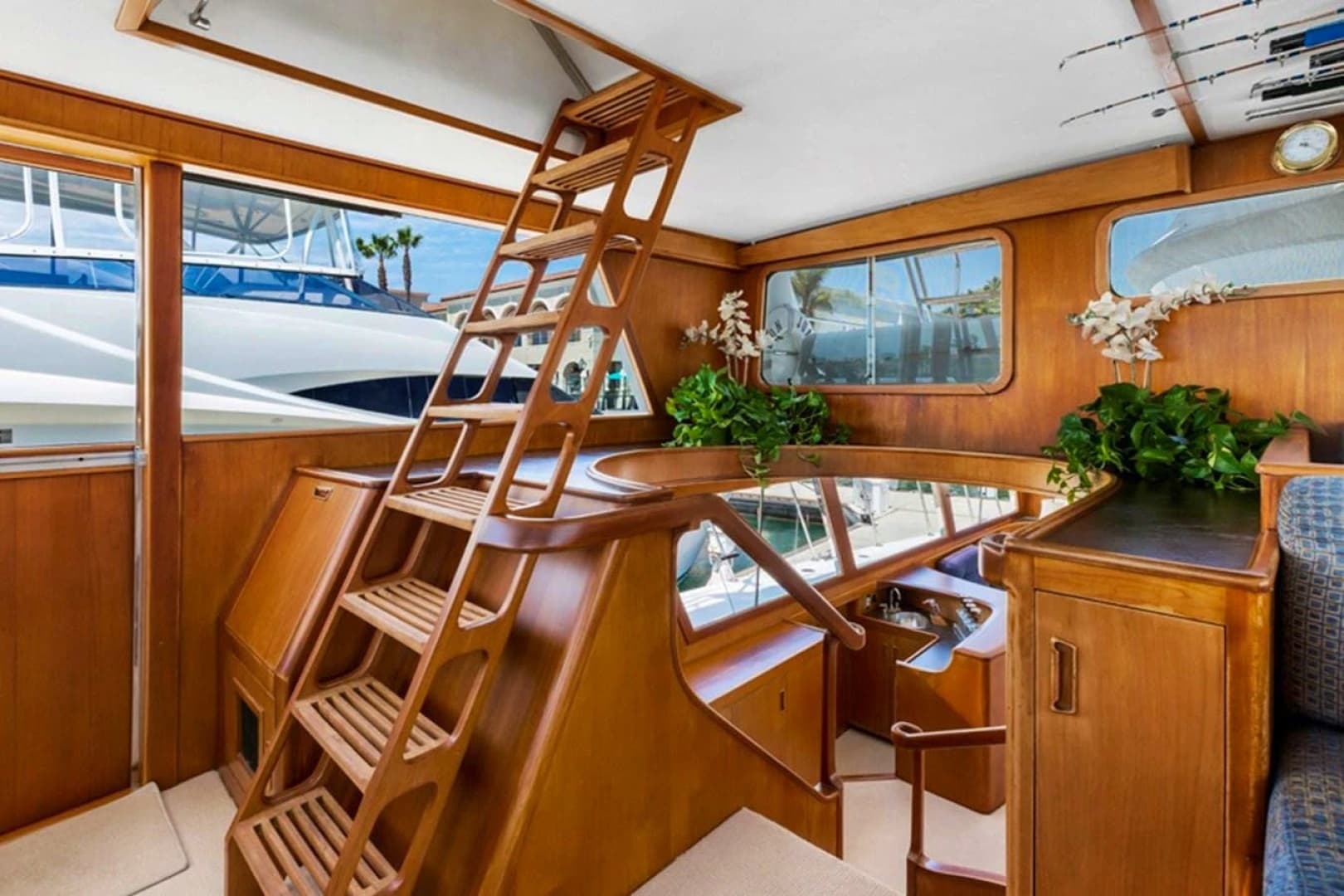

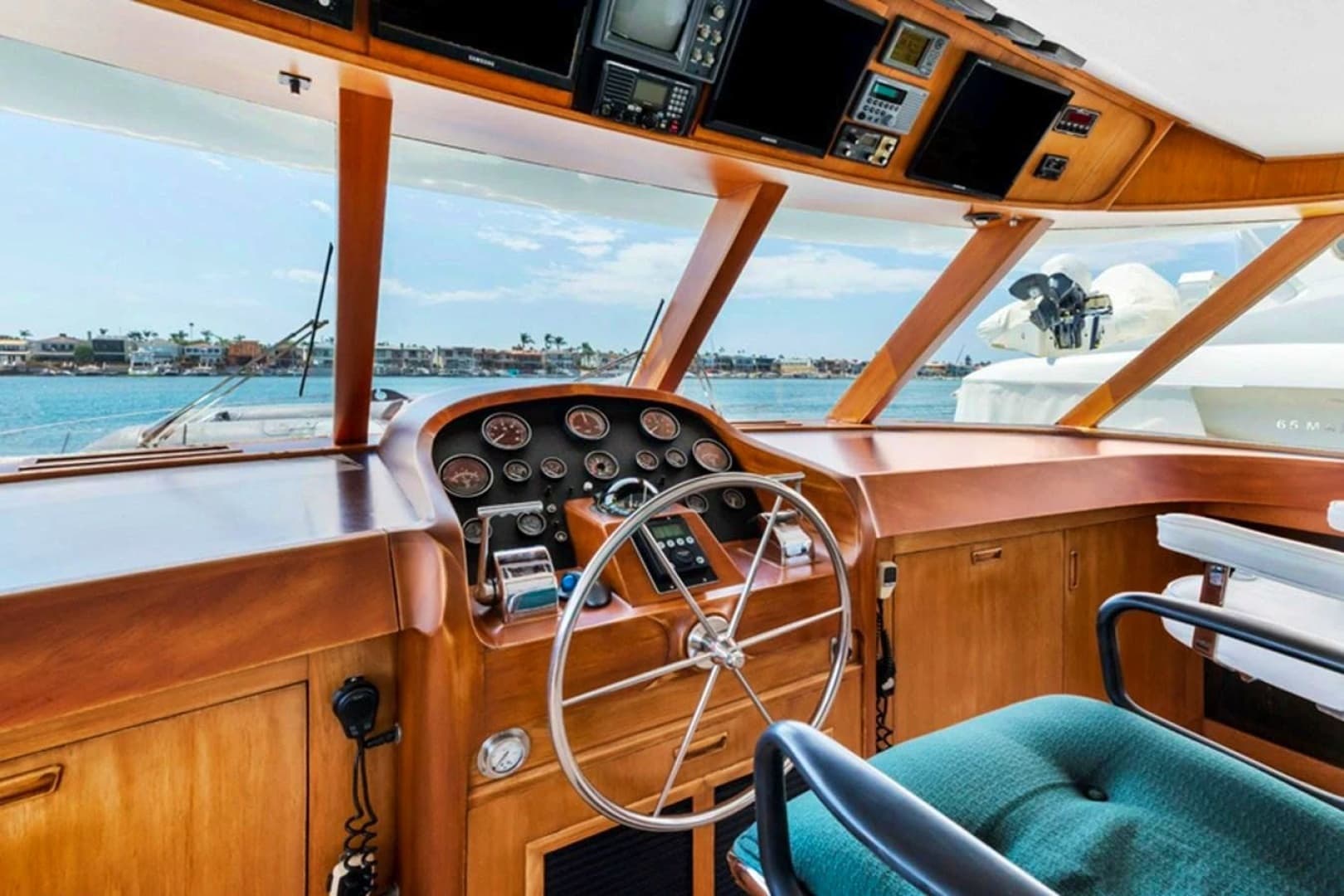

Walking up a teak stairwell gains access to the massive pilothouse. There is a beautifully crafted teak helm console housing all the engine gauges, controls and electronics. Moving aft there is a large settee with teak table and a huge double bunk behind the table. Side doors on either side of the pilothouse gain access to the bow. Moving up from the pilothouse is the flybridge complete with a helm, multiple sunbeds, access to the tower and the huge boat deck with a 16' Runabout tender.

The main accommodation area is located forward of the galley with the large master to port. The master stateroom has a large walkaround, double bed and an ensuite head and shower. Across from the master stateroom is a guest stateroom that boasts a double bunk with a single bunk adjacent. An ensuite head and shower is attached with beautiful tile countertops. Moving forward to the port is another guest stateroom with another large double bed and a shared head and shower. To the starboard is the crew stateroom with upper and lower single bunks and access to the shared head and shower. Moving aft there is a large utility room with custom freezer, laundry equipment and electrical panels. Access to the engine room is through a watertight door in the aft of the utility room.

Salon

- Large opening windows throughout the salon - Large teak dining table with seating for 10 adults - Small couch to the port that converts to a bunk - Step down wet bar with stainless sink, soda gun, refer and icemaker - Entertainment center with stereo, TV, and surround sound - Beautiful teak cabinetry throughout - Stairwell down to accommodation area - Stairwell up to the pilot house

Show more, 25 further sections

Galley

Range: Fasar 4 burner • Oven: Viking • Trash Compactor: Whirlpool • Microwave: Oster Microwave (Utility Room) • Refrigeration: Sub Zero 201R • Icemaker(s): Scotsman Icemaker (2) • Wine Cooler(s): • Small Fridge:Scotsman Mini • Dishwasher: Kitchen Aid • Built in Blender • Teak Cabinetry throughout • Opening windows • Insta Hot water • Dish Master • Nutone built-in blender

Master Stateroom and Head

Double wide island bed
Ensuite head and shower
Port lights for great visibility and natural lights
Navigation center with Furuno VX2 and Standard VHF radio
Alarm Clock
DigiCourse Compass repeater
Reading lights with Dolphin art
Port Lights
Electric head
Intercom system
Large hanging closets
20” Zenith TV with DVD player
Climate controls
Teak joinery
Stall shower
Tile counter tops
Vanity sink

VIP Stateroom

Queen sized bed
Sharp flat screen TV 13"
Port lights
Climate controls
Intercom system
Stereo speakers
Hanging locker
Shared head and shower
Teak joinery
Vanity sink
Tile countertops
Stall shower

Guest Stateroom and Head

Double wide bunk Climate controls Reading lights Sharp Flat screen TV 13” Port lights Hanging locker Stereo speakers Teak Joinery Night stand Shared ensuite head and shower

Crew Quarters

Sharp flat screen TV 13"
Climate controls
Stereo speakers
Port lights
Upper and lower bunks
Reading lights
Hanging locker
Shared head and shower
Tile countertops
Custom wall coverings
Vanity sink

Laundry Equipment

Frigidaire Washer
Frigidaire Dryer

Optional Dimensions

General:

Length Overall: 83'11"
Beam: 20' 6"
Draft: 6'
Gross Tonnage: 109 tons

Capacities:

Fuel Capacity: 3600 gallons
Water Capacity: 400 gallons
Black Water: 100 gallons
Lube Oil: 40 gallons
Waste Oil: 10 gallons

Optional Machinery

Main Engines:

Engines: MAN D2866LE
Engine Hours: 7798/8107
Drive: Direct Drive

Generators and Electricity:

Output: 120/240 VAC 60 Hertz
Generators: (2) Northern Lights 32kW / 30kW
Generator Hours: 12,516/ 5,271
Shore Power: (2) 50 Amp125/250 VAC inlet
Batteries: (3) Group 27; (2) 8D

Air Conditioning:

Type: CruiseAir Reverse Cycle (6)

Other Machinery:

Watermaker: (2) FCI 1200 gpd
Stabilizers: Naiad 252
Steering System: Wagner/Hough Hydraulic
Filtration: Dual Racor 1000 series
Sewage System: Oberdorfer Black water pump
Fresh Water System: (2) Sears water pressure pumps
Helm Control: 5 Stations: Pilothouse, Flybridge, Bucket, Cockpit, Boat deck
Pneumatic shifters
Air compressor with large accumulator tank
Drink Box Compressor
Freezer compressor
Fish Hold compressor
Emergency bilge pumps off main engines

Navigation and Electronics

SmartCraft engine gauges • Raymarine GPS/chartplotter • VHF radio • Digital throttle & shift controls • Tilt steering wheel

Entertainment System

Tv Phillips 26"TV
Audio Equipment: Pioneer Surround sound
DVD's Pioneer DVD
Stereo's Pioneer
Ipod Stations

Communications Systems

Satellite communications: Globalstar, Iridium Communications, and WaveTalk systems • VHF radios: (3) Icom units (M127, M604, M412) • Simrad Taiyo TD-L5120 direction finder • Panasonic 616 intercom system • Raymarine loud hailer

Engine and Mechanical Equipment

Twin MerCruiser 350 MAG 300HP engines power the boat through Bravo III sterndrives

Electrical Equipment

Advanced Power Products 12VDC battery charger
Acme shore power isolation transformer
Lewco 1280 24VDC battery charger
Northern Lights generators
50 amp 125/250VAC port and starboard shore power
Advanced Power 12 VDC battery charger
(3) Group 27 batteries
(2) 8-D batteries

Deck and Hull

Plath #9 anchor windlass system #90 Danforth anchor (4) spare anchors 390’ of 3/8” anchor chain and rode (2) aluminum davits with electric winches

Pilothouse

Robertson 300X autopilot
Engine controls
Stainless steering wheel
Engine gauges
Dytek water temperature gauge
B&G wind speed and direction
B&G Network speed gauge
Simrad Taiyo radio directional finder
Icom ICM604 VHF radio
Furuno RD 30 Network gauge
Raymarine
Loud hailer
(3) Samsung monitors
Furuno VX chart plotter/radar/fishfinder
Nobel Tec Navigational software
Furuno 72 mile radar
Furuno FA 50 AIS
Danforth compass
HP printer
CPU
Intercom system
Generator gauges

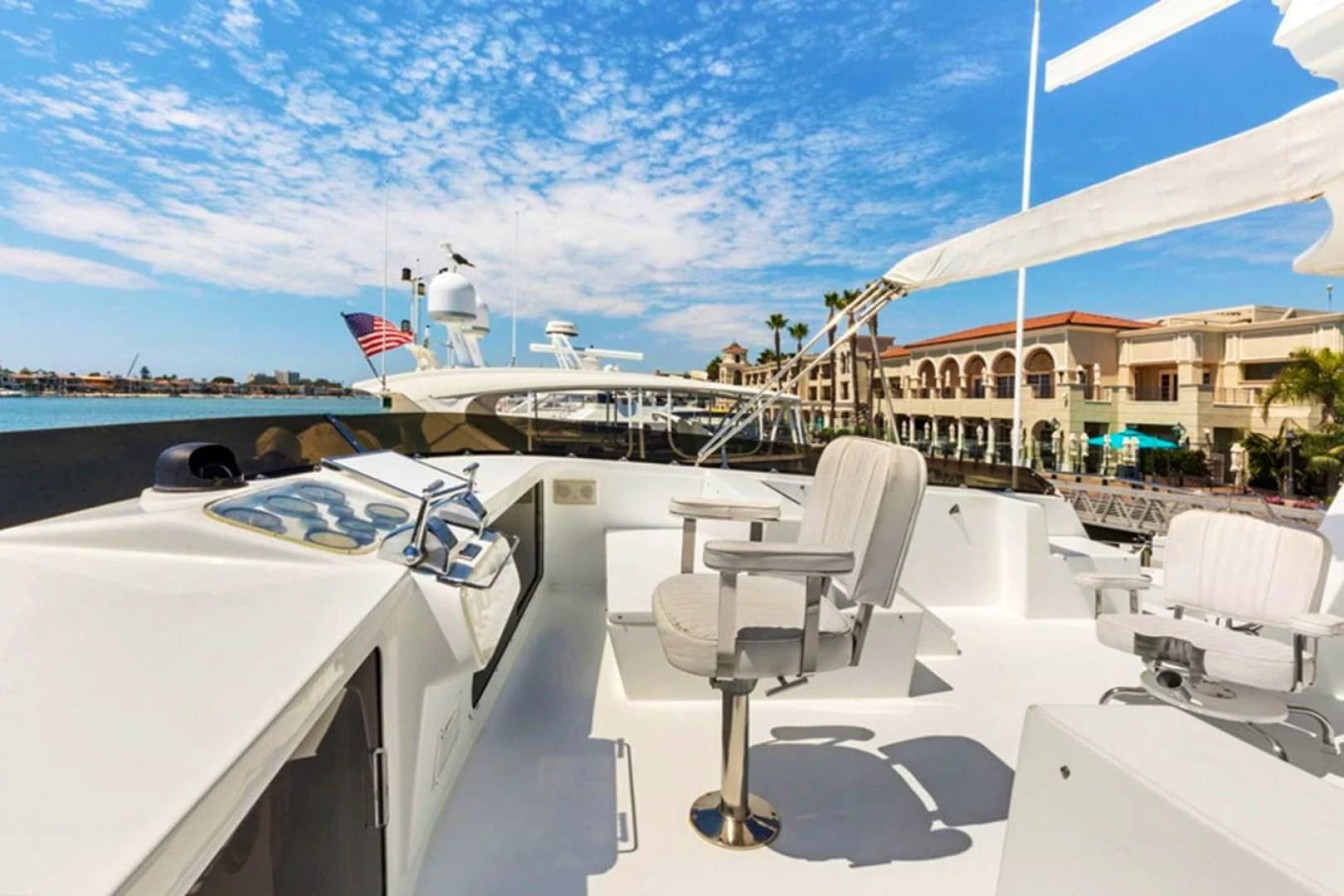

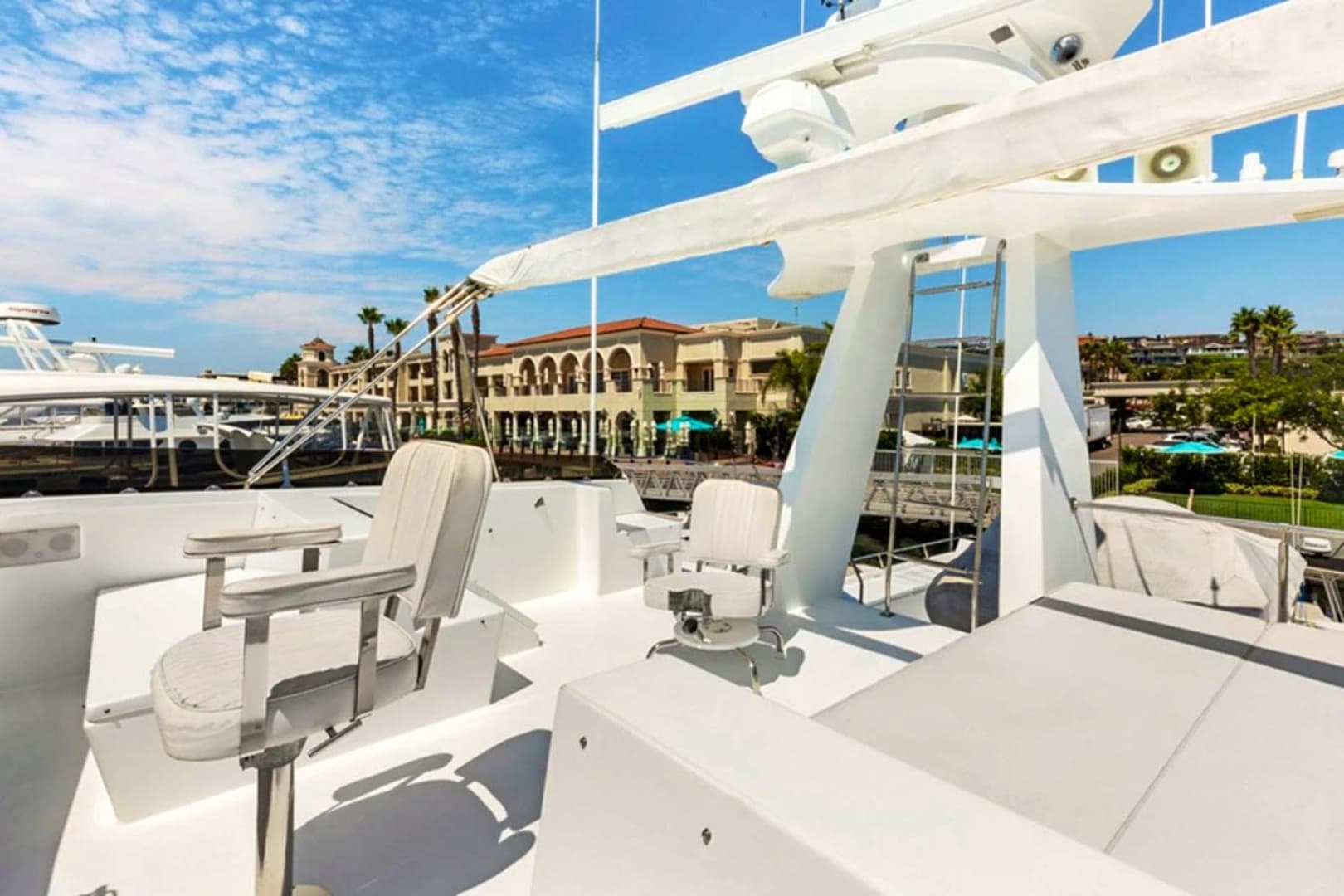

Flybridge

Plexiglass venturi
Bimini cop
Helm chair
(2) settees
Fish rod storage
Ladder to the bucket
Icom M127 VHF radio
Intercom system
Water temp gauge
Robertson AP300x autopilot
Engine controls
Garmin 2006C chart Plotter
Massive storage under dash
Venturi
Stereo speakers
Air pressure gauge
Trolling valve switches

Boat Deck

16' Wellcraft tender with 75-gallon gas tank
Top load freezer
(2) Davits
Flood lights
24' outriggers
Dive compressor
Fighting chair

Cockpit

Custom bait tanks Teak cockpit with matching teak covering boards Refrigerated fish hold (refrigerator/freezer) Drink refrigerator Transom door for easy water access Cockpit controls with integrated autopilot control head Saltwater and freshwater washdown systems Fully equipped tackle center Tuna rail surrounding the swim step Stainless steel rod holders Cockpit floodlights for night operations Integrated stereo speakers Padded cockpit bolsters for added comfort and safety Rudder angle indicator Trolling valve control switches Air pressure gauge A/C and D/C electrical receptacles Oversized stainless steel cleats

Tower

Robertson autopilot system • Engine control system • Icom M412 VHF radio • Venturi windshield system

Security Equipment

Cameras (engine room and lazarette)
Monitors:

Fire Fighting Equipment

Kiddie Fixed FM 200 System (engine room)
Fireboy Fixed FM 200 System (lazarette)
(12) Fire Extinguishers

Additional Equipment

Avon 10-person life raft with hard case
24" throwable life ring
McCurdo Smart find 406 EPRIB
ACR Satellite 406 EPRIB
(2) Olin flare kits

Tenders

16' Wellcraft (1982), 200hp two-stroke Mercruiser Alpha 1 Drive inboard engine (1982)
10' Avon (1989) 8hp two-stroke Yamaha outboard engine (1989)

Remarks

3D Tour Available.

DON JUAN was built to travel the farthest reaches of the world in comfort and style. Her enormous cockpit is perfect for the avid fisherman or diver. The massive amounts of storage and refrigeration allow the owners to be fully sustainable onboard for weeks at a time. Custom built by Elliott Boats and still owned by the original owner; this is truly a legendary yacht.

Exclusions

The name DON JUAN is reserved All fishing tackle and personal property are excluded in the sale.

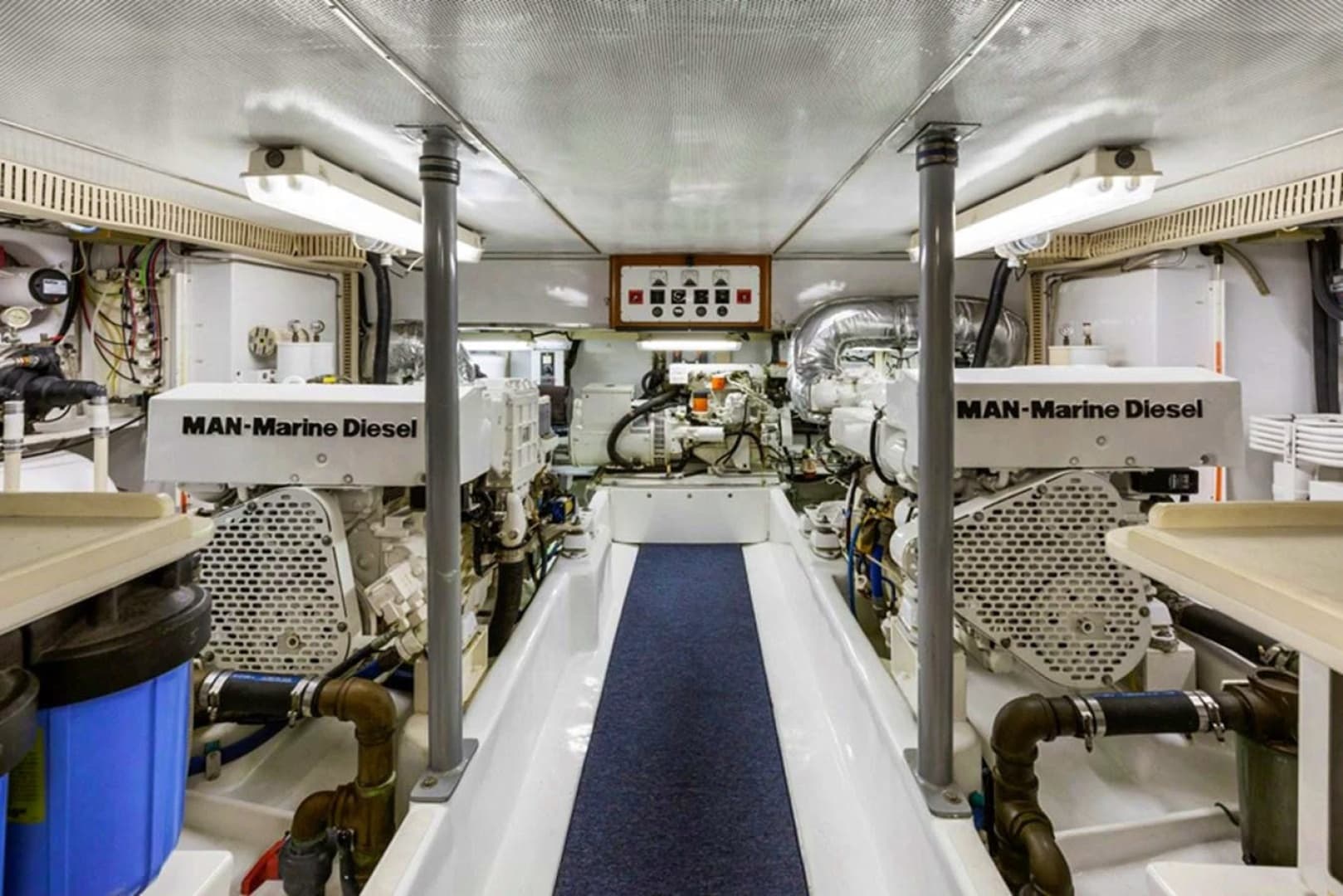

Machinery

Engine 1: 1996 MAN D2866 LE, 500 hp, Diesel, Direct, 7,955 hours
Engine 2: 1996 MAN D2866 LE, 500 hp, Diesel, Direct, 8,287 hours
Engine 3: Northern Lights, 12,701 hours
Engine 4: Northern Lights, 5,350 hours

Aspire Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel.
