NEW BUILD

ANCHOR EQUIPMENT:

• (2) Quick windlass 3000w, 230 VAC
• (2) Galvanized anchor 75 kg VQR, plus 50m 14mm galvanized chain and 100m rode
• (1) Emergency anchor 34 kg + 20m chain

MOORING EQUIPMENT:

• (1) Mooring kit – 8 Fendertex inflatable fenders plus 4 mooring ropes
• (2) Lewmar electrical mooring capstans aft
• (1) Hinging swim ladder on the sugar scoops

INTERIOR DESIGN:

Personalized design including:

• (2) Days with dedicated Archipelago interior designer

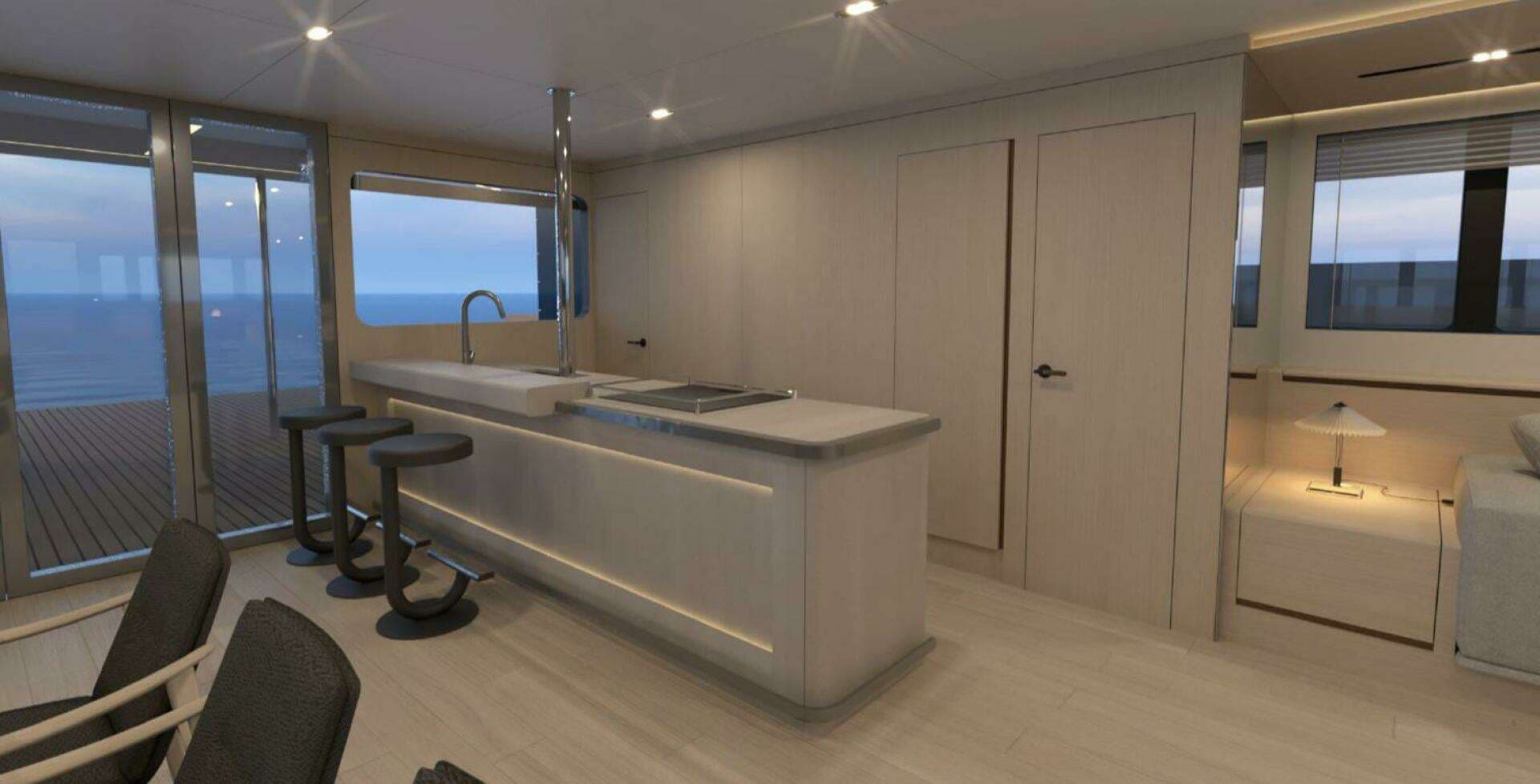

• (1) Render of Salon
• (1) Reder of Owner’s Cabin
• (1) Render of Owner’s Head

FLOORING COVERING:

• Laid timber strip synthetic floor in salon and wheelhouse
• Decorative carpet in salon – design type TBA, removable

FURNISHINGS AND INTERIOR OUTFITTING:

Set of galley and household appliances as listed (Siemens or Bosch):

• (1) Refrigerator with freezer
• (1) Dishwasher
• (1) Electric oven
• (1) Washer/dryer

EXTERNAL HULL FINISHING SYSTEM

DECK COVERINGS:

• All working decks finished with anti-skid painted surface

EXTERNAL DOORS:

• (1) Sliding door (manually operated) from cockpit to salon – stainless steel frames
• (2) Sliding door (manually operated) from wheelhouse to balcony
• Pantograph fore access door for access to foredeck from salon

WINDOWS:

• Set of fixed windows with tinted glass on main deck
• Set of fixed skylights in salon fore area
• Set of window wipers for wheelhouse with wash wipe system

FUEL SYSTEM:

• Set of separated fuel oil tanks with (2) day tanks, and (4) bunkering tanks (20,000 l total capacity)
• (2) Racor Duplex fuel filters with drip tray and water sensors
• (2) Fuel polishing units (one per hull)

BILGE SYSTEM:

• (8) Electrical bilge pumps, with oil filter in engine room, in compliance with MGN280

FRESH WATER:

• (2) Fresh water tanks with electronic readout level indicators (volume 1000 l each)
• (2) Fresh water pressurizing pumps
• (2) Fresh water heaters (100 l capacity each)
• (1) Hand shower on deck
• (1) Blue Water water maker 280l/h – 220V DECK WASH SYSTEM:
• (1) Fresh water outlet on cockpit (female quick-coupling snap connector)
• (1) Fresh water outlet for washing the foredeck
• (1) Fresh water outlet on balcony
• (1) Fresh water outlet in both sugar scoops
• (1) Retractable 5m hose in both chain lockers for chain wash SANITARY DRAINS SYSTEM:
• (2) Black/ grey water tanks 500L with discharge systems
• (2) Electric sewage discharge pumps
• Set of 24V electric toilets in bathrooms with fresh water flush

HVAC System:

• Set of Termodinamica air conditioning system – capacity 250 000 BTU/h (new technology ultra-efficient – Energy Saving VFD controlled 230V AC)

AC DISTRIBUTION SYSTEM (110 or 230VAC, depending on configuration):

• Set of AC distribution system and wiring
• (1) Main switchboard AC 230V @ 50 Hz, 1 phase
• (1) Shore connection (32A, 230V @ 50 Hz, 1 phase)
• (1) Shore connection power cord 20m long
• (2) Victron Quattro 24V/5000W/120A combined inverter and battery charger
• Set of 230V @ 50 Hz sockets, with USB charging

DC DISTRIBUTION SYSTEM:

• (1) Main switchboard, 24 V DC
• Set of DC distribution system and wiring
• (1) DC-DC charger for 24V battery bank
• Set of Lithium battery banks (25.6V DC / 14,0 kWh)
• (2) Sets of starting batteries for gensets
• (2) Chargers for genset starting batteries (one per each engine room)

DIGITAL SWITCHING:

• Set of Automation system (digital switching) with following functions shall be installed:
• Lighting with dimming
• Navigation lights
• Control valves and pumps
• Tank level monitoring

• Set of deck lights
• Set of interior lighting with LED lamps
• Set of lights in engine rooms
• Set of spot lights on sugar scoop steps and side decks
• Set of spot lights on front terrace deck and cockpit ceiling
• Set of Smart system controlling lights (including dimers for ceiling lights

• Set of Solas navigation lights with LED lamps, including NOC lights
• (1) Compass (135mm)
• (1) Chronometer
• (1) Barometer

RAYMARINE NAVIGATION PACKAGE:

• (3) Raymarine Axiom 16” Touch Multi-function display
• (1) Raymarine RD424HD 24” 4kW 608mm digital radome radar
• (1) Raymarine Evolution autopilot
• (1) Raymarine AIS700 – Automatic Identification System
• (1) Multisensor (depth, speed & temperature sensor)
• (1) Wind sensor
• (1) GPS
• (1) Raymarine Modular Dual-Station VHF radio system Ray90
• (1) Searchlight with control unit
• (1) Electric fog horn
• (1) Wireless autopilot controller

Further navigational equipment / manufacturers can be supplied as required

TV’s:

• (1) Wide screen LED 55” TV with installation (salon)
• (1) Lifting system up/down (if possible depending on customer layout)
• Set of 40” LED TVs with installation (price per cabin)

AUDIO:

• Set of Sonos wireless speakers in all living spaces (excluding heads) and eternal for aft deck and balcony

IT:

• Set of wireless distribution throughout vessel, including 4G mobile antenna (SIM not included)
• (1) Starlink Marine antenna with installation (subscription not included)

ADOPTION TO SPECIFIC FLAG REQUIREMENTS:

• Compliance with MCA Small vessel Commercial Craft Code (MGN 280 (M))

FIXED FIRE EXTINGUISHING SYSTEM:

• Set of Stat-X automatic fire extinguishing system with helm controls

MISCELLANEOUS SAFETY EQUIPMENT:

• Set of complete rescue equipment with life-rafts for 16-people with Solas grab bag and Cat C first aid kit
• (1) EPIRB
