For sale
ALHAMBRA
1970 Feadship Custom
San Lorenzo al Mare
$5,594,400
Specification
The Numbers
- Length overall
- 116'
- Year
- 1970
- Builder
- Feadship
- Model
- Custom
- Beam
- 22' 8"
- Draft (max)
- 8' 11"
- Cabins
- 5
- Heads
- 5
- Maximum speed
- 14 Knots
- Cruise speed
- 11 Knots
- Fuel type
- Diesel
- Fuel capacity
- 7,545 Gallons (28,560 Liters)
- Fresh water
- 2,161 Gallons (8,182 Liters)
- Displacement
- 0
- Hull material
- Steel
- Hull shape
- Displacement
- Hull type
- Power
- Condition
- Used
Interested in her?
Send a note and a broker will come back to you.
In detail
More about this yacht
INTRODUCTION

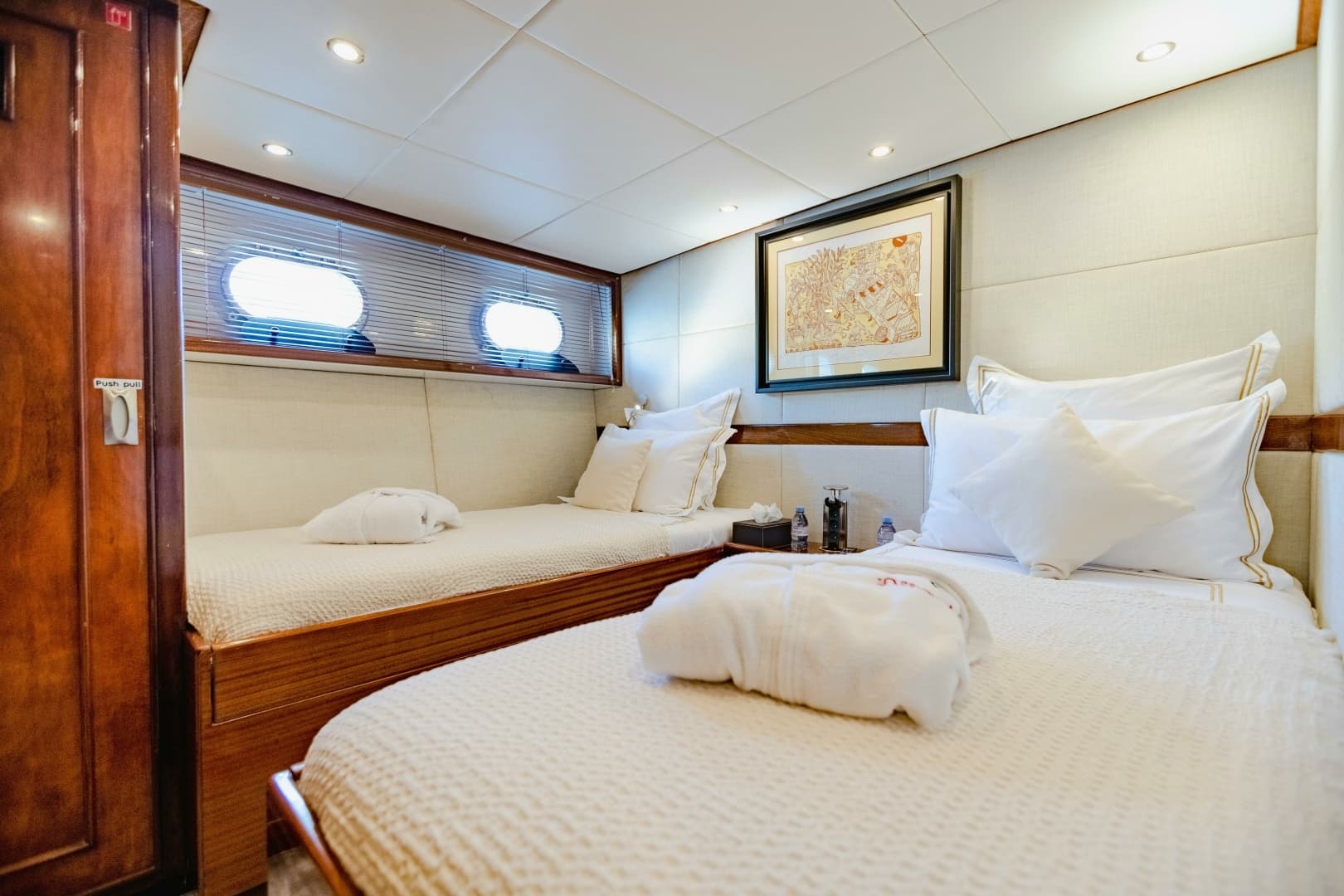

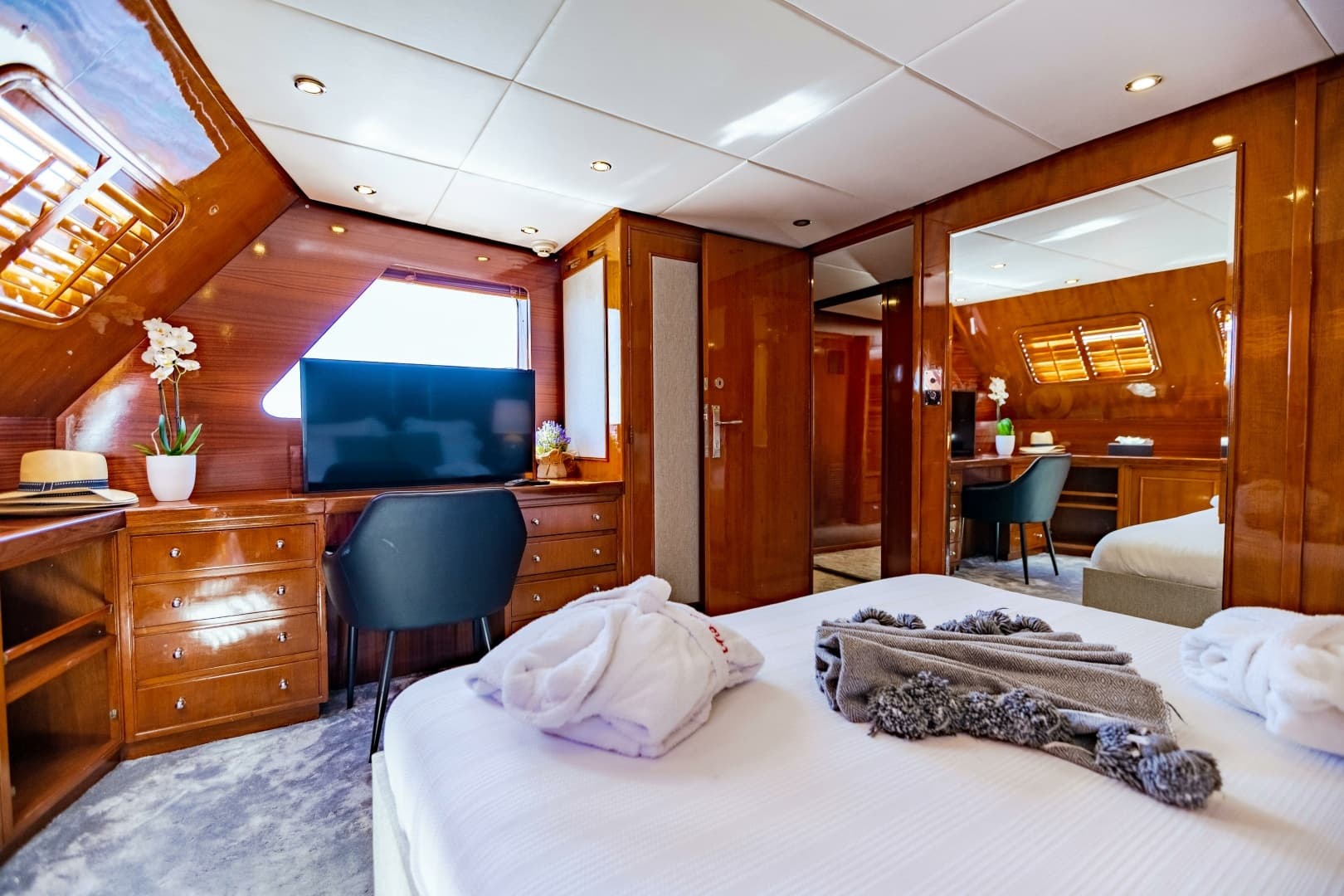

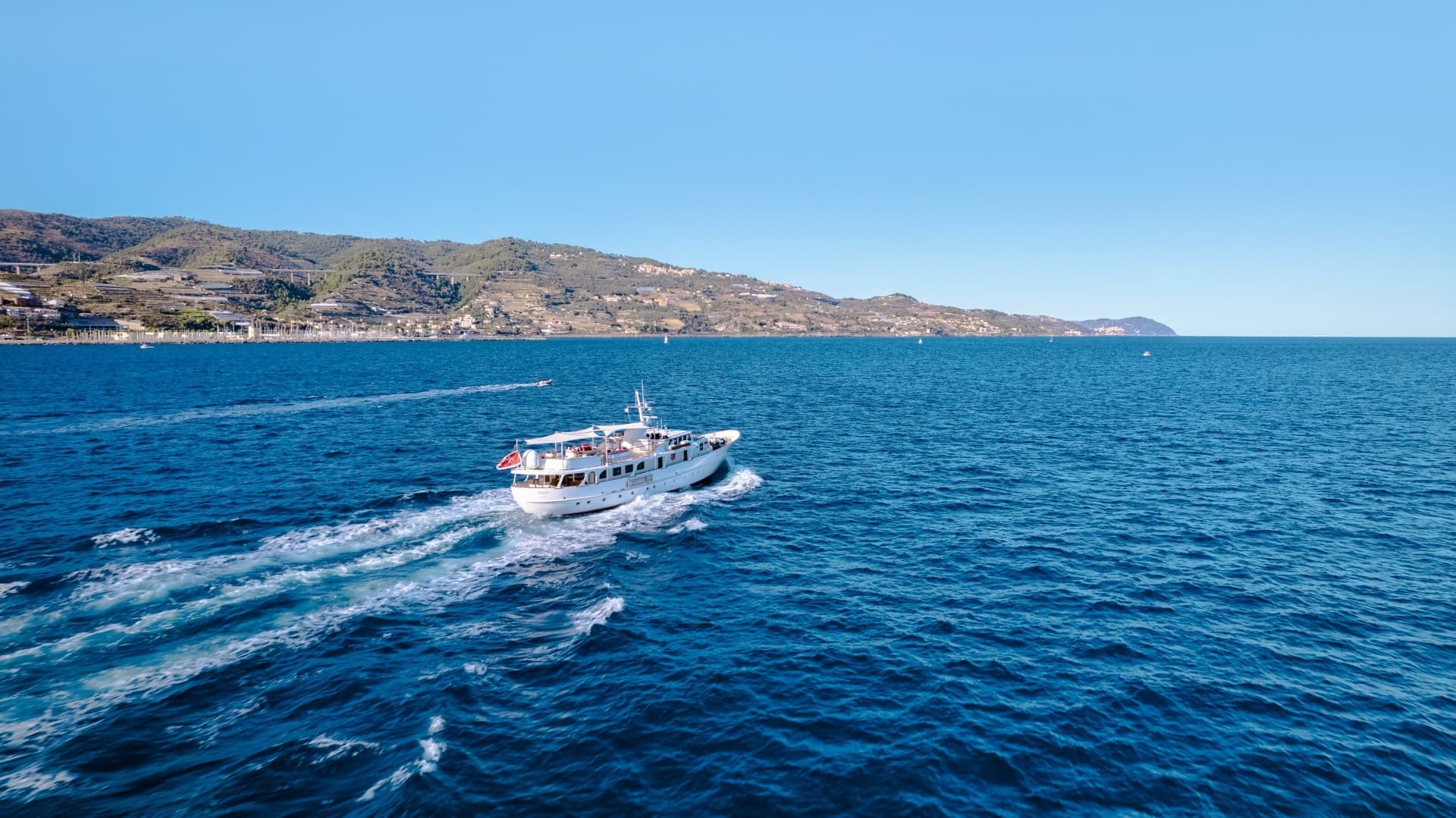

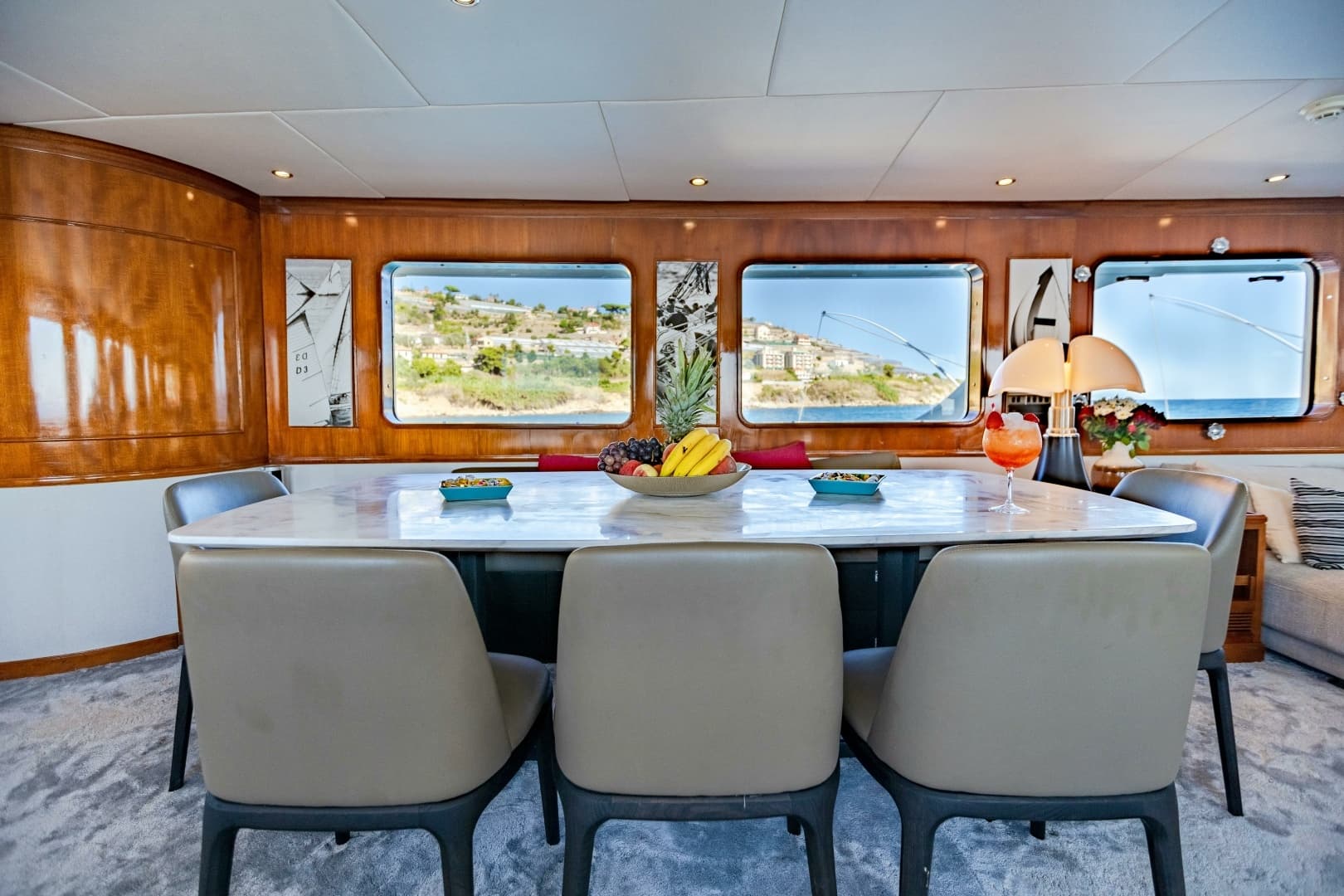

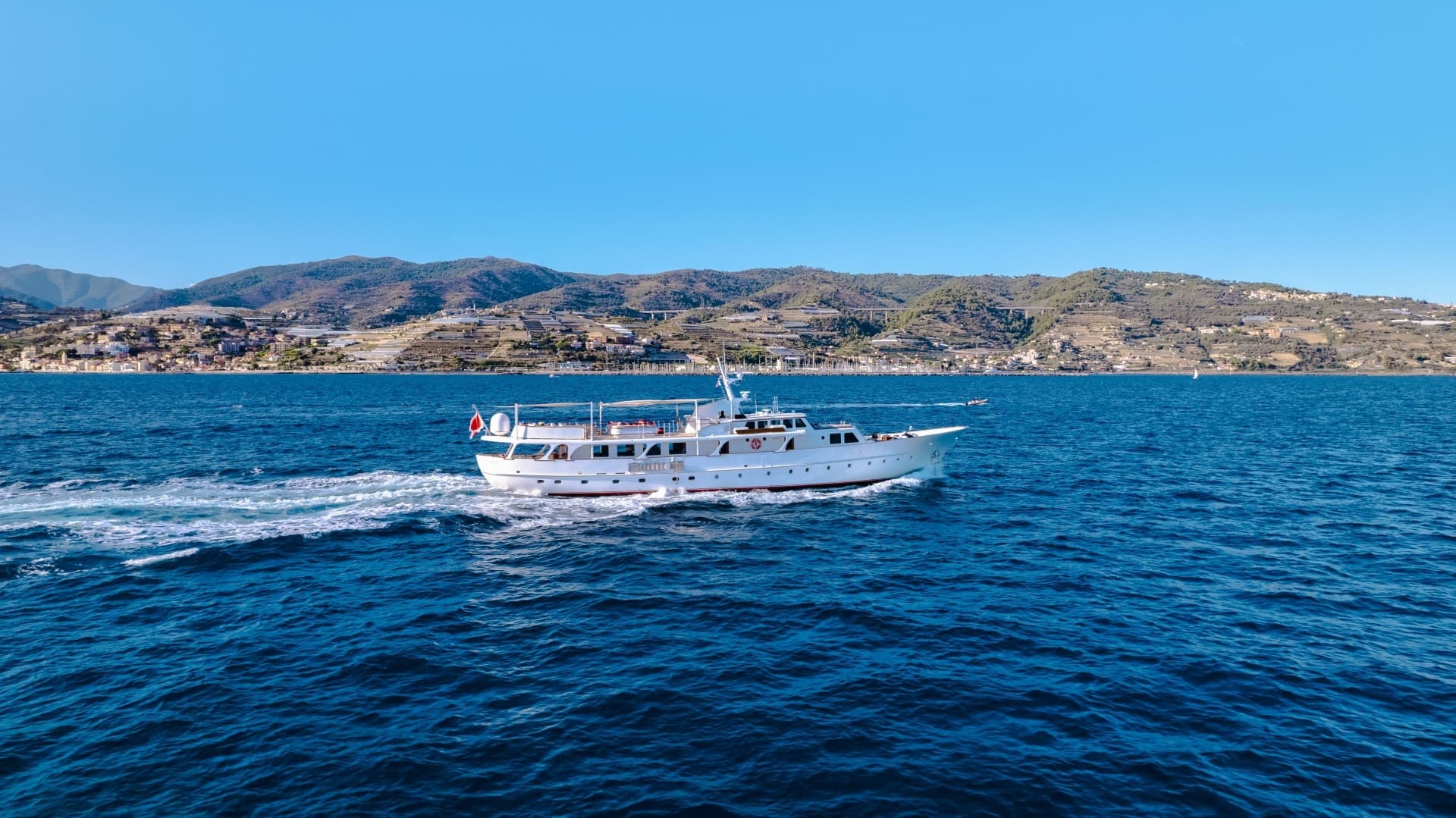

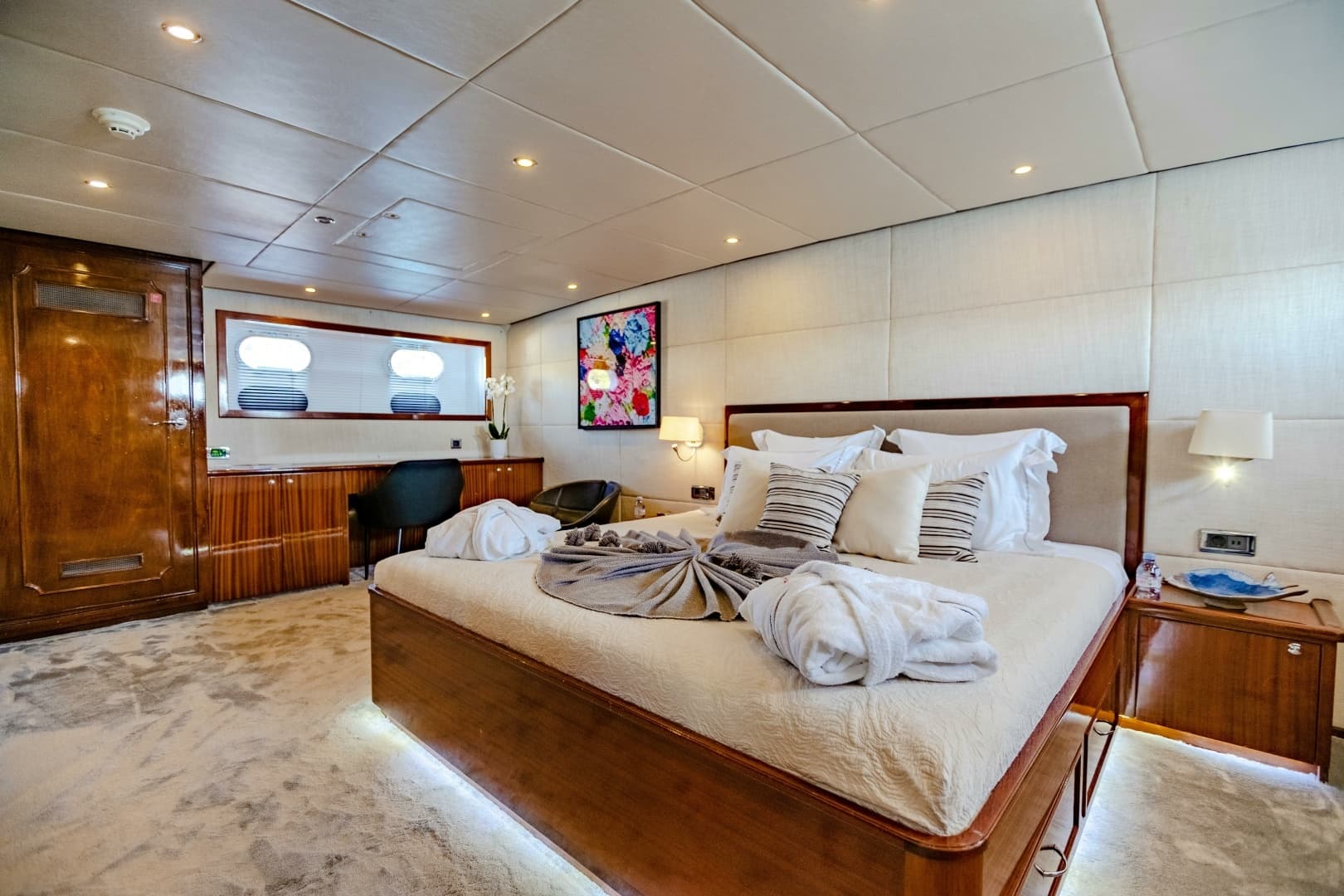

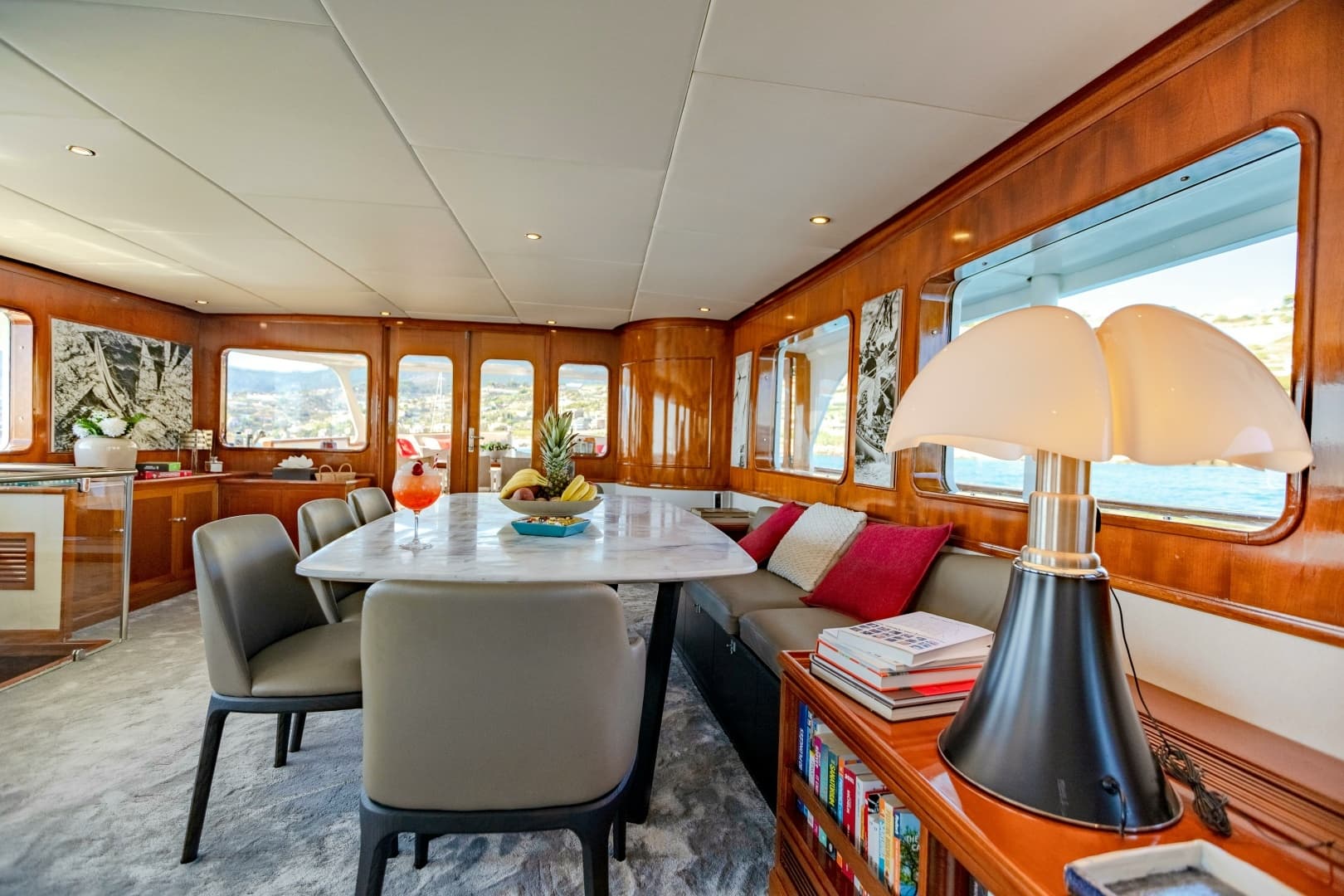

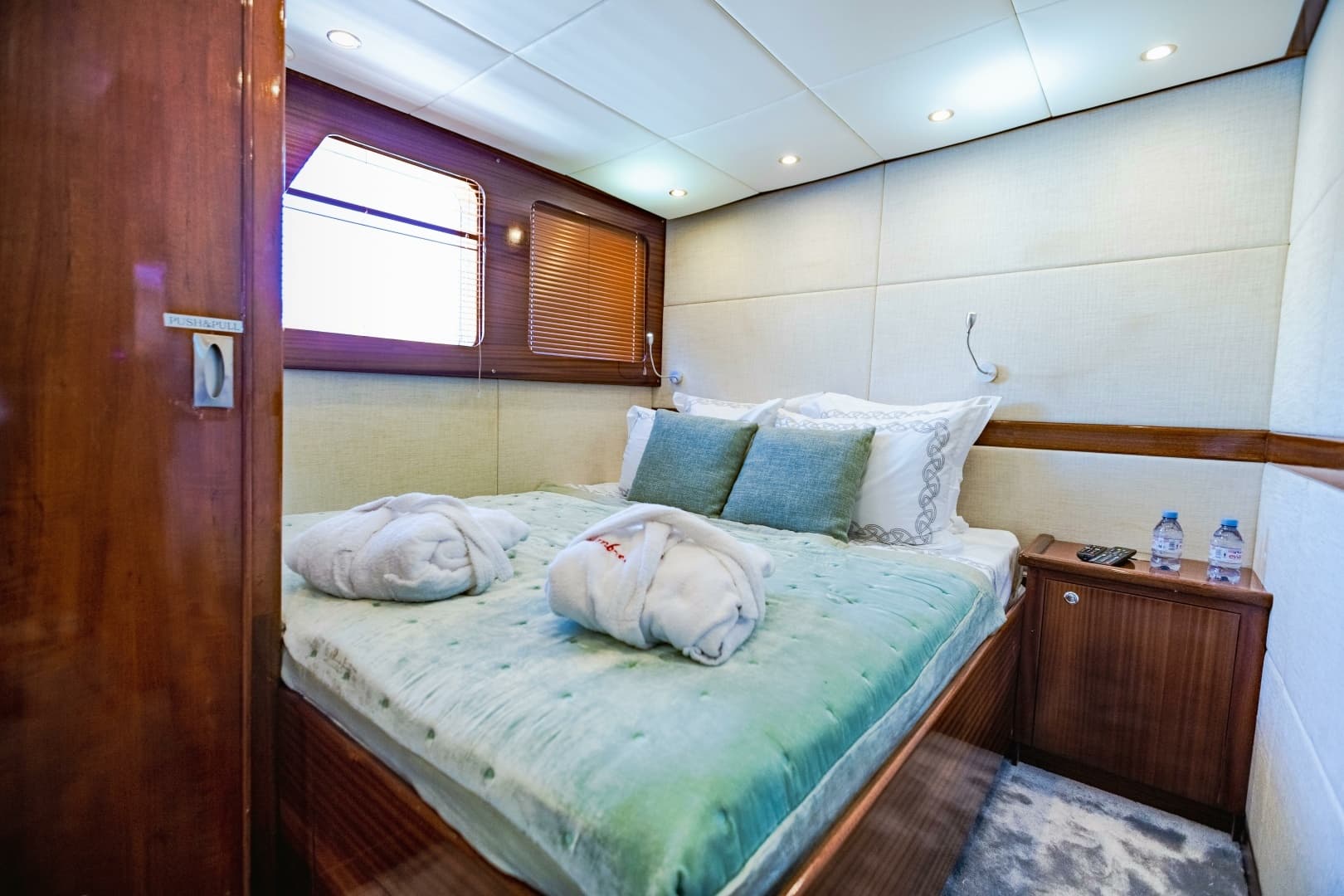

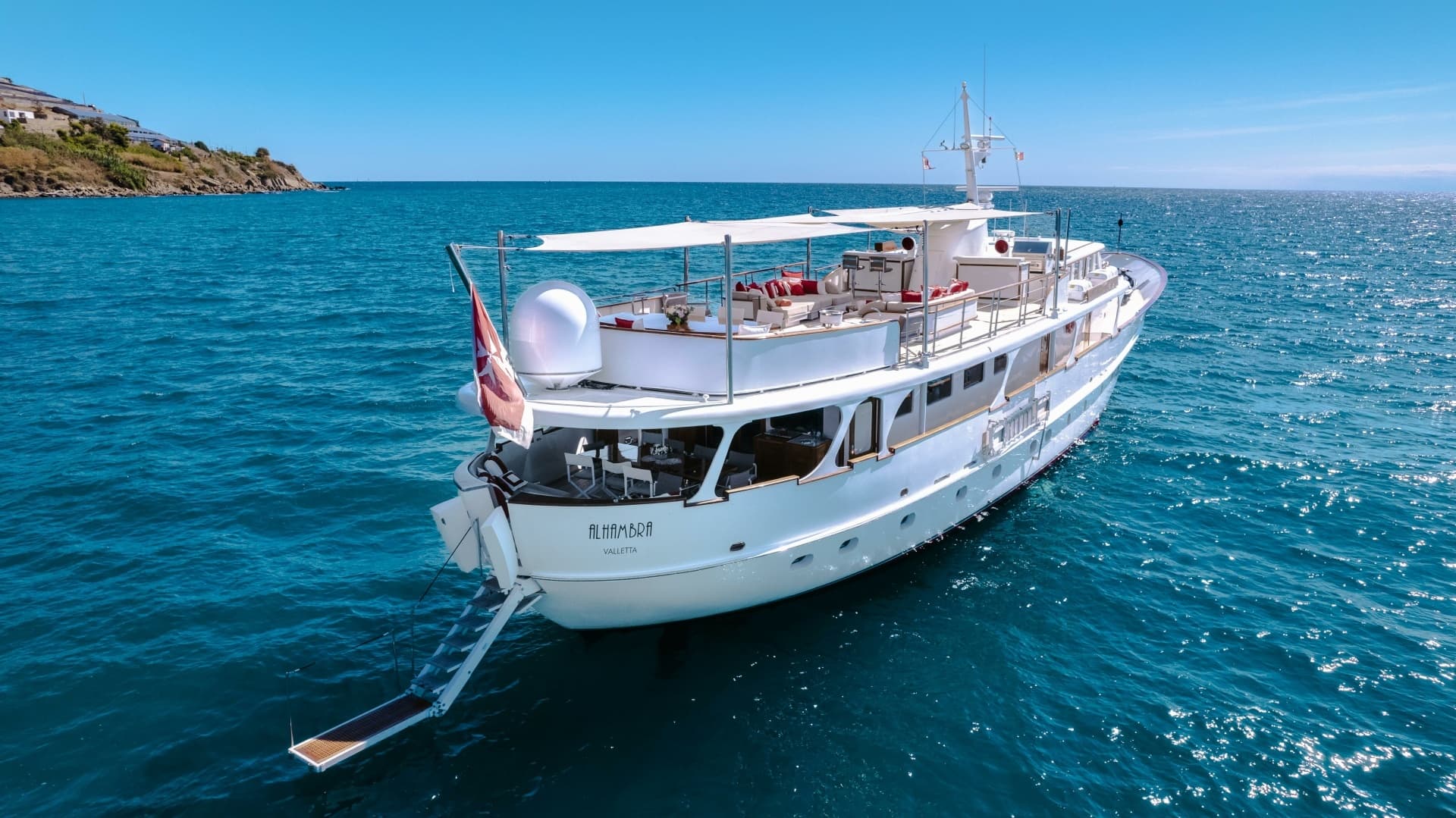

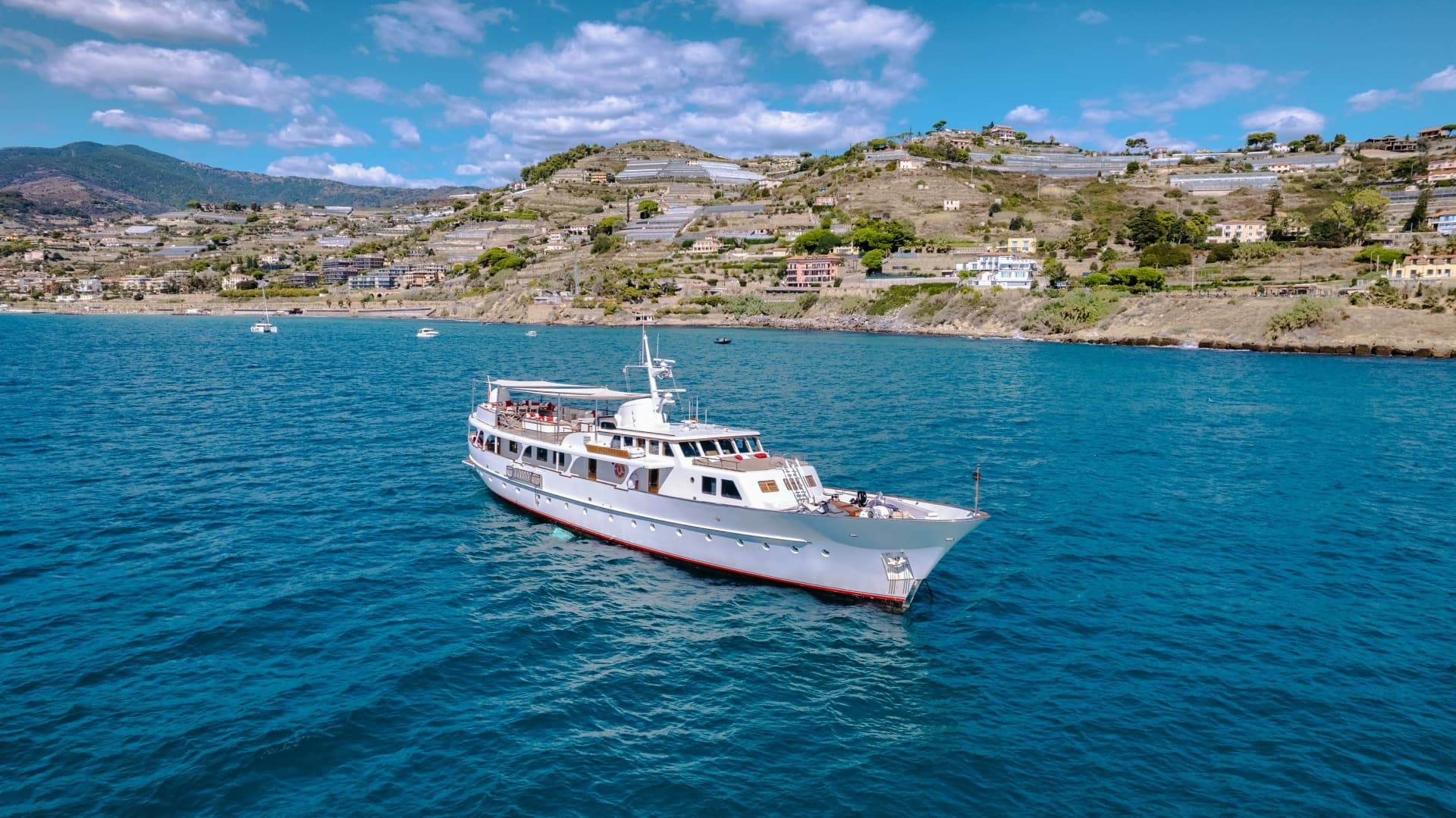

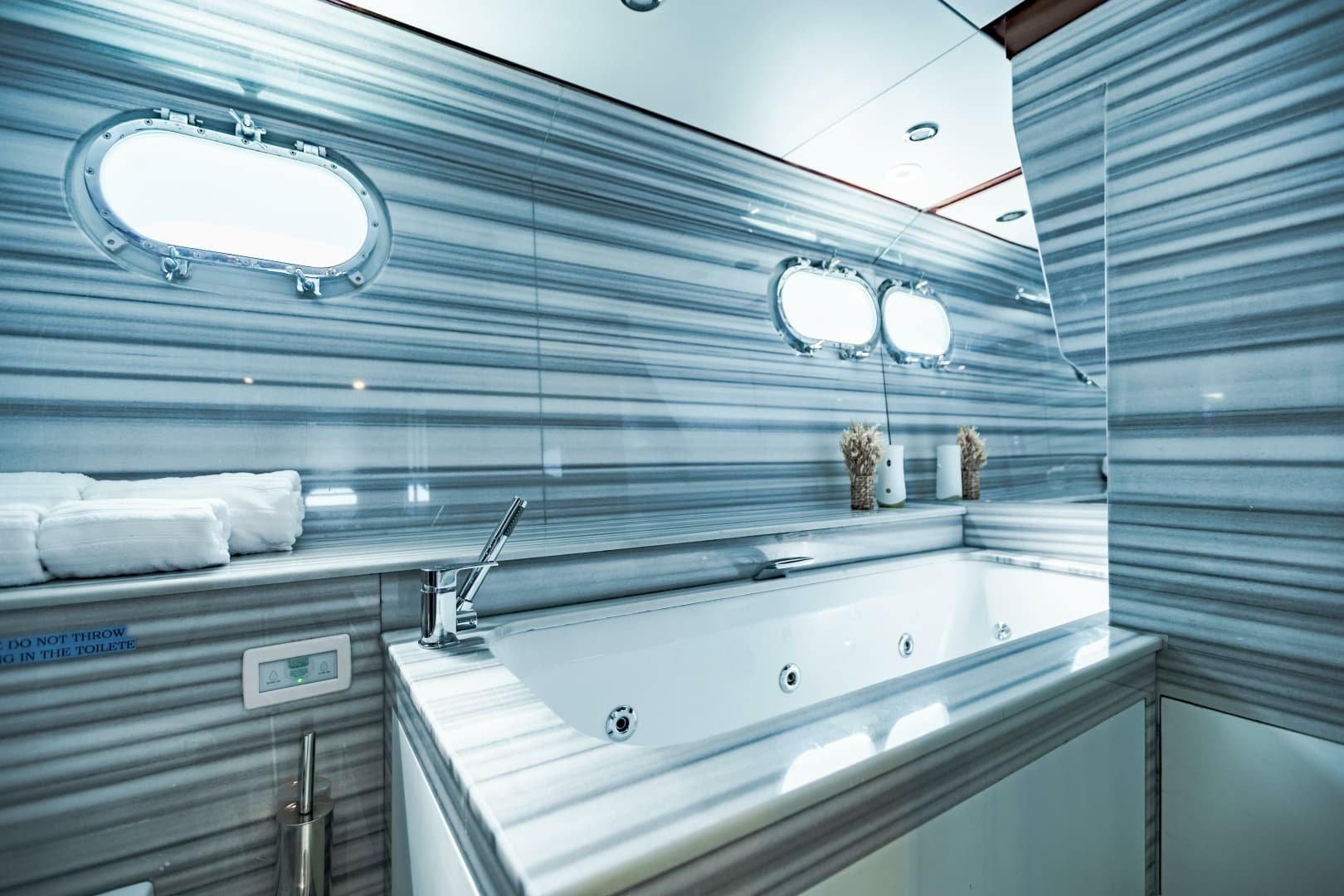

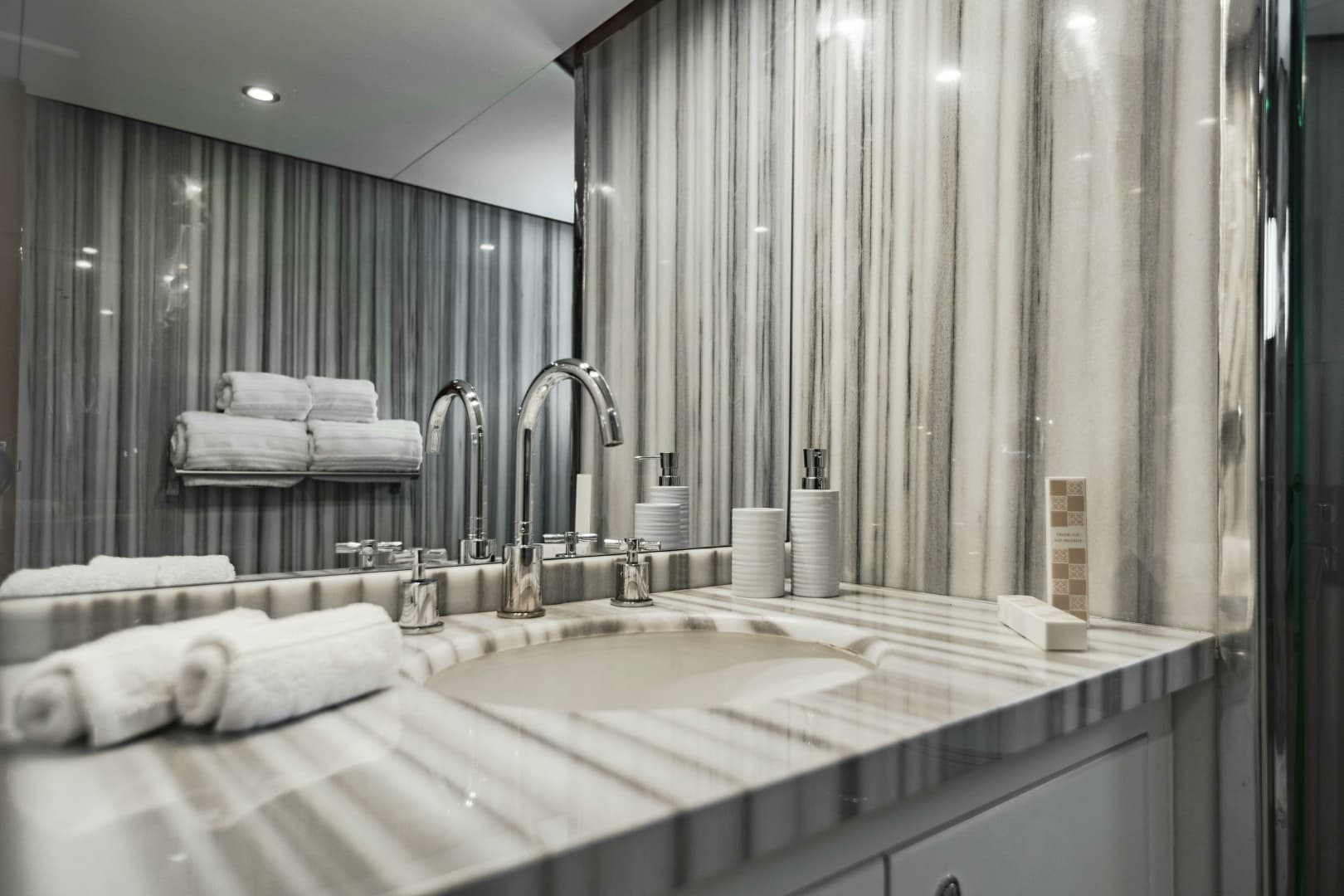

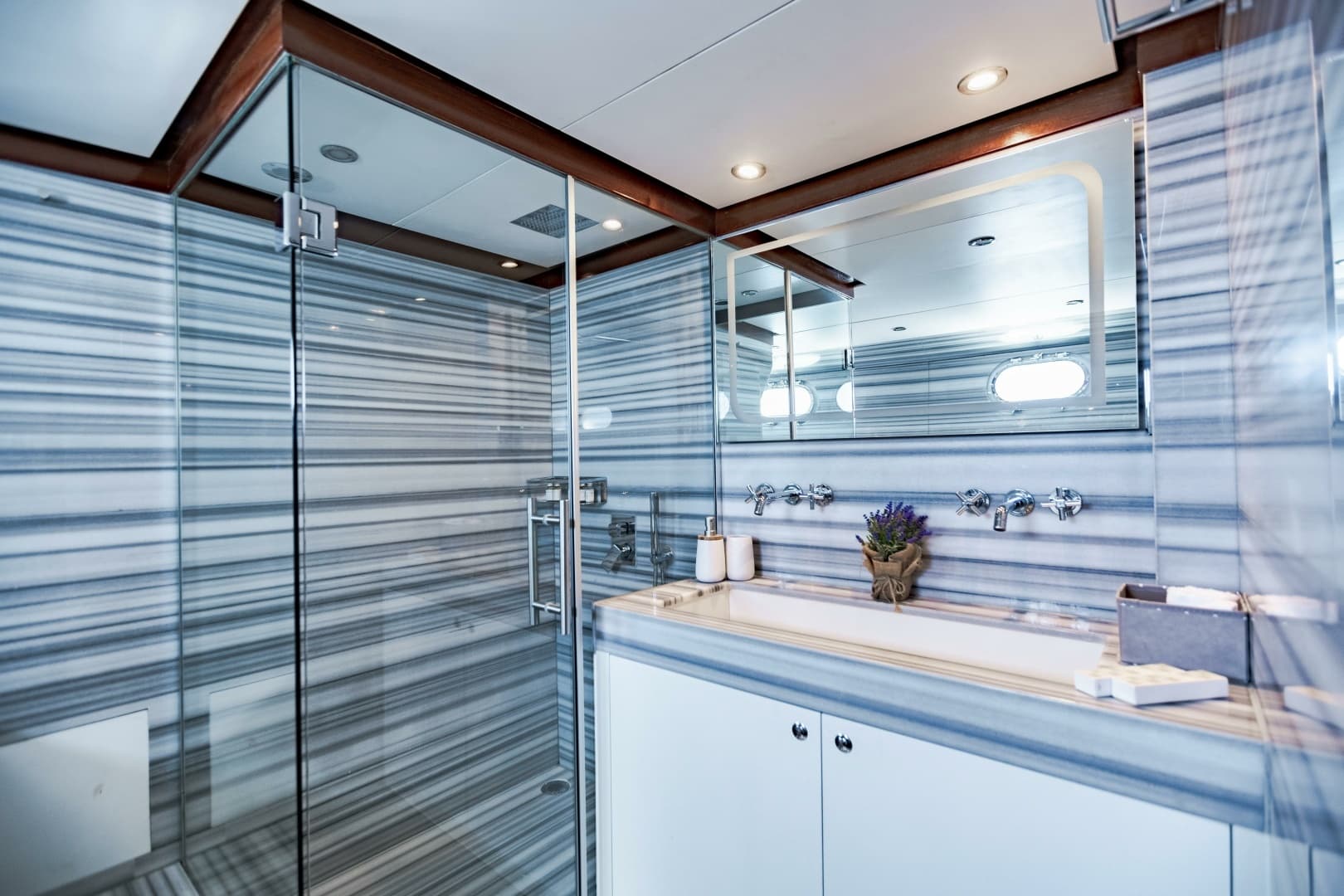

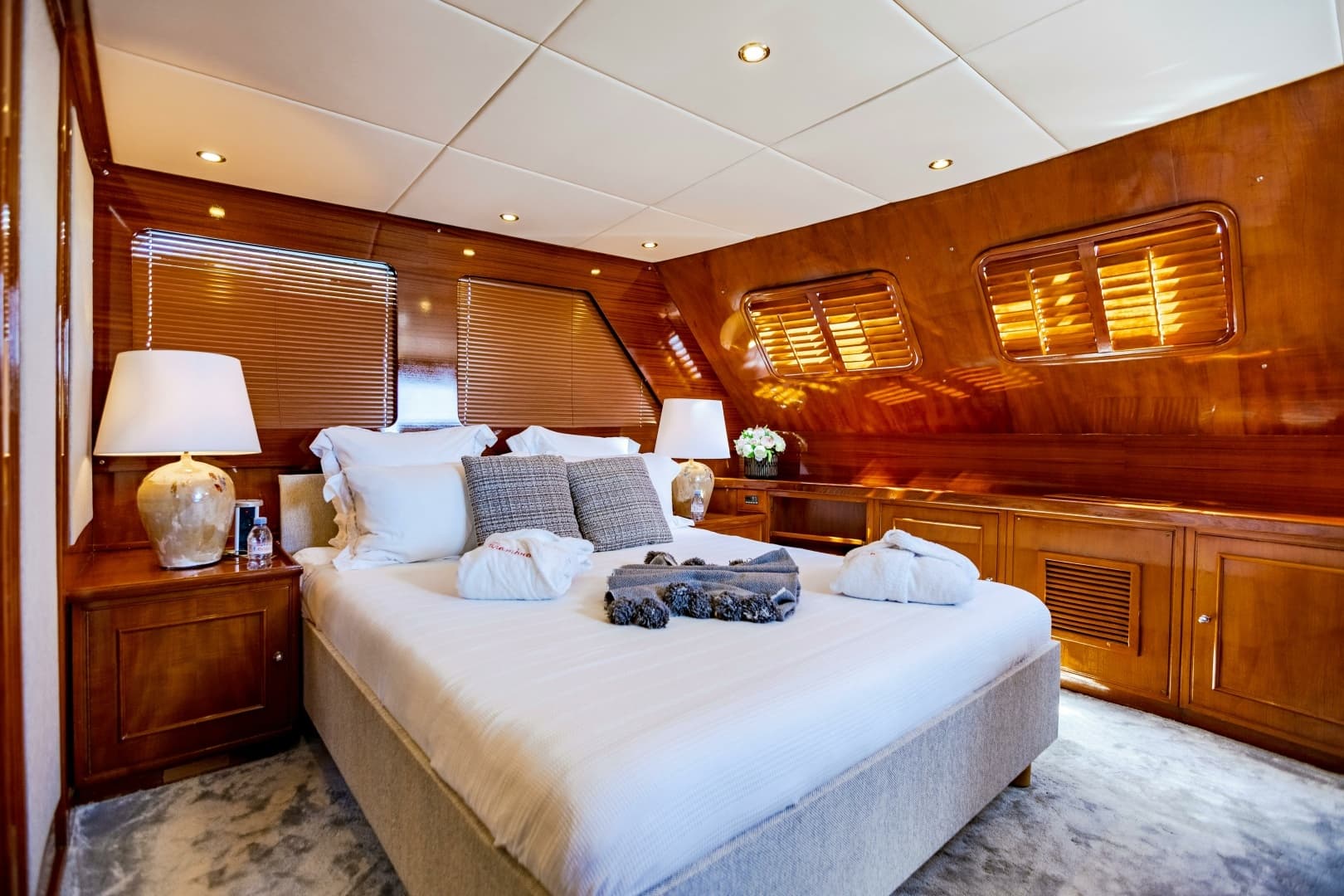

Alhambra is a stunning classic canoe stern Feadship “Gentleman’s Yacht”. Delivered in August of 1970, she was commissioned by American Businessman Mr. James A. Ryder and was originally named Jardell. Later names, in correct order, include Enterprise, Outrageous Won, Limit Bid, Lady Angela, Campbell Bay and Utopia II. She has consistently been refitted over the years, with a technical refit in 2008 followed by an extensive 3-year refit plan from 2019 – 2022 under her current ownership. Alhambra’s exterior showcases classic styling with a canoe stern while her interior is elegant and contemporary. Featuring muted soft grays and rich walnut panels, the yacht has a welcoming, elegant ambiance that will make guests feel at home. Alhambra showcases an open-plan main salon and formal dining area. Her main salon has ample seating allowing guests to socialize and unwind in comfort. Alhambra offers accommodations for up to 10 guests in the comfort of five staterooms. She features a king-bed master on the lower deck, a queen VIP stateroom on the lower deck, one double-bed stateroom on the main deck forward and two convertible twin/double-bed staterooms. The outdoor living spaces aboard Alhambra are exceptional. The yacht’s large sundeck has been completely restyled to incorporate two large lounge areas in the center, the perfect area to watch a film on the exterior cinema. Forward is a bar with two bar stools and aft is a settee where alfresco meals can be enjoyed. The sundeck has been fitted with a Teppanyaki table and is fully covered by modern sun-awnings. On the main deck aft is further alfresco dining and a lounge area at the stern. The stern door opens to allow guests to go swimming directly thanks to a new passerelle swimming ladder. Forward of the bridge is further sun pads for guest use. To ensure comfort to guests aboard, Alhambra is equipped with underway stabilizers. Alhambra has built an envious charter reputation in the Western Mediterranean under her current ownership, making her a viable business for a discerning buyer.
PRINCIPAL CHARACTERISTICS
LOA: 116’ / 35.4m LWL: 102’ / 31.1m Draft: 8’8” / 2.9m Beam: 22’6” / 6.9m Bridge Clearance: 34’ / 10.3m Builder: De Vries Scheepsbouw BV, Feadship Hull: 600 Year: 1970 Refit: 2019 – 2022 Range: 2,750 nm Gross Tonnage: 172 Net Tonnage: 51 Max Speed: 13 knots Hull Material: Steel Guests: 10 in 5 Cabins Crew: 6 in 3 Cabins Naval Architect: De Voogt Naval Architect Exterior Design: De Voogt Naval Architect Commercial Status: Malta Commercial Vessel Flag: Malta
Show more, 13 further sectionsShow less
REFIT HISTORY
► Main engines – Zero houred and rebuilt (2021) ► Generators – Overhaul completed in 2025 ► Electrical – New switch board, full rebuild to 220 VAC / 3 phase / 50 Hz system ► Paint – Full repaint 2019 (subsequent repaint in 2026) ► Teak – All new teak on sundeck ► Interior – All new paneling throughout, new headliners, new lighting, new AV, new carpets, new bathrooms. ► Commercial – Switch from private to commercial through Malta Flag ► Exterior – All new furniture, upholstery, sun awnings, bar, cinema system, tender crane on foredeck ► Crew Area – Renewed of crew area and galley ► Steel Works – Full ultrasound & steel replacement as required
ENGINE ROOM
Main Engines: 2x 1970 Detroit Diesel 16V-71N 460 HP Port Engine Hours: 1,297 (since rebuild) Starboard Engine Hours: 1,266 (since rebuild) Generators: 2x John Deer Diesel 75kw 1500rpm 50Hz single phase Generator Hours Port: 10,618 Generator Hours Stb: 10,576 Generator: 1 x 22kw Paguro 321H Gearboxes: Twin Disc 3:1 Shore power: 240/480v (Single/Triple Phase 50Hzz) Bow Thruster: 34hp Electric Morses Stabilizers: Quantum / Koopnautic with Vosper Gyro Air Conditioning: Mar-IX (new 2019) Water Maker: Delfin 350lt / h Fuel Filters: Racor Emergency bilge and fire pumps
HULL / DECK

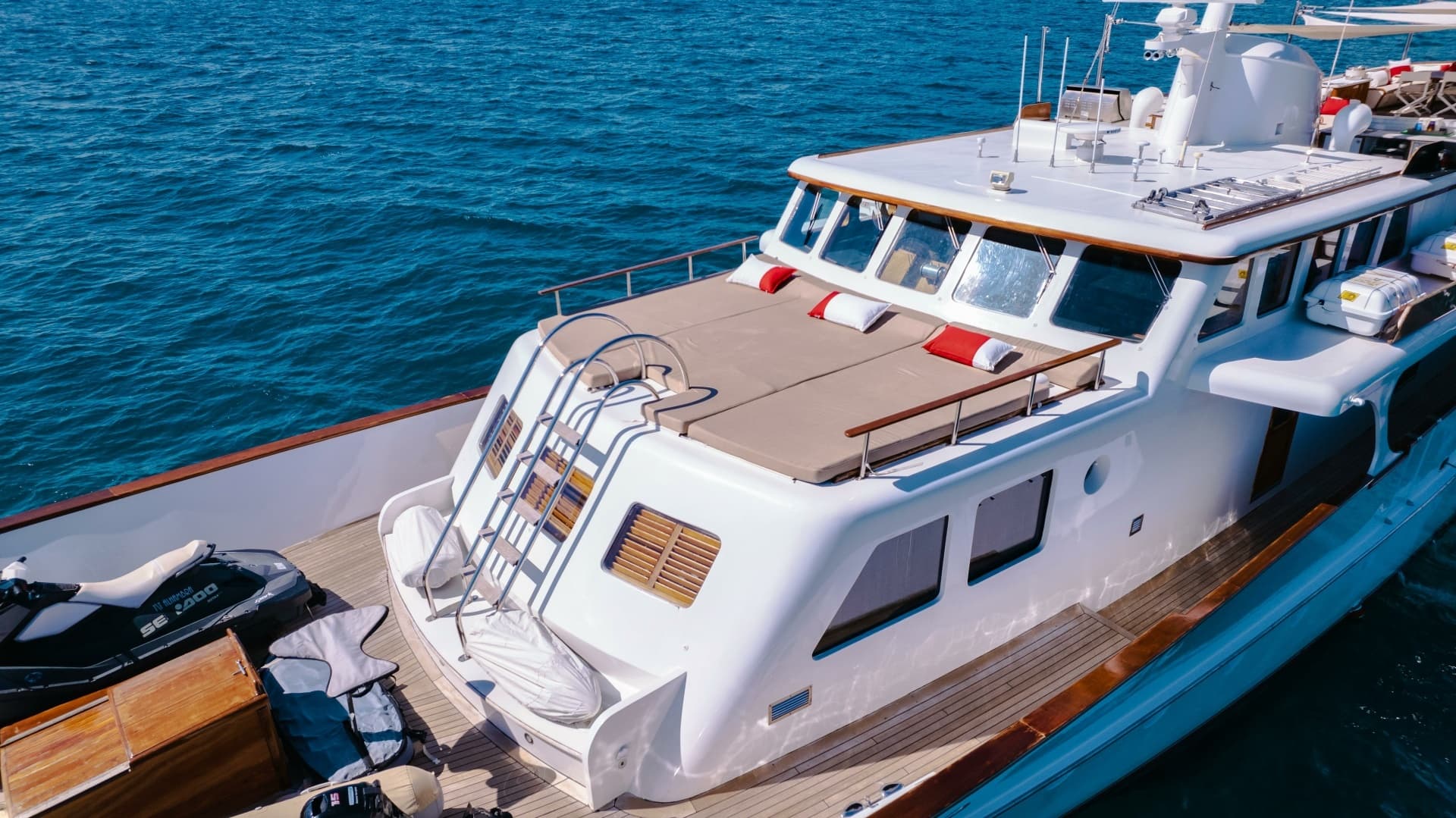

► Steel hull and superstructure ► Teak decks ► Four weather tight bulkheads ► Custom-made hydraulic stern passerelle ► Marquipt accommodation ladder ► 2 x Stockless anchors with 200/150 of 19mm chain rode ► 2 x Aft warping capstans McLure Anchor Windlass ► 1 x Deck storage boxes on bow ► Varnished crew hatch on bow ► Deck shower in overhead on starboard side deck ► Kahlenberg triple air horn ► 2 x Pilothouse mounted chrome spotlights ► Folding / hinged mast with owner absent and owner meal light ► Lazzarette aft with access to steering gear and storage ► Dripless stuffing boxes ► Spurs/line cutters on shafts
PERFORMANCE
Range: 2,750nm Cruising Speed: 11 knots Consumption at Cruising Speed: 120 L/H including generators Top Speed: 13 knots
FLYBRIDGE
► 12 People dining table ► Viking Professional BBQ ► Tapi Naki ► 2 x Bar ► Beko under-counter refrigerator ► Uline ice maker ► Sink
TANKS
Fuel 7,505 gal / 29,409 liters Fresh Water 1,800 gal / 7,000 liters Waste Water 240 gal / 908.40 liters Grey Water 475 gal / 2,500 liters
BRIDGE
► Weens & Plath ships clock ► Chelsea barometer ► Koden KGP-922 48mile ► Furuno RDP 150 radar ► Stabilizer controls ► Furuno RD-30 Speed/Depth/Temp log ► Furuno Echo sounder ► Simrad AP50 Autopilot ► Bow thruster controls ► Ships security camera system ► 2 x HP syncMaster displays ► Delta tank level monitor ► Simrad rudder angle indicator ► 2 x Northstar 95 ► 2 x Standard Horizon Matrix GX2000 VHF units ► Standard Horizon RAM Mic at helm ► 1x Navtex Receiver X1 NSR NVX-3000 ► 1 x Furuno VHF ► 2x Manual spotlight controls Pioneer wheelhouse stereo system ► 5 x Electric wipers ► L3 AIS Clas A ► Furuno Wind Transducer
GALLEY
► De Longhi induction 6 x zone ► Miele oven ► Vulcan oven ► Full size Foster twin door stainless freezer and refrigerator ► Miele dishwasher ► Panasonic stainless convection microwave ► Vulcan Grill
PANTRY
► Stainless countertop basin sinks ► Sub Zero under counter refrigerators ► AEG freezer ► Arcelik dishwasher ► Panasonic microwave ► U-line Ice Maker
LAUNDRY
► 1 x Samsung dryer ► 1x Electrolux washing machine ► 1 x LG Dryer ► 1 x Zopper Freezer
SAFETY EQUIPMENT
► 4 x 8 person Dura life raft ► 22 x Adult life vests ► 4 x Child life vests ► Life rings with ACR SM-5 buoy lights attached ► Fire main outlets on deck with 2 x hoses ► 16 x Fire extinguishers throughout the vessel ► EPIRB ACR Electronics Inc. ► Sart
AV
► 1 x Starlink ► Mirror Samsung TV (new 2021) in all cabins ► Samsung TV with Apple TV in main salon ► Projector cinema for the sundeck
TENDERS & TOYS
► 5.8m Gala Viking V580 130 Hp ► 3.5m Zodiac 15 Hp ► 1 x Seadoo 90 Hp ► 2 x Seabob F5S ► 1 x E-foil
Aspire Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel.
