2024 Hargrave E Series Superyachts Division

MAIN CHARACTERISTICS

BUILDER HARGRAVE SUPERYACHTS

ACCOMODATION 10 GUESTS + 7 CREW

CLASSIFICATION Rina Pleasure Yachts

CÌHULL oMach Y UNRESTRICTED NAVIGATION

LENGTH OVER ALL 35.365 meters / 118 ft

LENGTH WATER LINE 31.400 meters / 103 ft

BEAM MAX 7.92 meters / 26 ft

DRAFT (max) 1.850 meters / 6 ft

DISPLACEMENT (Light Ship) 125 Tonnes

DISPLACEMENT (Fully loaded) 160 Tonnes

GROSS TONNAGE 320 GT (Approx.)

TOP SPEED 19.05 Knots

RANGE at CRUISING SPEED 945 Nautical Miles

PROPULSION

MAIN ENGINES 2 x CAT C32 1900HP @ 2300 Rpm

GEARBOX ZF53050 SERIES 2,98:1

GENERATORS 2 CAT 75 kW

ELECTRIC SYSTEM 20 / 208 VAC 3P 60Hz Main Service

24VDC Service and Engine Start System

TANK CAPACITY

Diesel Oil 23.100 Lt / 7,880 Gallons

Fresh Water 5.000 Lt / 1.200 Gallons

Black Water 2.650 Lt / 500 Gallons

GreyWater 3.300 Lt / 826 Gallons

BUILD / CONSTRUCTION

HULL / SUPERSTRUCTURE: CARBON REINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH

OPEN DECK: HAND LAID BURMESE / MYANMAR TEAK OR NON SKID PAINT

PAINT SYSTEM: INTERNATIONAL and AWLGRIP

MASTER EQUIPMENT LIST

Airhorn Kahlenberg

Anchor winch Maxwell

Appendages & equipment Rotork / Kurtek / Halyard / Rubber Design

Alarm & Monitoring system Beijer - Wago

Anchor 316L Stainless Steel

Audio / Video Savant / Apple

Battery chargers MasterVolt

Batteries MasterVolt

Bow/stern thrusters NAIAD

Exhaust system Halyard

Fuel oil filters Racor

Galley/pantry equipment (SEE INTERIOR DESIGNER SPECS)

HVAC CRUISE AIR

Hydraulic components NAIAD

Insulation FyreWrap

Sun Deck Jet Tub Spa Manufacturers

Navigation & communication equipment FURUNO

Pumps HeadHunter

Rudder actuator JASTRAM

Sewage treatment Headhunter

Stabilizers Naiad

Safety Equipment RFD / Viking

Toilet system Headhunter

Fridge&Freezers Sub-Zero

Underwaterlight Ocean LED

Lighting BCM / Palagi

Lighting Automation Control LUTRON

DECK EQUIPMENT

GANGWAY BESENZONI or Equal

SWIM LADDER 316L Stainless Steel

JETSKI CRANE BESENZONI or Equal

JETSKI STORAGE at SUNDECK

HANDRAILS 316L STAINLESS STEEL

WINDLASS 2x Maxwell Vertical Windlass

CAPSTANS 2x Maxwell Capstans

MOORING BOLLARD CUSTOM 316L S.STEEL.

ANCHOR 2x 180 Kg Pool Type HHP Anchor

WX PANTOGRAPH DOORS FREEMAN

SLIDING DOORS BOFOR

WATERTIGHT DOORS - BOFOR

DECK HATCHES BOFOR

AFT BEACH SHELL DOOR HYDRAULIC OPERATED

SAFETY EQUIPMENT

LIFE RAFTS VIKING 2 x 16 PERSONS

FIRE PROTECTION FM200

FIRE & ALARM SYSTEM SEAFIRE (Monitoring at Wheelhouse)

CCTV SYSTEM SAMSUNG

Owners’ Walk Through by Deck

Main deck walkthrough

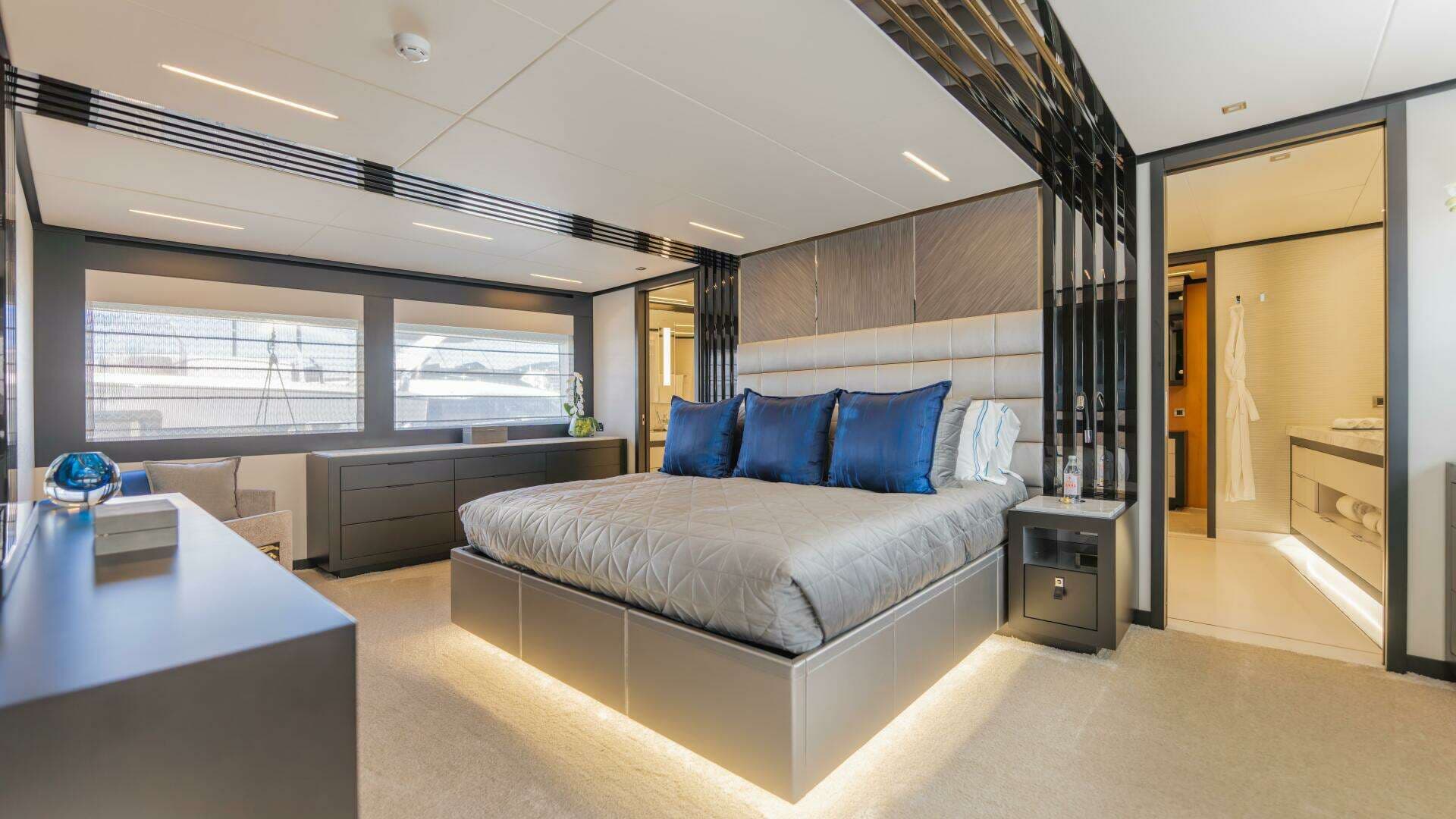

Full beam owners' suite forward with California king-sized berth, his & her bath, his and her walk-in closets, and seating area.

Following is a commercial-sized galley with a large center island for MEAL service and a dinette area with access to crew quarters.

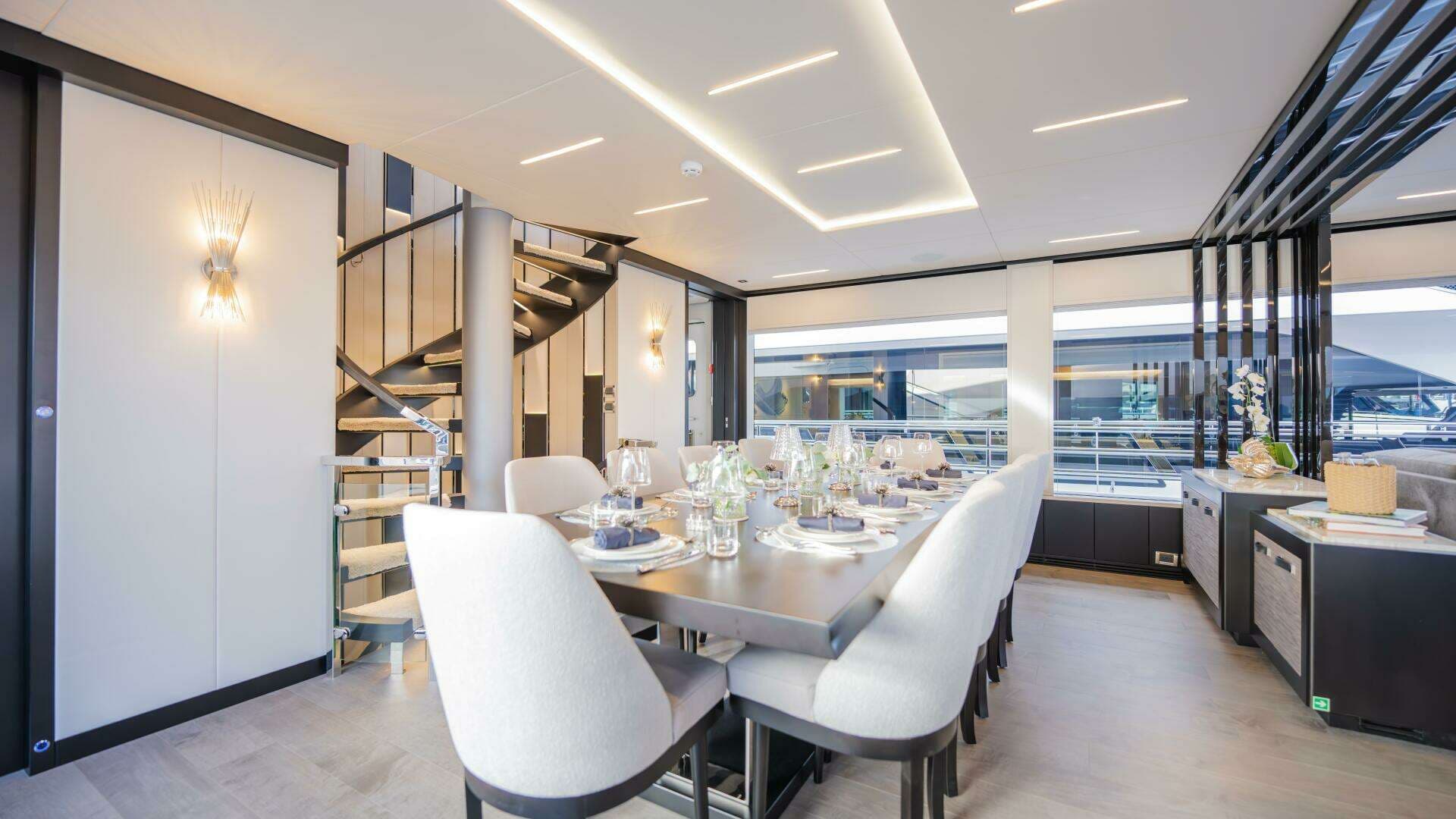

Next is the formal dining area with seating for 10 and storage.

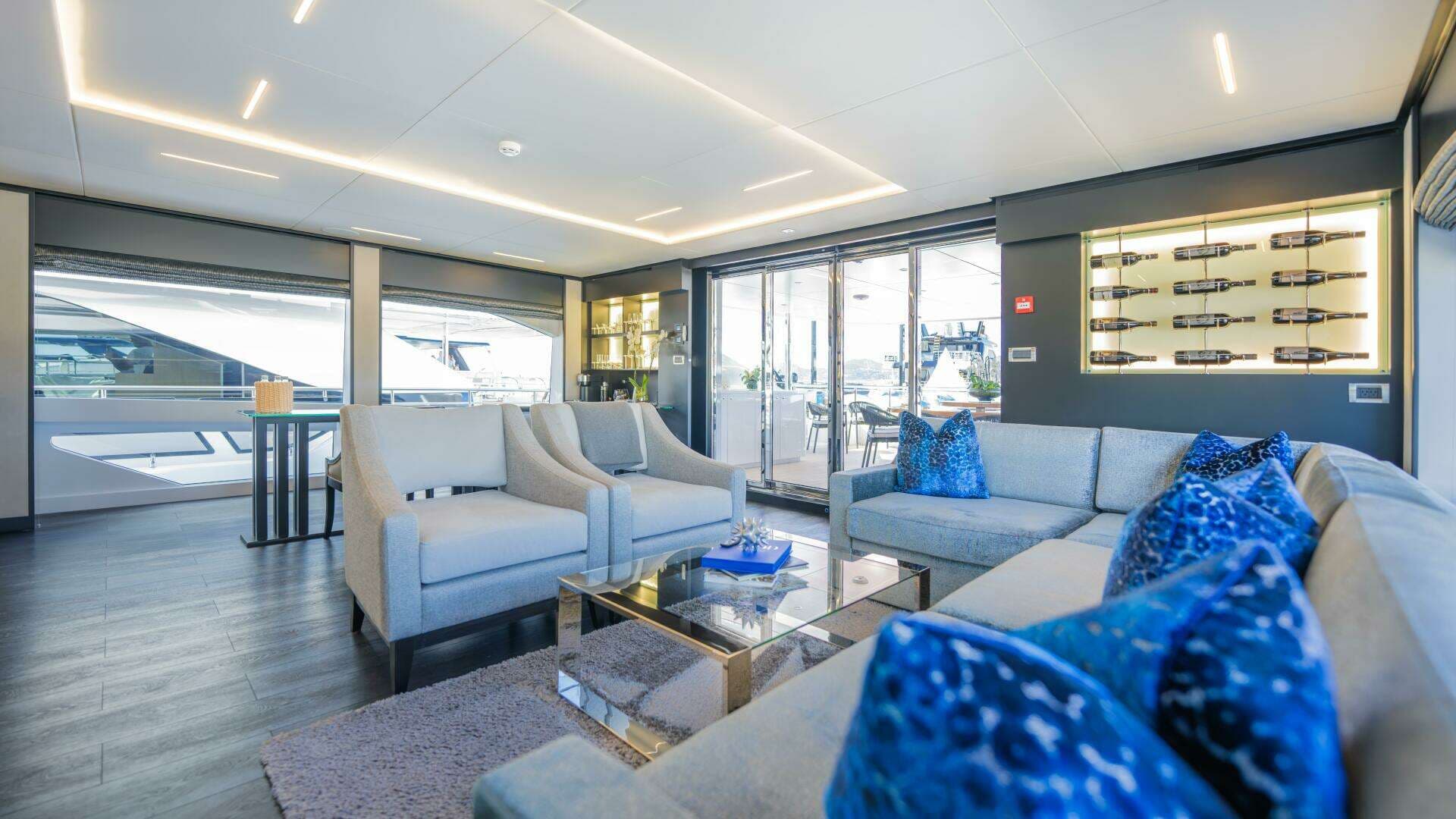

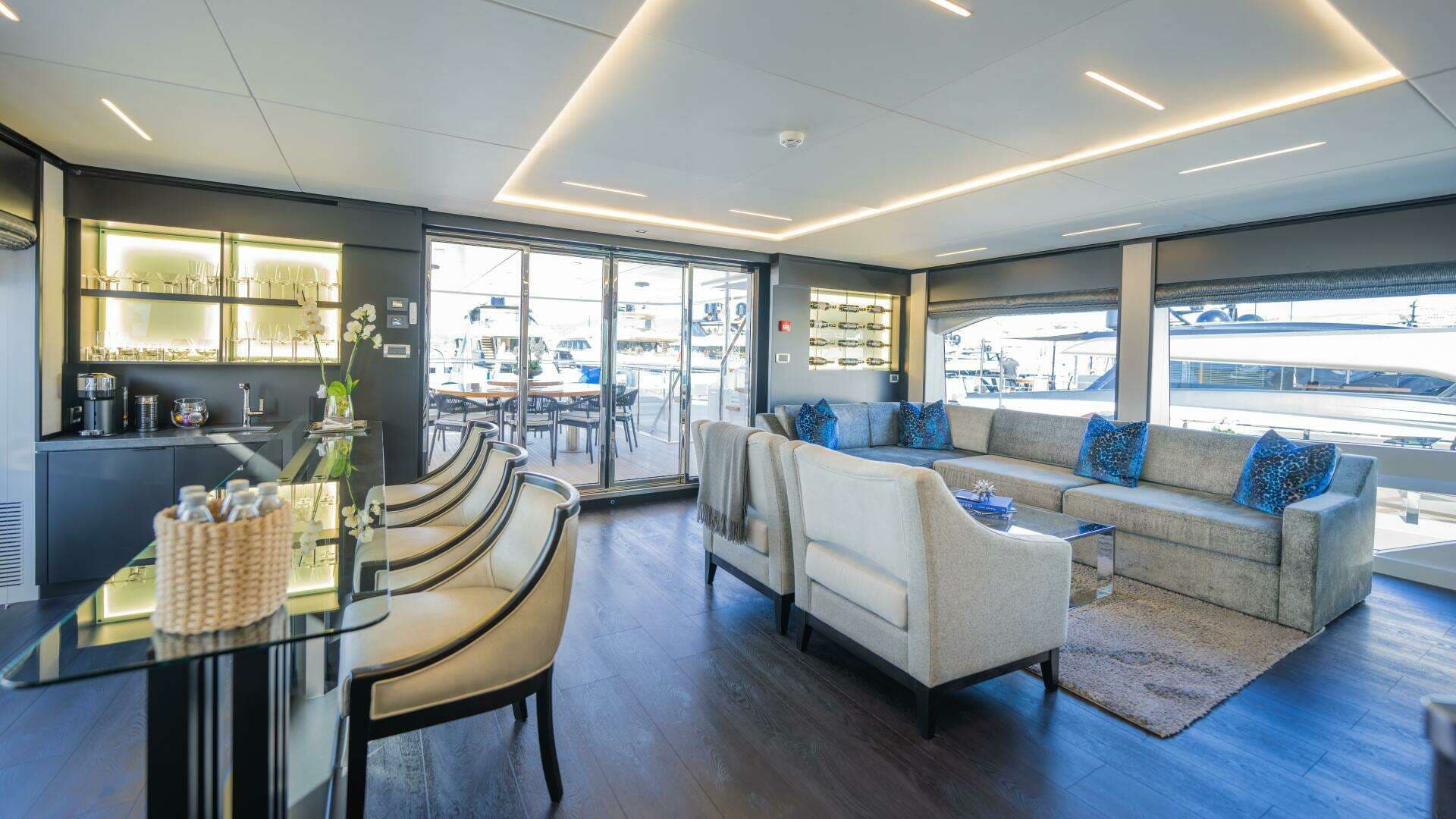

Next is the main salon with l shaped settee and five chairs, tables, walk up bar, and an entertainment center with a flat screen TV.

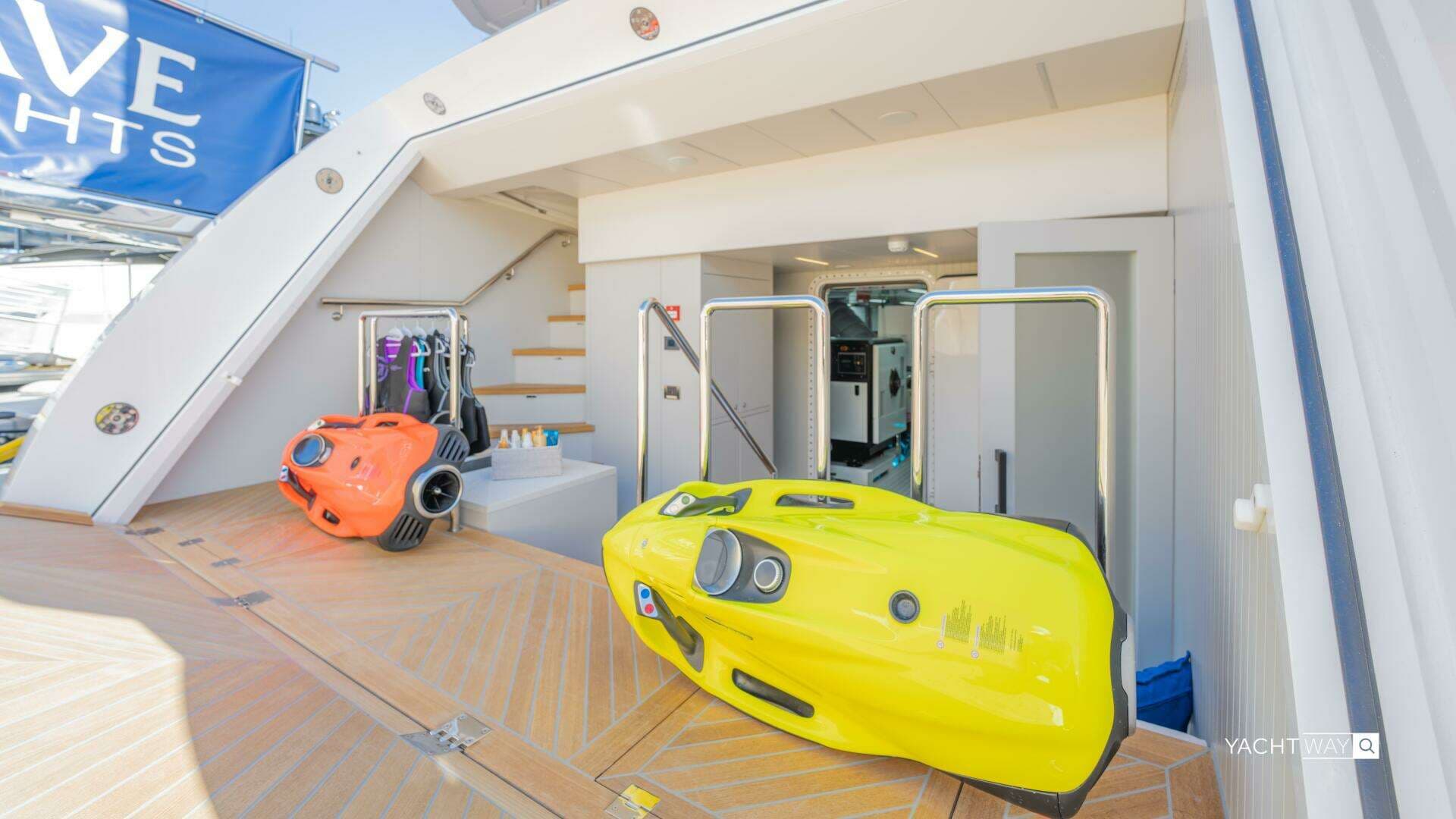

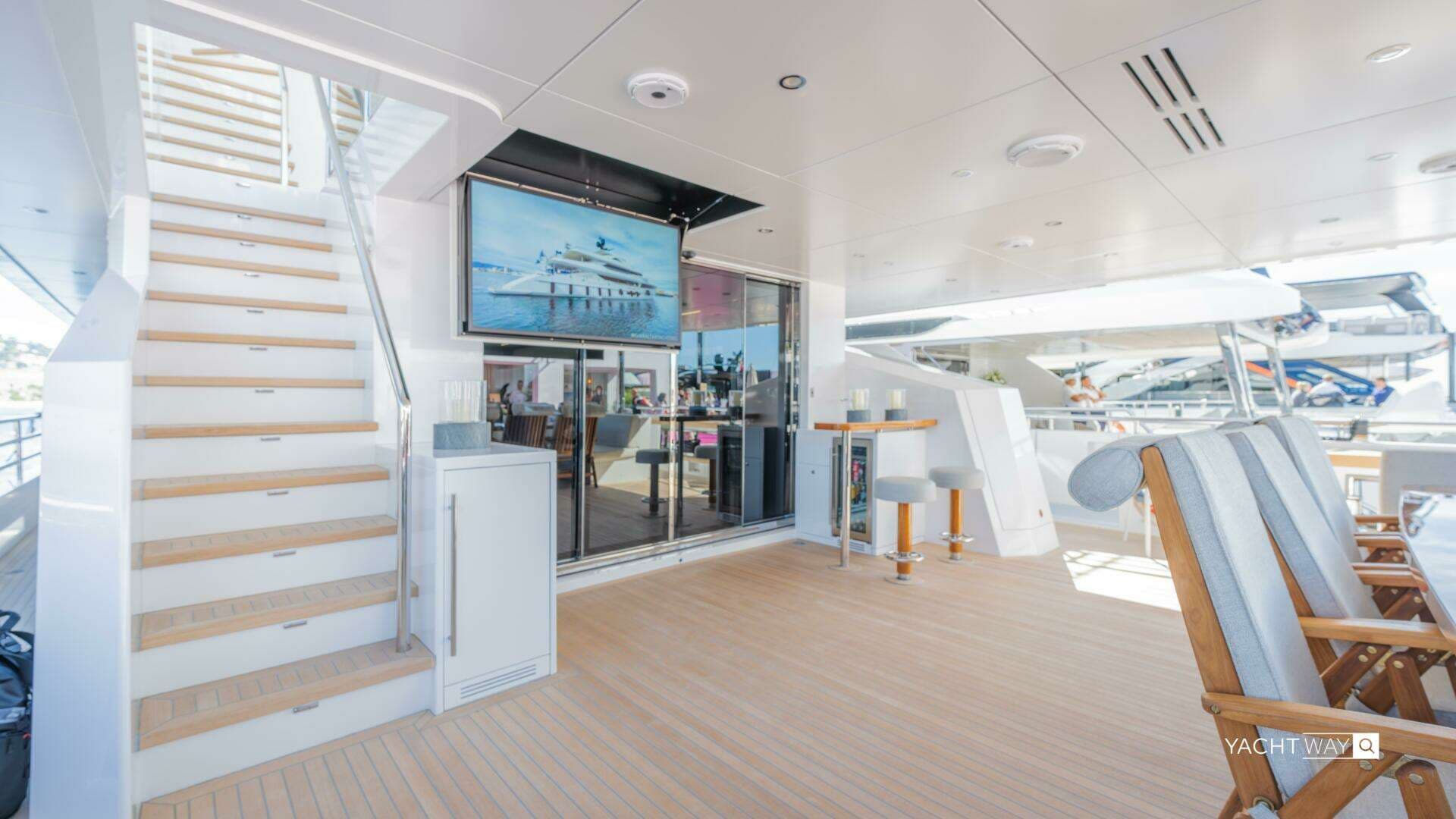

Through the hydraulic sliding doors to the aft deck, which featured outdoor dining and high low table, a wet bar, stairs up to the bridge deck, and double staircases down to the beach club with an extended swim platform.

Lower cabin deck:

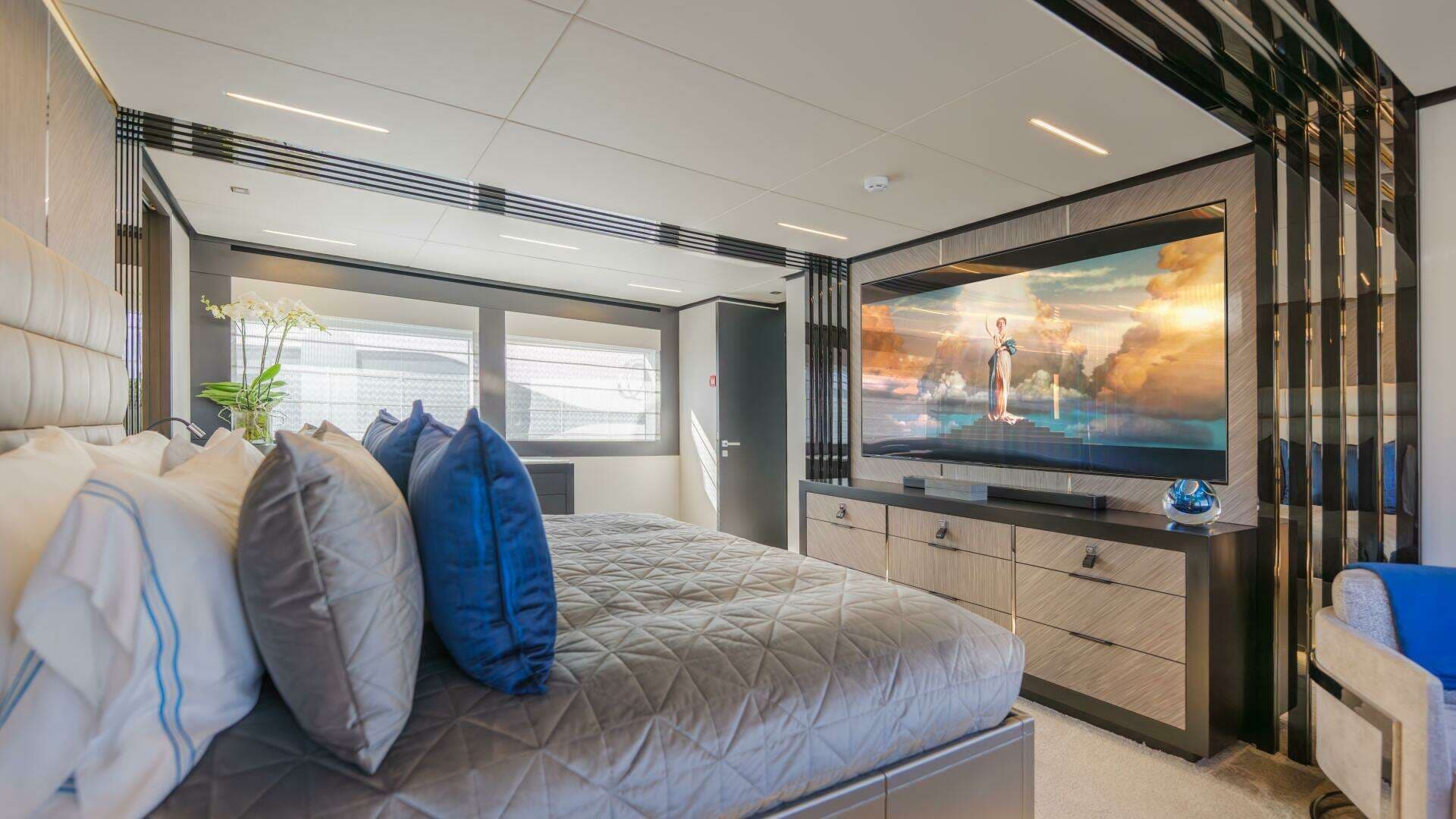

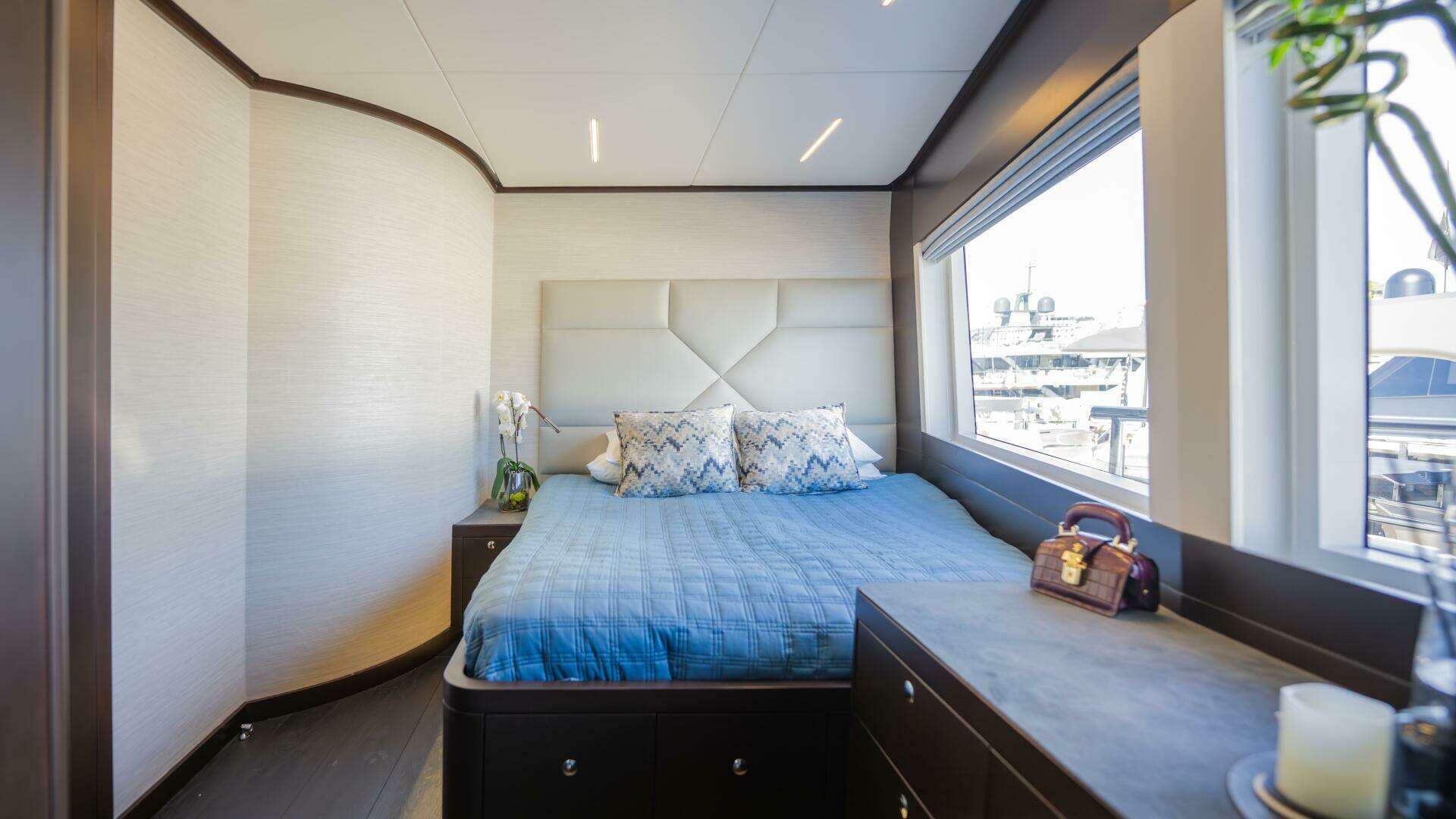

Four guest suites, each with king-sized berths and a private spiral staircase to the main deck.

All the way forward in the bow is a best-in-class crew area with three private cabins with upper and lower berths, each with a private head, a comfortable lounge area, mini galley, washer and dryer, and lots of extra storage. The captain’s cabin is located on the bridge deck.

The bridge deck:

The main navigation area is forward and offers full privacy with extensive electronics, large screens and monitors, an adjustable helm chair, bench seating for guests, and access to the captain's cabin on the starboard side.

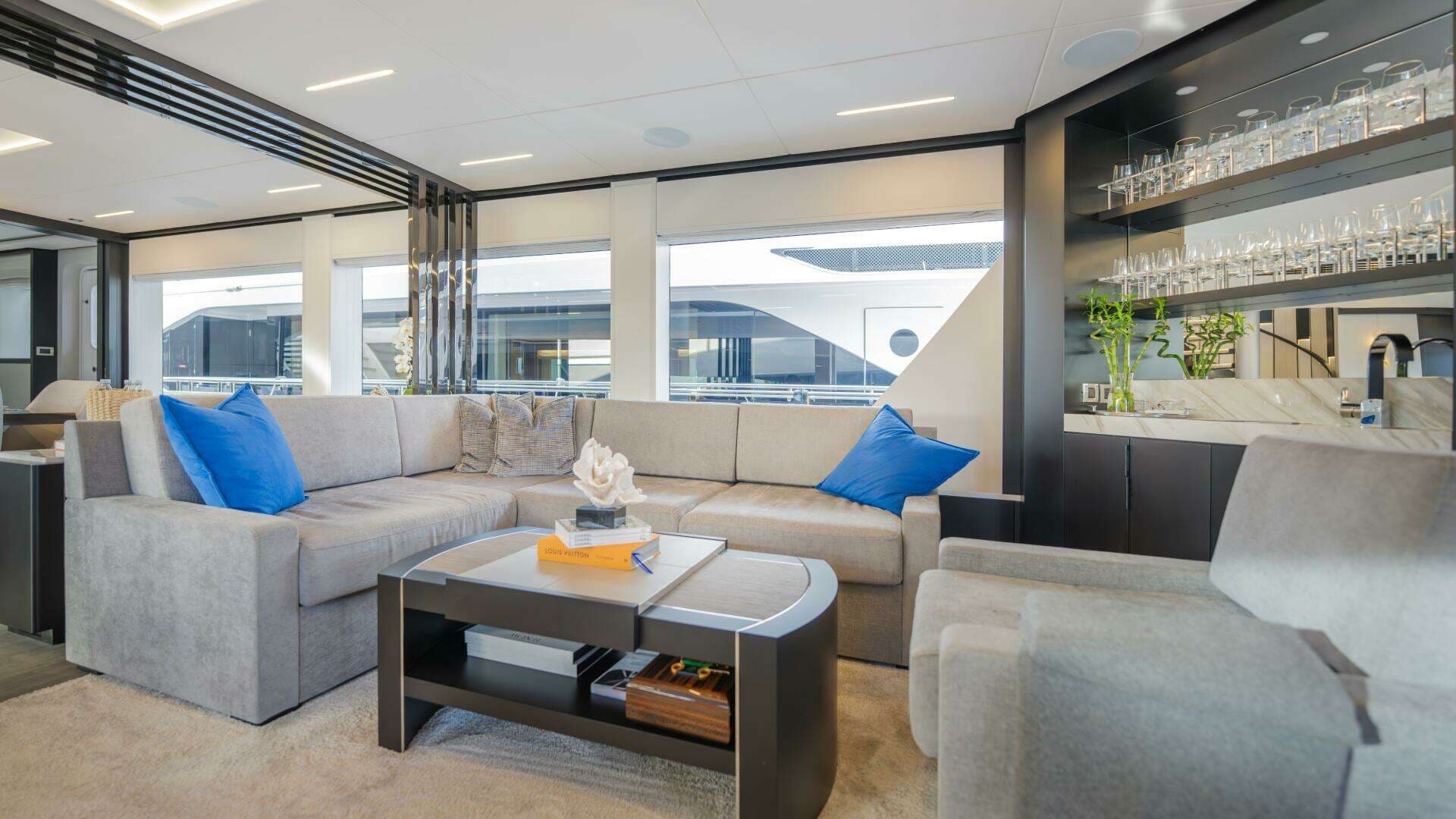

The upper salon features a large L-shaped settee and chairs to port and a dramatic bar for three guests looking out to see on the starboard side, along with a large wine locker and extra storage.

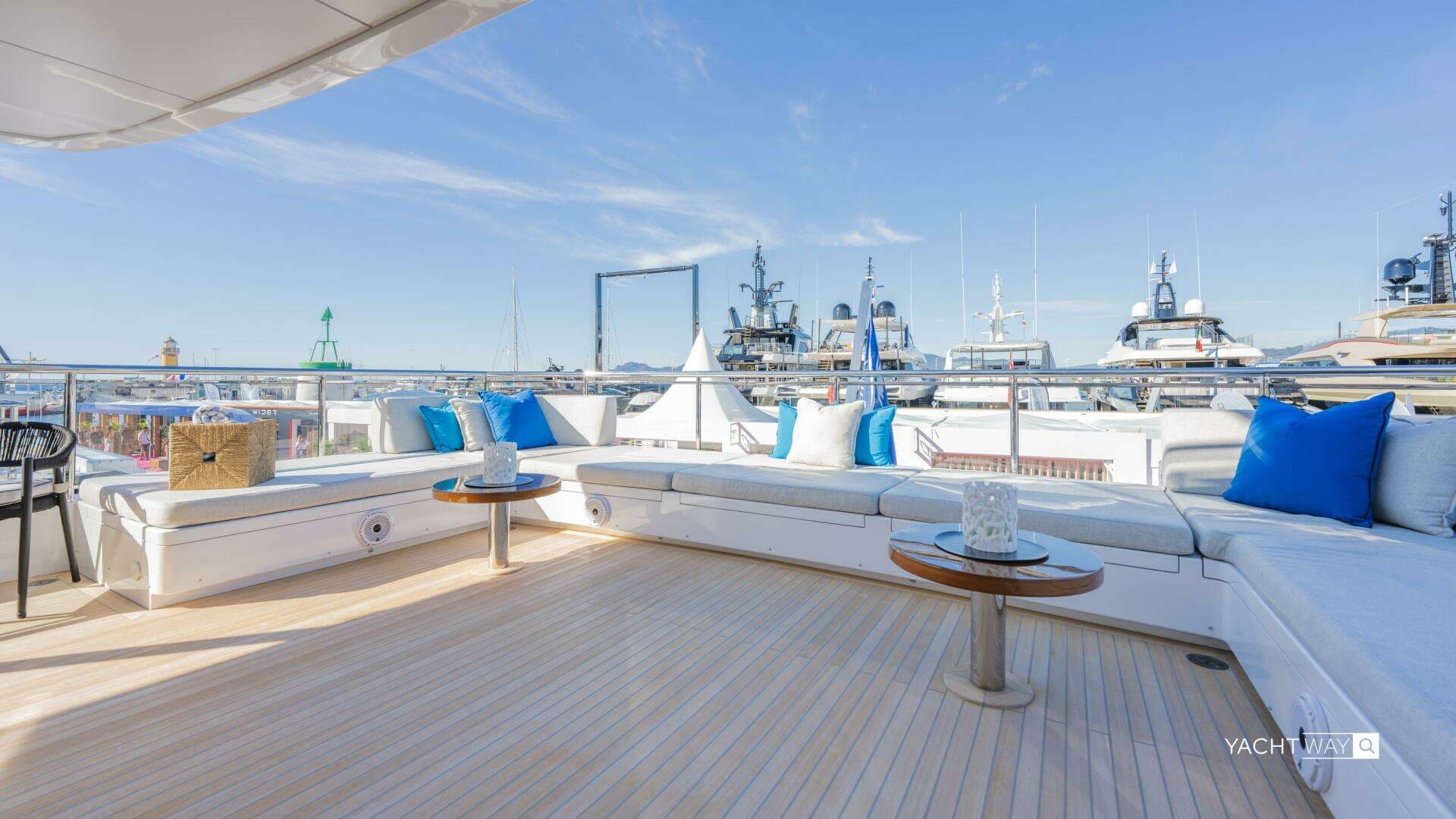

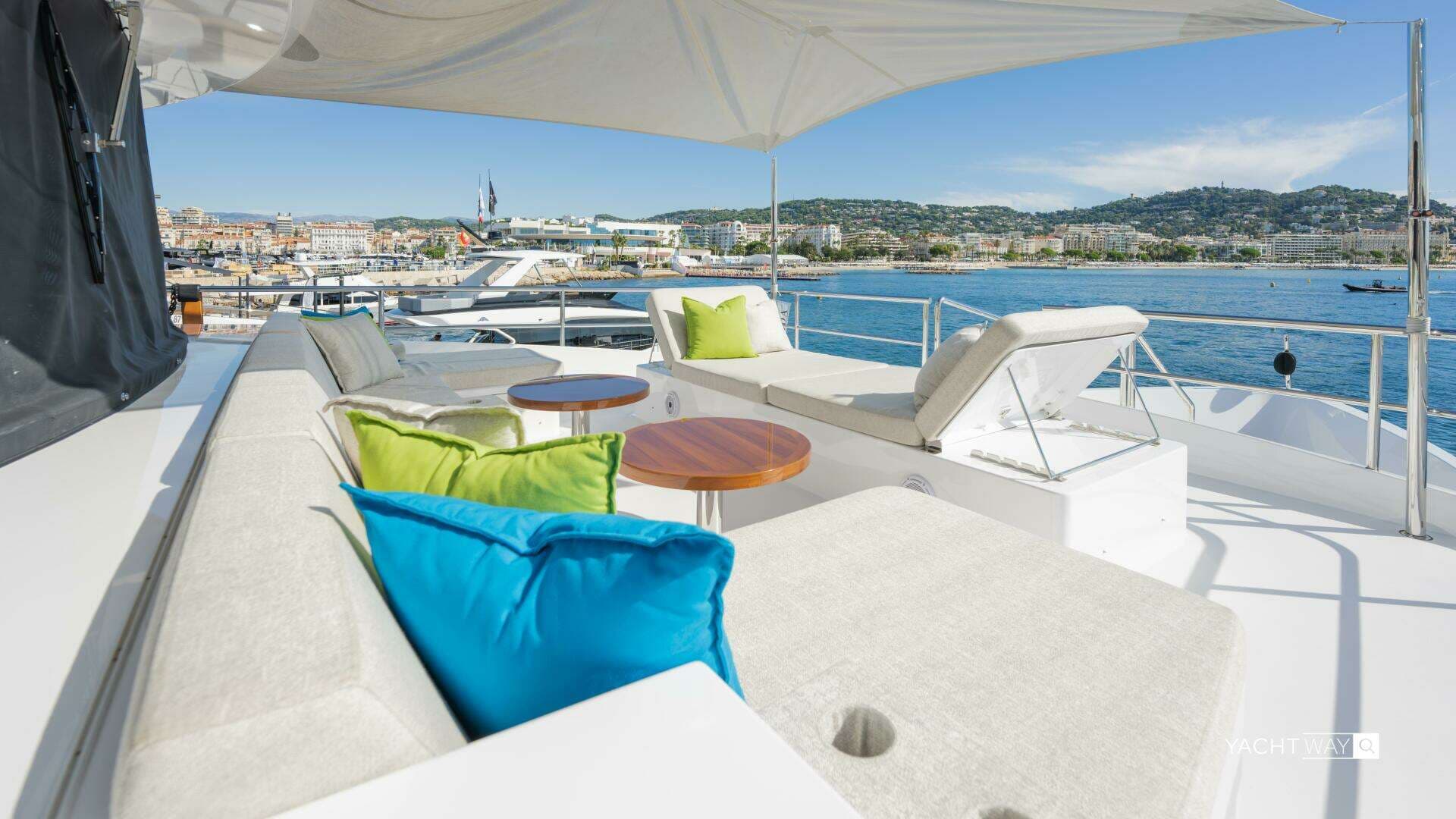

Exiting through double sliding glass doors to a large outdoor entertaining area that includes a large round dining table for ten, and then all the way aft to a full-width lounge seating area with cocktail tables.

The upper sky deck

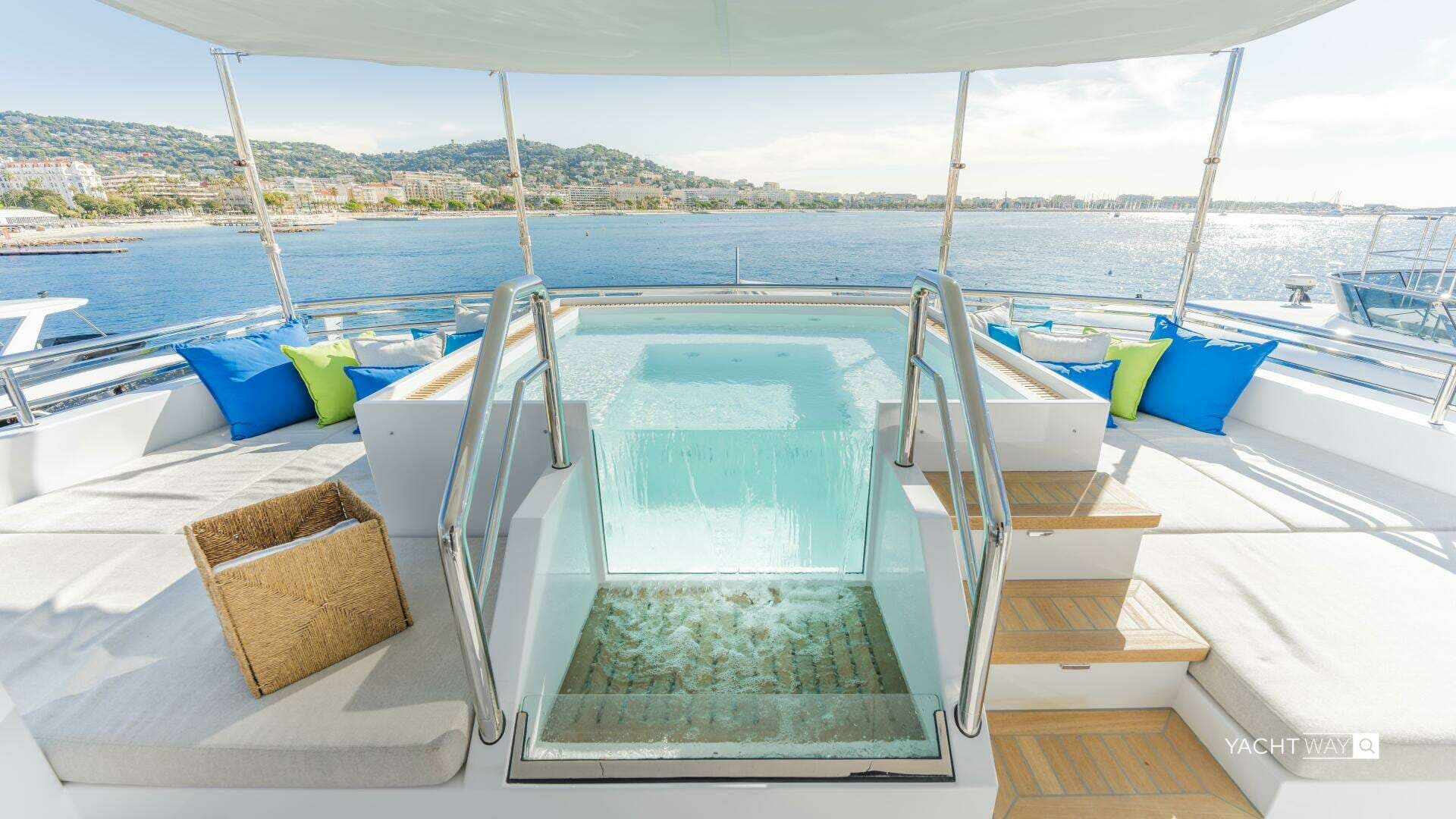

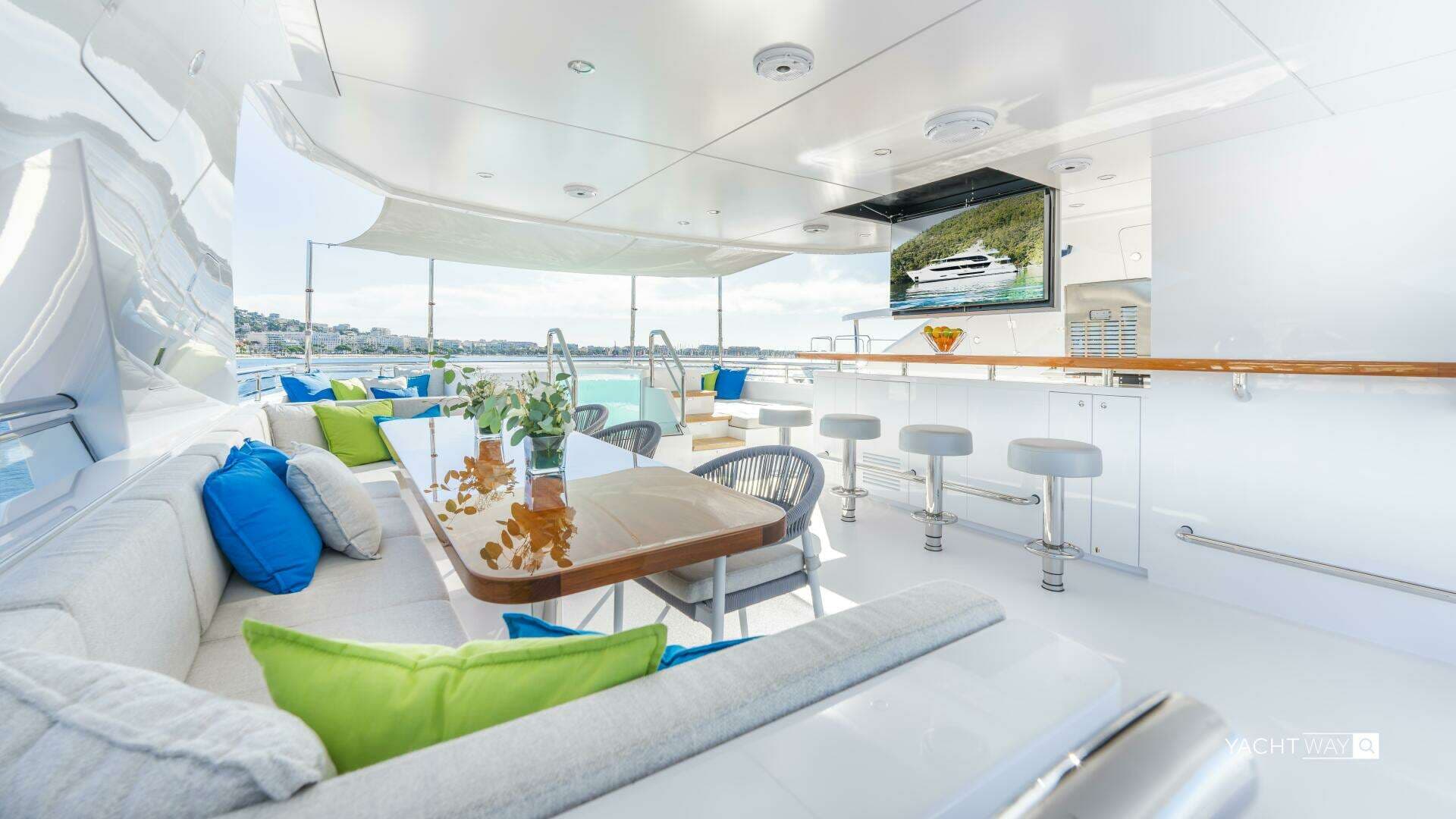

A fun area for owners and guests only featuring a large heated Jacuzzi forward with great views, a large settee and table with three additional chairs to port, a large stand-up bar with four stools to starboard, a full-sized enclosed head, an outdoor grill, sun lounger chairs, and two jet skis, all under a stylish fiberglass hardtop.
