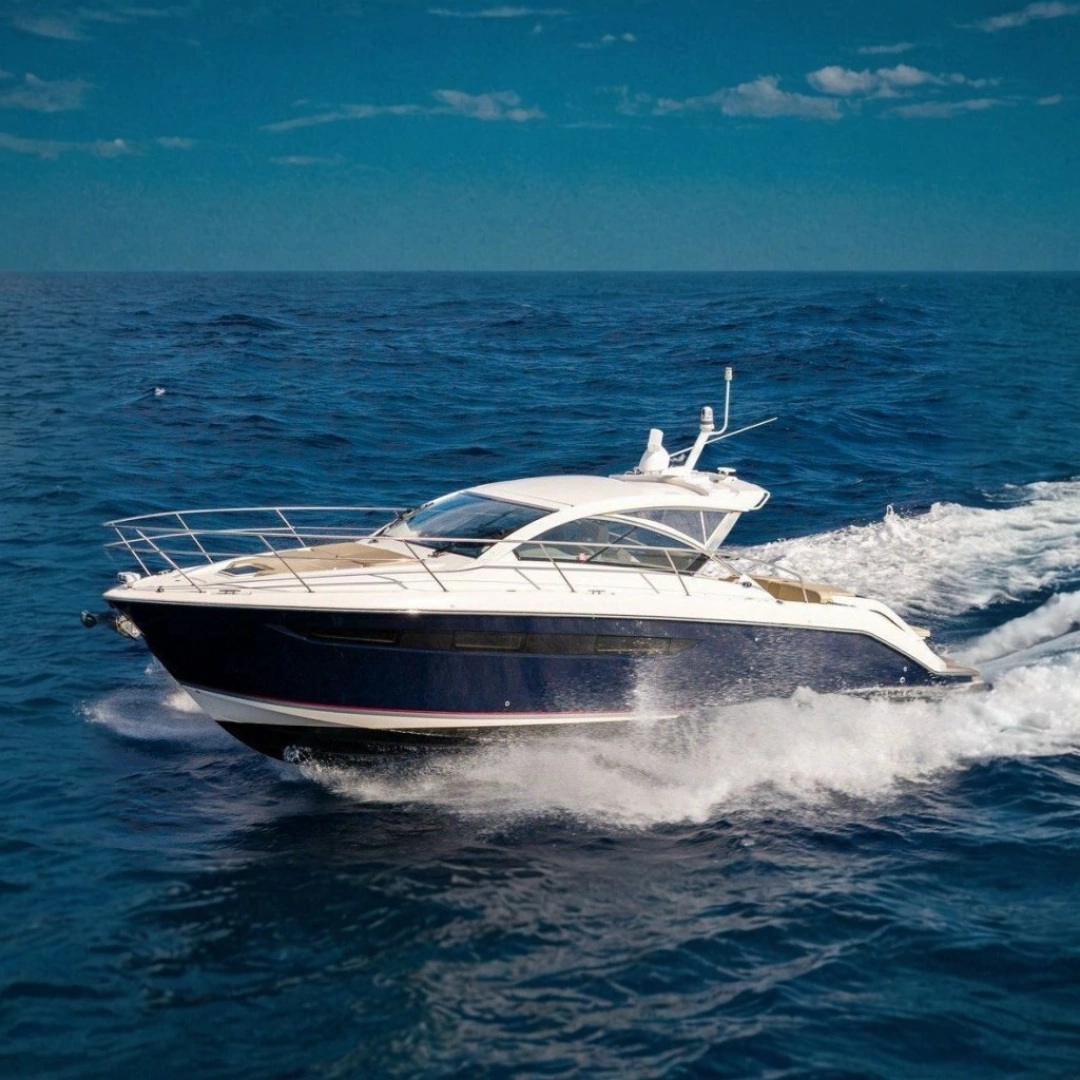

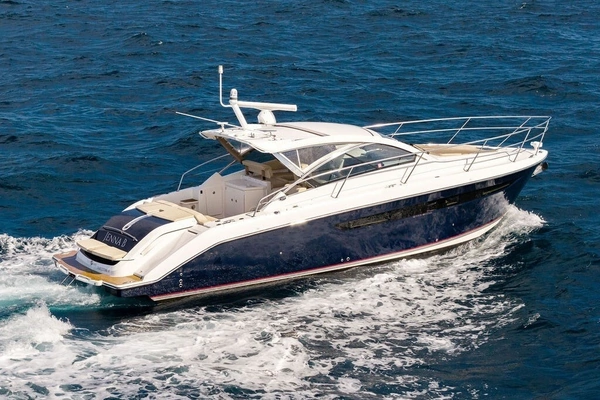

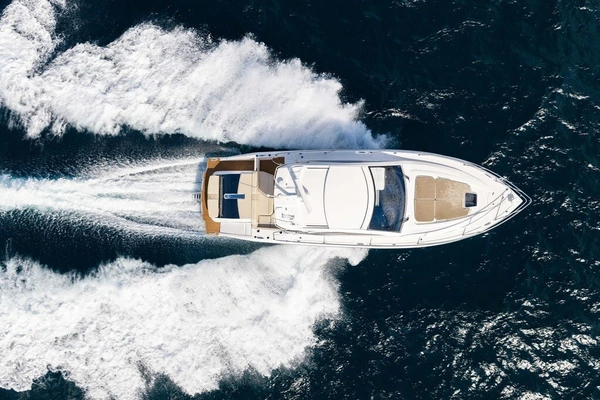

2017 Pursuit SC 365i Sport Coupe

Hull, Deck and Cockpit

• Pursuit® Protection Plan: 5-year hull/deck structural warranty 5-year blister-free warranty 2-year limited warranty
• Hand laminated hull with vinyl ester resin and engineered fabrics
• Infused fiberglass structural grid system with molded finish and integrated bilge water management system
• 5-ply resin infused composite transom system with patented transom reinforcement grid
• Trim tabs with indicator lights and auto-retract
• Bronze thru hull fittings below water line
• Chrome over bronze thru hull fittings below 7 degree heel line
• Stalon thru hull fittings above the 7 degree heel line
• Bronze garboard drain
• Dedicated transducer location not recessed in hull
• Full length bonded hull windows (6)
• High density PVC rubrail with solid 316L stainless steel insert
• 5/8” 316L stainless steel bow eye
• Bow thruster 5.4 gp with group 31 AGM battery will charge off third leg of 40 amp charger

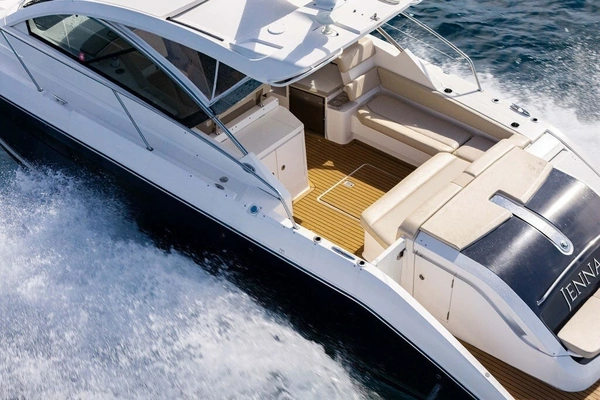

• Molded one piece deck and cockpit liner with non-skid pattern area and overboard drains
• Hull and deck joint mechanically fastened with aluminum backing plates and thru bolts at cleat locations
• 10” pop up cleats (4) on stern and 10” Hershoff spring and bow cleats (4)
• Molded recessed hatches with gaskets and 316L stainless steel latches and overboard drain tracks
• Flush mounted integral anchor locker with fiberglass lid
• Horizontal anchor windlass with switch at helm and remote
• 316L stainless steel delta plow style anchor, twist shackle, chain and 250’ of 5/8” rode
• 316L stainless steel through stem anchor roller with 8” mooring cleat, chain binder and aluminum backing plates
• Fresh and raw water wash down in anchor locker with quick connect fittings

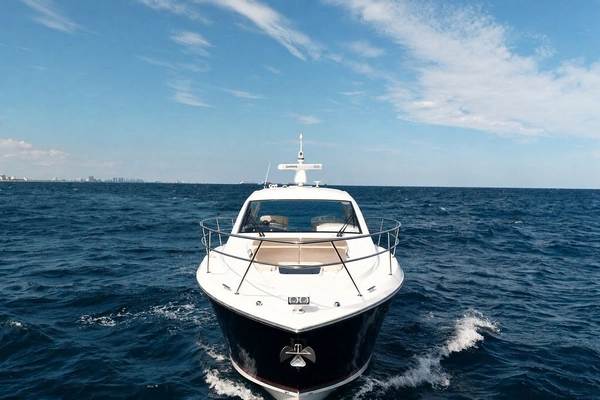

• 1 1/4” welded 316L stainless steel bow rail with 1’ stanchions and mid-rail
• Port and starboard 316L stainless steel 2 mile LED navigation lights
• 316L stainless steel deck plates for water, waste and diesel; fuel chrome over bronze
• Telescoping, platform mounted four step boarding ladder

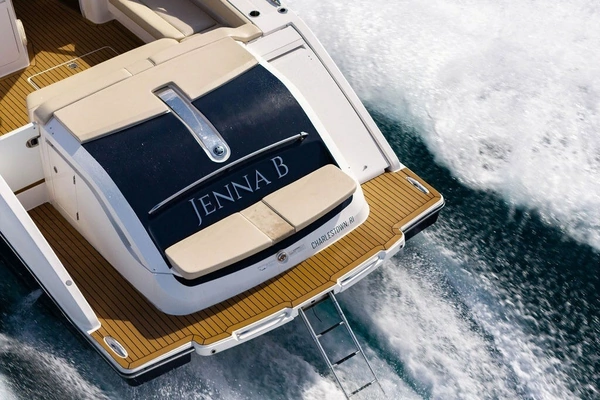

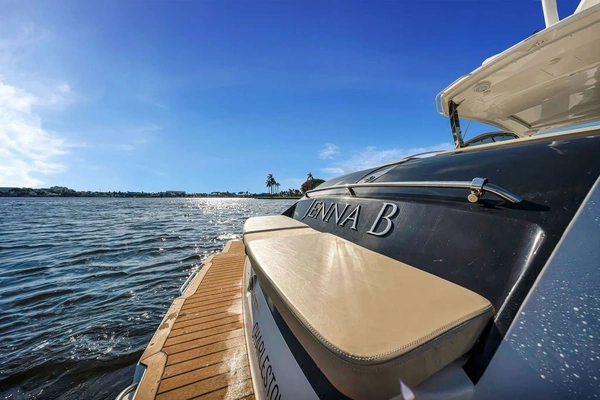

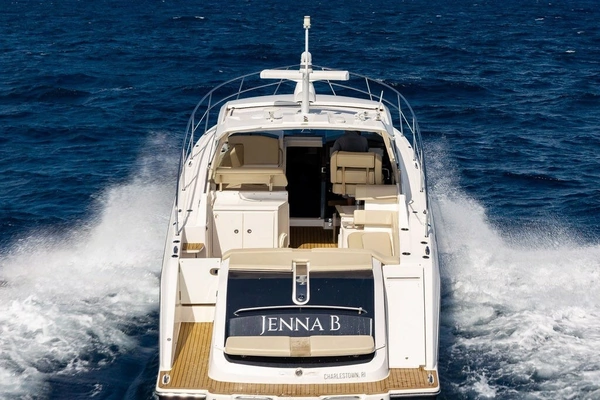

• Full beam swim platform
• Molded lazarette storage box, fiberglass lid 316L stainless steel latch and shore power access and 50 amp breaker

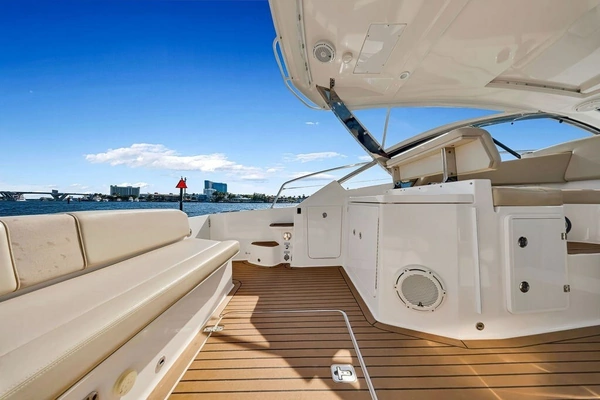

• Custom cockpit upholstery with dri-fast foam and mesh backing
• Molded port transom walkthrough and hinged acrylic transom door with 316L stainless steel latch and catch
• Port and starboard 316L stainless steel transom grab rails
• Molded port side lounger with back rest, foot rest, drink holders, 316L stainless steel opening port light and glove box
• 12v MDP panel with acrylic door and latch

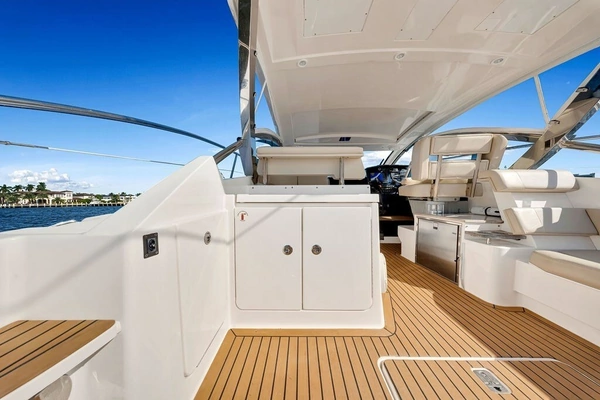

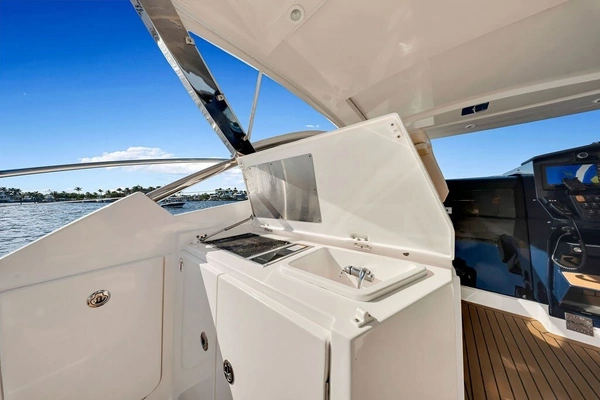

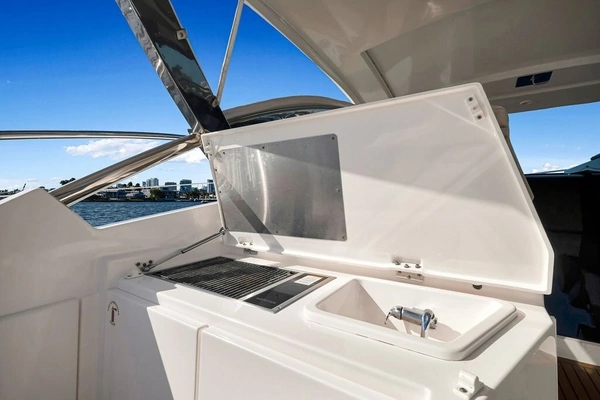

• Molded entertainment center with sink, faucet, electric grill, and hinged, fiberglass lids/ doors with magnetic latches
• Single captain’s chair with foldable armrests, swivel, fore, aft and vertical adjustment
• Fresh water wash with chrome over brass pull out sprayer, HOT & COLD
• Fresh and raw water outlet in cockpit with quick connect fittings and 25’ hose
• Cockpit lights with water proof switch in cockpit at port side steps

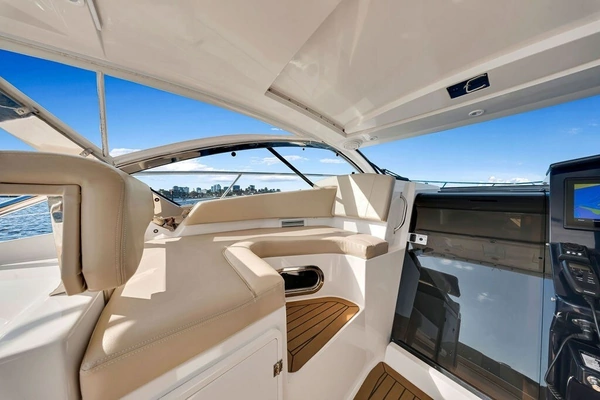

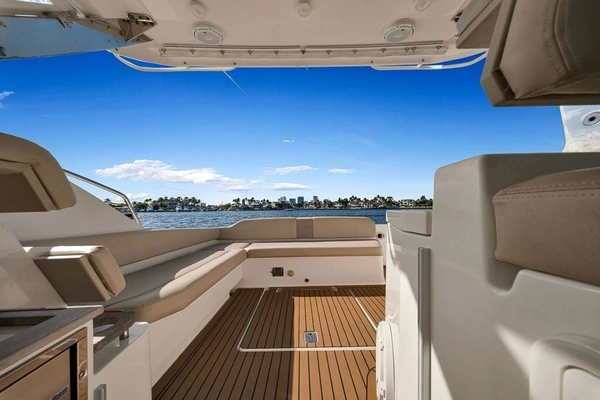

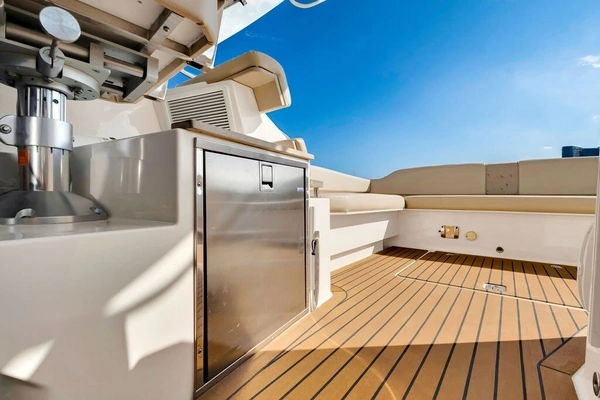

• Custom molded wrap around seating with insulated storage, 2.3 ft3 12v cockpit refrigerator

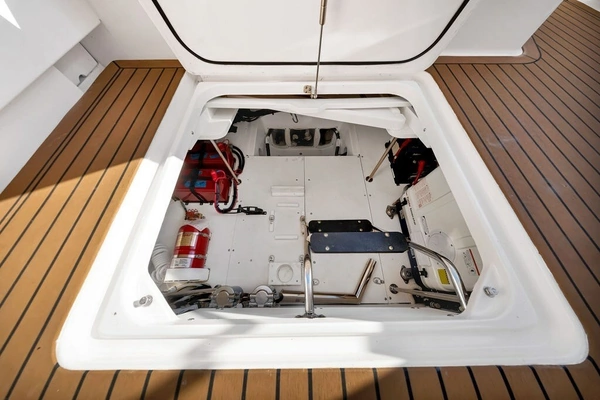

• Custom molded engine cover with stainless steel gas lift, latched/gasketed port side entry door and engine ignition lock out
• Custom molded cockpit table with teak accents and dedicated storage

Hard Top

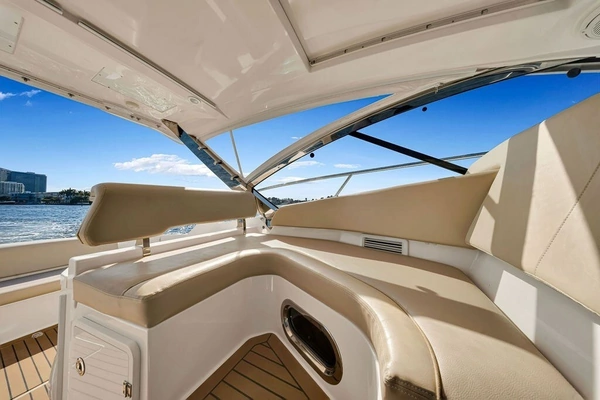

• Molded fiberglass hardtop with opening sun roof
• 316L stainless steel hardtop supports
• Single piece, laminated, bonded windshield system
• Folding stainless steel all-around navigation light with flag burgee
• Six tricolor LED lights
• Aft LED spreader light
• 60 mil Stratoglass side curtains

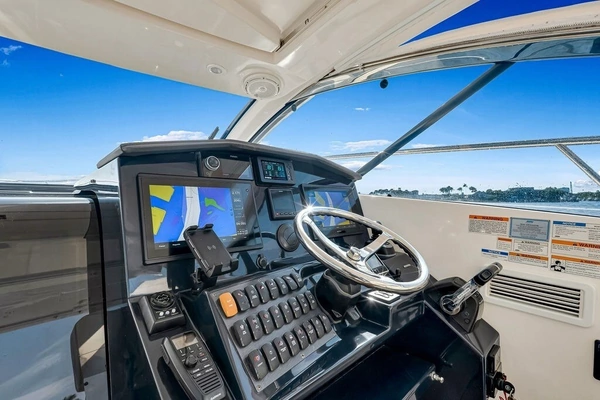

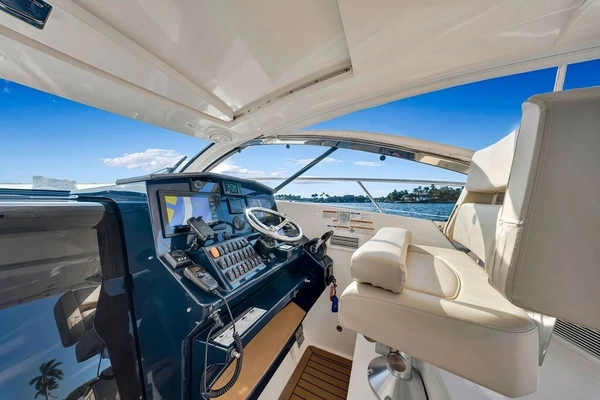

Helm

• Molded fiberglass helm with instrumentation visor, molded foot rest and folding floor
• Starboard aft tilting with safety lanyard
• Teleflex tilt sport helm
• Custom comfort grip steering wheel
• 12v switch panel
• Independent windshield wiper washer control
• Compass
• Trim tab control panel and indicator
• 12v outlet
• Helm fire extinguisher

Cabin Area

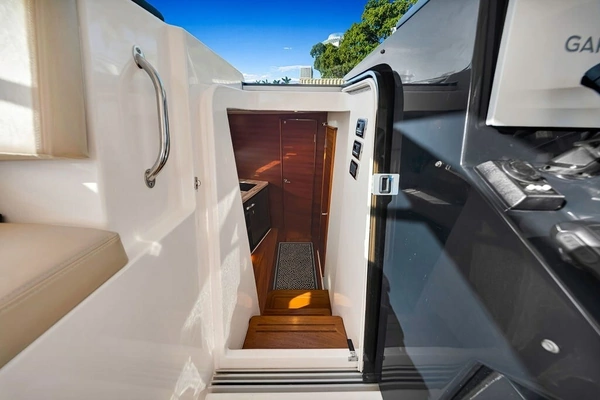

• Molded/acrylic access door with gasket, 316L stainless steel locking latch and screen
• Molded cabin entry steps with handrail and wood treads
• Molded cabin hull liner with custom wood floor accents, storage access, drainage and sound damping insulation
• Molded cabin deck liner with sound damping insulation
• Recessed bonded tempered glass hull and deck windows with shades
• 12v outlet
• 120v outlet with GFI protection
• Three switch panel with overhead LED lights (9) and LED floor accent lights (4)

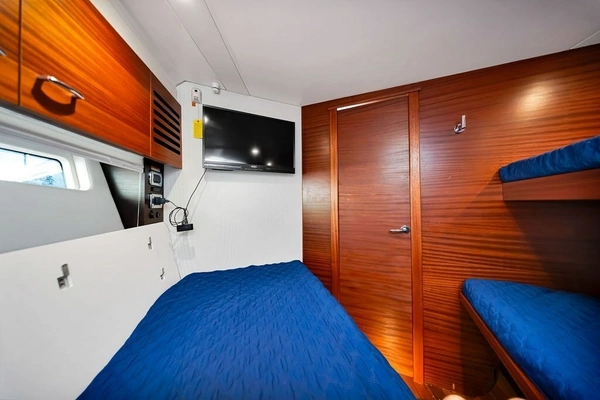

• Pursuit entertainment center with 26” LED smart TV,
• Apple TV, iCloud account, iPad, 12v stereo with internet radio, speakers (8 total, 4 in cockpit, 4 in cabin), subwoofer in cockpit, with Bluetooth remote
• Custom v-berth seating that converts into queen size island berth with storage below. Solid wood table withelectric actuated table base.
• 240v/60 cycle cabin air conditioner with reverse cycle heat 16000 BTU self-contained with raw water pump, bronze sea strainer, seacock and bronze thru hull fitting
• Gunnel storage cabinets with doors and latches
• Forward bulkhead treatment
• Starboard hanging locker with light
• Fwd bilge pump with automatic float switch

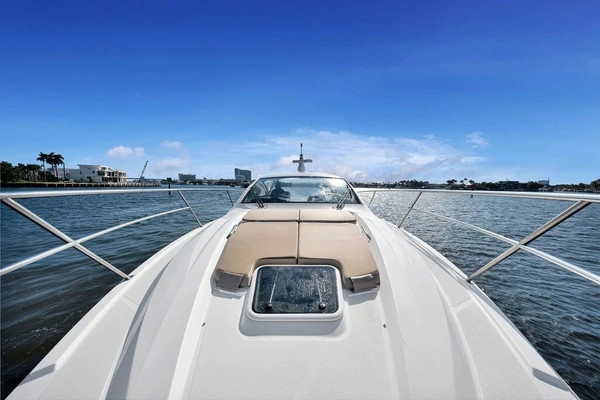

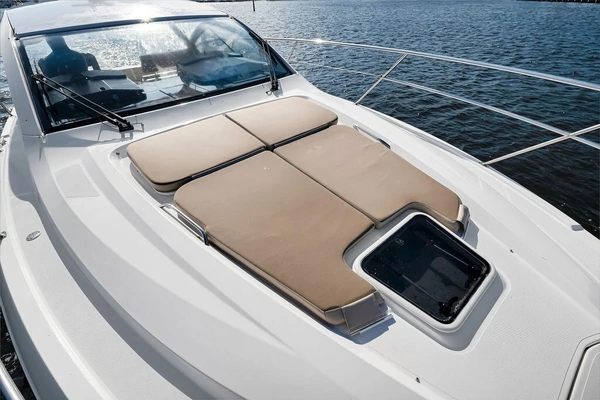

• Fwd deck hatch with screen and sunshade
• CO detector

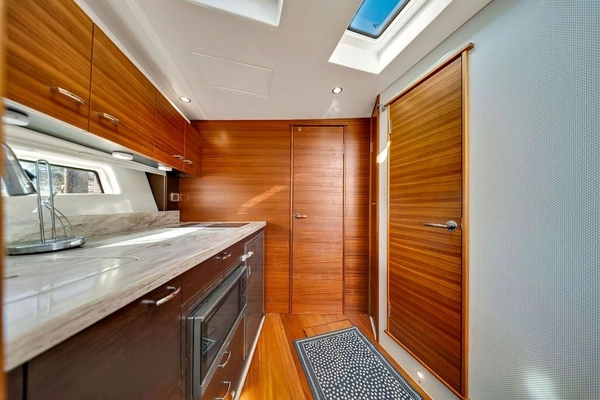

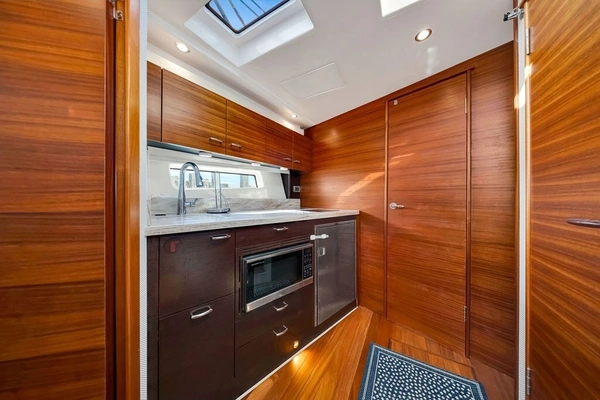

Galley

• Corian® galley top with integral stainless steel trivets
• Stainless steel sink with cutting board cover, overboard drain and chrome stalon thru hull fitting
• Pressurized hot/cold mixing valve and faucet
• 120v outlet with GFI protection

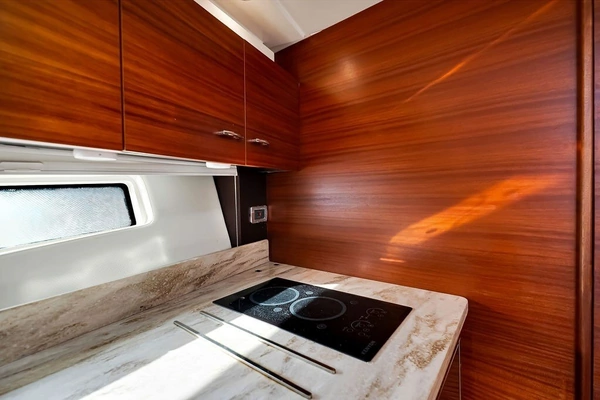

• Two burner 240v glass cook top
• 4.6 ft refrigerator/freezer
• Convection microwave
• Lower galley cabinet with drawers, dedicated cabinet storage, positive latches, and slide out trash can.
• Upper galley cabinets with hinged doors and positive latches
• Galley fire extinguisher

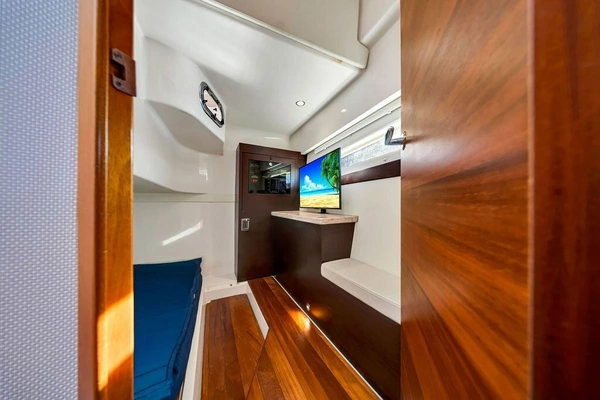

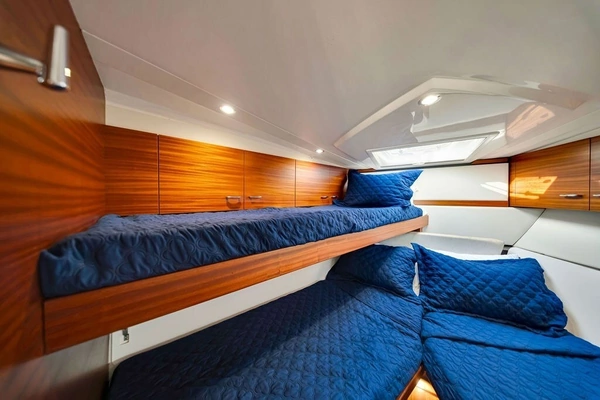

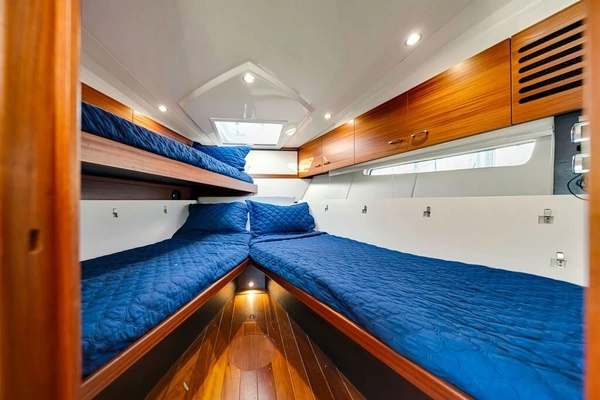

Aft Berth

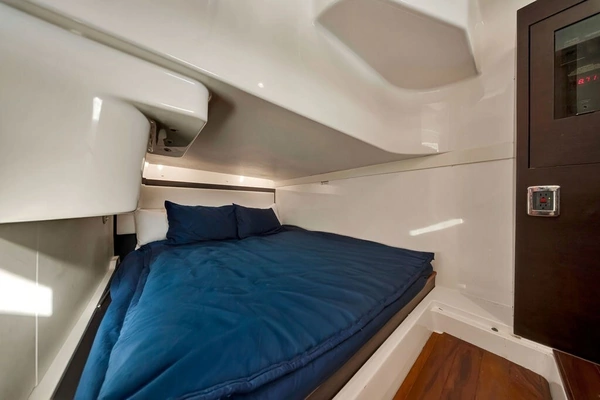

• Full beam stateroom with hull light port and starboard with shades
• 1 1/4” privacy door with locking latch and door catches
• Full stand-up head room
• 316L stainless steel opening port light with screen

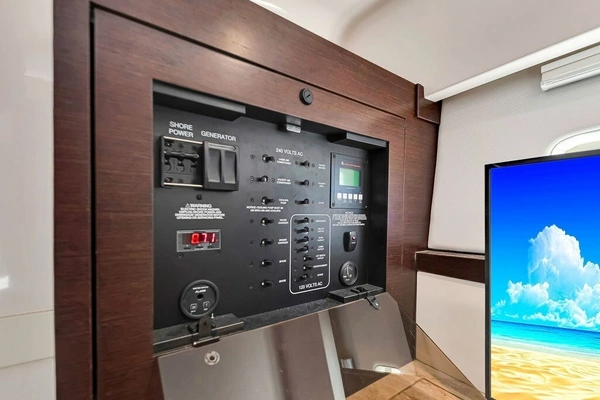

• Pursuit custom 240/120v MDP switch panel for cabin interior circuits and lights
• Hinged storage cabinet with adjacent upholstered seat
• Hanging locker with light
• Convertible bed berth for 2 persons with separating inner spring mattress feature
• CO detector
• 12v outlet
• 120v outlet with GFI protection

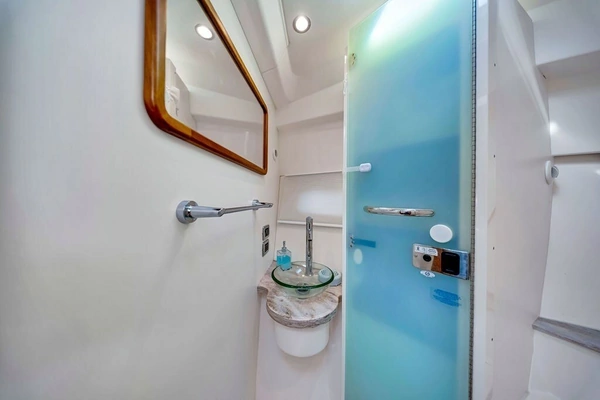

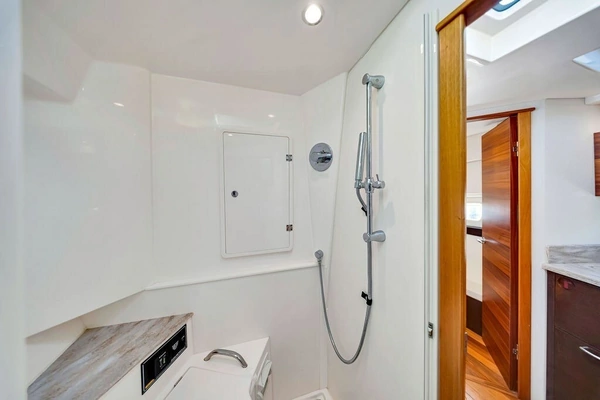

Head

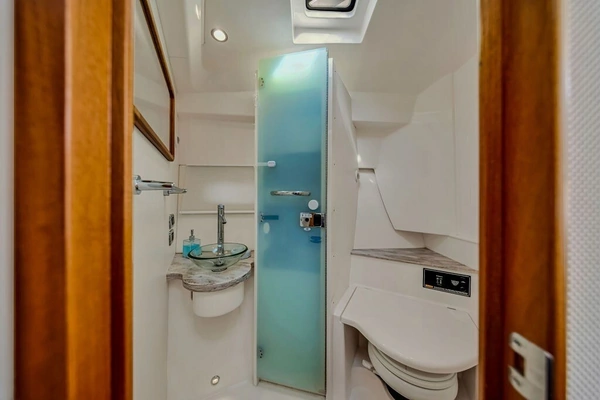

• Fiberglass enclosed head compartment with Corian® countertop
• Designer sink with vanity mirror and grab rail
• Custom and 1 1/4” wood framed entrance door with custom latch
• Full height storage cabinet with shelves
• Poly storage cabinet with shelves
• Toilet tissue holder
• Towel rack

Generator

• 240v/60 cycle 8.0 kw Panda diesel generator with sound shield
• EPA compliant lined 24 gallon fuel tank with engine pickups, shutoff valves and digital level indicator
• Custom built fuel lines with mechanically crimped fittings

Fuel System

• Single EPA compliant 300 gallon, dual fill (P&S) fuel tank with engine pickups, shutoff valves and digital level indicator
• Custom built fuel lines with mechanically crimped fittings
• Two Yamaha® water separating fuel filters with primer bulbs

Water System

• 75 gallon water tank with level indicator
• Custom built reinforced color coded water hose
• Fresh water distribution manifold with dedicated valves for each service line
• Pressure sensing pump
• 11 gallon 240v stainless steel water heater
• Dockside fresh water inlet with pressure regulator

Yamaha Outboard Power

• Twin 30” counter - rotating 5.4 L 350 hp four stroke engines
• Stainless steel, three blade Yamaha® Saltwater Series II SDS propellers
• Command link plus twin engine display
• Electronic twin engine binnacle control
• Key switch panel with safety lanyard
• Push Button Start Panel
• Dual Teleflex hydraulic steering cylinders
• Power steering
• 316L stainless steel tie bar
