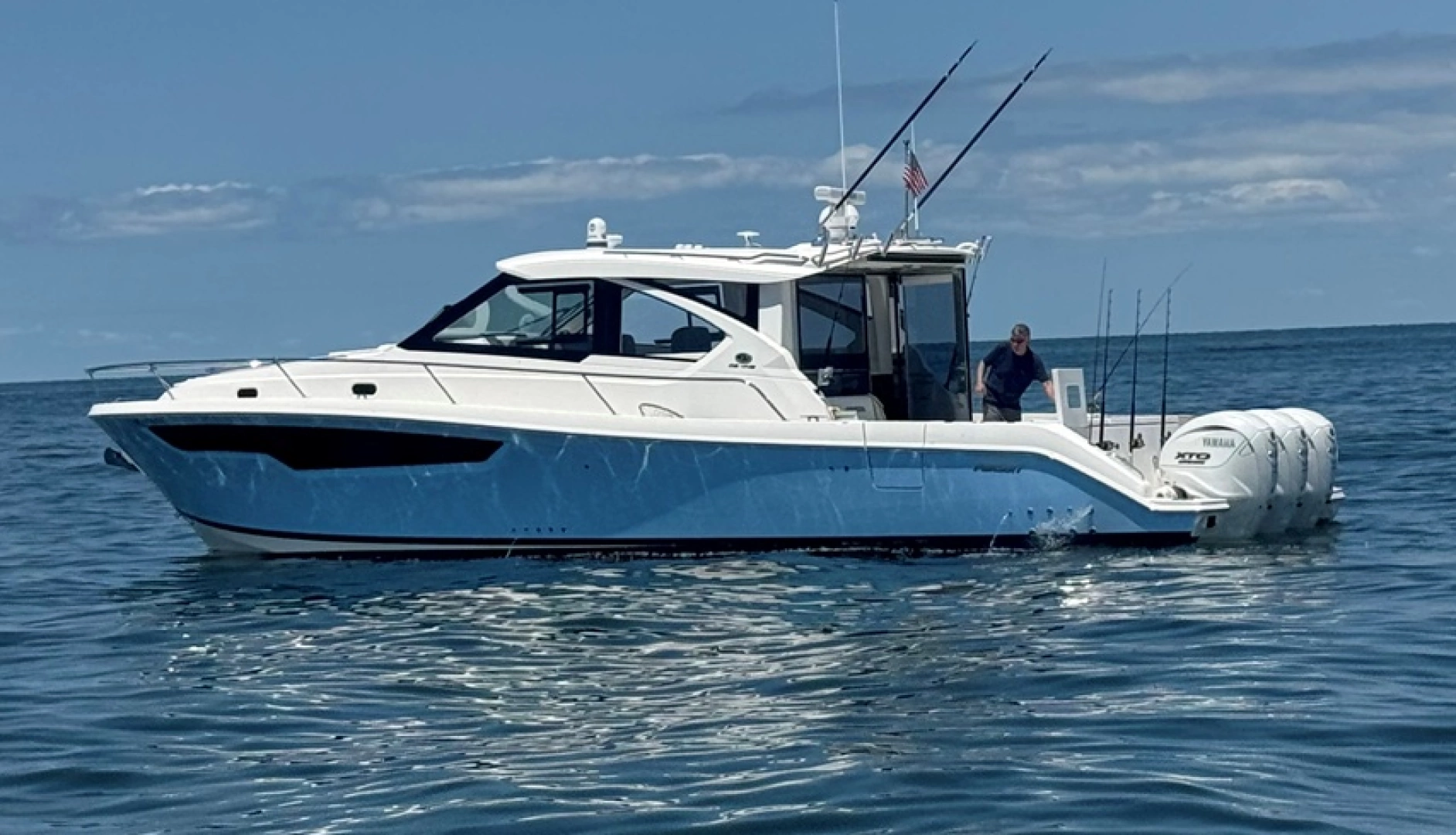

2025 Pursuit OS 445 Offshore

Hull Features

• Pursuit® Protection Plan:
• 5 Year Hull and Deck Structural Warranty
• 5 Year Blister Free Warranty
• 2 Year Limited Warranty
• Pursuit Fresh White Gelcoat and Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
• 27-Layer Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
• Infused Fiberglass Structural Grid System with Molded
• Finish and Integrated Bilge Water Management System
• Foam Filled Structural Grid
• Bronze Thru Hull Fittings Below Water Line
• Chrome over Bronze Thru Hull Fittings Below the
• 7 Degree Heel Line
• Stainless Clad Composite Thru Hull Fittings Above the 7
• Degree Heel Line
• T-Handle Bronze Garboard Drain
• Zipwake Dynamic Trim Control System, Series S
• Interceptors, Fully Automatic Pitch and Roll Control
• Bow Eye, 5/8" 316L Stainless Steel
• Integrated Transom Platform Extensions Outboard of Engines
• Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform
• Molded Hull Side Frameless Tempered
• Glass Windows
• Anchor System, Integrally Molded Thru-stem
• Dedicated Transducer Location
• Forward Hull Compartmentation with One (1) 1100 GPH
• Bilge Pump with Automatic Float Switch
• Two (2) 1500 GPH Bilge Pumps with Electric Switches and High-Water Alarm
• Bow Thruster, 5.4 HP (4.0kW) with Group 31 AGM
• Battery, Switch and Fuse

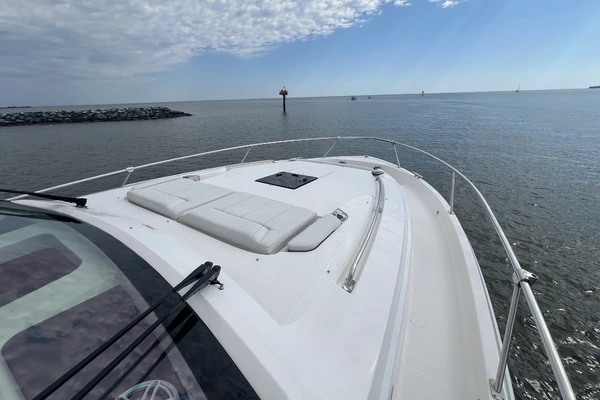

Deck Features

• Hull and Deck Joint: Mechanically Fastened and ThruBolted at Cleat Locations
• Rub Rail: High Density PVC with Solid 316L Stainless
• Steel Insert
• Transom Cap, 316L Stainless Steel
• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
• Cleats, 316 Stainless Steel, 12" (4-Spring, 2-Bow) and 10" Pop Up (2-Stern)
• Molded Recessed Hatches with Gaskets and 316L
• Stainless Steel Latches and Overboard Drain Tracks
• Flush Mounted Integral Anchor Locker, including:
• Fiberglass Lid with Gas Shock, Vertical Anchor Windlass with Switch at Helm and Remote at Anchor Locker, 316L
• Stainless Steel through Stem Anchor Roller with 10"
• Mooring Cleat, Chain Binder, 44lb Stainless Steel Plow
• Style Anchor, Self-Righting Swivel, 320' Rode (5/8" 8
• Plait Including 20' of G4 Chain), Fresh and Raw Water
• Quick Connect Fittings, and LED Courtesy Light.

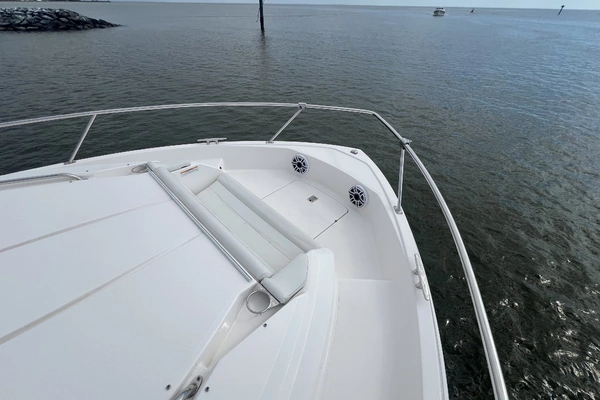

• Foredeck Cabana Area, Including: Flush Sun Pad with Chaise-Style Adjustable Backrests, Drink Holders, Grab Rails, and Sun Pad Cover
• Forward-Facing Bow Seat with Recessed Footwell,
• Armrests, Drink Holders, Dual USB Charger,
• Stereo Remote, Speakers, RGB Accent Lighting, and Seat Cover
• Courtesy Lighting
• Self-Draining Cockpit with Molded Water Management and 316L Stainless Steel Drainage Grates

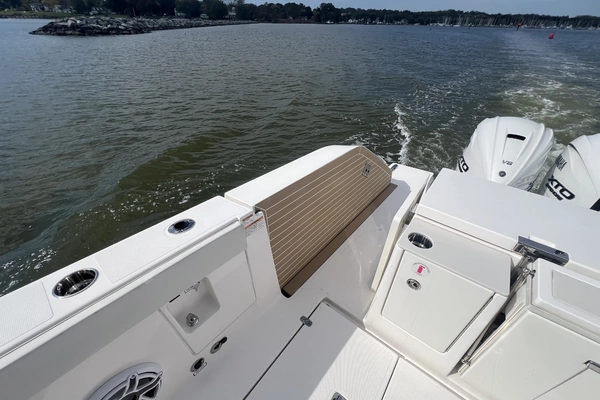

• Molded Transom Walkthrough with Multi-Position
• Hinged Transom Door
• Bow Rail, One-piece, Welded 316L Stainless Steel, with 1
• 1/4" Top Rail and 1" Stanchions

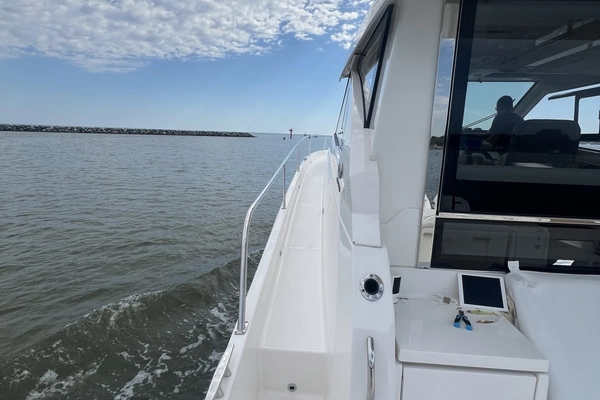

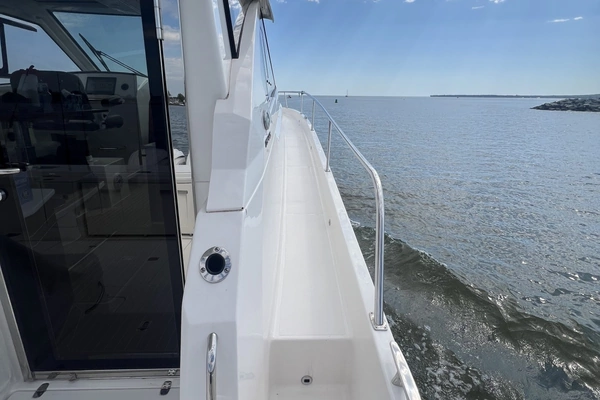

• Recessed Side Deck Bulwarks with Molded Access
• Steps from Cockpit and Courtesy Lighting
• Transom Grab Rails, 316L Stainless Steel
• (Port and Starboard)
• Single Level Splashwell Deck with Non-Skid for
• Athwartship Access
• Shore Power Inlet, 316L Stainless Steel
• Dockside Fresh Water Inlet with Pressure Regulator

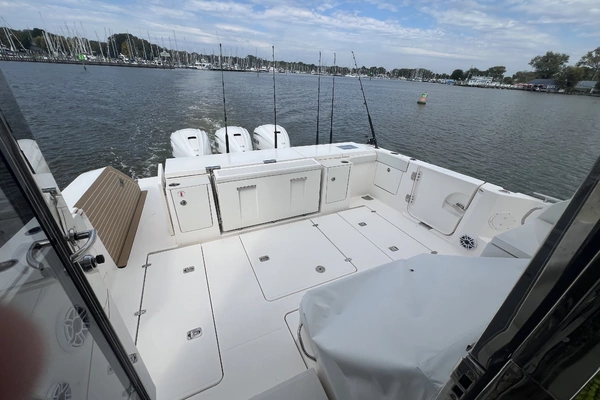

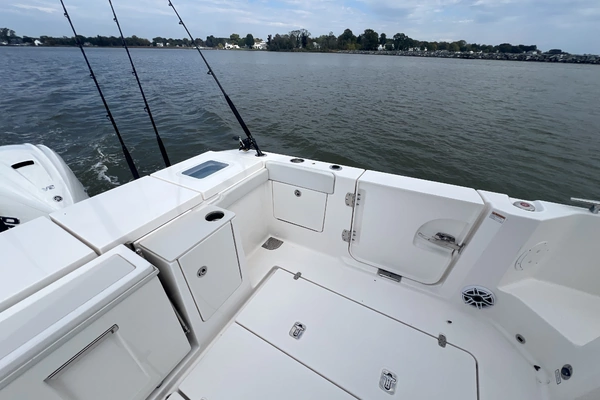

Cockpit Features

• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
• Full Cockpit Breathable Coaming Bolsters with
• Dri-Fast Foam
• Transom Sink with Hot/Cold Faucet, Cutting Board, and Fiberglass Lid
• Molded Cockpit Entertainment Center with Electric Grill,
• Hinged Fiberglass Lid, and Dedicated Storage Below with
• 120V GFCI Protected Outlet
• Aft-Facing Mezzanine Seat with Folding Armrests, Drink
• Holders, USB Charging Port, Stereo Remote, A/C Vent and Storage Below
• Custom Molded Cockpit Table with Dedicated Storage
• Folding Transom Seat (patent pending): Extra Thick Seat
• Cushion with Auto Flip-Up Backrest, Grab Rails, and Low
• Maintenance Seat Face with Solid Surface Top when Stowed
• Extra Deep Drink Holders, 316L Stainless Steel
• Cockpit Machinery Access Hatches (2 - Fwd & Aft) with
• LED Lights and Integrated Access Step
• Fresh Water Cockpit Shower with Hot/Cold Mixing Valve and Pull Out Sprayer
• Raw and Fresh Water Outlets in Cockpit with Quick
• Connect Fittings and 25' Coil Hose
• Engine Flush System with Quick-Connect Garden
• Hose Fittings
• Hull Side Boarding Door, Inward Opening (Port Side) with
• Heavy-Duty 316L SS Hardware and Swim/Dive Ladder
• Keyway Plate
• Hull Side Boarding Platform, Outward Opening, ElectroHydraulically Actuated (Starboard Side) with Synthetic
• Teak Decking and Swim/Dive Ladder Keyway Plate
• Removable Dive-Style Telescoping Ladder (1) for Hull
• Side Door and Platform (with Dedicated Storage)
• Compartment Under Bridge Deck Step with Storage for
• 5-Gallon Bucket, 2 Large Fenders, and Gear
• LED Cockpit Courtesy Lights with Waterproof Switch in Cockpit
• Cockpit Fire Extinguisher

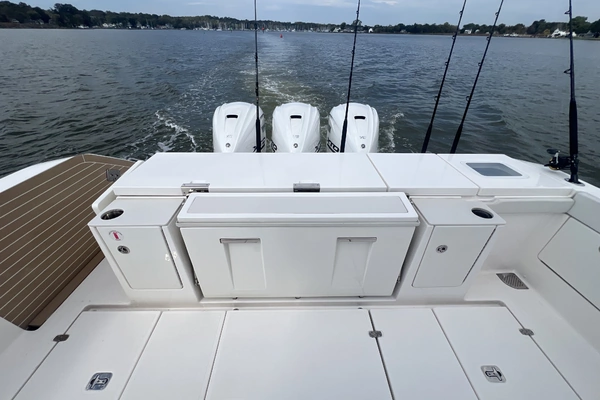

Fishing Features

• Rod Holders, Gunwale and Transom
• Transom Livewell, Lighted Oceana Blue (50 gallons)
• Recirculating and Insulated with Fiberglass Lid and
• Acrylic Window (Port)
• Cockpit Tackle Storage at Transom and Port Coaming
• with Dedicated Space for Tackle Boxes
• Fish Boxes, Three (3) Totaling 239 gallons
• Transom (75 gallon) Insulated, Refrigerator/Freezer with Digitally Controlled Thermostat and Overboard Drain
• Cockpit Floor (2 @ 82 gallons) with Molded Foam
• Insulation, and Dedicated Diaphragm Pumps with Overboard Discharges (Port & Starboard)
• Rod Storage, Lockable, in Cabin
• Aluminum Reinforcement Plate (port side) for
• Downrigger Installation

Hardtop & Windshield

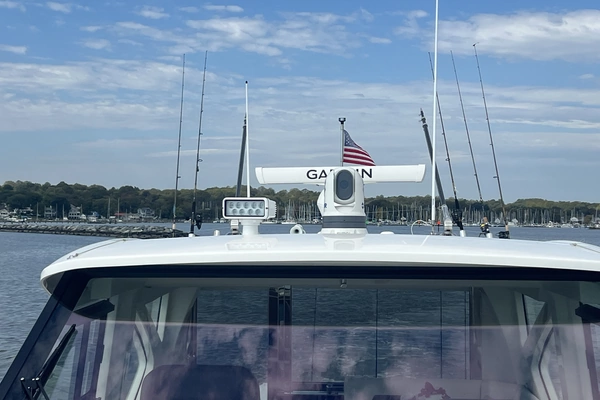

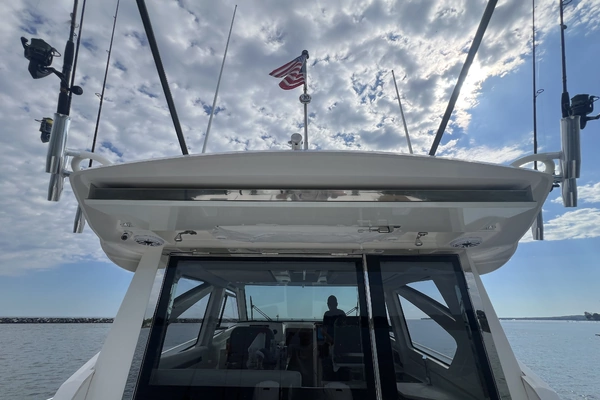

• Molded Fiberglass Full Beam Hardtop with Visor
• Custom Front Windshield System with Optically Clear
• Laminated Glass with Integrated XIR Film and Removable Mesh Privacy Cover
• Pantograph Windshield Wiper System with Fresh
• Water Washer
• Tempered Side Glass with Dual Sliding Side
• Vent Windows
• Electrically Actuated Anchor/Stern LED Lights with
• Burgee Rings and Embroidered American Flag
• Navigation Lights, LED, 2-Mile (Integrated into Hardtop)
• Electrically Actuated VHF and AM/FM Antennas
• Tri-Color LED Overhead Lights (6)
• Two (2) Aft Facing Spreader Lights
• Ventilation Hatches with Dual Purpose Screens/Shades (Port and Starboard)
• Integrated 316L SS Grab Rails (Exterior Port & Starboard)
• Integrated 316L SS Grab Rails (Interior Headliner)
• Air Horn, Trumpet
• Dedicated Radar, Antenna, and Outrigger Locations

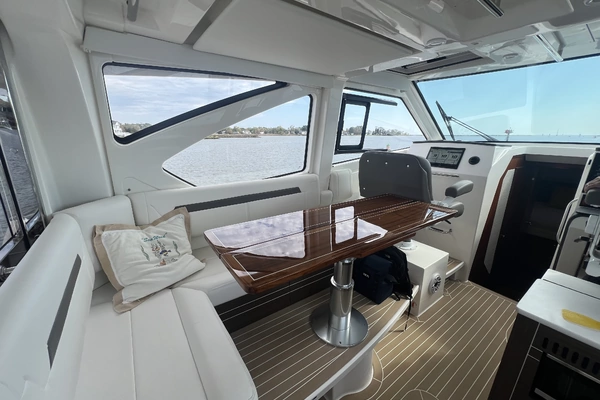

Bridge Deck

• Synthetic Teak Flooring
• L-Shaped Lounge with Top-Load Adjustable Refrigerator/Freezer and Large Storage Drawers Beneath
• Bridge Deck Table, Removable
• End Table with Solid Surface Top, Drink Holders,
• Climate-Controlled Bottle Storage, Drawer Storage, and Trash Receptacle
• 240V/60 Cycle Bridge Deck Air Conditioning with Reverse
• Cycle Heat, 26,000 BTU (16K BTU Port / 10K BTU Stbd)
• Smart TV, Fold-Away Ceiling-Mounted (Electrically Actuated)
• Audio Entertainment System: Custom-Tuned JL Audio
• Stereo System with Bluetooth® Compatible Media Master
• MM105-HR Hidden Source Unit, Helm-Mounted Volume
• Control Knob, Premium M6 Coaxial Speakers with Full
• Spectrum Backlighting (Controlled Through MFDs) and
• Sport Grilles - 7.7" (4 Cockpit, 4 Bridge Deck), 6.5" (2
• Bridge Deck), 8.8" (2 Bow), 10" Subwoofers (2), DSP
• Amplifiers, Full-Function Remote (Bow), Wireless Remote
• Control, FM Antenna with Electrically-Actuated Base, and SiriusXM Satellite Receiver with Antenna (Includes 3 Months Subscription)
• Note: for visibility purposes, the two forward Bridge Deck speakers are not backlit
• Accent Lighting, Full Spectrum with Control Panel
• Direct/Indirect Lighting
• Storage Hatch, Center Bridge Deck Floor
• Side Window Interior Privacy Shades
• Removable Mesh Shade for Front Windshield

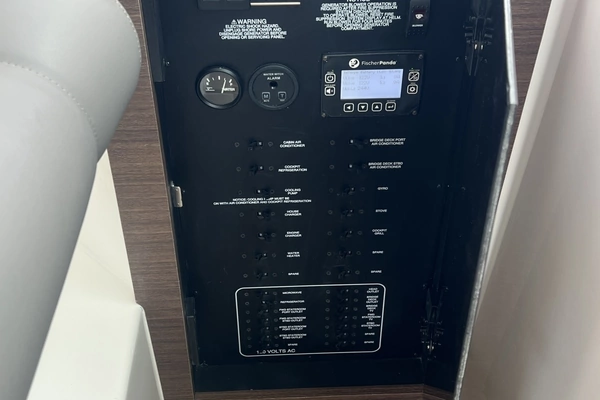

• AC Main Distribution Panel

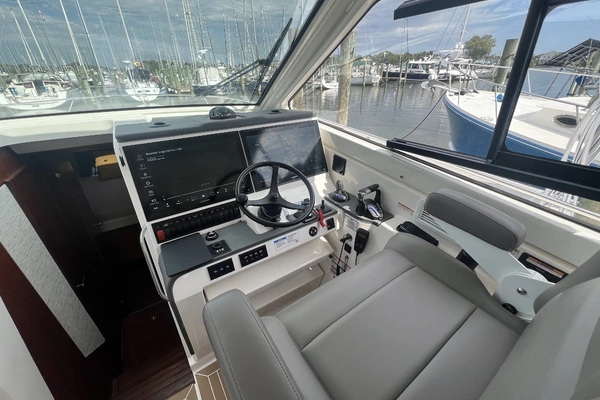

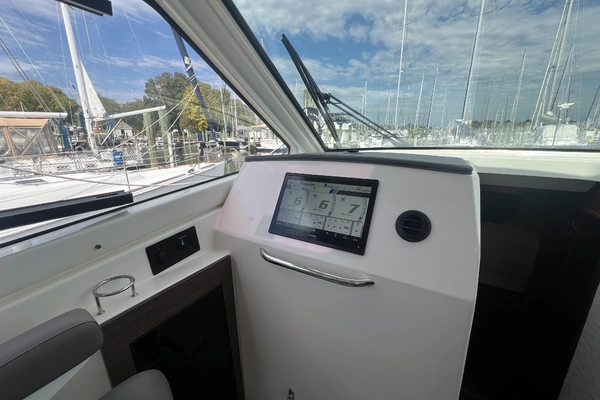

Helm

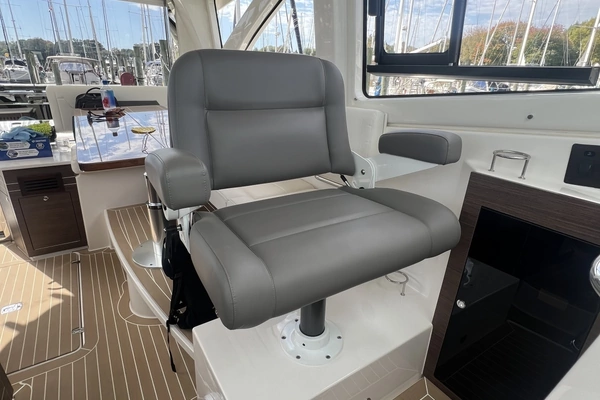

• Captain’s Helm Seat: Stidd™ Electrically Operated
• (Up/Down/Fore-Aft Adjustments), Folding Armrests, and Custom Upholstery
• Portside Companion Seat: StiddTM Electrically Operated
• (Up/Down) and Manual Adjustments (Fore-Aft, and 180°
• Swivel), Folding Armrests, Custom Upholstery, Fold-Down
• Footrest, and Storage Beneath
• Molded Helm Panel with Accent Visor and Electronics
• Mounting Surface (Accommodates Dual 22" MFD’s)
• Custom Helm Accents
• Wireless Phone Charger
• Fold-Down Platform Step (for Secondary Standing Operating Position)
• Synthetic Teak Flooring
• 12V Switch Panel with Illuminated Rocker Switches and Backlit Function
• Steering Wheel, Matt Black Finish, with Control Knob and Non-Slip Grip on Yamaha Electric Steering Control with Programable Steering Friction
• Bow Thruster Joystick Control
• Ritchie® Navigator Compass
• Zipwake Dynamic Trim System Control Panel
• JL Audio MM105-HR Hidden Source Unit (Full-function
• Control on Garmin® MFDs), Helm-Mounted Volume Control
• Knob, and USB Input
• Helm Drink Holder
• 12V Outlet (1) and Dual USB Charger (1)
• Helm Fire Extinguisher

Electronics

• Garmin® Electronics Package: Dual Premium GPSMAP 9022 with Pursuit Custom Dash Panel, Remote SD Card Reader, GSD25 Sounder Module, B175M 1kW CHIRP
• Transducer, NMEA 2000 Starter kit, Yamaha MFDI
• Interface, and VHF Radio with Antenna and ElectricallyActuated Base
• SirenMarine® Connected Boat® Smart Boat Monitoring & Theft Deterrent System: Siren 3 Pro Main Device with Mobile App Interface, GPS Vessel Tracking and Sensors for Battery, Shore Power, Bilge and Security Monitoring (Includes 3 Month Subscription)

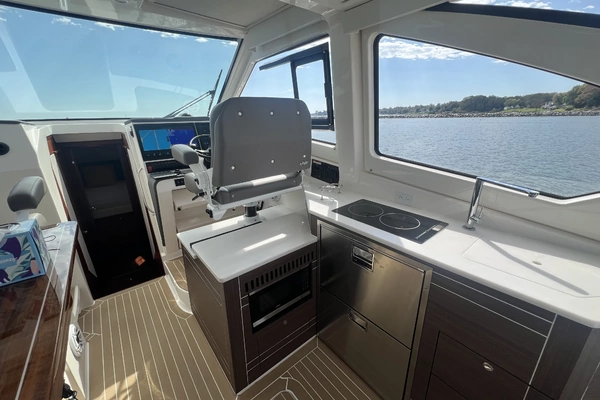

Galley

• Located in UP Position (Starboard Bridge Deck)
• Corian® Galley Countertop
• Sink with Faucet and Cutting Board
• 240V Bridge Induction 2-Burner Glass Cooktop with Touch Controls and SilKEN® Mat
• Microwave Oven, 120V Stainless Steel (0.7 cu. ft.)
• Refrigerator/Freezer, 2-Drawer (7.5 cu. ft.)
• Galley Lower Storage Cabinet with Large Storage Drawers
• 120V Outlet with GFCI Protection (1)
• Fire Extinguisher
• DC Main Distribution Panel Cabinet

Cabin

• Full Fiberglass Cabin Deck Liner
• Full Fiberglass Hull Liner with Sound
• Dampening Insulation

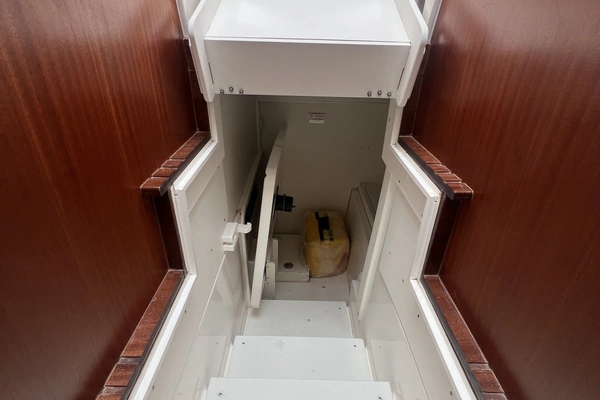

• Cabin Entry Steps with Handrail and Wood Treads
• Custom Solid Wood Tongue and Groove Flooring
• Solid Wood Veneers on Interior Cabinetry
• 240V/60 Cycle Cabin Air Conditioning with
• Reverse Cycle Heat, 16,000 BTU
• Main Cabin Switch Panel
• Accent Floor Lights
• Overhead Lights
• Indirect Strip Lighting

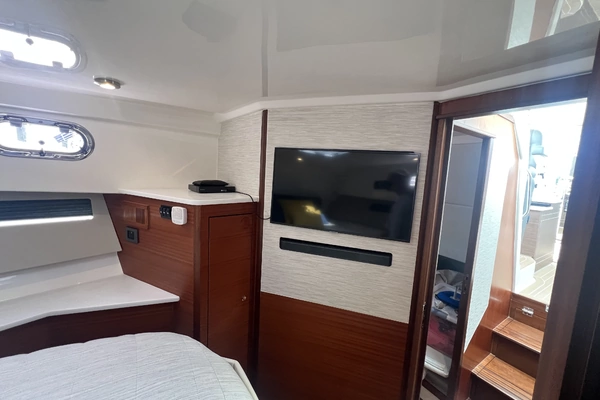

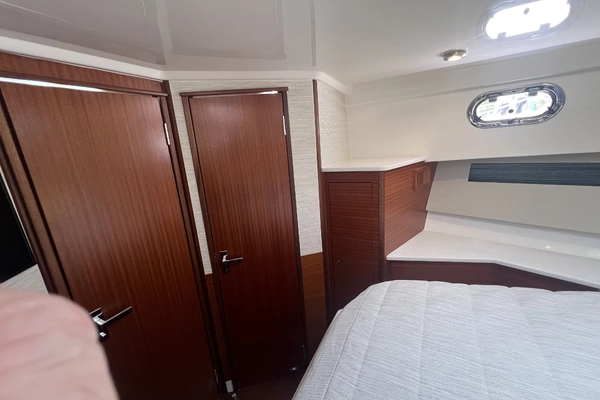

Primary Stateroom

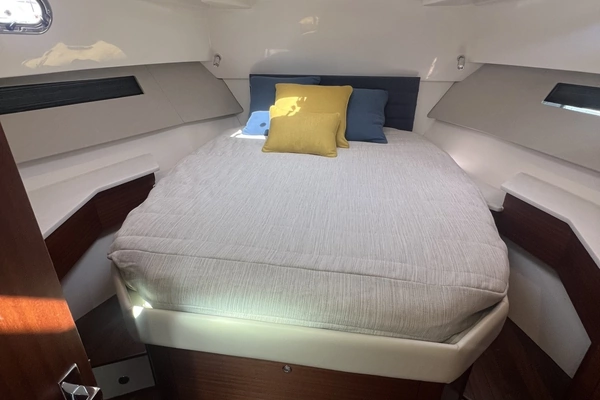

• Island-style Berth with Queen-Size Memory
• Foam/Innerspring Mattress, Gas-assisted Mattress
• Base with Trunk Storage, and Drawer Storage Below
• Nightstands (Port & Starboard) with Corian® Tops,
• GFCI-Protected Outlets, and USB Charging Ports
• Reading Lights
• Hanging Lockers (2) with Integrated Shelving
• Smart TV, 32" with Flush-Mounted
• External Sound Bar
• Tempered Glass Hull Side Windows (Port &
• Starboard) with Custom Window Trim with Marine
• Grade Pleated Blinds
• Portside Vanity
• CO Monitor
• Fire Extinguisher

Starboard Stateroom

• Mattress with Storage Below
• Starboard Settee
• Overhead Lights
• Courtesy Light
• Hanging Locker with Integrated Shelving
• Smart TV, 24" with Custom Cabinetry Surround
• Tempered Glass Hull Side Window with Custom
• Window Trim with Marine Grade Pleated Blinds
• Portlight Window
• Rod Storage
• USB Charging Ports (2)
• 120V GFCI-Protected Outlets
• CO Monitor
• Fire Extinguisher

Utility Area

• Access Through Hinged Cabin Entry Steps
• Dedicated Gear Storage
• Mechanical Space

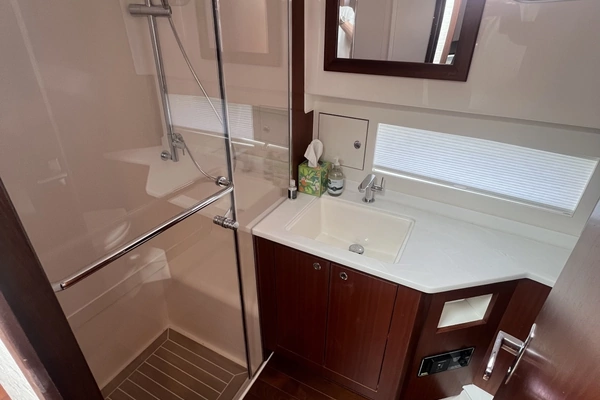

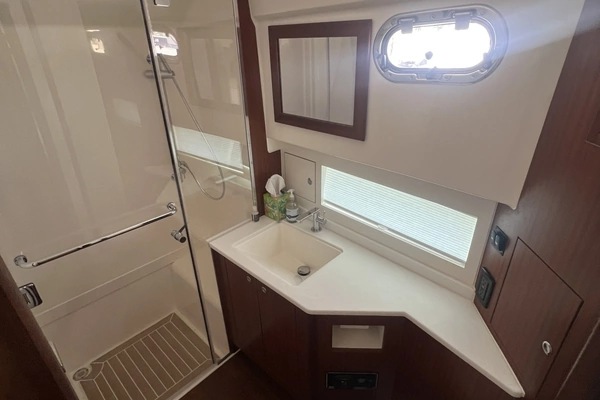

Head

• Fiberglass Private Head Compartment with Two Entry
• Doors (One Private Access from Primary Stateroom)

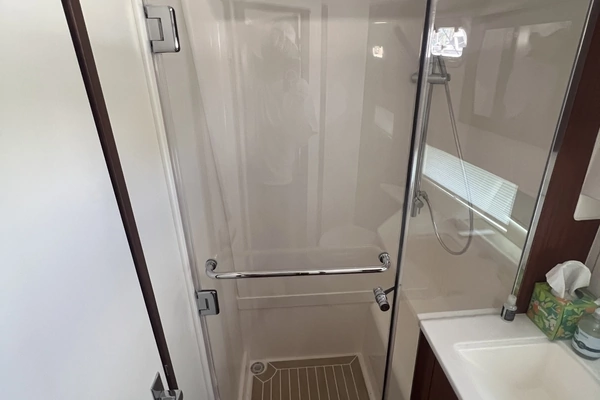

• Separate Shower Compartment with Acrylic Partition
• Wall and Door, and Shower Wand with Hot/Cold
• Mixing Valve
• Corian® Countertop with Sink, Hot/Cold Faucet and
• Storage Cabinet Below
• Upper Vanity Mirror
• Vacuum Flush Elongated Marine Head with 22 Gallon
• Holding Tank, Macerator Discharge Pump, 316L
• Stainless Steel Deck Pump-out Fitting and Bronze Thru
• Hull Fitting with Seacock
• Tempered Glass Hull Side Window with Custom
• Window Trim with Marine Grade Pleated Blinds
• Portlight Window
• Toilet Tissue Holder
• Towel Rack
• 120V Outlet with GFCI Protection
• Two-Switch Panel with LED Overhead Lights and Floor
• Accent Lighting
• A/C Vent
• Shower Sump Box Drain with Automatic
• Discharge Pump

Electrical System

• UL® Rated Fully Tinned, Color Coded Copper Wire
• Custom In-House Built, Heat Sealed, Mechanically
• Crimped, Color Coded Battery Cables
• Custom In-House Built, Electrical Harness with
• Waterproof Connectors and Chafe Protection
• Powder Coated, Aluminum, Screen Printed (Front and
• Back) Battery Switch and Breaker Panel
• Bonding System: Thru Hull Fittings Below Water Line, Zinc Anode and Garboard Drain
• Seven Battery System: Port Engine (1), Center Engine
• (1), Starboard Engine (1), Electronics (1) (AGM), House (2) (AGM) and Bow Thruster (1) (AGM)
• One (1) 40 Amp Battery Charger for House, Electronics and Bow Thruster Batteries
• One (1) 25 Amp Battery Charger for Engine Batteries
• 12V Outlets and USB Charging Ports
• Grounding Bus Bar
• Single 240V 50 Amp 60 Cycle Dockside Power
• Connection with 50' Cord and Electric Retractable
• Cord Reel
• 120V Outlets with GFCI Protection

Aft Mechanical Space

• Molded Interior White Gel Coat Structural Foundation
• Molded Hatch with Gasket and Stainless Steel
• Gas Spring
• Molded Bilge Sump Area
• Mechanical Space Access Ladder (removable)
• One (1) 1500 GPH Bilge Pump with Electronic
• Switch and One (1) 1500 GPH Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
• Raw Water Pump with Inline Filter, Seacock and Thru Hull Fitting
• Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
• Dedicated Fish Box Diaphragm Evacuation Pumps
• Dedicated Storage for Side Door/Platform Boarding
• Dive Style Telescoping Ladder
• Stern Anchor, 4 lb. Aluminum Adjustable Fluke-Style
• with 50' of 1/2" Anchor Rode, 5' of 1/4" G4 Chain, and
• Custom Pursuit Storage Bag
• Battery Service Slide System, 316L SS (Port and Starboard)

Fwd Mechanical Space

• Seakeeper 6 Gyro Stabilizer: Includes Comprehensive Structural Integration, Seakeeper Factory Certified Installation, Recreation Gold Warranty (4 Year or 3000 Hours, Direct Seakeeper Support)
• Water Heater, 6-Gallon
• Fresh Water Pressure Sensing Pump with Filter
• One Low Profi le 1100 GPH Bilge Pump with Integrated
• Float Switch, with Stainless Steel Clad Composite
• Thru Hull Fitting

Fuel System

• EPA Compliant 600 Gallon Aluminum Fuel Tank
• with Engine Pickups, Shutoff Valves, Digital Level
• Indicator, and Deck Fuel Fill Plate
• Custom Built Premium Fuel Feed Lines with
• Mechanically Crimped Fittings
• Three (3) Yamaha® Water Separating Fuel Filters with
• Primer Bulbs

Water System

• 50 Gallon Water Tanks (2) with Single Point Level
• Indicator and 316L Stainless Steel Deck Fill Plate
• Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
• Pressure Sensing/Variable Speed Pump with Filter
• Fresh Water Distribution Manifold with Dedicated Valves
• Dockside Fresh Water Inlet with Pressure Regulator
• 6 Gallon Stainless Steel Water Heater, 240V/60 Cycle

Generator

• 120/240V, 60 Cycle 12 kW Fischer Panda Diesel Generator with Sound Enclosure and Service Slide
• EPA Compliant Lined 24 Gallon Rotomolded Fuel
• Tank with Engine Pickup, Shutoff Valve, Digital Level
• Indicator, Water Separating Fuel Filter and 316L
• Stainless Steel Deck Fill Plate
• Automatic Fire Suppression System

• Artic Blue Hull Color
• Black boot stripe
• White/Gray Upholstery
• Tranquil Seas interior fabric
• Underwater lights
• Bridgedeck Electric table
• Spotlight
• Hardtop mounted rod holders
• Outriggers 18ft
• Retractable Sunshade
• Bow sunshade with poles
• Engine covers - Sunbrella
• SiriusXM weather receiver
• Garmin GC-14 rear camera
• FLIR night vision camera
• Garmin Open Array Radar
• Companion Seat Garmin 8616
