Pegasus

THE FOLLOWING IS AN ADDITIONAL EQUIPMENT LIST ADDED SINCE THE CURRENT OWNER'S PURCHASE IN 2017

ENGINE/DRIVE TRAIN:

200Amp Balmar alternator with controller and conversion kits

Bruntons SigmaDrive is a constant velocity joint which allows the propeller shaft to rotate without transmitting the engine's movements or vibrations

Gori 25" 3-blade Folding Overdrive Propeller

2 replacement seals for dripless shaft mounted

All new fresh water hoses installed on engine

New salt water pump, starter motor, and fresh water pump

New automatic Fireboy extinguishing systems in engine and generator compartments

New engine compartment vent fan

Hydrovane Self Steering unit-Custom mounted with regular and stubby flag

MAX Power 24 V Bow Thruster with 2 X 12 Volt AGM batteries for power

Custom 12 V to 24 V Sterling battery charging system for bow thruster

DECK:

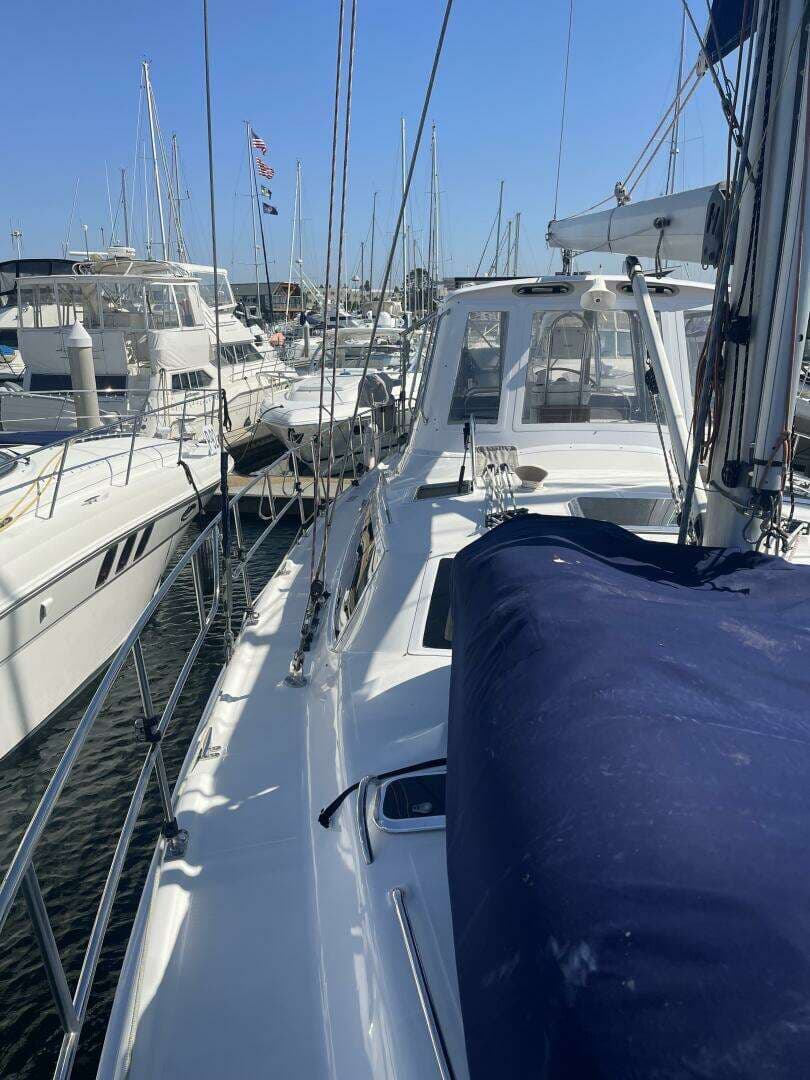

Stainless steel hand railing around the entire boat linking to pulpits

Stainless steel step for bow sprit to permit safe point to stand and attach spinnaker furler or manage the anchor

Stainless steel additional bow sprit support rod for larger anchor

Rocha 40 anchor which is 2 sizes over original with oversized swivel

New Lewmar V Series Windlass installed 2023

Fortress backup anchor

2 additional cleats on stern-one on each side

2 Stainless steel hand holds on both forward head and shower hatches which stops forward sail sheets from getting caught on hatches

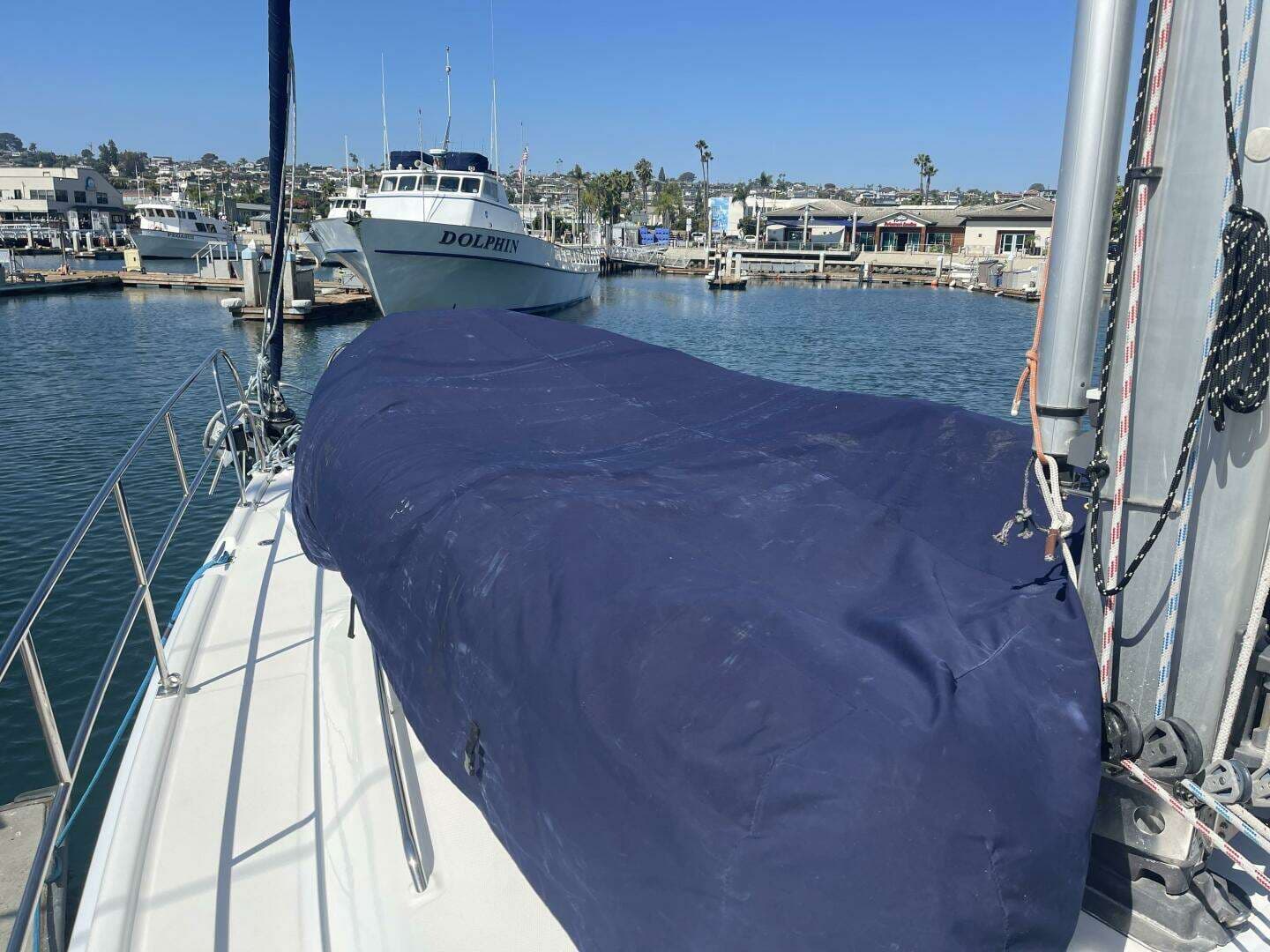

4 custom dinghy mounts on the forward deck which allows easy dinghy storage on the front deck in addition to davits at the stern

All new salon windows with custom fiberglass trim pieces

All hatches removed and reseated

New hatch windows installed where needed

Gas shocks added to all locker deck lids

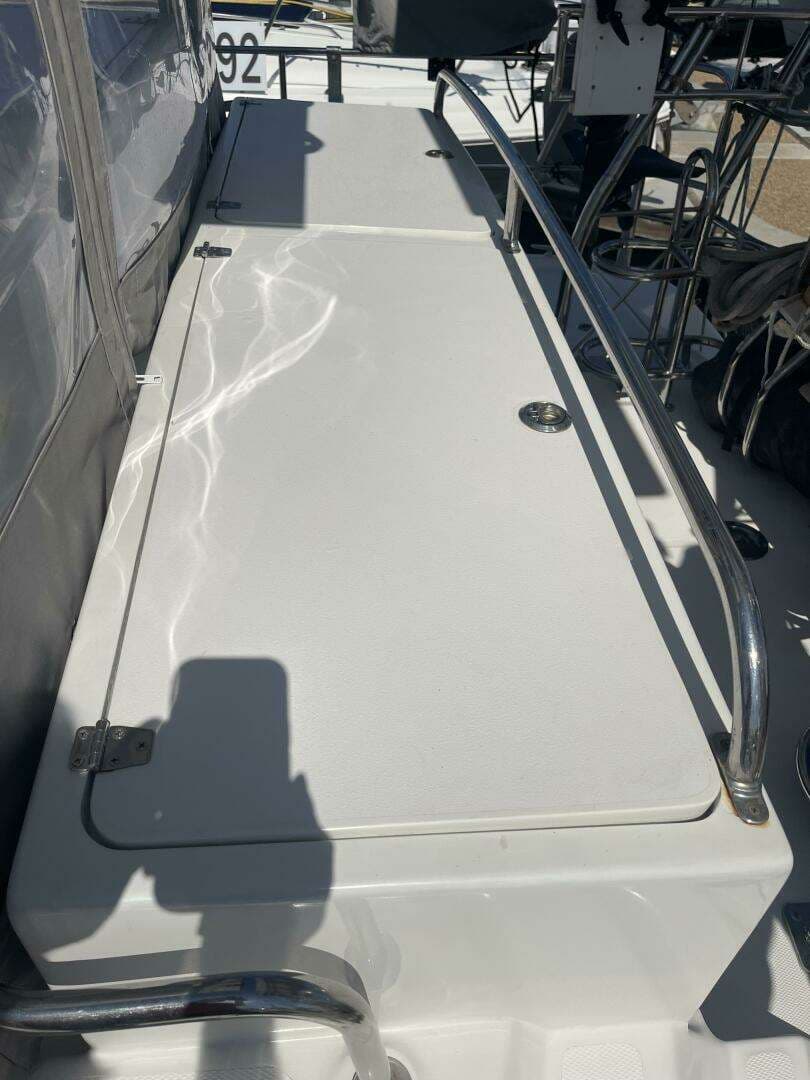

6' X 2' fiberglass custom locker added to the rear of the cockpit which looks original. Stainless hand hold was mounted on the top

Dinghy davits were raised 18" for head room and higher dinghy storage

Custom holders for life raft and sea anchor added to dinghy davits

4 Stainless steel racks installed for scuba tanks on rear deck

COCKPIT:

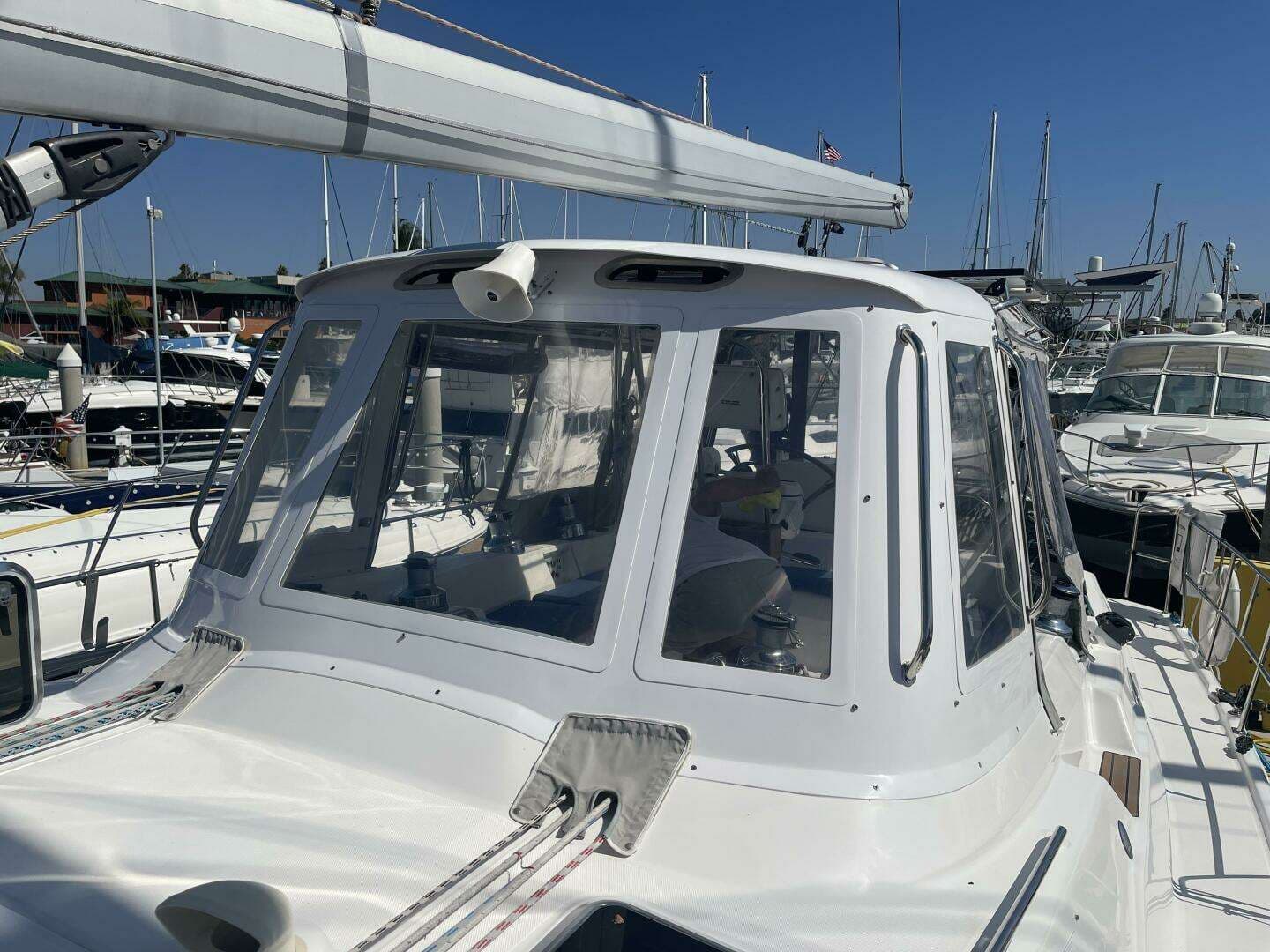

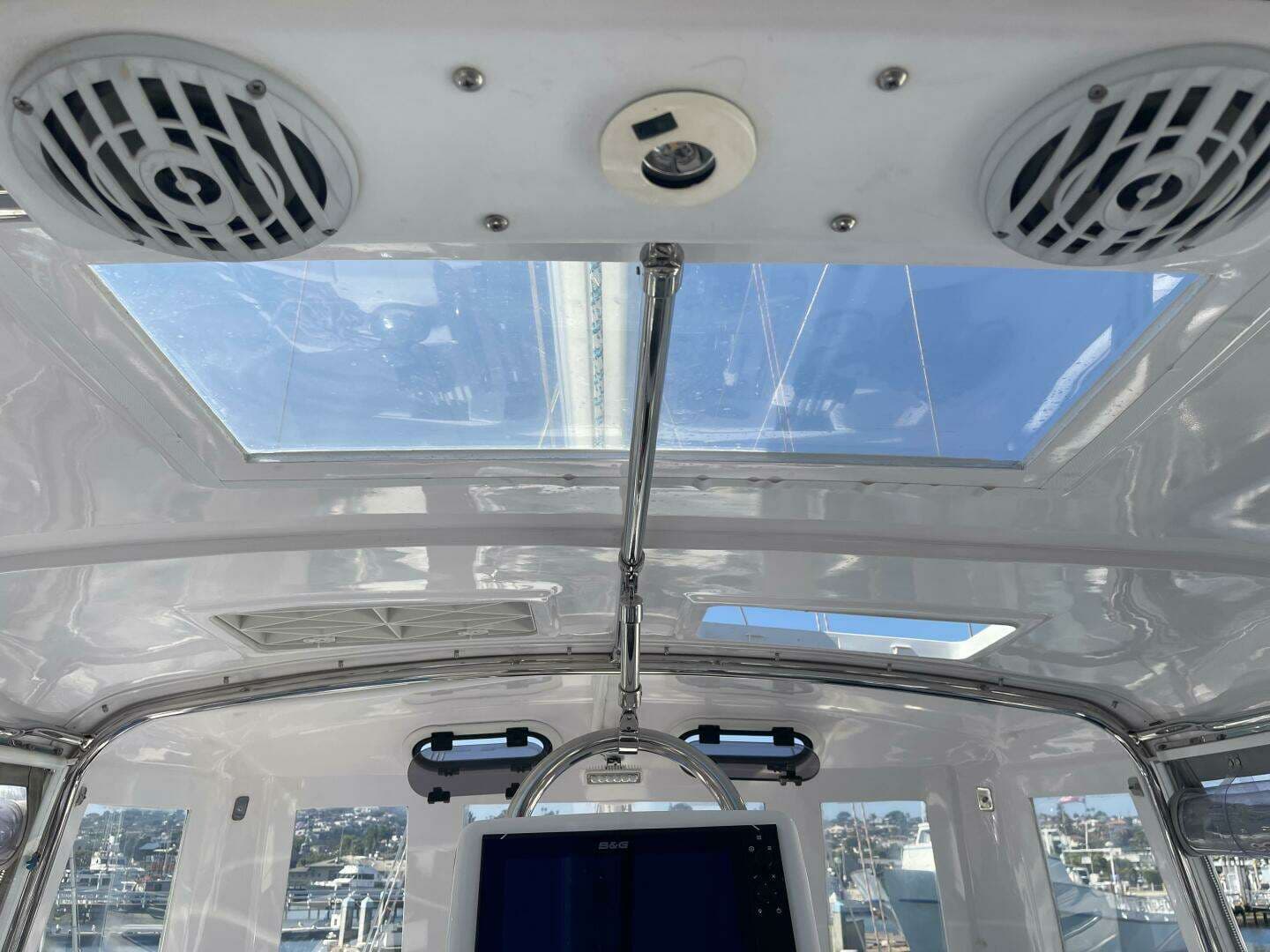

Custom designed hard fiberglass dodger with Lexan windows including two vertical SS hand holds on each side. A fiberglass eyebrow was built in to reduce glare and two opening windows were included for visibility

Stainless steel hand holds run along the entire length of both sides of the fiberglass cockpit top

Dodger and hard top are supported by the original arch and custom stainless steel structure

Two Stainless cross bars on rear of the hardtop support the solar panel mounting

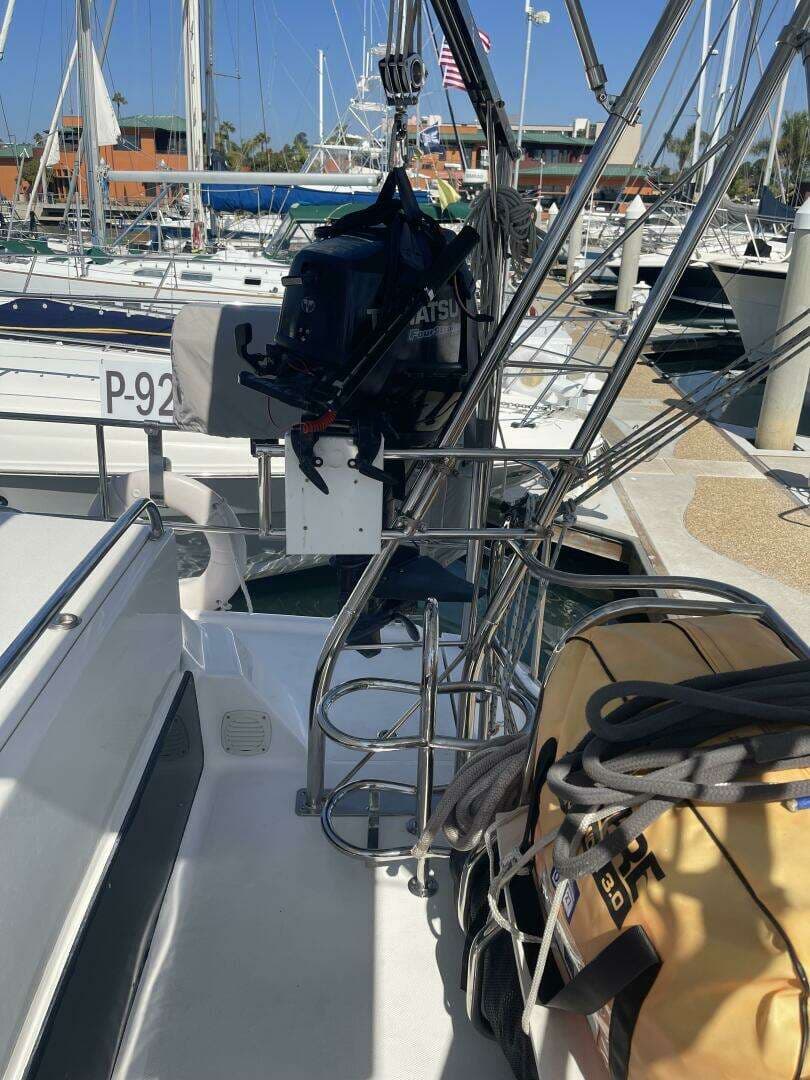

Garhauer lifting davit for outboard motor and custom motor mount for storage

Custom aluminum powder coated solar panel mounts on top of dinghy davits

Custom powder coated Starlink antenna mounted on dinghy davits

SS mounts on dinghy davits for Iridium GO antenna, GPS antenna and AIS antenna

Custom Sunbrella with Isinglass enclosing the cockpit for cold and rainy weather. For warmer weather Sunbrella with Phifertex screens enclose the cockpit.

Custom fiberglass locker 28 X 28 X 21 was added behind the wheel. It looks original.

ELECTRONICS:

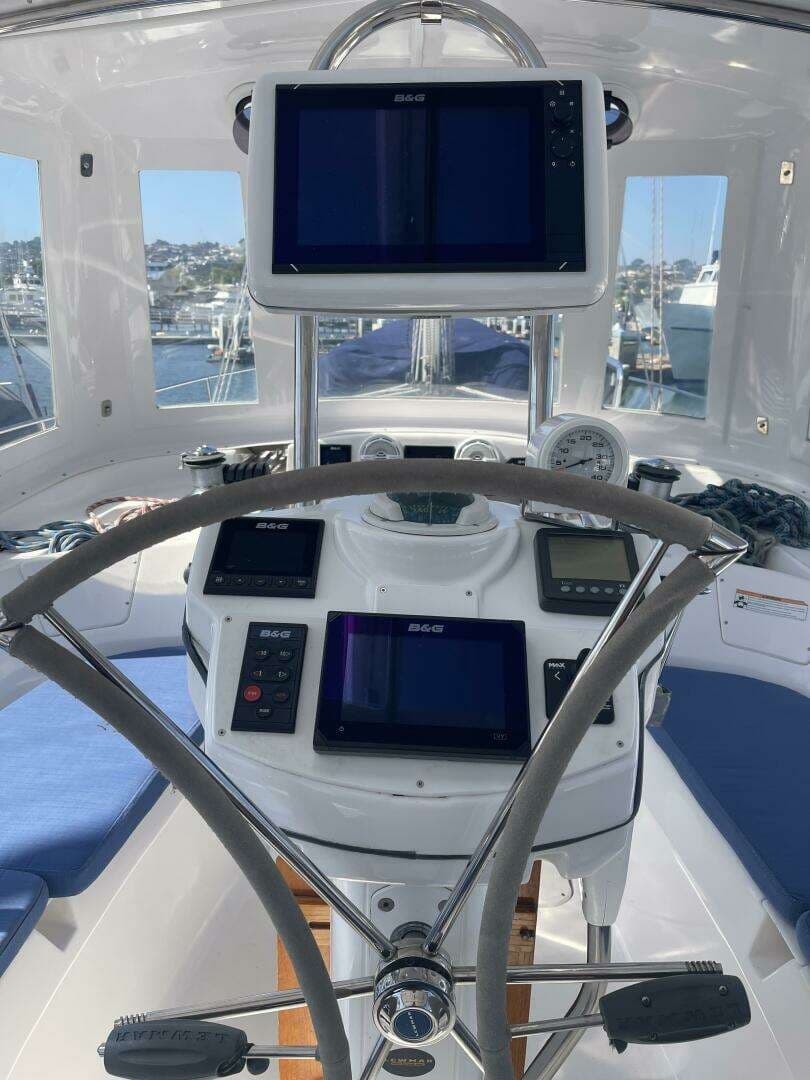

ZEUS 3 12" Chartplotter with US and South Pacific Charts, Broadband 4G Radar

Vulcan 7" Chartplotter

3 X Triton 2 instrument displays

NAC Autopilot controller with remote handheld controller and pedestal mount controller

Octopus 12" hydraulic arm and Octopus 2 liter reversing piston pump

B&G Model V50 VHF with 2 remote handheld controllers and an AIS receiver only.

AIS receiver only built into VHF

EMTRAC AIS Type B transceiver with independent isolated antenna and independent GPS antenna

Starlink Marine Large Antenna mounted on davits with modem mounted in saloon

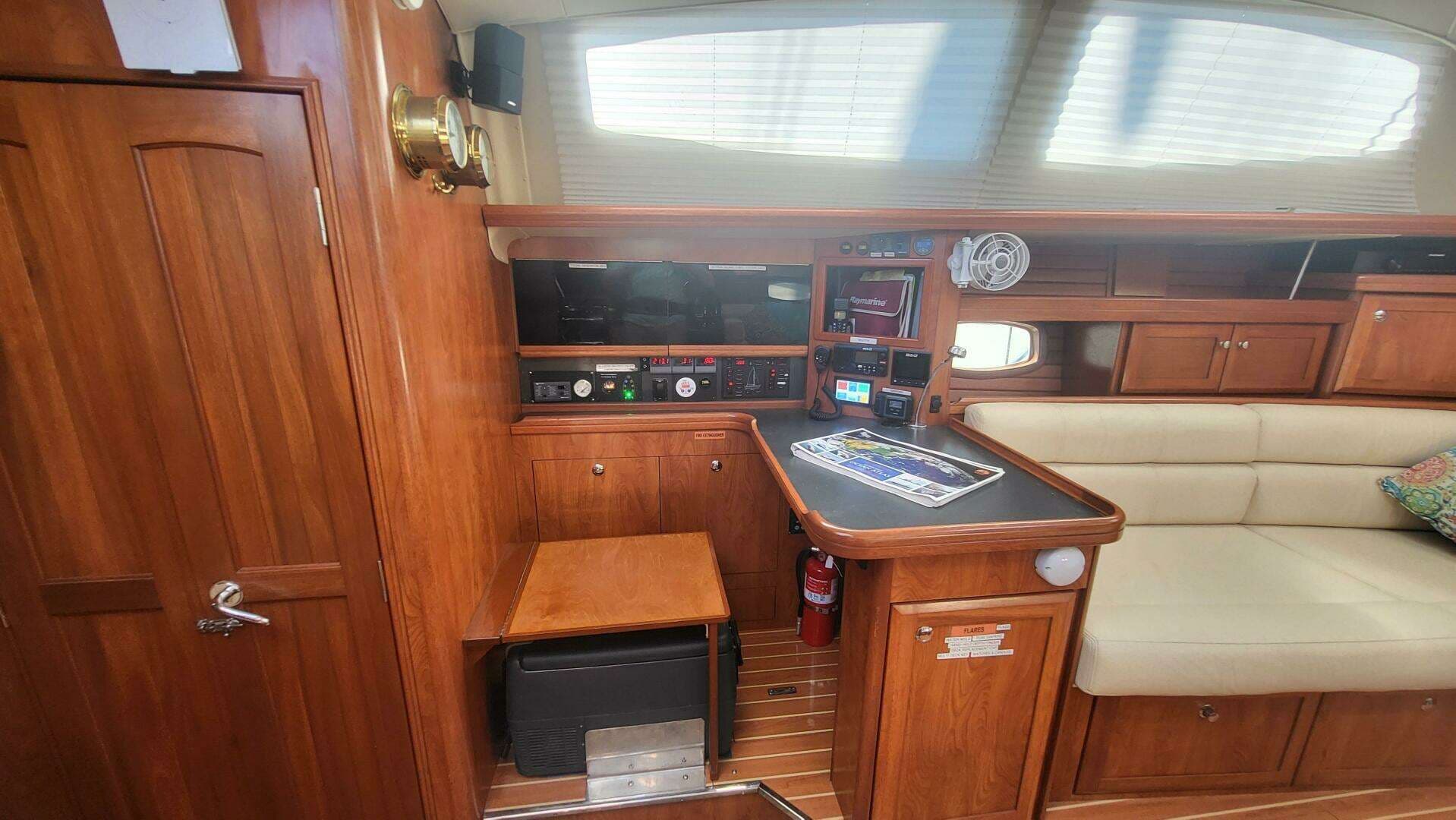

Iridium GO mounted at chart desk with external antenna mounted on davits

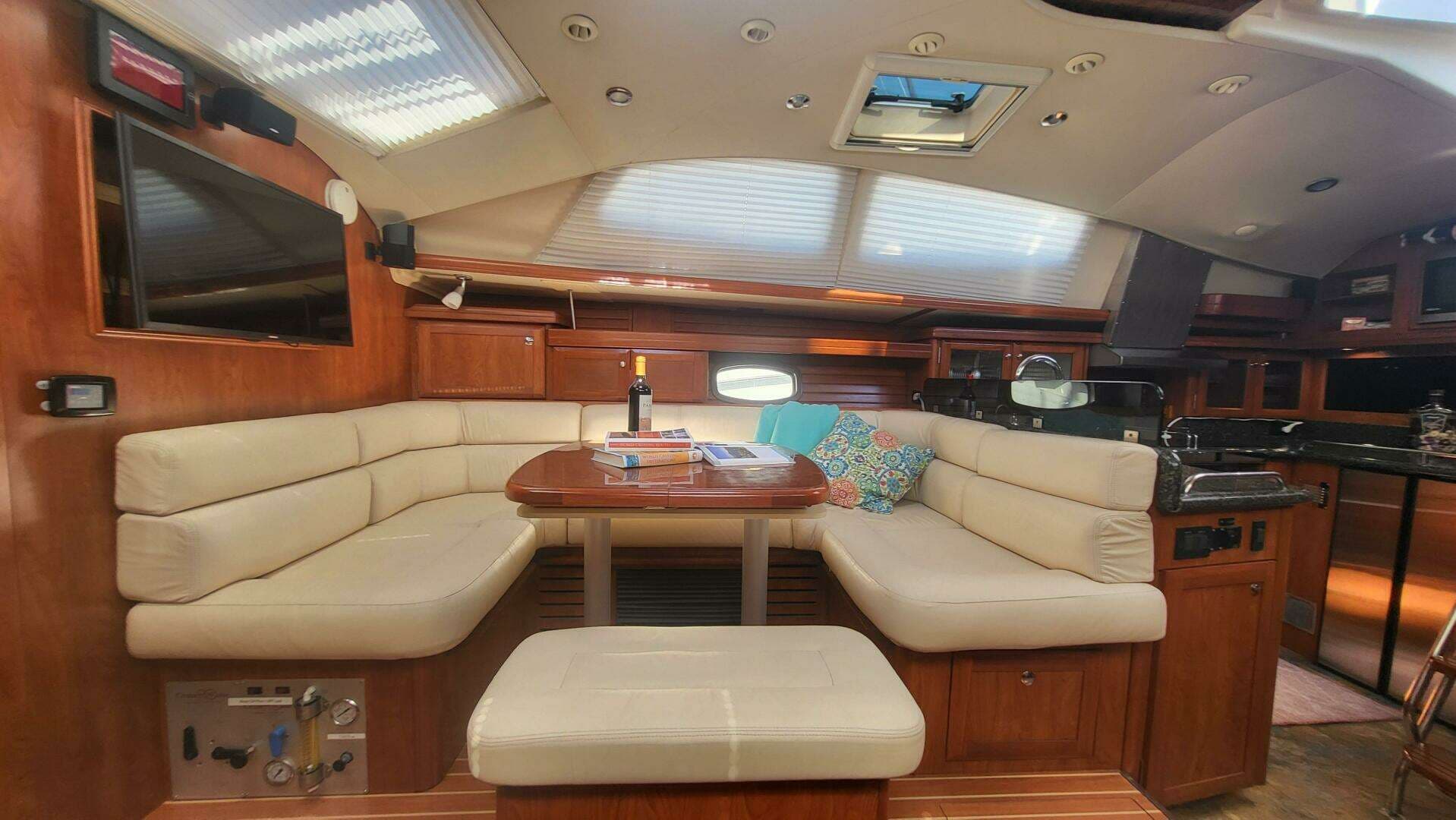

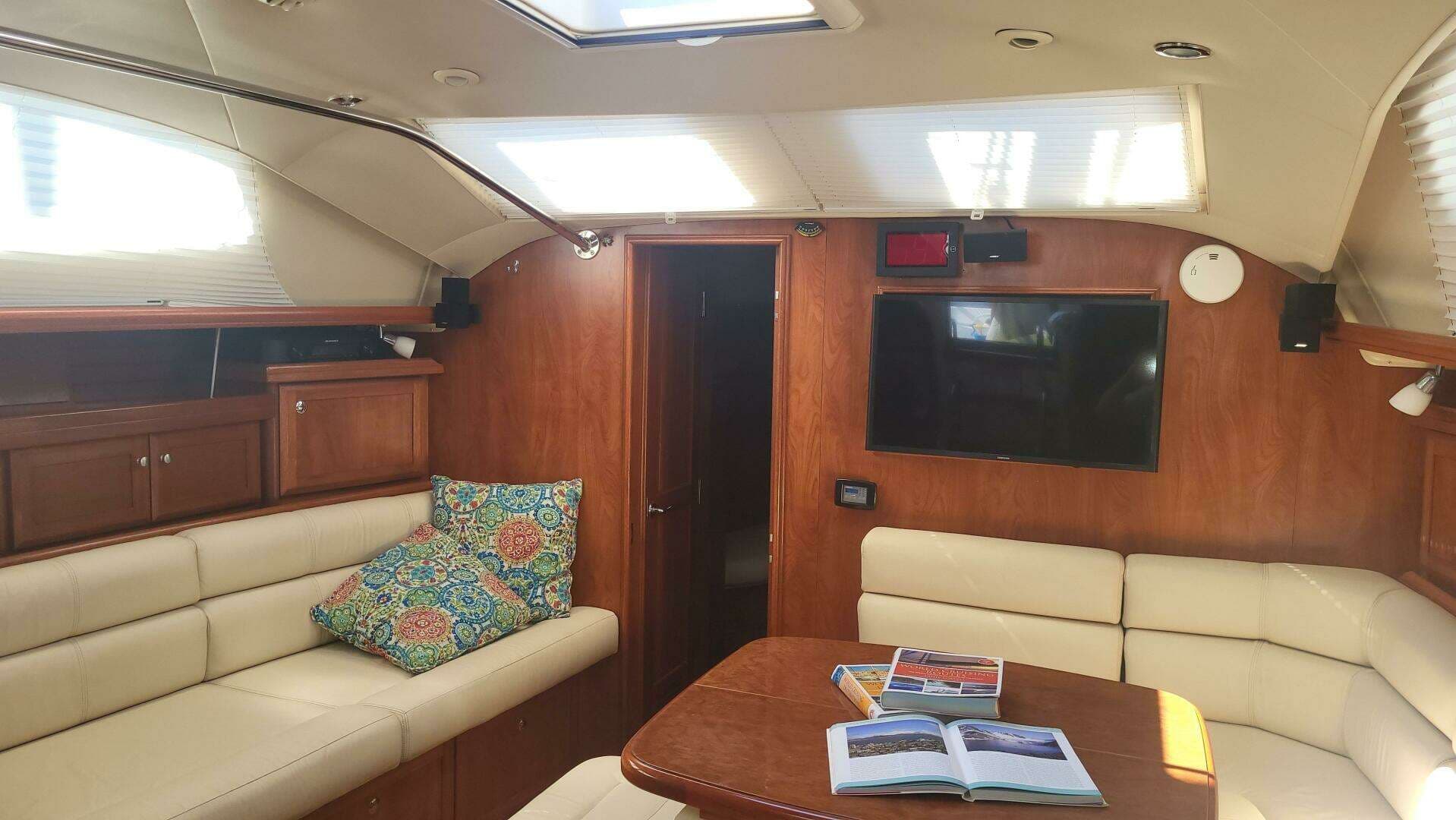

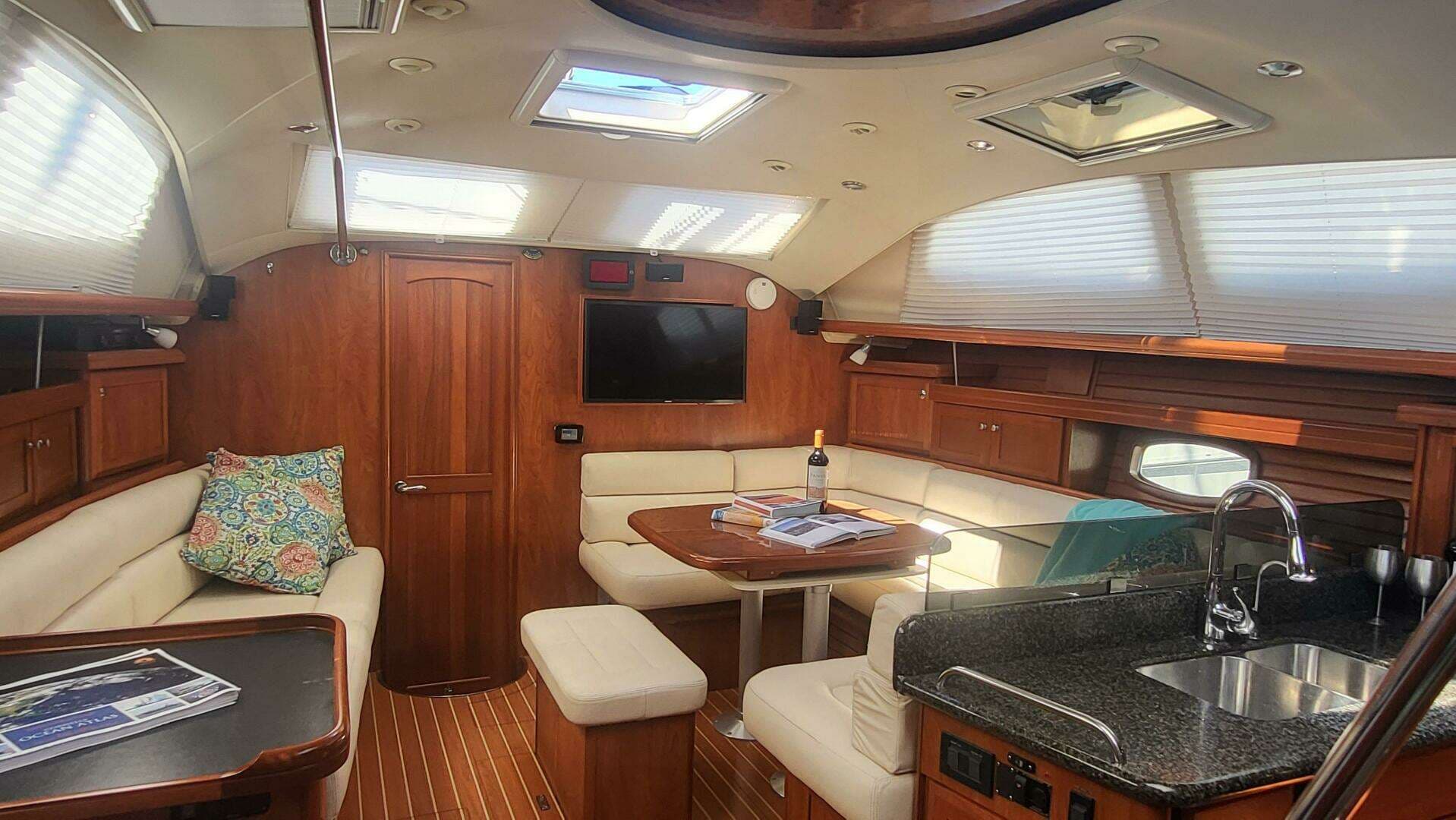

INTERIOR:

Master cabin area includes custom closets on both sides of a queen sized bunk

Under area of bunk was made into a large tool storage area

Several SS hand holds added in both cabins and saloon

New Whale Gulper shower drain pumps were added to both showers

Replaced electric toilet pumps and pump out pumps for the tanks

All septic hoses for both heads were replaced with odor preventing hoses at a cost of over $1,000

2 Webasto 16K AC units added to master cabin and saloon

Automatic drain boxes added on each side of saloon

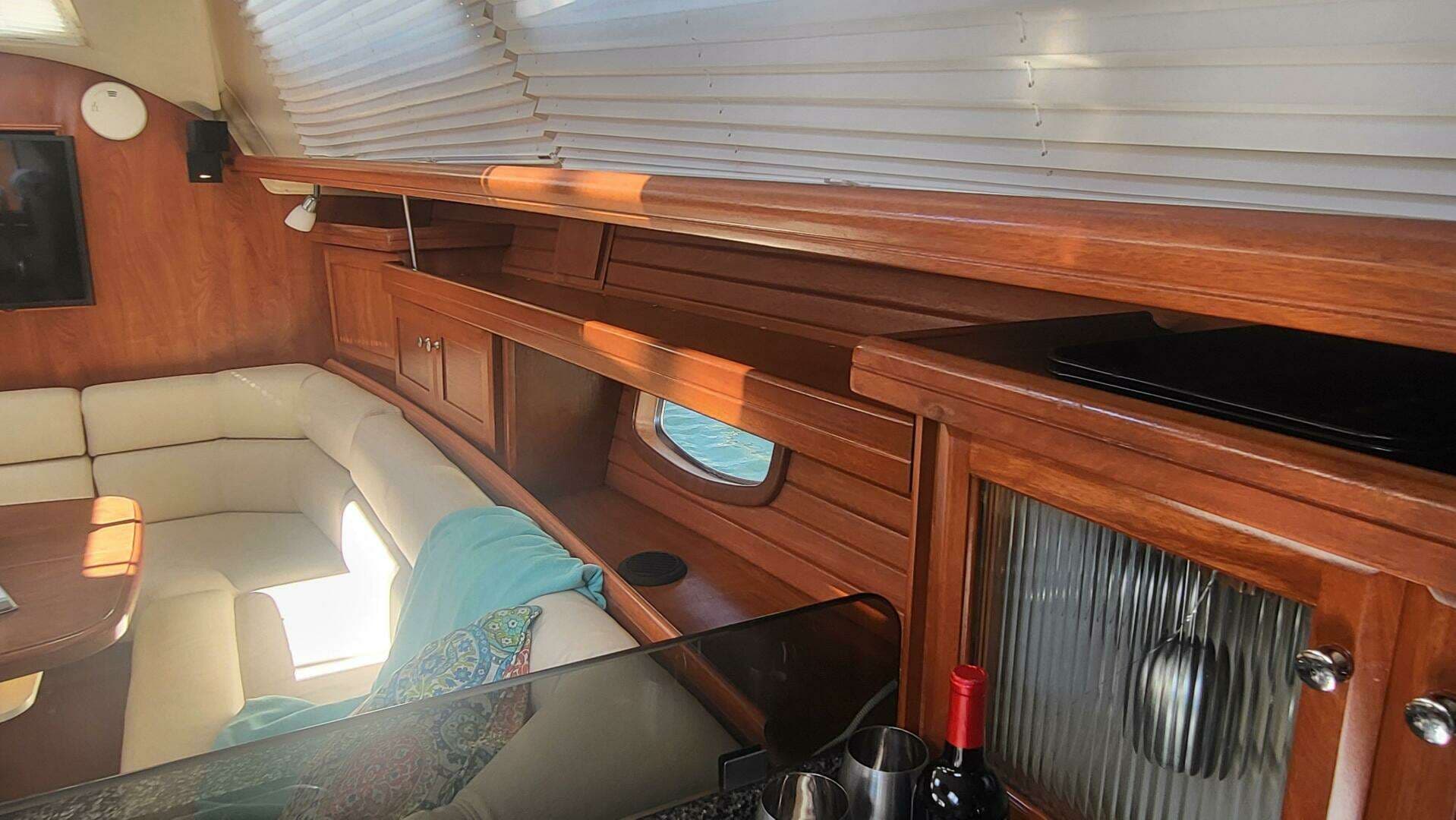

Twin custom built cabinets added on each side of saloon

Exterior SS vent added to kitchen cooking area

Splendide Washer/Dryer added to utility closet

Diesel heater installed for saloon and master cabin areas

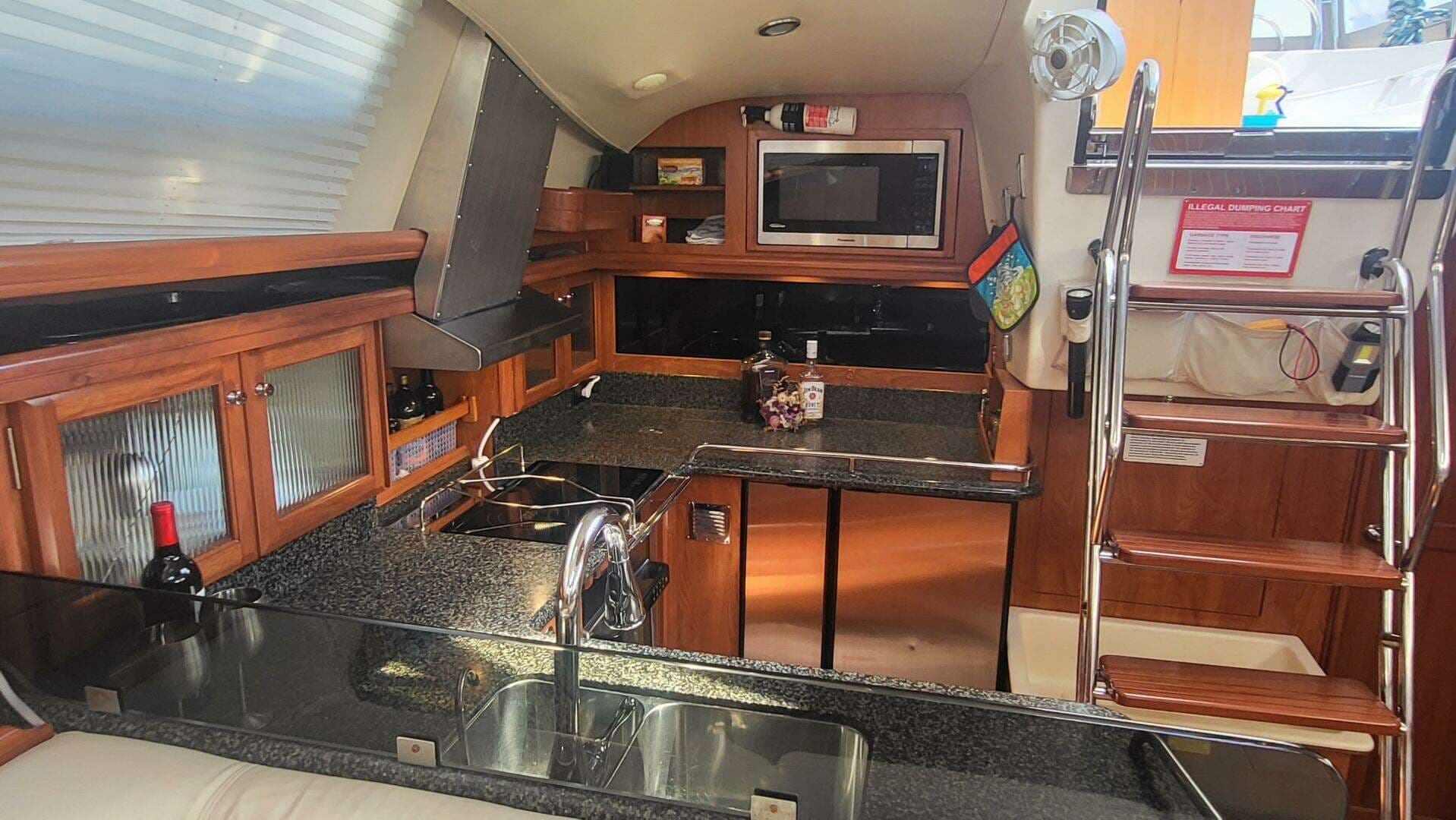

Custom SS gimballed electric oven and 2 place induction cooktop

New kitchen faucet, Whale pressure tank and water pump

ELECTRIC:

1200 AH Victron Battery System with Victron BMS and 4 X 300 AH Victron LiFePO4 batteries. These are the safe lithium batteries which don't catch on fire.

2 x 3000 Watt 120 V Victron Multiplus Inverters which generates full 240 Volts for AC and water heater

Victron 6" monitor system

Victron 712 Battery Monitor

Victron 12 V to 12V battery charger for starter battery

AGM starter battery replaced this year

1600 watts solar panels with 3 X MPPT Victron controller units

All electric kitchen with 2 place induction cooktop and air fryer/oven on custom ss gimball

1200 watt Panasonic microwave

3 refrigerator/freezer systems

Cruise RO 30 gallon/hour watermaker that can operate on batteries and solar power

Replaced 11 gallon water heater

Replaced 50 gallon water heater with a 55 gallon diesel tank

New separate 30 amp AC input to independent Victron 70 amp battery charger which allows connection to any power source around the world to charge the house batteries. It will take any power source from 100 volts to 230 volts. No changes or settings have to be made-just plug it in.

RIGGING:

All standing rigging was replaced with upgraded shrouds and fittings. Most running rigging was replaced at the same time, 2019

New LED lights on mast and deck lighting

2:1 setups added to spinnaker and cutter sail halyards

All cockpit clutches had replacement parts exchanged

New whisker pole installed which makes sailing downwind without a problem

New asymmetrical spinnaker on a continuous furler added

New storm sail for cutter sail position on continuous furler added

New mainsail and jib added

DINGHY:

2017 Highfield 310 Ultralight Dinghy with a custom cover

Custom fiberglass forward locker

9.8 H.P. Tohatsu outboard

BOOKS:

Nigel Calder "Boatowner's Mechanical and Electrical Manual, A Guide to Fixing Everything on Your Boat"

John F. Dagel and Robert N Brady "Diesel Engine & Fuel System Repair"

Beth A. Leonard "The Voyager's Handbook, The Essential Guide to Bluewater Cruising"
