2026 ILIAD Catamarans 53S

For sale

2026 ILIAD Catamarans 53S

Dania Beach, Florida

$1,979,000

Inquire about this yacht(954) 560-2811
2026 ILIAD Catamarans 53S, photo 1 of 41
1 / 41

About This Yacht

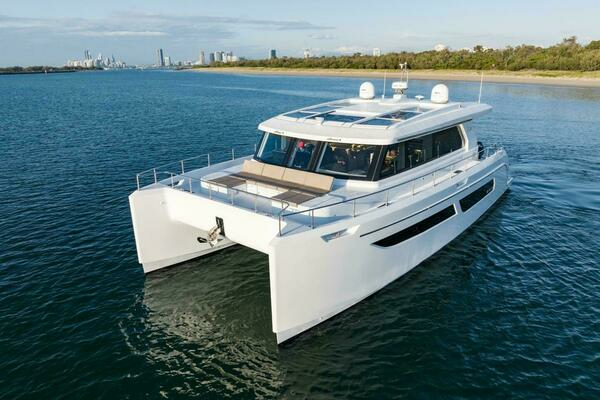

The non-flybridge version of the ILIAD 53F, the ILIAD 53S offers a sporty silhouette, spacious interiors, eco-friendly performance, and luxurious accommodations. Standout features include a forward lounge, master suite, well-equipped galley, and outdoor entertainment area.

Specification

The Numbers

Length overall
53'
Year
2026
Builder
ILIAD Catamarans
Model
53S
Beam
25'
Draft (max)
4'
Cabins
3
Heads
3
Maximum speed
24 Knots
Cruise speed
18 Knots
Fuel type
Diesel
Fuel capacity
925 Gallons (3,501.5 Liters)
Fresh water
211 Gallons (798.72 Liters)
Displacement
57320
Hull material
Fiberglass
Hull shape
Catamaran
Hull type
Power
Condition
New
HIN / IMO
XXXXXXXXXX26

Interested in her?

Send a note and a broker will come back to you.

Ask about this yacht(954) 560-2811

In detail

More about this yacht

Structural Materials

  • Hull bottom and sides in sandwich of GRP and PVC core (density 80-100 kg/m3).
  • Main deck and deckhouse in sandwich of GRP and PVC core (density 60 kg/m3).
  • Hull lamination all in vinylester resin.
  • All other laminates in polyester isophtalic resin.
  • Construction of main laminates by infusion.
  • GRP stiffeners laminated on PVC formers by hand lay-up directly to the shell laminates.
  • DSM gelcoat, white colour.
  • Lower deck structural cabin sole in GRP sandwich.
  • Watertight and structural bulkheads in in sandwich of GRP and PVC core (density 80 kg/ m3). Partition bulkheads in marine plywood. Bulkheads fastened to shell by lamination.
  • Independent fuel tanks in aluminium 5052.
  • Independent freshwater tanks in aluminium 5052.
  • Grey and black water tanks in aluminium 5052.

Engine Room and Marine Systems

  • 2 X 440HP Yanmar or Volvo engines.
  • Bow thruster (1).
  • Onan 13.5 KW generator includes muffler and gas water separator.
  • Air conditioning 65,000 BTU Climma CWS (with inverter).
  • Engine rooms with access from hatch on main deck.
  • ER insulation materials Pyrotek Sorberbarrier.
  • Bonding by copper strip 4 x 32 mm.
  • 2 x shaft drive gearboxes.
  • 2 x shafts in stainless duplex steel. GRP sterntube.
  • 2 x rudders in stainless steel 316L.
  • 2 x propellers (Cu3), 4 fixed blades.
  • Sea Star hydraulic helm.
  • Mufflers for main engines and generator.
  • 2 x ER air inlets with moisture eliminators.
  • 2 x automatic fire-suppression system, Seafire. With heat sensor and alarm.
  • 2 x air blowers for ER forced ventilation.
  • 4 x fire dampers with remote shut-off. 2 x engine fuel filters.
  • Genset fuel filter.
  • Fuel transfer pump.
  • Fuel hose, Trident 365.
  • 8 x bilge pumps throughout the boat, with highwater alarm.
  • 1 x 60lts/16gal water heater.
  • 2 x freshwater pumps.
  • 3 x grey water sump pumps and tank.
  • Grey water macerator pump.
  • Black water macerator pump.
  • 2 x deck wash points (cockpit, bow).
  • 2 x ER cameras.
  • 1 x docking camera.
Show more, 5 further sections

Electronics

  • Autopilot, with control head (Raymarine P70).
  • 2 x multifunctional display Raymarine Axoim Pro 16” (1 x flybridge and 1 x main deck helm).
  • Raymarine i70, echo sounder, GPS RS 130, including Raymarine backbone and cables.
  • AIS (with antenna) VHF (with antenna).
  • Raymarine fish-finder sensor CP 100 + CPT 120.
  • Raymarine Radar FLIR Quantum Q24C.
  • Chain counter.

Electrical System

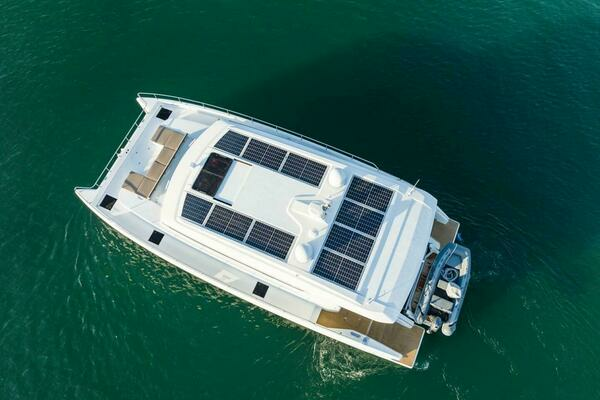

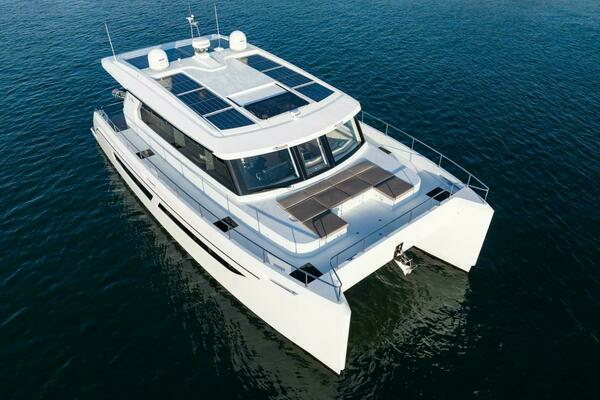

  • Solar panels 2600w with regulating/charging system.
  • Bonded electrical system with ground plate.
  • 24VDC, 220/110VAC ship systems.
  • 2 x engine AGM gel-type start batteries, 150 Ah.
  • 1 x generator AGM gel-type start battery, 150 Ah.
  • 24V 600 ah lithium house bank.
  • Inverter/Charger Victron Multiplus 24/5000/120.
  • Converter Victron Orion 24/12-40.
  • Vimar switches.
  • Circuit breakers and fuses BEP.
  • Quick Spa interior/exterior LED lights.
  • Hella Marine navigation and anchor lights.
  • Main distribution switchboard panels AC/DC.
  • 2 x shore power cord 50A (Marinco).
  • 220V/110V sockets (Vimar) throughout.

Exterior Outfitting

  • Aft cockpit folding-edge table in teak.
  • Horn 24V.
  • Searchlight with remote dash-mount control.
  • TV antenna, Glomex.
  • Fenders and mooring lines x 6.
  • Primer coat, antifouling (black).
  • Propspeed paint to shafts and propellors.
  • Hull structural keel.
  • Hull portlights Lewmar flush Mitre size 1.
  • S/S cap rub-rail on hull side.
  • Deck hatches Lewmar Mitre flush hatch size 44.
  • Large windshield hatch on main deck.
  • S/S mooring cleats 13”, 2 x S/S bollards 15”.
  • Vertical windlass Quick, 2000W 24V, with deck switches.

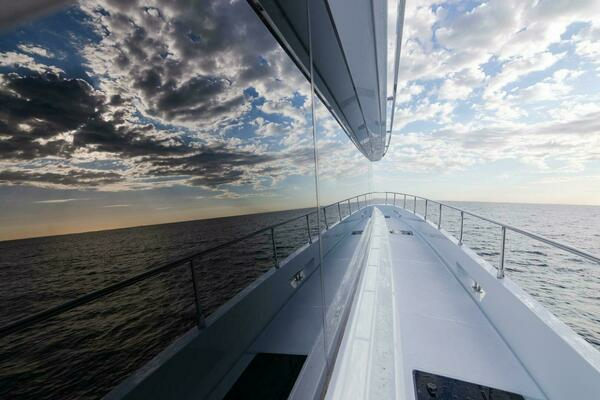

  • S/S 316L handrails.
  • Cockpit sern gates in stainless steel.
  • 2 x hot/cold shower faucets, fitted at port and starboard transom steps.
  • Swissway swim ladder with Carina railing telescopic 3 +2 in transom hidden and flush mounted.
  • 2 x stainless steel bow pulpits with teak seats.
  • All outdoor cushions in Sunbrella fabric.
  • All GRP non-skid areas molded into the laminate.
  • GRP hard-top with S/S navigation mast.
  • Synthetic teak (cockpit, stairs and boarding platform).
  • Lewmar anchor (DTX 40kgs/88lbs) with 60m/196ft x 10mm/3’8” short link chain.
  • Stainless steel davit lifting system with electric winch (250kgs).
  • Cockpit cabinet with storage.
  • 37L stainless steel bin in cockpit cabinet.
  • Stainless steel electric grill with hatch, in cockpit cabinet.
  • Cockpit dining table in teak timber.
  • 6 x Aqualuma underwater lights (blue or white).

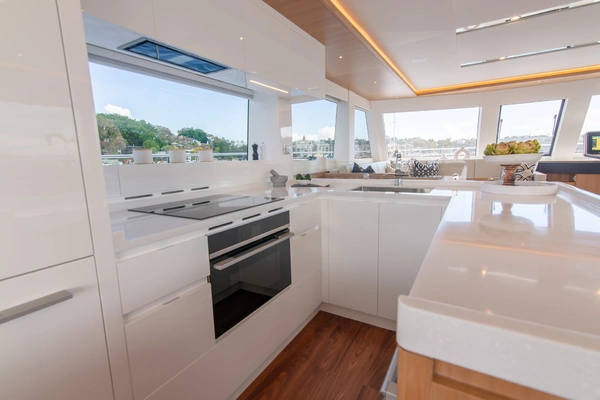

Interior Outfitting

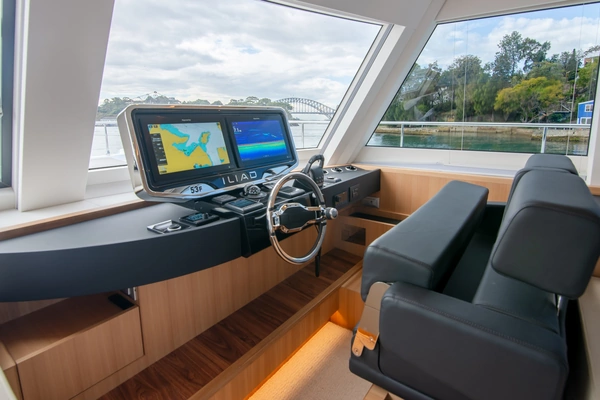

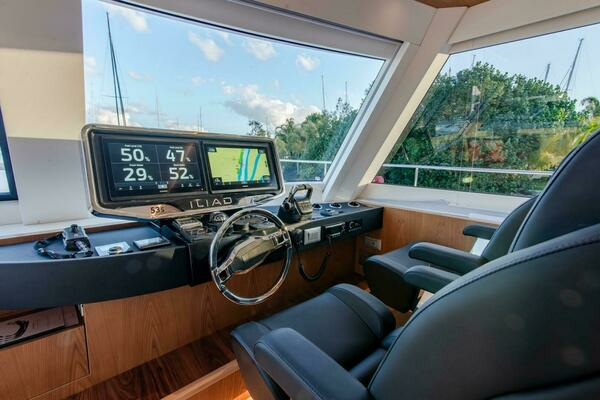

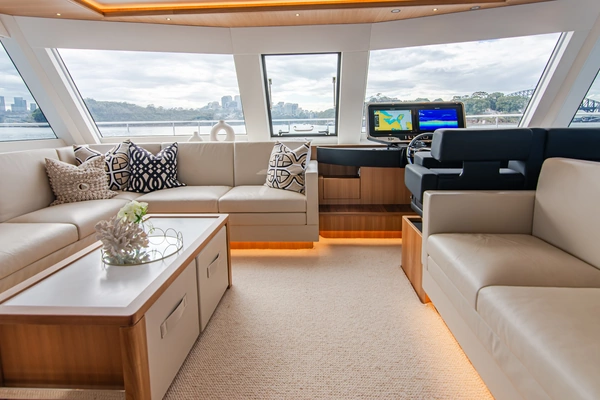

  • Main deck helm station with engine instrumentation, windscreen wiper and a double Besenzoni Dragonfly adjustable helm seat (fore and aft adjustment).
  • Helm station engine controls and displays.
  • Tilt mechanism steering wheel.
  • Magnetic compass.
  • Side shelf/office desk.
  • Windscreen wiper.
  • Fusion entertainment system (2 speakers in saloon and cockpit with remote, amplifier and subwoofer.
  • TV electric lift in saloon (suitable for 50” TV, not standard).

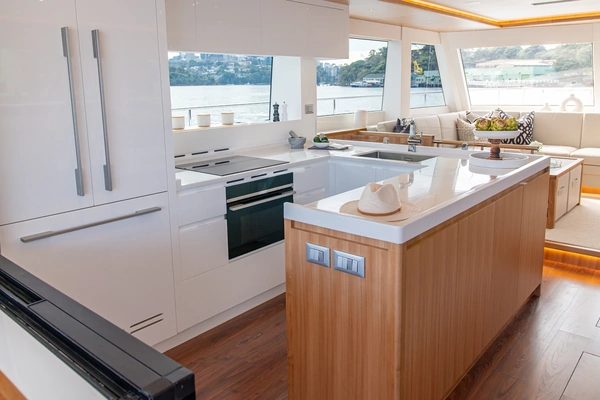

  • Fridge-freezer.
  • Induction cooktop hob.
  • Oven-microwave combination (galley).
  • Draw fridge in cockpit.
  • S/S 316L interior handrails.

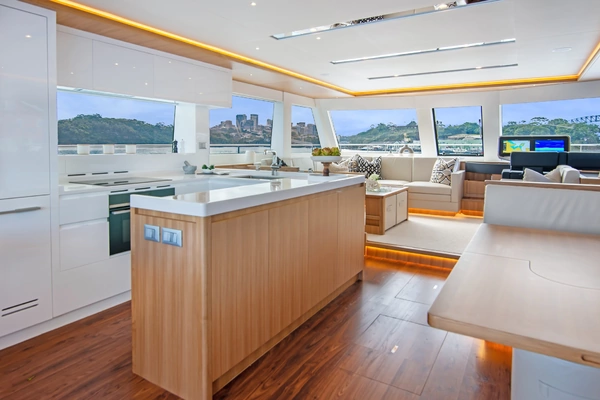

  • Solid Surface galley and bathroom countertops (LG HI-MACS).
  • BLUM drawer systems and cabinet hinges.
  • Parquet laminate flooring on main deck galley/ dinette area.
  • Teak flooring in all bathrooms.
  • Timber veneer furniture and interior decorations.
  • Ceiling and wall panels in synthetic leather fabric.
  • Sofas and seats upholstery in synthetic leather (Ultraleather by Ultrafabrics).

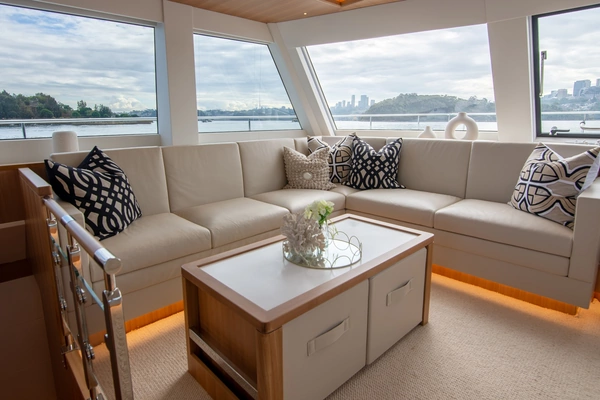

  • Saloon coffee table with two ottomans.
  • Dinette table with two stools. Drawer storage beneath dinette sofa.
  • Liquor cabinet fitted into galley counter (if choosing Galley Option A).
  • Dark leather at main deck helm station and above TV cabinet.
  • Manual blinds on all hull windows.
  • Electric blinds on main deck windows (excludes sliding door to cockpit).

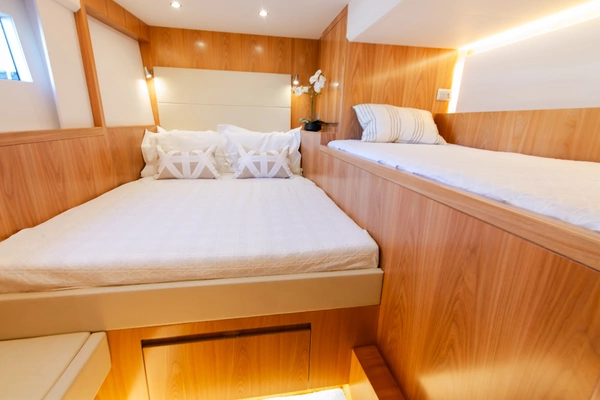

  • Memory foam mattresses.
  • Galley SS sink with water faucet (hot/cold).
  • Hood above hob. • Air extraction fans in all bathrooms.
  • Planus electric toilets with macerator.
  • Ceramic washbasins.
  • Bathroom and shower fixtures (Kohler).
  • Combination washer/dryer.
  • Separate shower stall with teak grating in each bathroom.
  • Carpet in lower decks and main deck forward saloon.

Other

  • Transport cradles.
  • Launching & export formalities.
  • Shrink wrapping in preparation for shipping.
  • Owner’s Manual.

Machinery

Engine 1
2026 Volvo, 440 hp, Diesel
Engine 2
2026 Volvo, 440 hp, Diesel
